Description

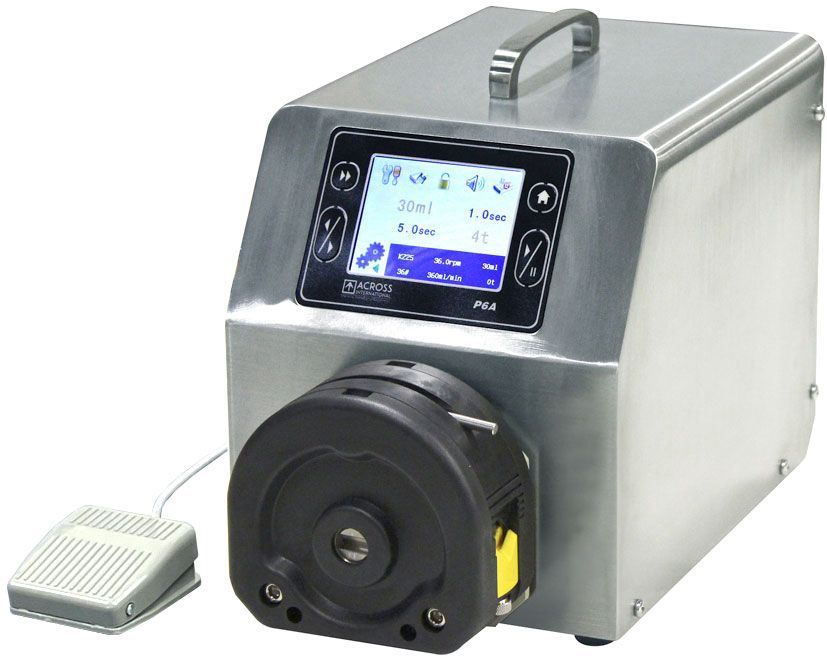

The Across International Ai P6A Peristaltic Pump is a high-capacity positive displacement pump designed for precise fluid transfer, dosing, and laboratory automation applications. Also known as a roller pump, this system moves liquids through flexible tubing using rotating rollers that compress and release the tubing in a controlled motion known as peristalsis.
Because the fluid remains fully contained within the tubing, the pump provides contamination-free fluid handling, making it ideal for laboratory research, chemical processing, pharmaceutical applications, and controlled fluid dosing systems.
The Ai P6A peristaltic pump delivers flow rates up to 6 liters per minute (1.6 gallons per minute) and features adjustable rotation speeds up to 600 RPM with 0.1 RPM precision, allowing for accurate and consistent fluid movement. The color LCD touchscreen controller allows users to easily configure pump speed, distribution cycles, timers, and dosing intervals.
With auto-sensing 110-230V power compatibility, the Ai P6A is designed for both stand-alone laboratory operation and integration into automated PLC-controlled systems.
How Peristaltic Pumps Work
Peristaltic pumps move fluid through flexible tubing using rotating rollers that compress the tube against the pump housing. As the rotor turns, the rollers push the fluid forward while preventing backflow.
Once the tubing returns to its natural shape, it draws additional fluid into the line, creating a continuous and controlled pumping action known as peristalsis.
Key advantages include:
• Contamination-free fluid transfer
• Precise metering and dosing
• Minimal maintenance (tubing replacement only)
• Safe pumping of sensitive or corrosive fluids
Key Features
• Maximum flow rate: 6 L/min (1.6 gallons/min)
• High-performance K25 pump head
• Variable speed control up to 600 RPM
• 0.1 RPM adjustment increments for precise fluid delivery
• Color LCD touchscreen controller
• Programmable distribution cycles and timers
• Auto-sensing voltage (110V–230V)
• Remote on/off switch included
• Supports tubing sizes up to 1/2 inch
• ETL tested to UL and CSA safety standards
Ideal Applications
The Ai P6A Peristaltic Pump is commonly used for:
• Laboratory fluid transfer
• Chemical dosing systems
• Biotech and pharmaceutical processing
• Extraction and filtration systems
• Research laboratories
• Automated reagent delivery
• Industrial fluid metering
Technical Specifications
Electrical Requirements
Voltage: 110V – 230V (auto intelligent voltage recognition)
Frequency: 50/60 Hz
Phase: Single Phase
Power Consumption: 300 Watts
Power Cord Included: 110V US 3-Prong
Optional: 230V power cord available upon request
Pump Performance
Maximum Flow Rate: 6 L/min (1.6 gallons/min)
Maximum Rotation Speed: 600 RPM
Speed Adjustment: 0.1 RPM increments
Pump Head: K25
Maximum Tubing Size: 1/2 inch
Standard Tubing Model: TP6A.XF
Controller

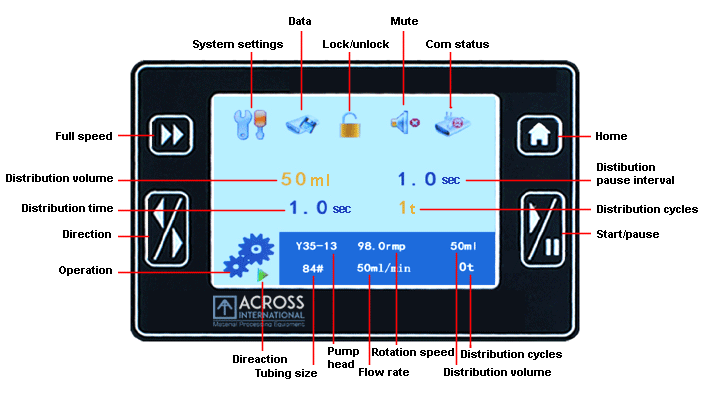

Controller Type: Color LCD Touchscreen
Distribution Range: 0 – 9,999 cycles
Distribution Timer: 0.1 seconds – 9,999 minutes
Distribution Interval: 0.1 seconds – 9,999 minutes
Fluid Retainment Function:
Pump Roll Back: 10 – 720° (1° increments)
Speed Range: 10 – 300 RPM
Operating Environment
Temperature: 0°C – 40°C
Humidity: < 80%
IP Rating: IP31
Communication & Automation
Included:

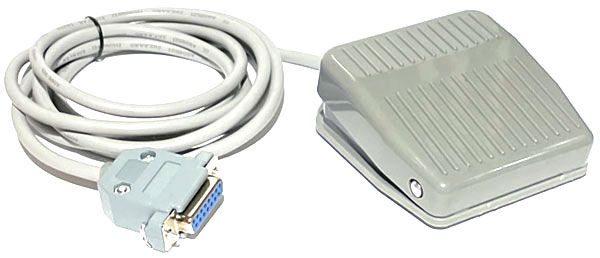

• Remote On/Off Switch (75 inches)
Optional Communication Interfaces:
• RS485
• 0-5V input
• 0-10V input
• 4-20mA input
These allow PLC control of pump start, stop, speed, and rotation direction for automated systems.
Dimensions & Weight

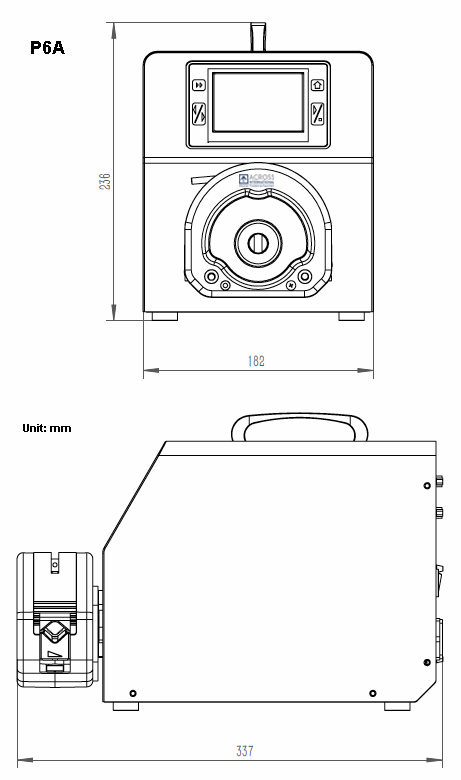

Unit Dimensions: 7 x 13.5 x 9 inches (W x D x H)
Shipping Dimensions: 12 x 20 x 14 inches
Unit Weight: 12 lbs
What's Included
• Ai P6A Peristaltic Pump – 1 unit
• Silicone Tubing (9.6mm ID / 14.4mm OD) – 6.5 ft
• Hose Barb Adapters – 2 pcs
• Remote On/Off Switch (75 inches) – 1 pc
• 110V US 3-Prong Power Cord – 1 pc
(230V cord available upon request)
• User Manual
Certifications & Compliance
ETL tested to UL and CSA standards
Warranty
1 Year Manufacturer Warranty
