Description

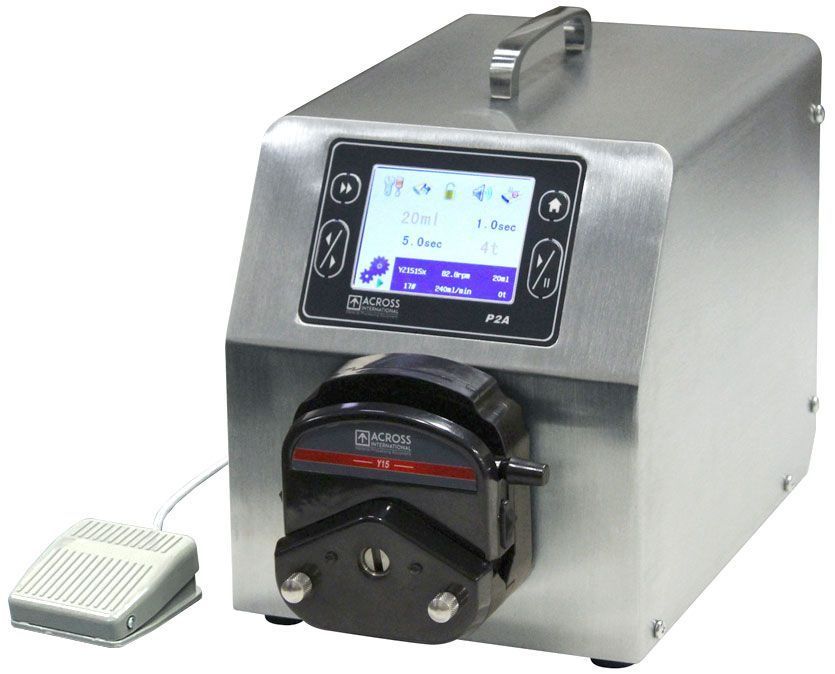

The Across International Ai P2A Peristaltic Pump is a high-performance positive displacement pump designed for precise fluid transfer, dosing, and laboratory automation applications. Also known as a roller pump, this system moves liquids through flexible tubing using rotating rollers that compress and release the tube in a controlled motion known as peristalsis.
Because the fluid only contacts the tubing, the pump provides contamination-free operation, making it ideal for laboratory research, chemical processing, pharmaceutical production, and precision fluid dosing applications.
The Ai P2A delivers flow rates up to 2.3 liters per minute (0.6 gallons per minute) and features adjustable speeds up to 600 RPM with 0.1 RPM precision, allowing users to maintain accurate and consistent fluid delivery. A color LCD touchscreen controller allows users to easily control speed, distribution timing, and dosing intervals.
Designed with auto-sensing voltage (110V–230V) and advanced control features, the Ai P2A peristaltic pump offers flexible integration into both stand-alone lab setups and automated PLC systems.
How Peristaltic Pumps Work
Peristaltic pumps move fluid through a flexible tube that is compressed by rotating rollers inside the pump housing. As the rollers rotate, they pinch the tubing closed, pushing the fluid forward. When the tubing relaxes back to its natural shape, it draws additional fluid into the tube.
This peristaltic action, similar to biological processes such as the digestive system, provides several advantages:
• Contamination-free pumping
• Precise dosing and metering
• Minimal fluid exposure to pump components
• Easy maintenance by replacing tubing
Key Features
• Maximum flow rate: 2.3 L/min (0.6 gallons/min)
• Variable speed control up to 600 RPM
• 0.1 RPM adjustment increments for precise fluid delivery
• Color LCD touchscreen controller
• Programmable distribution cycles and timers
• Auto-sensing voltage (110V-230V)
• Remote on/off control switch included
• Supports tubing sizes up to 1/2 inch
• ETL tested to UL and CSA standards
Ideal Applications
The Ai P2A Peristaltic Pump is commonly used for:
• Laboratory fluid transfer
• Chemical dosing systems
• Biotech and pharmaceutical processing
• Extraction and filtration systems
• Research laboratories
• Automated fluid distribution systems
Technical Specifications
Electrical Requirements
Voltage: 110V – 230V (auto intelligent voltage recognition)
Frequency: 50/60 Hz
Phase: Single Phase
Power Consumption: 50 Watts
Power Cord Included: 110V US 3-Prong
Optional: 230V cord available upon request
Pump Performance
Maximum Flow Rate: 2.3 L/min (0.6 gallons/min)
Maximum Rotation Speed: 600 RPM
Speed Adjustment: 0.1 RPM increments
Pump Head: Y15
Maximum Tubing Size: 1/2 inch
Standard Tubing Model: TP1M.XF

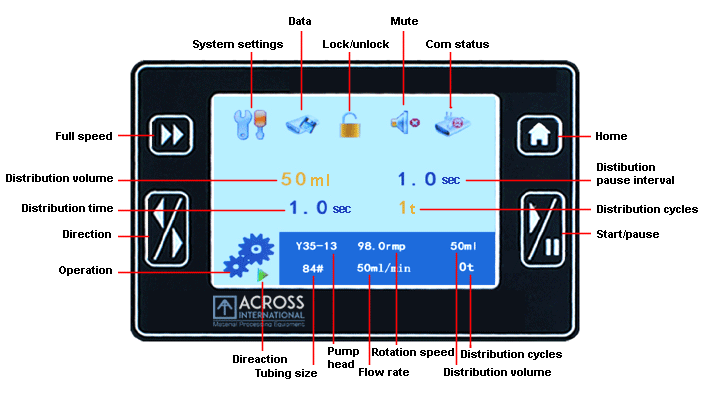

Controller
Controller Type: Color LCD Touchscreen
Distribution Range: 0 – 9,999 cycles
Distribution Timer: 0.1 seconds – 9,999 minutes
Distribution Interval: 0.1 seconds – 9,999 minutes
Fluid Retainment Function:
Pump Roll Back: 10 – 720° (1° increments)
Speed Range: 10 – 300 RPM
Operating Environment
Temperature: 0°C – 40°C
Humidity: < 80%
IP Rating: IP31
Communication & Control
Included:
• Remote On/Off Switch
Optional Communication Interfaces:
• RS485
• 0-5V input
• 0-10V input
• 4-20mA input
These allow PLC control of pump start, stop, speed, and rotation direction.

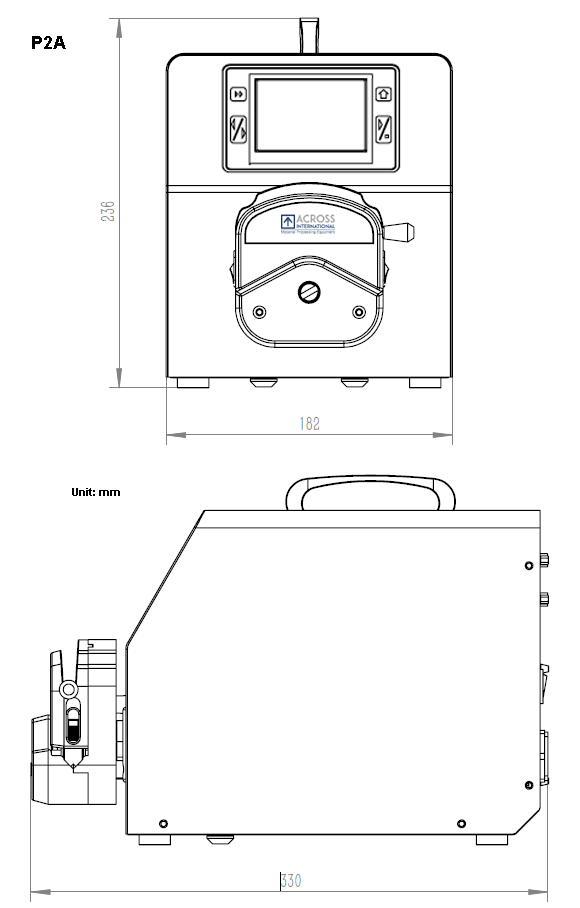

Dimensions & Weight
Unit Dimensions: 7 x 13 x 9 inches (W x D x H)
Shipping Dimensions: 12 x 19 x 13 inches
Unit Weight: 15 lbs
What's Included
• Ai P2A Peristaltic Pump – 1 unit
• Silicone Tubing (6.4mm ID / 9.6mm OD) – 6.5 ft
• Hose Barb Adapters – 2 pcs

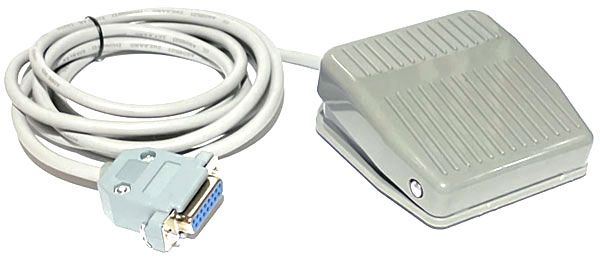

• Remote On/Off Switch (75 inches) – 1 pc
• 110V US 3-Prong Power Cord – 1 pc
(230V cord available upon request)
• User Manual
Certifications & Compliance
ETL tested to UL and CSA standards
Warranty
1 Year Manufacturer Warranty
