Description

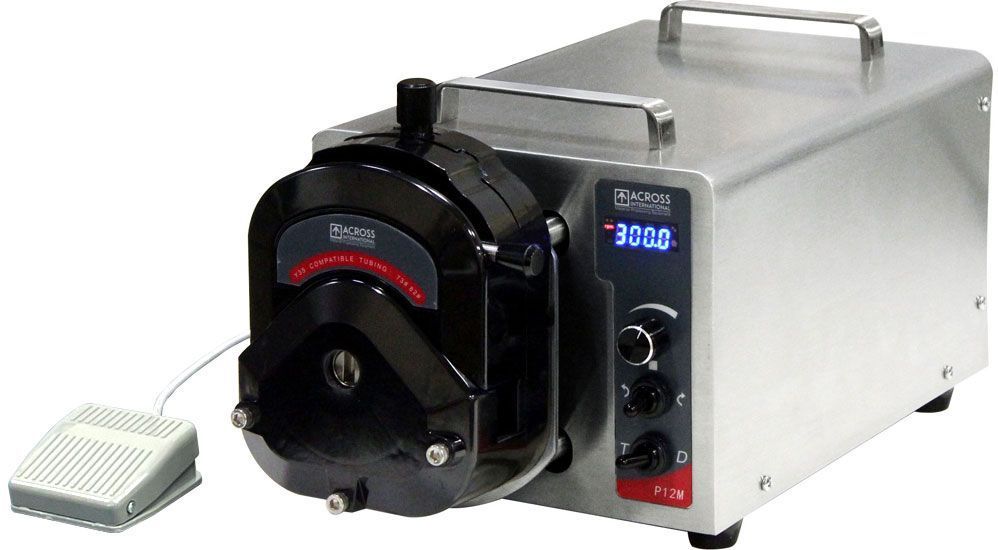

The Across International Ai P12M Peristaltic Pump is a high-capacity positive displacement pump engineered for precise fluid transfer, dosing, and continuous laboratory pumping applications. Often referred to as a roller pump, this system moves fluids through flexible tubing using rotating rollers that compress and release the tube in a process known as peristalsis.
Because the fluid remains fully contained within the tubing, the pump ensures contamination-free pumping, making it ideal for chemical processing, laboratory research, pharmaceutical production, and industrial fluid handling.
The Ai P12M delivers flow rates up to 12 liters per minute (3.2 gallons per minute) and features adjustable rotation speeds up to 600 RPM with 0.1 RPM precision, allowing for accurate control of fluid movement. The pump is equipped with a high-capacity Y35 pump head capable of supporting larger tubing sizes for higher-volume fluid transfer.
With automatic 110–230V voltage recognition, the Ai P12M can operate globally and easily integrate into manual lab setups or automated PLC-controlled systems.
How Peristaltic Pumps Work
Peristaltic pumps move fluid through flexible tubing using rotating rollers that compress the tube against the pump housing. As the rotor turns, the rollers push fluid forward while preventing backflow.
Once the tubing returns to its natural shape, it draws additional fluid into the line, creating a continuous pumping cycle known as peristalsis, similar to processes used in biological systems such as the gastrointestinal tract.
Key advantages include:
• Contamination-free fluid transfer
• Precise dosing and metering
• Minimal maintenance (tubing replacement only)
• Safe handling of sensitive or corrosive fluids
Key Features
• Maximum flow rate: 12 L/min (3.2 gallons/min)
• High-capacity Y35 pump head
• Variable speed control up to 600 RPM
• 0.1 RPM speed adjustment increments
• Analog controller for simple operation
• Auto-sensing voltage (110V–230V)
• Remote on/off switch included
• Supports tubing sizes up to 5/8 inch
• ETL tested to UL and CSA standards
Ideal Applications
The Ai P12M Peristaltic Pump is commonly used for:
• Laboratory fluid transfer
• Chemical dosing systems
• Biotech and pharmaceutical processing
• Industrial fluid metering
• Extraction and filtration systems
• Automated reagent delivery
Technical Specifications
Electrical Requirements
Voltage: 110V – 230V (auto intelligent voltage recognition)
Frequency: 50/60 Hz
Phase: Single Phase
Power Consumption: 500 Watts
Power Cord Included: 110V US 3-Prong
Optional: 230V cord available upon request
Pump Performance
Maximum Flow Rate: 12 L/min (3.2 gallons/min)
Maximum Rotation Speed: 600 RPM
Speed Adjustment: 0.1 RPM increments
Pump Head: Y35
Maximum Tubing Size: 5/8 inch
Standard Tubing Model: TP12M.XF
Controller
Controller Type: Analog
Distribution Range: 0 – 9,999 cycles
Distribution Timer: 0.1 seconds – 9,999 minutes
Distribution Interval: 0.1 seconds – 9,999 minutes
Fluid Retainment Function:
Pump Roll Back: 10 – 720° (1° increments)
Speed Range: 10 – 300 RPM
Operating Environment
Temperature: 0°C – 40°C
Humidity: < 80%
IP Rating: IP31
Communication & Automation
Included:

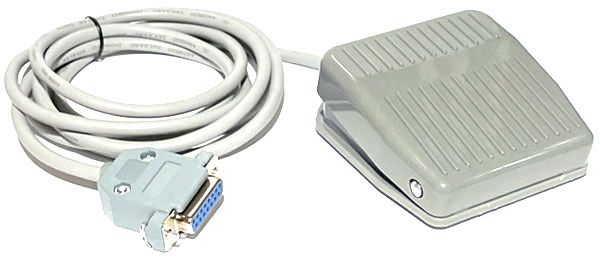

• Remote On/Off Switch (75 inches)
Optional Communication Interfaces:
• RS485
• 0-5V input
• 0-10V input
• 4-20mA input
These allow PLC control of pump start, stop, speed, and rotation direction.
Dimensions & Weight

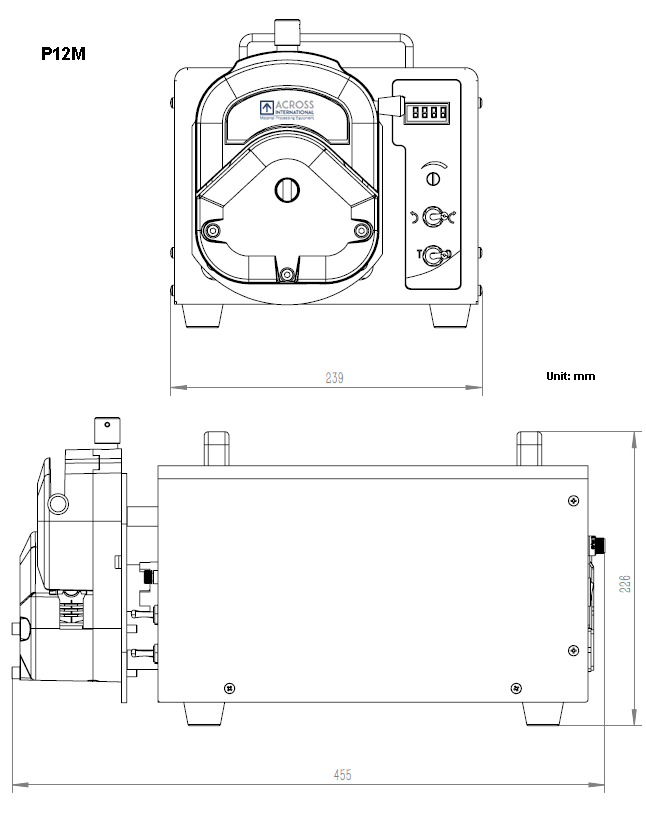

Unit Dimensions: 9 x 18 x 9 inches (W x D x H)
Shipping Dimensions: 15 x 24 x 17 inches
Unit Weight: 20 lbs
What's Included
• Ai P12M Peristaltic Pump – 1 unit
• Silicone Tubing (9.6mm ID / 16.2mm OD) – 6.5 ft
• Hose Barb Adapters – 2 pcs
• Remote On/Off Switch (75 inches) – 1 pc
• 110V US 3-Prong Power Cord – 1 pc (230V cord available upon request)
• User Manual
Certifications & Compliance
ETL tested to UL and CSA standards
Warranty
1 Year Manufacturer Warranty
