Description

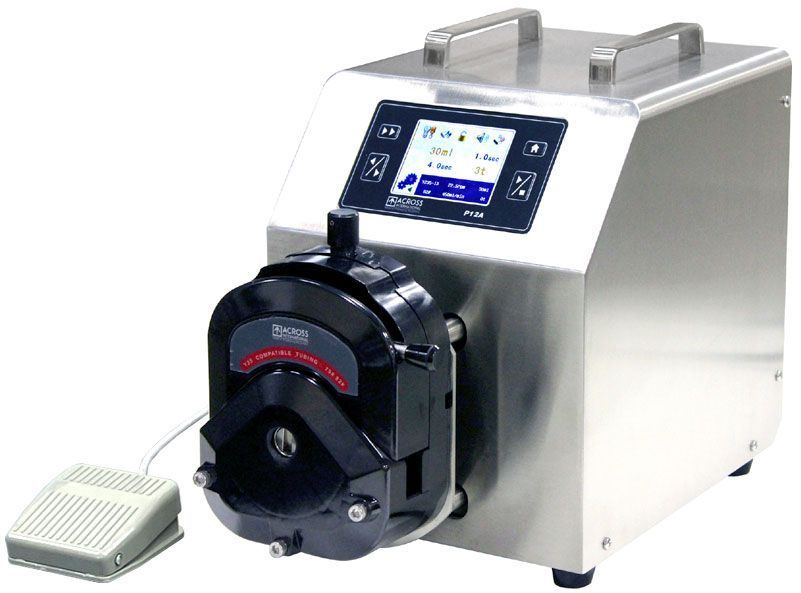

The Across International Ai P12A Peristaltic Pump is a high-capacity positive displacement pump designed for precise fluid transfer, dosing, and continuous laboratory pumping applications. Also referred to as a roller pump, this system moves liquids through flexible tubing using rotating rollers that compress and release the tube in a controlled process known as peristalsis.
Because the fluid remains fully contained within the tubing, the pump ensures contamination-free fluid handling, making it ideal for laboratory research, chemical processing, pharmaceutical production, and industrial fluid transfer applications.
The Ai P12A delivers flow rates up to 12 liters per minute (3.2 gallons per minute) and features adjustable speeds up to 600 RPM with 0.1 RPM precision, allowing for accurate control of fluid movement. The system includes a large color LCD touchscreen controller that allows users to configure pump speed, distribution cycles, timers, and dosing intervals with ease.
Equipped with auto-sensing voltage (110–230V) and a high-capacity Y35 pump head supporting tubing sizes up to 3/4 inch, the Ai P12A provides powerful and flexible fluid pumping for both manual lab setups and automated PLC-controlled systems.
How Peristaltic Pumps Work
Peristaltic pumps move fluids through flexible tubing using rotating rollers that compress the tubing against the pump housing. As the rotor rotates, the rollers push the trapped fluid forward through the tube while preventing backflow.
Once the tubing returns to its natural shape, it draws additional fluid into the line. This peristaltic action, similar to processes used in biological systems such as the digestive tract, creates a smooth and controlled pumping cycle.
Advantages include:
• Contamination-free fluid transfer
• Precise dosing and metering
• Minimal maintenance (tubing replacement only)
• Safe pumping of sensitive or corrosive fluids
Key Features
• Maximum flow rate: 12 L/min (3.2 gallons/min)
• High-capacity Y35 pump head
• Variable speed control up to 600 RPM
• 0.1 RPM speed adjustment increments for precise pumping
• Color LCD touchscreen controller
• Programmable distribution cycles and timers
• Auto-sensing voltage (110V–230V)
• Remote on/off switch included
• Supports tubing sizes up to 3/4 inch
• ETL tested to UL and CSA safety standards
Ideal Applications
The Ai P12A Peristaltic Pump is commonly used for:
• Laboratory fluid transfer
• Chemical dosing systems
• Biotech and pharmaceutical production
• Extraction and filtration systems
• Industrial fluid handling
• Automated reagent delivery systems
Technical Specifications

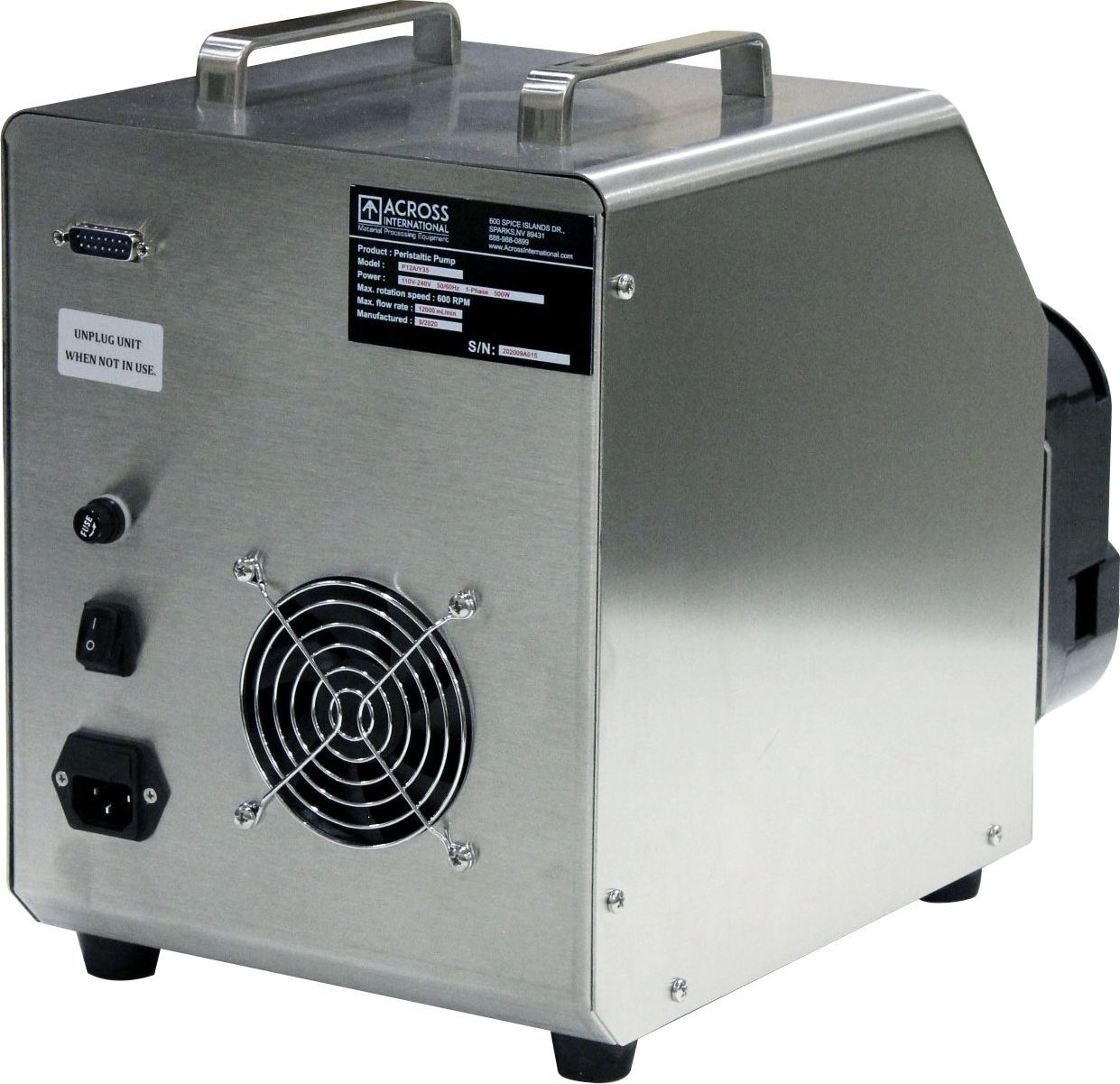

Electrical Requirements
Voltage: 110V – 230V (auto intelligent voltage recognition)
Frequency: 50/60 Hz
Phase: Single Phase
Power Consumption: 500 Watts
Power Cord Included: 110V US 3-Prong
Optional: 230V power cord available upon request
Pump Performance
Maximum Flow Rate: 12 L/min (3.2 gallons/min)
Maximum Rotation Speed: 600 RPM
Speed Adjustment: 0.1 RPM increments
Pump Head: Y35
Maximum Tubing Size: 3/4 inch
Standard Tubing Model: TP12A.XF

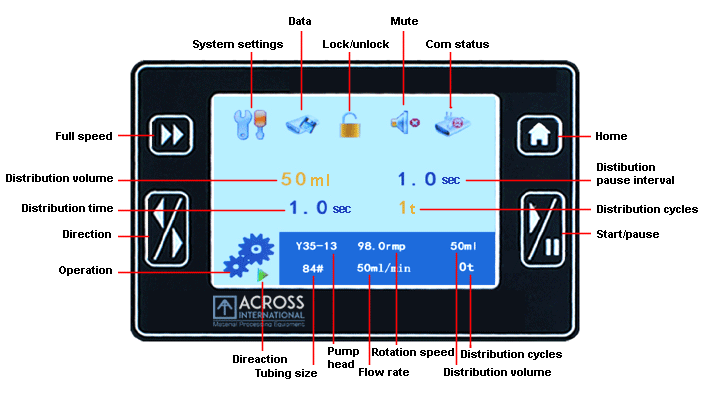

Controller
Controller Type: Color LCD Touchscreen
Distribution Range: 0 – 9,999 cycles
Distribution Timer: 0.1 seconds – 9,999 minutes
Distribution Interval: 0.1 seconds – 9,999 minutes
Fluid Retainment Function:
Pump Roll Back: 10 – 720° (1° increments)
Speed Range: 10 – 300 RPM
Operating Environment
Temperature: 0°C – 40°C
Humidity: < 80%
IP Rating: IP31
Communication & Automation
Included:

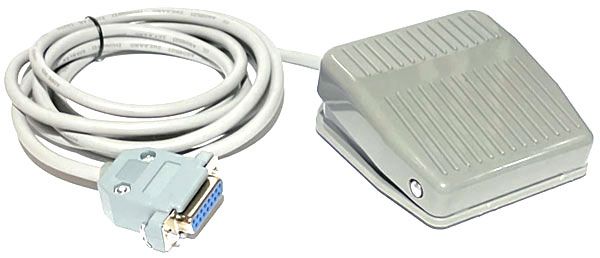

• Remote On/Off Switch (75 inches)
Optional Communication Interfaces:
• RS485
• 0–5V input
• 0–10V input
• 4–20mA input
These allow PLC control of pump start, stop, speed, and rotation direction.

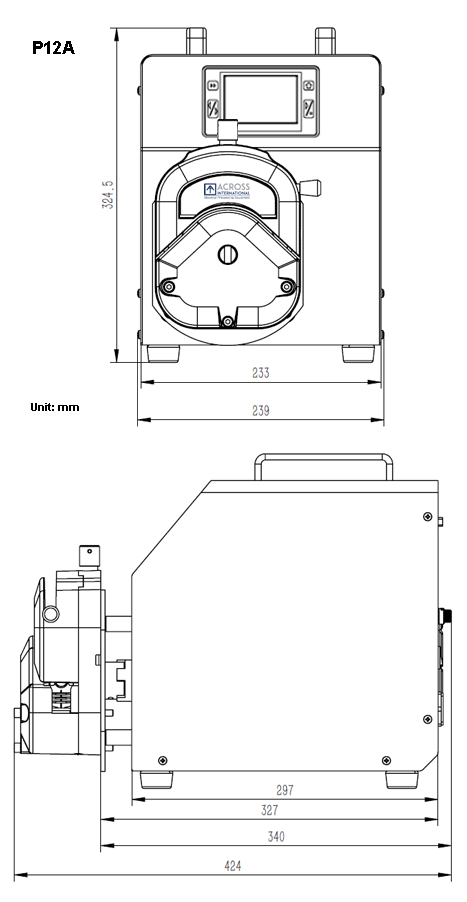

Dimensions & Weight
Unit Dimensions: 9.25 x 15.5 x 12.5 inches (W x D x H)
Shipping Dimensions: 15 x 22 x 18 inches
Unit Weight: 25 lbs
What's Included
• Ai P12A Peristaltic Pump – 1 unit
• Silicone Tubing (12.7mm ID / 19.6mm OD) – 6.5 ft
• Hose Barb Adapters – 2 pcs
• Remote On/Off Switch (75 inches) – 1 pc
• 110V US 3-Prong Power Cord – 1 pc (230V cord available upon request)
• User Manual
Certifications & Compliance
ETL tested to UL and CSA standards
Warranty
1 Year Manufacturer Warranty
