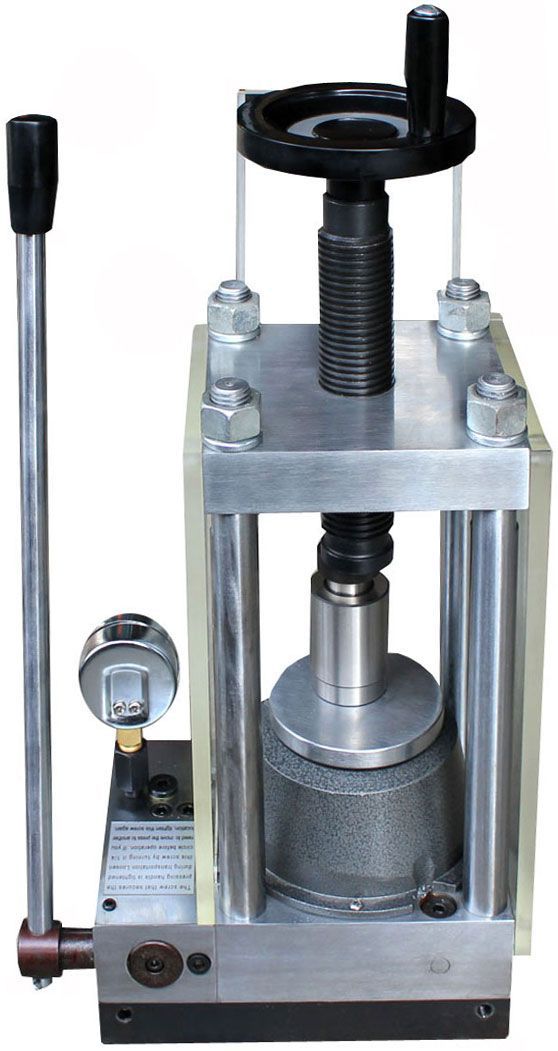

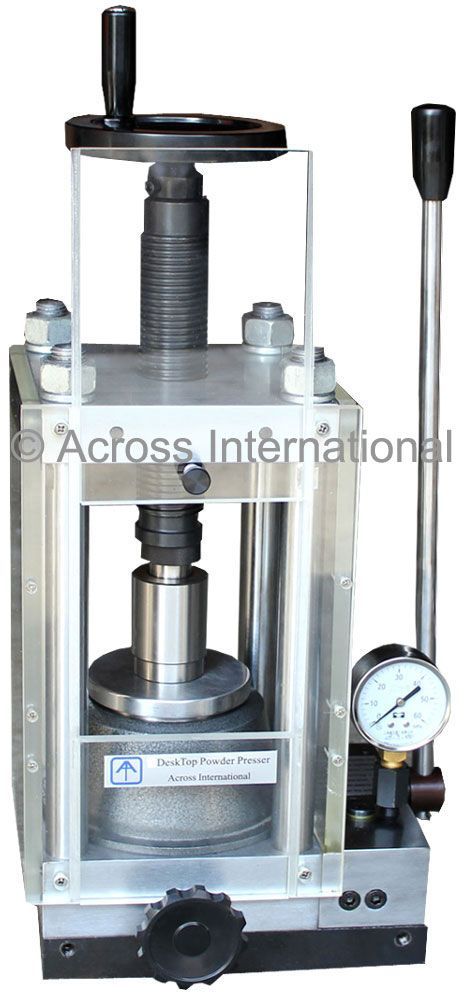

High-Pressure Manual Pellet Press for Laboratory Sample Preparation

The Across International MP24A Manual Pellet Press is a compact, high-pressure laboratory press capable of generating up to 24 metric tons (52,910 lbs) of force. Designed for materials science, chemistry, and research laboratories, this desktop pellet press is ideal for preparing powder samples, pellets, and compound materials for analytical testing.

The MP24A features a built-in hydraulic pump with auto-return functionality, allowing operators to easily apply and release pressure during pellet preparation. A 10 mm thick transparent safety shield provides added protection while allowing clear visibility of the pressing process.

With its heavy-duty steel construction and compact footprint, the MP24A pellet press delivers reliable performance in laboratory environments where high pressing force and sample consistency are essential.

---

Key Features

24 Metric Ton Pressing Capacity

Delivers up to 24 metric tons (52,910 lbs) of pressure, making it suitable for compressing a wide range of powdered materials.

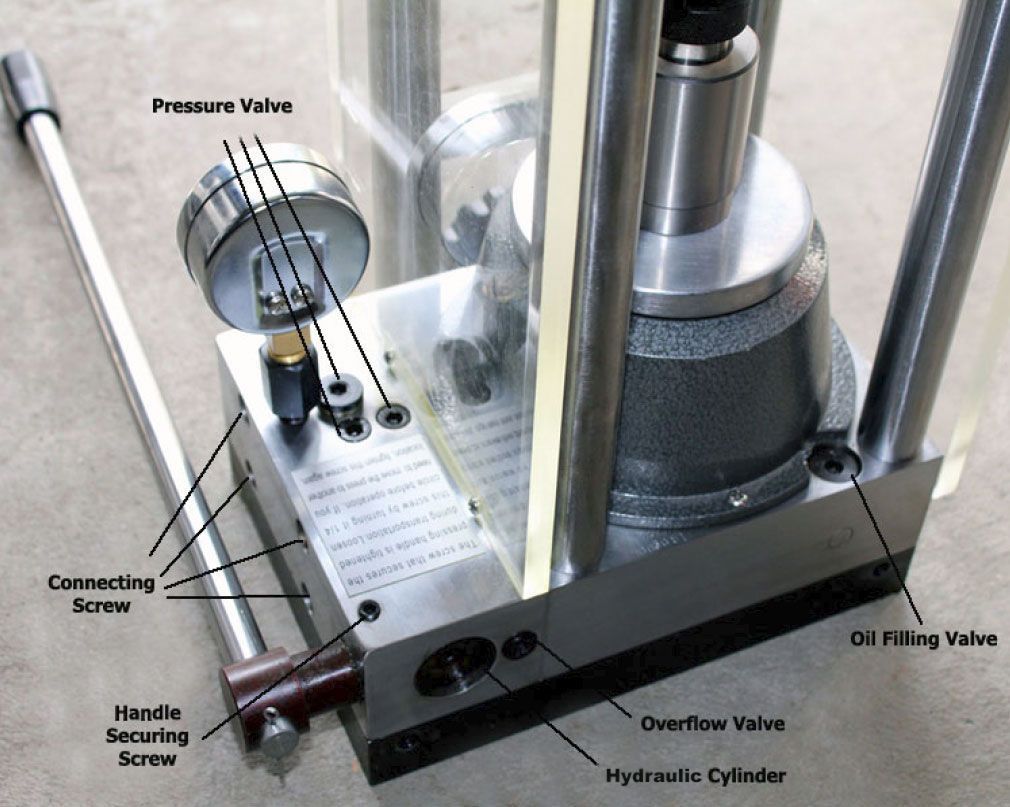

Built-In Hydraulic Pump

Integrated hydraulic pump allows manual pressure control without the need for external hydraulic systems.

Auto-Return Function

The hydraulic system includes automatic piston return, simplifying operation and improving workflow efficiency.

Desktop Laboratory Design

Compact footprint allows the press to be easily placed on laboratory benches or workstations.

Transparent Safety Shield

A 10 mm thick protective shield provides operator safety while allowing visibility during the pressing process.

Compatible with Across International Die Sets

Designed to work with Across International 2" ID round die sets for pellet formation.

---

Typical Applications

The MP24A pellet press is commonly used for:

• Powder pellet preparation for XRF analysis

• Sample preparation for materials science research

• Ceramic and composite material testing

• Chemistry laboratory compound pressing

• Powder compression for analytical spectroscopy

• Research in metallurgy and materials engineering

---

Important Safety Note

⚠ Always wear protective goggles during operation.

High-pressure equipment should only be operated by trained personnel following proper laboratory safety procedures.

---

Technical Specifications

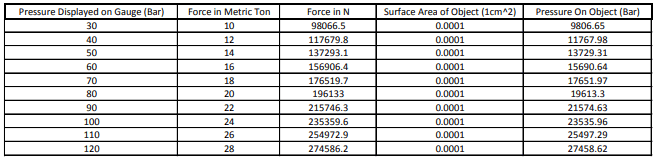

Maximum Pressure

24 metric tons (52,910 lbs)

Maximum Working Space

4 × 4 × 5.5 inches (L × W × H)

Hydraulic Cylinder Travel

1 inch

Compatible Die Sets

Compatible with Across International 2" ID round die sets

Note: 2 × 2 inch pressing dies are not compatible.

---

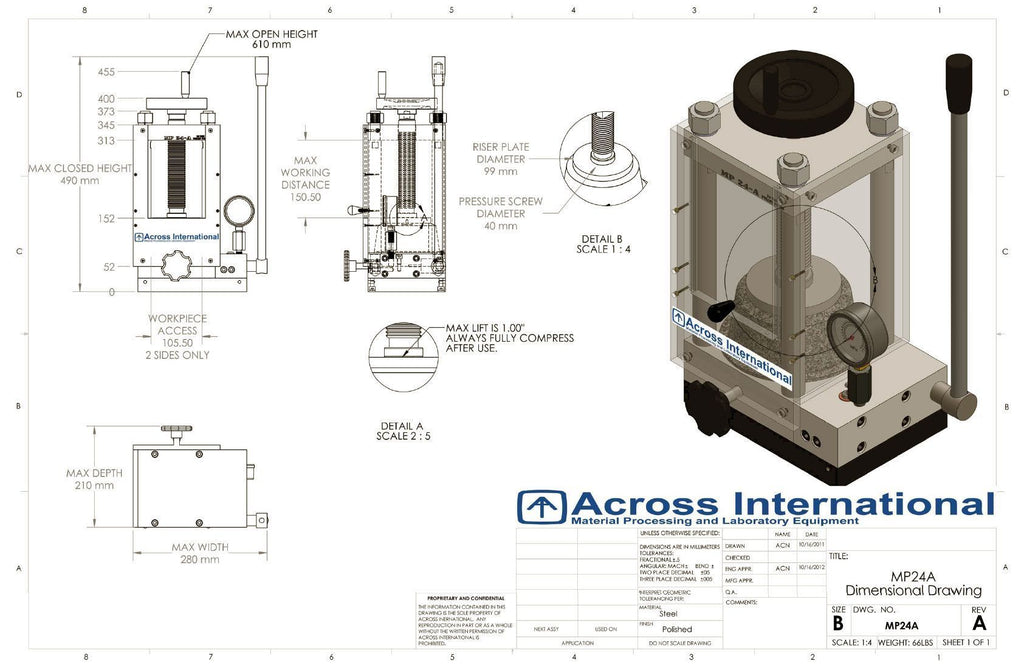

Dimensions and Weight

Machine dimensions
10.5 × 8 × 19 inches (L × W × H)

Machine weight
84 lbs

Shipping weight
110 lbs

Shipping dimensions
15 × 15 × 22 inches

---

Included Components

• MP24A Pellet Press – 1 pc

• Oil Bottle – 1 pc

• Hex L-Key – 2 pcs

• Double Open-End Wrench – 3 pcs

• Sealing O-Ring – 1 pc

• Operation Manual – 1 pc

---

Warranty

Manufacturer Warranty Included
