High-Precision Moisture Analyzer with IR Heating and Advanced Data Management

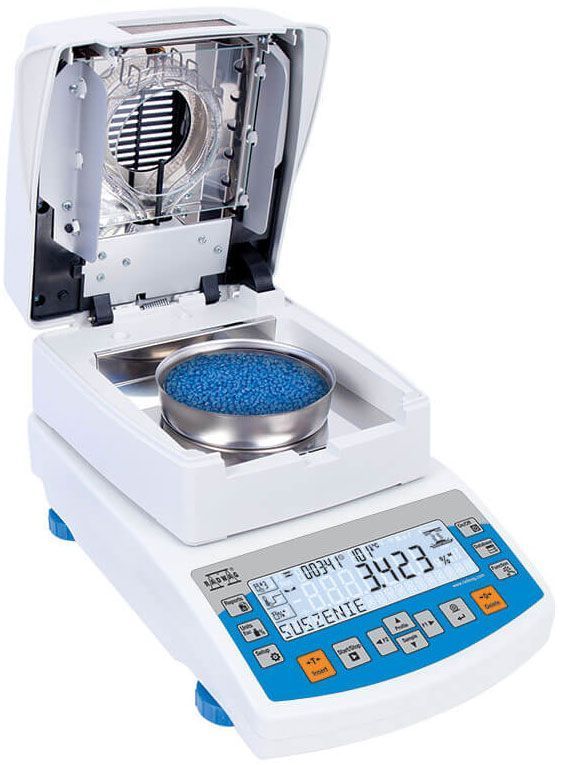

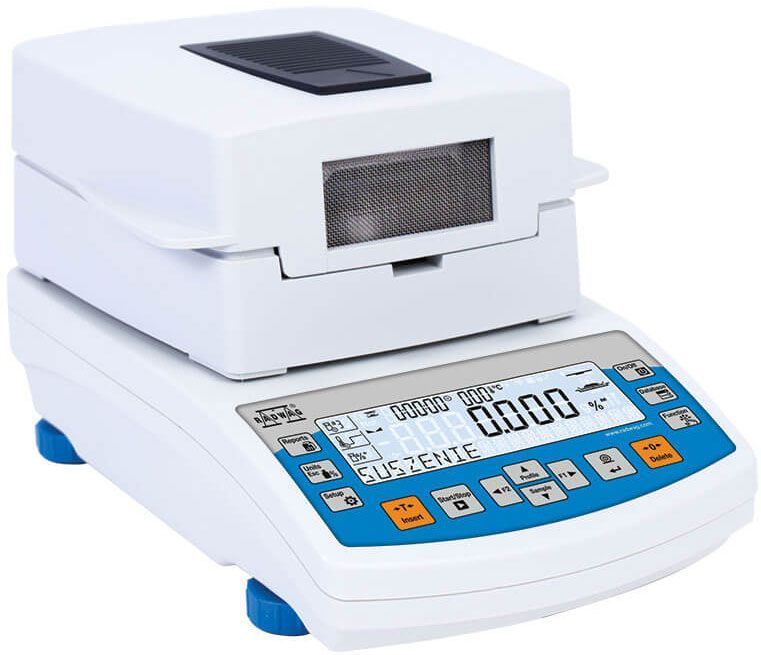

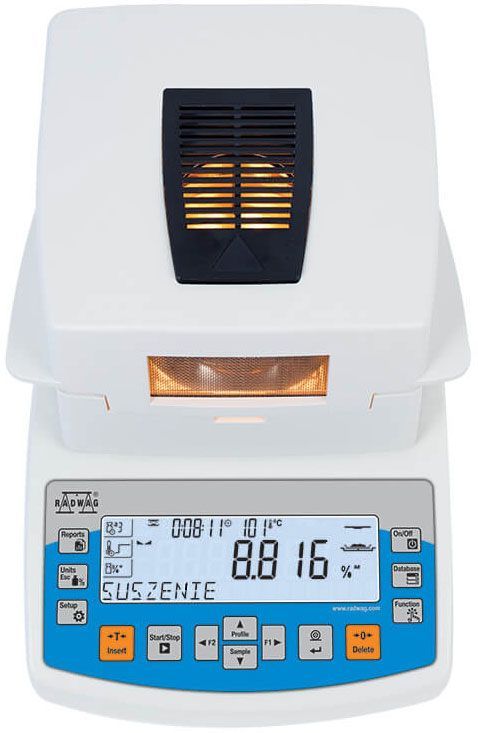

The Radwag MA 50/1.R Moisture Analyzer is a professional laboratory instrument designed to determine moisture content in small material samples with high accuracy and repeatability. With 50 g maximum capacity and 0.1 mg readability, this moisture analyzer is ideal for laboratories requiring precise moisture determination across various industries.

Part of the Radwag MA.R series, this instrument introduces improved usability through a clear backlit LCD display with additional information lines, allowing users to easily monitor drying processes, measurement results, and system messages.

The analyzer uses a high-efficiency infrared (IR) heating module to evaporate moisture from samples while continuously measuring weight changes to determine moisture content, dry mass, and related parameters.

With RS232, USB, and Wi-Fi connectivity, the MA 50/1.R integrates easily with computers, printers, and laboratory data management systems, enabling efficient data storage and reporting.

---

Key Features of the Radwag MA 50/1.R Moisture Analyzer

Accurate Moisture Content Determination

Provides 0.1 mg readability and high repeatability, allowing reliable measurement of moisture content in laboratory samples.

Infrared Heating System

The IR heating module (450 W) ensures efficient drying and consistent evaporation of moisture during analysis.

Backlit LCD Display

Clear backlit LCD display with additional information line allows users to view:

• Measurement results

• System messages

• Product names

• Tare values

• Drying process parameters

Multiple Communication Interfaces

Connectivity options include:

• RS232

• USB Type A

• USB Type B

• Wi-Fi

These interfaces enable connection to computers, printers, and USB storage devices for data transfer and reporting.

Database System

The built-in database system allows multiple operators to manage and analyze drying results efficiently.

Database capacity includes:

• Users: up to 10

• Products: up to 1000

• Weighings: up to 1000

• Tares: up to 100

• Drying programs: up to 100

• Drying reports: up to 1000

Bi-Directional Data Exchange

Measurement data and databases can be imported or exported via USB flash drives, allowing seamless data management and analysis.

Direct Function Access

Dedicated keyboard soft keys provide quick access to:

• Databases

• Measurement functions

• Drying programs

• Drying reports

• Product profiles

---

Drying Modes

The MA 50/1.R moisture analyzer includes four drying profiles designed to suit different materials and drying conditions.

Standard Mode

Balanced heating process suitable for general moisture analysis.

Mild Mode

Gentle heating profile for temperature-sensitive samples.

Fast Mode

Accelerated drying profile for quick moisture determination.

Step Mode

Multi-stage temperature profile designed for complex drying processes.

---

Moisture Analysis Functions

Moisture Content Analysis

Determines the percentage moisture content (%M) of a sample by measuring weight loss during drying.

Sample Drying

Evaporates moisture and volatile components while continuously monitoring weight changes.

Dry Mass Determination

Calculates the remaining sample mass after complete drying.

These measurements are performed using a precision weighing system combined with controlled heating.

---

Ideal Applications

The Radwag MA 50/1.R moisture analyzer is widely used in:

• Pharmaceutical laboratories

• Chemical analysis laboratories

• Food and agriculture testing

• Materials testing laboratories

• Cosmetics manufacturing

• Quality control laboratories

• Academic research institutions

---

Technical Specifications

Model

MA 50/1.R

Part Number: WL-305-0002

---

Weighing Performance

Maximum capacity
50 g

Maximum sample height
20 mm

Readability
0.1 mg

Tare range
−50 g

---

Accuracy

Moisture content repeatability
±0.05% (sample ~2 g)
±0.01% (sample ~10 g)

Moisture content readability
0.0001%

Linearity
±2 g

Stabilization time
3 seconds

---

Heating System

Heating module
Infrared (IR) emitter

Heating power
450 W

Maximum drying temperature
160°C

---

Drying Programs

Drying profiles:

• Standard

• Fast

• Step

• Mild

Finish modes:

• Automatic

• Manual

• Time-defined

• User-defined

---

Display

Backlit LCD display

---

Connectivity

Communication interfaces:

• RS232

• USB-A

• USB-B

• Wi-Fi

---

Power Requirements

110 or 220 VAC, 50/60 Hz

Power consumption
4 W

---

Operating Conditions

Operating temperature
10°C – 40°C

---

Weighing Pan

Pan diameter
3.5 inches

Pan height
8 mm

---

Dimensions & Weight

Package dimensions
18.5 × 15 × 13 inches

Unit weight
10.5 lbs

Shipping weight
14 lbs

---

Warranty

2-Year Manufacturer Warranty
