Description

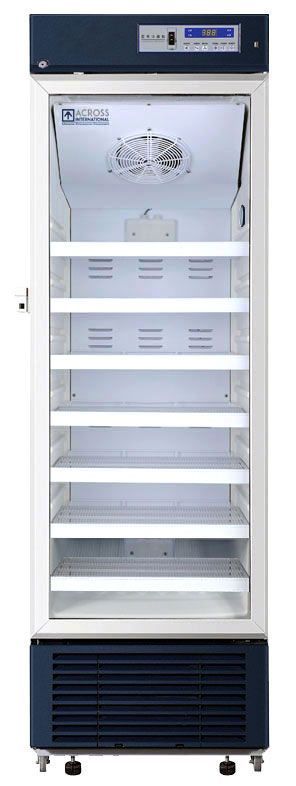

The Across International Ai M14 Medical Vaccine Refrigerator is designed for reliable storage of vaccines, biological samples, and pharmaceutical products requiring stable temperatures between 2°C and 8°C. Built to meet CDC and VFC vaccine storage guidelines, this laboratory-grade refrigerator is ideal for pharmacies, hospitals, research laboratories, public health centers, and pharmaceutical facilities.

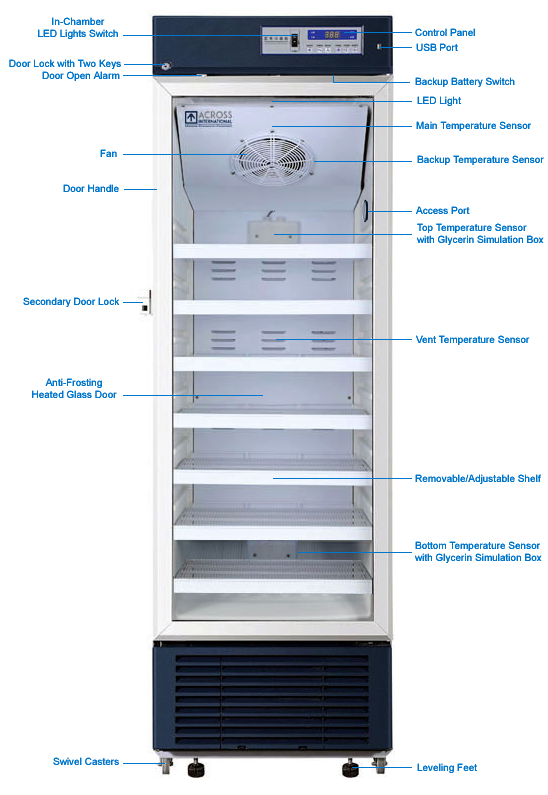

The Ai M14 features forced air circulation technology, ensuring frost-free operation and maintaining temperature uniformity within ±2°C throughout the chamber. A durable stainless steel interior, heated glass door, and advanced alarm system help protect temperature-sensitive materials while providing clear product visibility and secure access.
Equipped with USB data export, remote alarm capability, and a backup battery system, the Ai M14 ensures reliable monitoring and protection of stored medical products in both clinical and research environments.

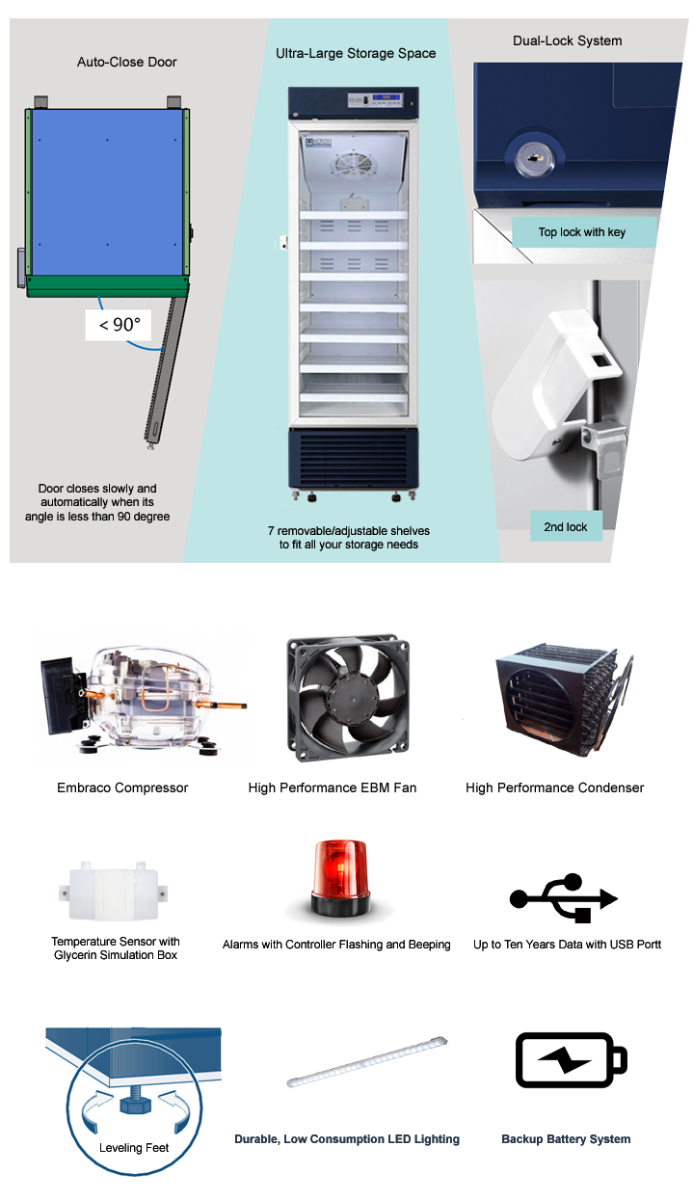

Key Features
• Temperature range: 2°C to 8°C (CDC vaccine storage compliant)
• Forced air circulation for uniform temperature distribution
• Temperature stability within ±2°C
• UL certified laboratory-grade refrigerator
• Stainless steel interior for durability and easy cleaning
• Heated glass door to prevent condensation
• Built-in USB port for temperature data export
• Remote alarm capability for monitoring
• Lockable door for secure storage
• Backup battery for controller and alarm operation
Ideal Applications
The Ai M14 Medical Refrigerator is designed for safe storage of:
• Vaccines (including COVID-19 vaccines)
• Biological samples
• DNA and RNA materials
• Pharmaceutical products
• Laboratory reagents
• Medical supplies
Commonly used in:
• Pharmacies
• Hospitals and clinics
• Pharmaceutical manufacturers
• Public health laboratories
• Research institutions
• Epidemic prevention stations
The refrigerator is preset to 5°C, following CDC guidelines for vaccine storage.
Temperature Performance
Temperature Range: 2°C to 8°C
Temperature Uniformity: ±2°C
Cooling System: Forced air circulation
This system ensures consistent internal temperature throughout the chamber, protecting sensitive biological materials.
Electrical Requirements
Voltage: 115V (±10%)
Frequency: 60Hz
Phase: Single Phase
Power Consumption: 240W
Door Heater: 90W
LED Lighting: 3W
Compressor System
Number of Compressors: 1
Compressor Brand: Embraco
Refrigerant: R600a (HCFC-free environmentally friendly refrigerant)
Chamber Specifications
Interior Dimensions: 22 x 18 x 53 inches (W x D x H)
Storage Capacity: 13.8 Cubic Feet
Interior Material: Stainless Steel
Lighting: Low-heat LED interior lighting
Shelving
Shelf Material: Powder Coated Steel
Number of Shelves: 7
Adjustable shelving allows flexible storage for vaccine boxes and laboratory materials.
Door System
Door Type: Heated glass door
Heater Power: 90W
Security: Lockable door with key
The heated glass design helps prevent condensation while maintaining clear visibility of stored contents.
Controller & Monitoring
Data Interface: USB data export
Backup Battery: Up to 48 hours (controller and alarms)
Remote Alarm: Included
The backup battery allows the system to maintain alarm functionality during power outages.

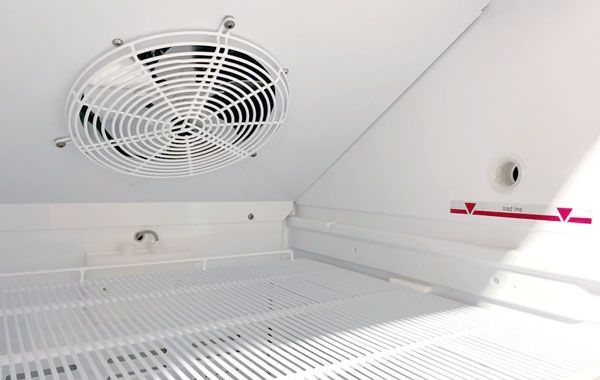

Access Port
Quantity: 1
Diameter: 1 inch
Location: Top right side of the refrigerator
Allows installation of temperature probes or monitoring sensors.
Mobility
Casters: 4
Leveling Feet: 2
Operating Environment
Ambient Temperature: 16°C to 32°C
Ideal Temperature Range: 18°C to 25°C
Humidity: <85% RH
Altitude: Below 2000 meters
Installation Requirements:
• Maintain 12 inches clearance from walls
• Use dedicated grounded electrical outlet
• Extension cord must be less than 10 feet
Dimensions & Weight
Unit Dimensions: 24.5 x 26 x 78.8 inches (W x D x H)
Unit Weight: 256 lbs
Safety & Alarm System
• Power failure protection
• Sensor failure protection
• High temperature alarm
• Low temperature alarm
• Condenser failure alarm
• Low battery alarm
• Door open alarm
These features help ensure safe storage of critical medical materials.
Certifications & Compliance
Certified to:
• UL 61010-1
• CSA C22.2
Built to meet CDC and VFC vaccine storage guidelines.
What's Included
• Ai M14 Upright Pharmacy Medical Vaccine Refrigerator
• Door keys (1 set)
• Lock catch
• Mounting brackets (3)
• User manual
Important Setup Instructions
Allow the refrigerator to stand upright for 24 hours before powering on after delivery.
This unit is not designed for use on mobile platforms.
Warranty
1 Year Manufacturer Warranty
