Description

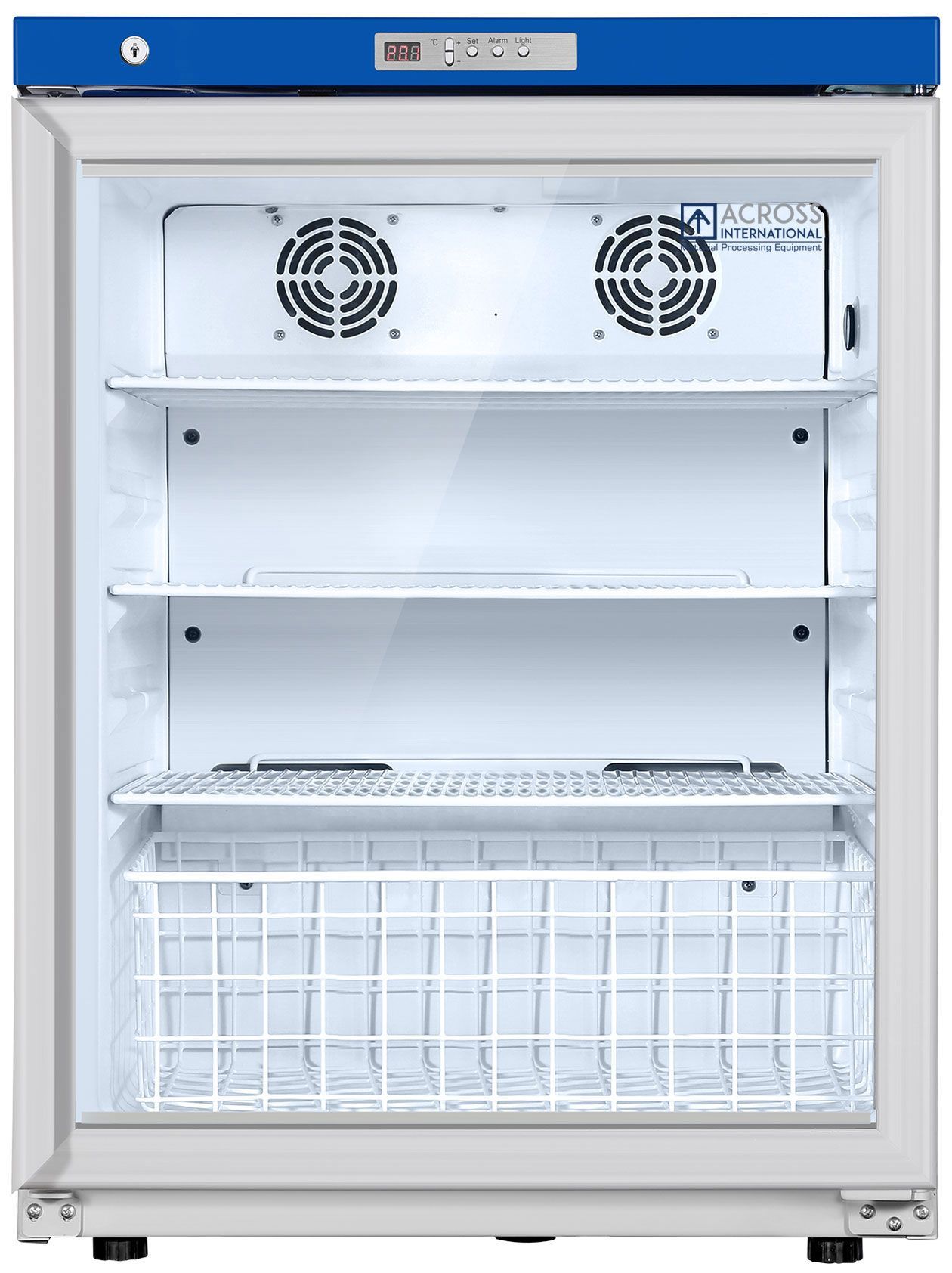

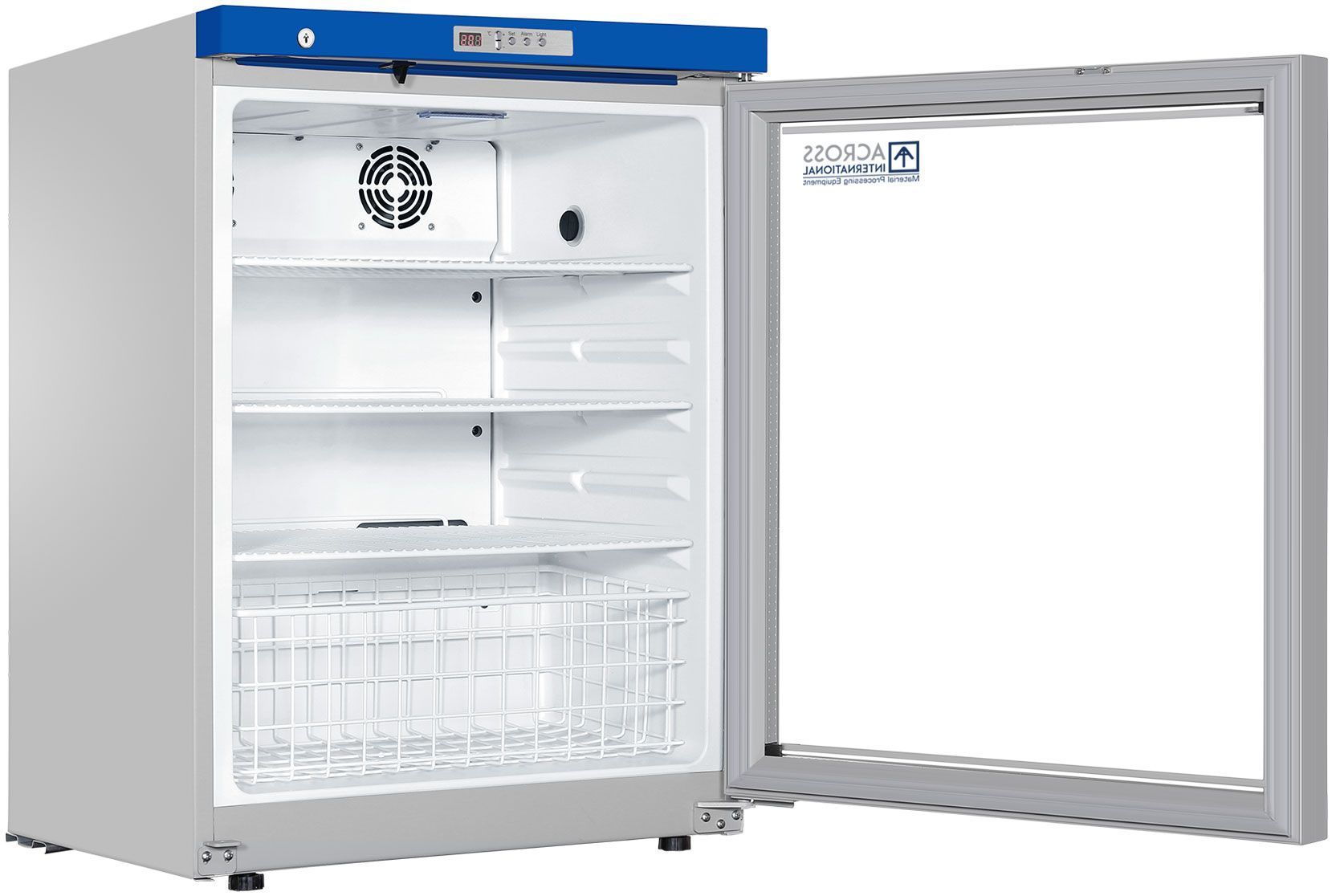

The Across International Ai M04 Compact Medical Vaccine Refrigerator is designed for safe and reliable storage of vaccines, pharmaceuticals, and biological samples requiring stable temperatures between 2°C and 8°C. Built to meet CDC and VFC vaccine storage guidelines, this compact laboratory refrigerator is ideal for clinics, pharmacies, hospitals, research laboratories, and public health facilities.
Equipped with a high-precision temperature controller and sensitive temperature sensors, the Ai M04 maintains ±2°C temperature uniformity throughout the chamber. A forced-air cooling system, heated glass door, and advanced alarm monitoring ensure dependable storage conditions for temperature-sensitive medical products.
With its compact footprint and 4.2 cubic foot capacity, the Ai M04 is an excellent solution for facilities requiring reliable vaccine storage in smaller laboratory or clinical environments.
Key Features
• Temperature range: 2°C to 8°C (CDC vaccine storage compliant)
• High-precision temperature controller with sensitive sensors
• Temperature uniformity within ±2°C
• UL certified medical-grade refrigerator

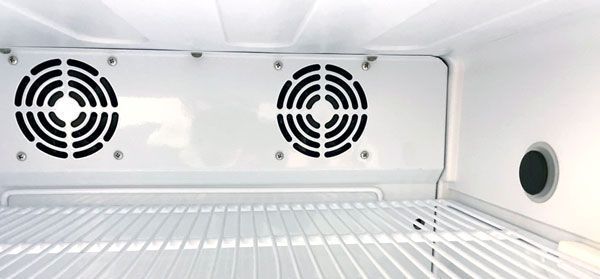

• Forced air circulation cooling system
• Heated glass door to prevent condensation
• Lockable door for secure storage
• Audio and visual alarm system
• Backup battery for controller and alarm operation
• Environmentally friendly HCFC-free refrigerant
Ideal Applications
The Ai M04 Medical Refrigerator is ideal for storing:
• Vaccines and immunizations
• COVID-19 specimens
• Biological samples
• Pharmaceutical products
• Laboratory reagents
• Medical supplies
Commonly used in:
• Clinics and pharmacies
• Hospitals
• Medical laboratories
• Public health facilities
• Research institutions
The refrigerator is preset to 5°C, following CDC recommendations for vaccine storage.
Temperature Performance
Temperature Range: 2°C to 8°C
Temperature Uniformity: ±2°C
Cooling System: Forced air circulation
This system ensures stable temperature conditions throughout the chamber, protecting sensitive medical materials.
Electrical Requirements
Voltage: 115V (±10%)
Frequency: 60Hz
Phase: Single Phase
Power Consumption: 230 Watts
Door Heater: 40 Watts
LED Lighting: 0.3 Watts
Compressor System
Number of Compressors: 1
Compressor Brand: Embraco
Refrigerant: R600a (HCFC-free environmentally friendly refrigerant)
Chamber Specifications
Interior Dimensions: 20 x 16.5 x 25 inches (W x D x H)
Interior Material: Stainless Steel
Storage Capacity: 4.2 Cubic Feet
Interior Lighting: Low heat emission LED lighting
Shelving
Shelf Material: Powder Coated Steel
Shelves Included: 3 shelves + 1 storage basket
Adjustable shelving provides flexible storage for vaccine boxes and medical supplies.

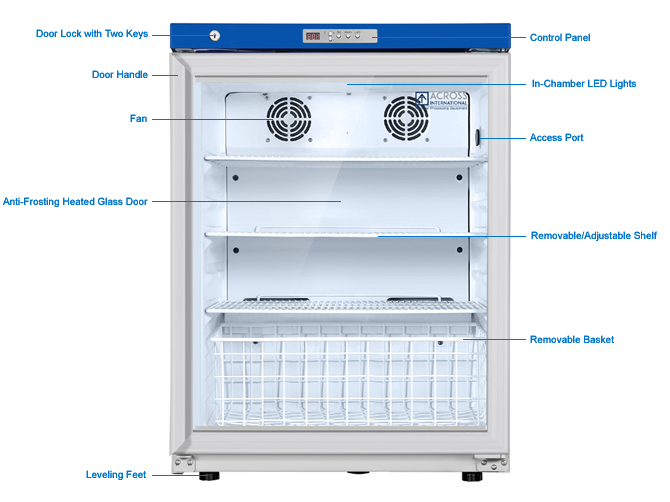

Door System
Door Type: Heated glass door
Heater Power: 40W
Security: Lockable door with keys
The heated glass door helps prevent condensation and provides clear visibility of stored items.
Controller & Monitoring
Backup Battery Runtime: Up to 8 hours
Remote Alarm: Included
Alarm System Includes:
• High temperature alarm
• Low temperature alarm
• Door open alarm
• Backup battery low alarm
These alerts help ensure continuous monitoring of critical medical storage conditions.
Access Port
Quantity: 1
Diameter: 1 inch
Location: Upper right side of refrigerator
Allows installation of temperature probes or monitoring sensors.
Operating Environment
Ambient Temperature: 16°C to 32°C
Ideal Operating Temperature: 18°C to 25°C
Humidity: <85% RH
Altitude: Below 2000 meters
Installation Requirements:
• Maintain 12 inches clearance from walls
• Use dedicated grounded power outlet
• Extension cord must be less than 10 feet
Dimensions & Weight
Unit Dimensions: 23.5 x 25 x 32 inches (W x D x H)
Unit Weight: 101.5 lbs
Safety & Protection
• Power failure protection
• Sensor failure protection
• High/low temperature alarms
• Backup battery low alarm
• Door open alarm
• Lockable door with keys
These protections help ensure secure storage of valuable medical materials.
Certifications & Compliance
Certified to:
• UL 61010-1
• CSA C22.2
Built to meet CDC and VFC vaccine storage guidelines.
What's Included
• Ai M04 Compact Pharmacy Medical Vaccine Refrigerator
• Door keys (1 set)
• User manual
Important Setup Instructions
Allow the refrigerator to stand upright for 24 hours before powering on after delivery.
This unit is not designed for use on mobile platforms.
Warranty
1 Year Manufacturer Warranty
