Description
Compact 15kW Induction Heater for Metal Heating, Brazing, and Laboratory Applications

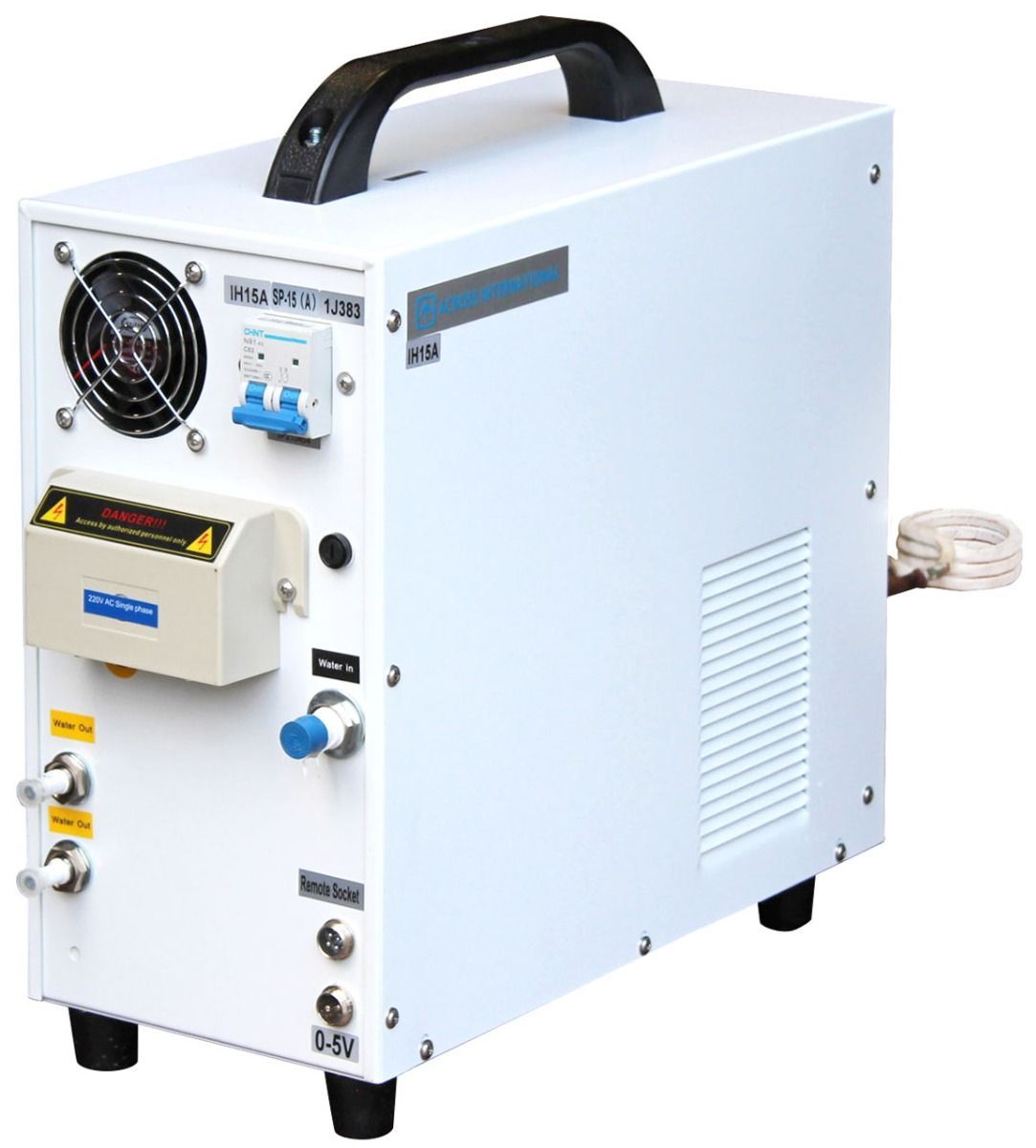

The Across International IH-15A Mid-Frequency Induction Heater is a compact and powerful 15 kW induction heating system designed for precision heating applications in laboratories, manufacturing environments, and industrial workshops.
Operating within a 30–80 kHz frequency range, the IH-15A provides efficient and controlled heating for small metal parts, making it ideal for applications such as brazing, soldering, heat treating, annealing, and metal melting.
Its high power output combined with a small footprint makes the 15 kW model one of the most popular induction heaters used in factories, research laboratories, and metalworking facilities. With low operating and maintenance costs, mid-frequency induction heaters are known for their reliability and long service life.
⚠ Note: This model is only available in 208–240V single-phase power configuration.
Key Features
15kW High-Power Induction Heating
Delivers up to 15 kW of oscillating heating power, enabling fast and efficient heating of metals and conductive materials.
Mid-Frequency Heating Technology
Operates between 30–80 kHz, ideal for heating small metal components and precision applications.
Compact Industrial Design
Small footprint allows easy integration into laboratories, production lines, and workshops where space is limited.

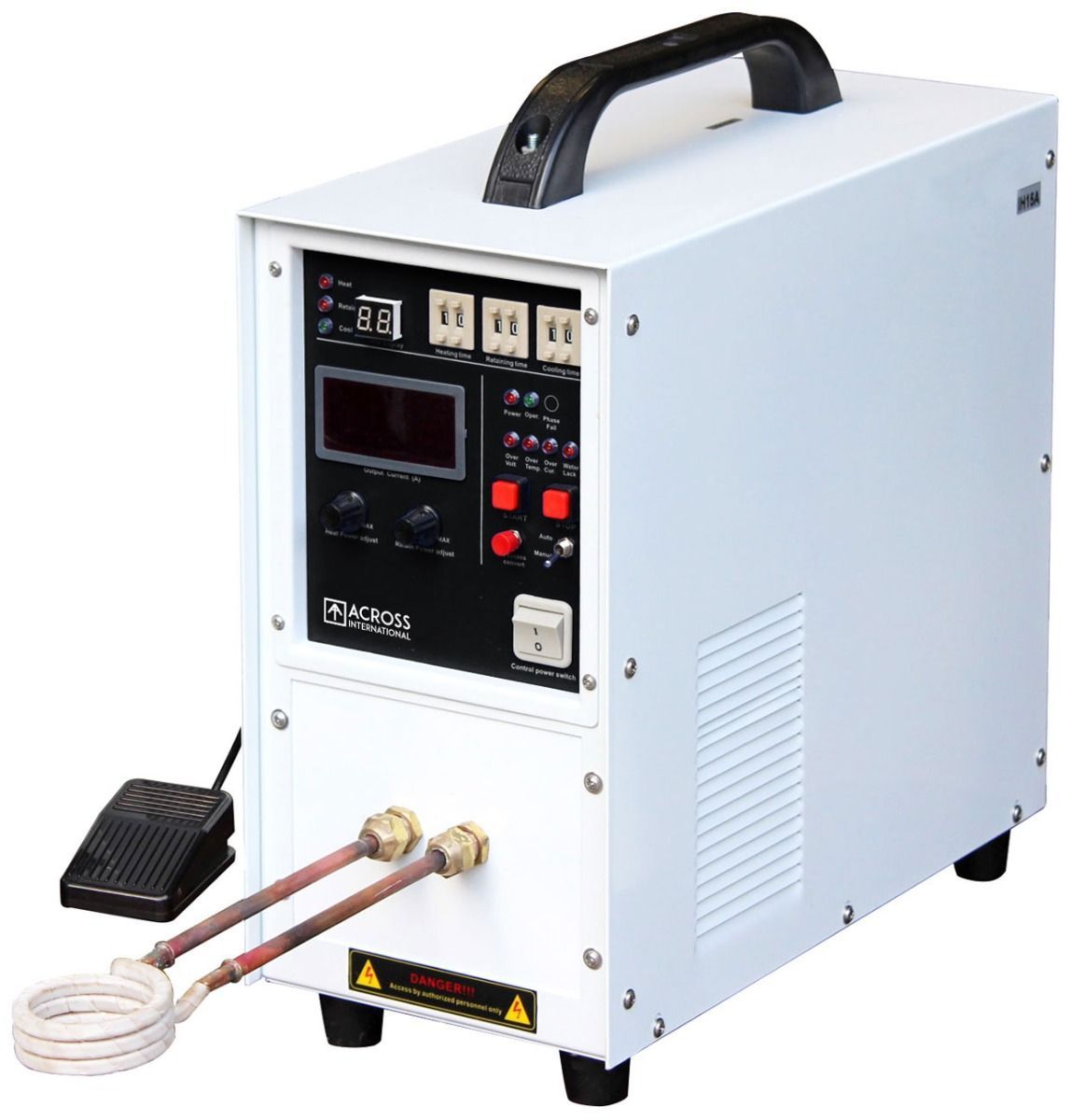

Foot Switch Control
Includes remote foot switch for hands-free operation during heating processes.

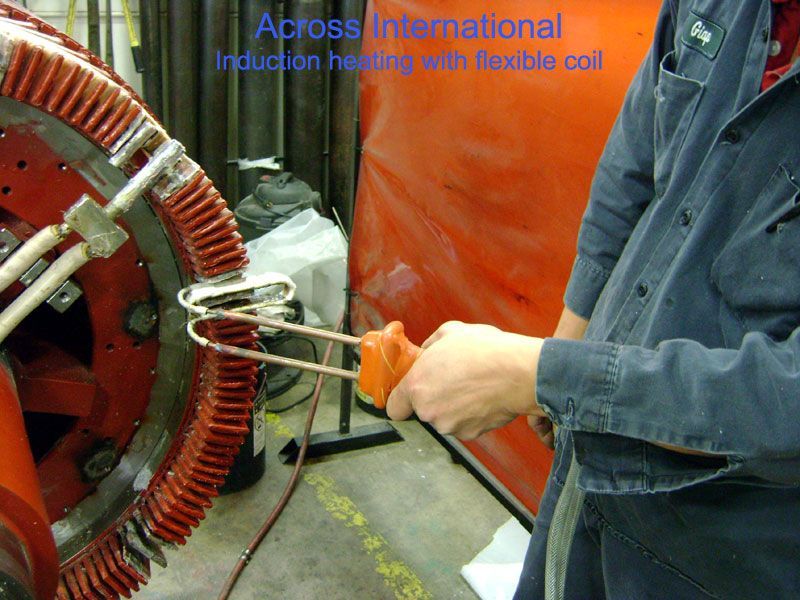

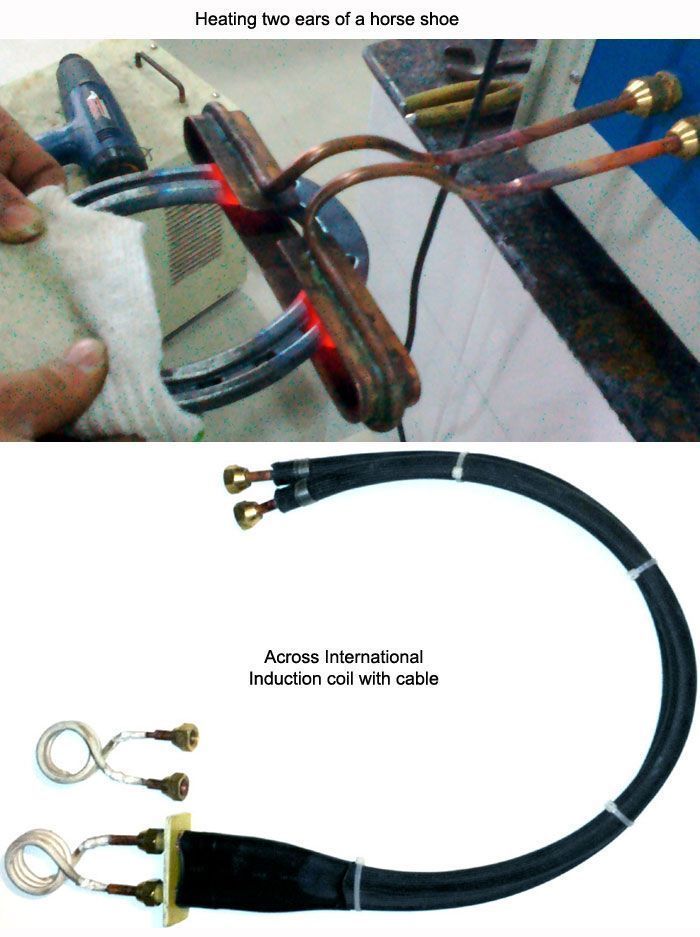

Customizable Induction Coils
Induction coils can be custom fabricated to meet specific heating requirements.
Reliable Cooling System
Designed to operate with water cooling, ensuring stable performance during continuous operation.
Typical Applications
The IH-15A induction heater is commonly used for:
-
Diamond tool brazing
-
Copper plumbing soldering
-
Heat treatment of automotive parts
-
Annealing stainless steel containers
-
Small metal component heating
-
Metal melting and casting preparation
-
Laboratory materials testing
Safety Protection Systems
The IH-15A includes multiple safety protections for safe operation.
Overvoltage Protection
The system automatically shuts down when input voltage exceeds 245V, triggering an alarm and indicator light.
Overheat Protection
If the heat radiator temperature exceeds 55°C, the machine shuts down automatically.
Overcurrent & Malfunction Protection
The system shuts down if:
-
Internal components overheat
-
Signal interference occurs
-
Workpiece short circuits the coil
-
Induction coils touch each other
-
Input voltage is too low
Low Water Pressure Protection
If cooling water pressure drops below 29 PSI, the machine shuts down automatically.
Important Operating Notes
-
Always wear protective equipment and safety goggles during operation.
-
Crucibles must remain covered during operation.
-
Avoid prolonged no-load operation.
-
Cooling water must be clean and below 45°C.
-
Machine must be properly grounded at all times.
-
Thread tape must not be used during induction coil installation.
-
Single-turn coils smaller than 4 inches diameter should not be used.
Technical Specifications
Model
IH-15A

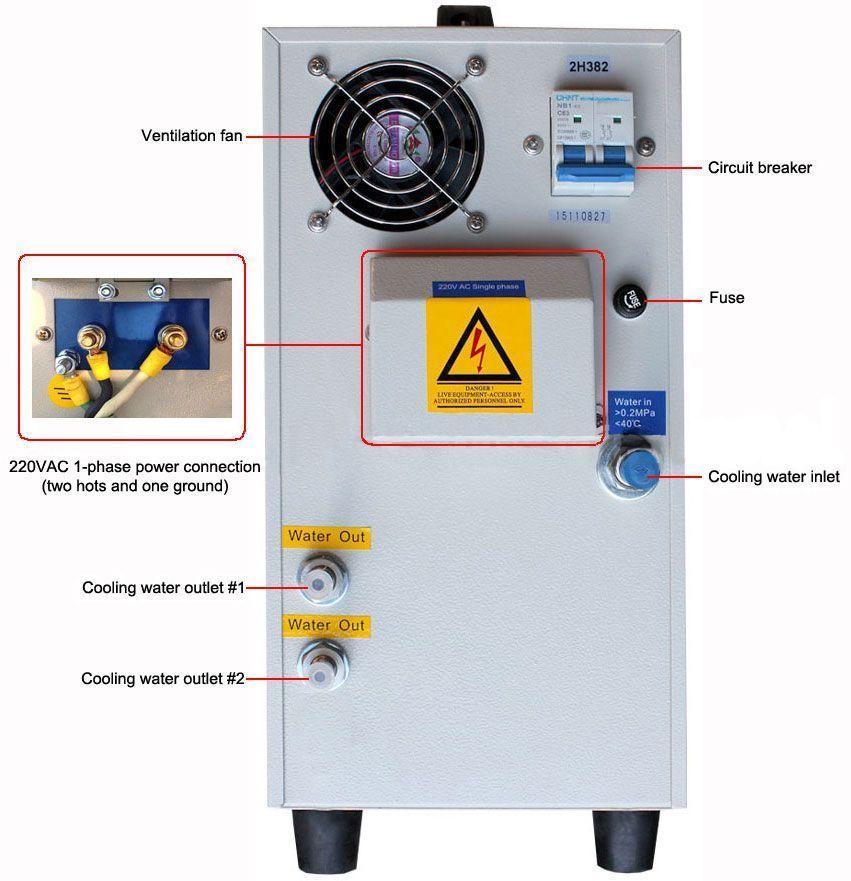

Electrical Requirements
Power supply
208–240V, 50/60 Hz, single-phase
Maximum input current
32 A
Recommended circuit breaker
40 A single-phase
Power distribution cord
8-gauge 3-conductor (8/3 SOOW)
Heating Performance
Maximum oscillating power
15 kW
Maximum input power
7 kW
Heating current
200 – 600 A
Output frequency
30 – 80 kHz
Duty cycle
80%
Heating / cooling timers
1 – 99 seconds
Cooling Requirements
Minimum water pressure
≥ 29 PSI (0.2 MPa)
Recommended pump capacity
> 1/4 HP and > 240 GPH
Water flow
0.5 – 1.3 gallons per minute (2–5 L/min)
Recommended water temperature
25 – 30°C
Metal Melting Capacity
Approximate melting capacity:
| Material | Maximum Capacity |
|---|---|
| Gold / Silver / Copper | 4 lbs |
| Steel / Aluminum | 1 lb |
Dimensions & Weight
Unit dimensions
19 × 8 × 18 inches
Shipping dimensions
21 × 13 × 22 inches
Unit weight
40 lbs
Shipping weight
58 lbs
Included Components
-
IH-15A Induction Heater – 1 pc
-
0–5V Control Cable – 1 pc
-
Remote Foot Switch (7 ft) – 1 pc
-
Induction Coils – 2 pcs
-
Stainless Steel Hose Clamps – 8 pcs
-
Fuse – 5 pcs
-
Induction Coil Adapter – 2 pcs
-
Operation Manual – 1 pc
Warranty
Manufacturer Warranty Included
