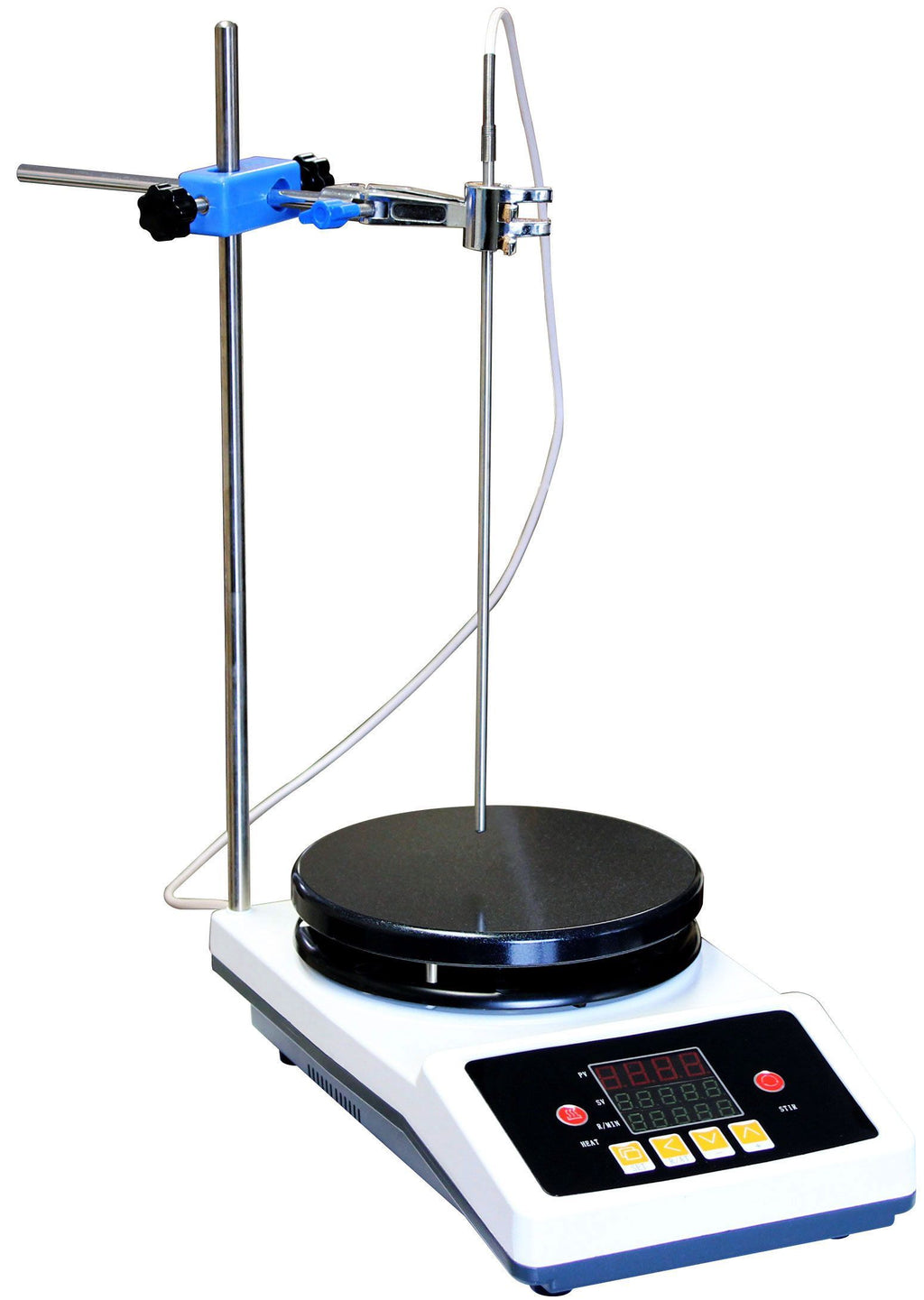

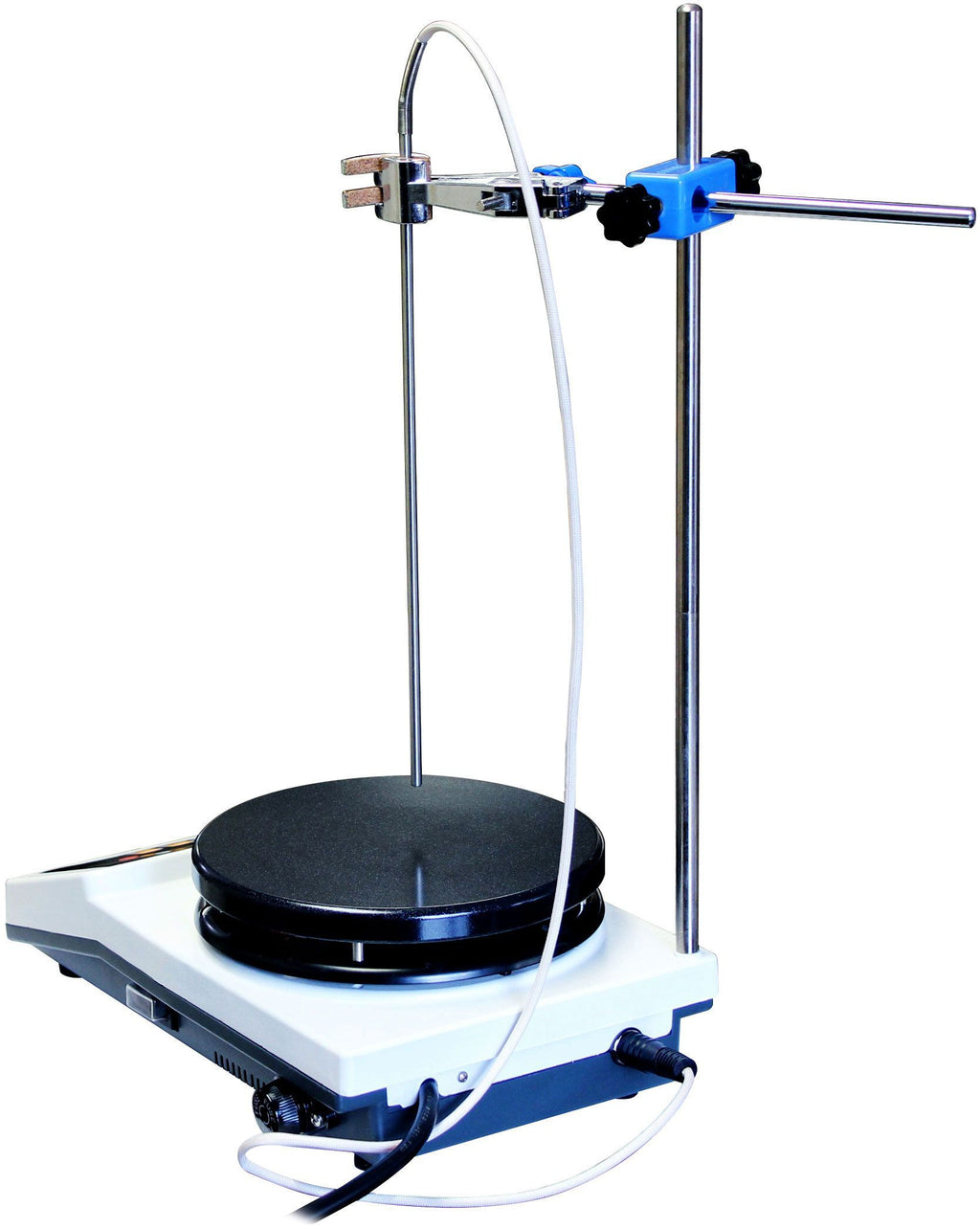

The Across International HP7 Digital Heated Magnetic Stirrer is a laboratory hot plate stirrer designed for precise heating and efficient magnetic mixing in research and laboratory environments. Using a rotating magnetic field, the unit spins a PTFE-coated stir bar inside glass vessels to create consistent, uniform mixing without mechanical contact.

Magnetic stirrers are commonly used in chemistry, biology, pharmaceutical, and research laboratories because they are quiet, low maintenance, and highly efficient compared to mechanical stirring systems.

The HP7 features a digital PID temperature controller, adjustable stirring speeds up to 2000 RPM, and a ceramic-coated aluminum heating plate capable of reaching temperatures up to 350°C. Its larger 7-inch heating surface allows for mixing larger volumes than standard compact magnetic stirrers.

With a maximum stirring capacity of 3.8 liters (1 gallon), the HP7 is ideal for laboratory solution preparation, chemical reactions, sample mixing, and general laboratory heating applications.

---

Key Features

Digital Heated Magnetic Stirrer

• Combines precision heating and magnetic stirring

• Compact laboratory design

• Digital control interface for easy operation

---

Large Ceramic Heating Plate

Temperature Range

• Ambient to 350°C

Heating Plate Diameter

• 7 inches

Material

• Ceramic-coated aluminum

The chemical-resistant ceramic surface provides excellent heat distribution and durability for laboratory environments.

---

High-Speed Magnetic Stirring

Stirring Speed Range

• 110 – 2000 RPM

Motor Type

• Brushless DC motor

Motor Power

• 40 watts

Maximum Stirring Capacity

• 3.8 liters (1 gallon)

---

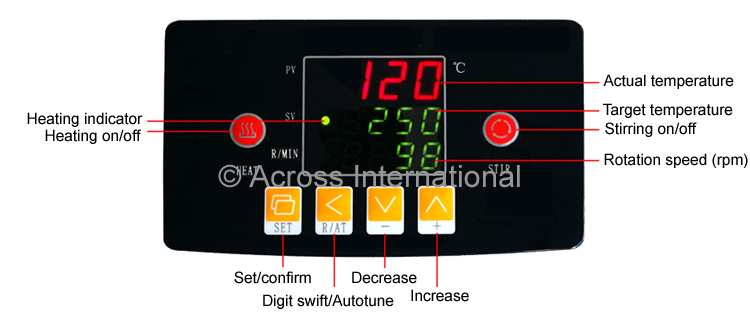

Digital PID Temperature Control

The integrated PID controller provides accurate heating and mixing control.

Display

• Digital temperature display

• Digital rotation speed display

Controller Type

• PID temperature control

---

External Temperature Probe

A PT100 temperature probe allows precise temperature monitoring inside reaction vessels.

Probe Specifications

• Cable length: 35 inches

• Probe length: 11 inches

• Probe diameter: 5 mm

---

Advantages of Magnetic Stirring

Magnetic stirrers are widely used in laboratory environments because they offer:

• Quiet operation

• Minimal maintenance

• No exposed mechanical components

• Easy cleaning and sterilization

• Reduced contamination risk

Because glass does not interfere with magnetic fields, stir bars operate efficiently inside beakers, laboratory flasks, and reaction vessels.

Magnetic stirrers are best suited for:

• Small to medium-volume experiments

• Chemical solution mixing

• Biological sample preparation

• Laboratory heating and reaction control

For larger volumes or highly viscous liquids, mechanical stirring systems may be required.

---

Electrical Requirements

Voltage

• 110V

Frequency

• 60 Hz

Phase

• Single phase

Power Consumption

• 450 watts

---

Physical Specifications

Unit Dimensions

• 7 × 12.5 × 4.5 inches

Shipping Dimensions

• 10 × 16 × 9 inches

Unit Weight

• 10 lbs

Shipping Weight

• 20 lbs

---

Safety Features

• Thermocouple failure protection

• Built-in fuse protection

• Stable ceramic heating plate surface

---

Certifications

• ETL tested to UL and CSA standards (optional)

• CE certified

---

Ideal Applications

The HP7 magnetic hot plate stirrer is ideal for:

• Chemical laboratories

• Pharmaceutical research labs

• University laboratories

• Biotechnology research

• Quality control testing

• Sample preparation and mixing

---

What's Included

• 1 × Ai HP7 Digital Heated Magnetic Stirrer

• 1 × External PT100 Temperature Probe

• 1 × Internal Temperature Plug

• 1 × Boss Head

• 1 × 16" Stainless Steel Support Rod

• 2 × PTFE Coated Stir Bars

• 1 × PTFE Magnetic Stir Bar Remover

• 1 × 4-Prong Stainless Steel Clamp

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty
