Description

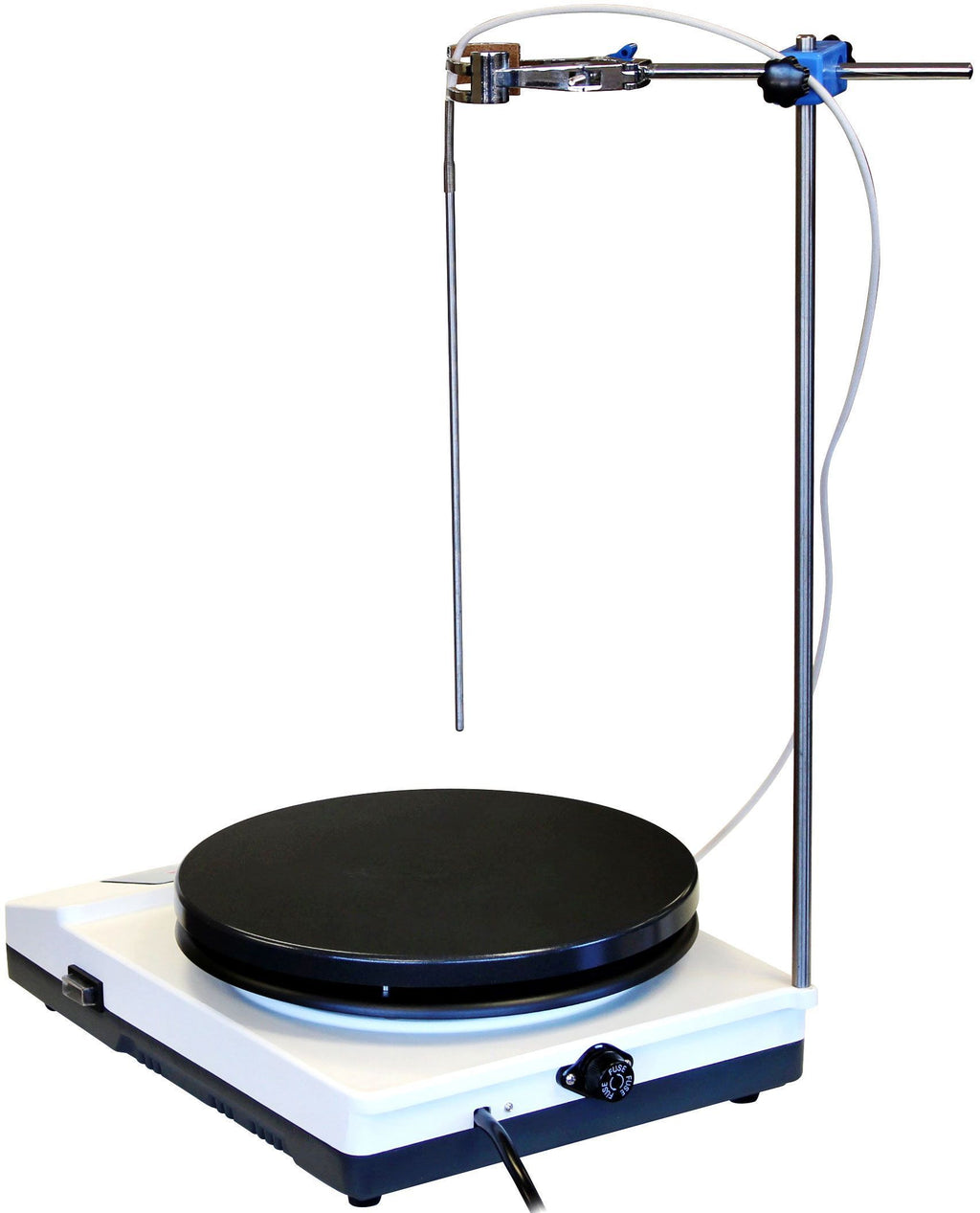

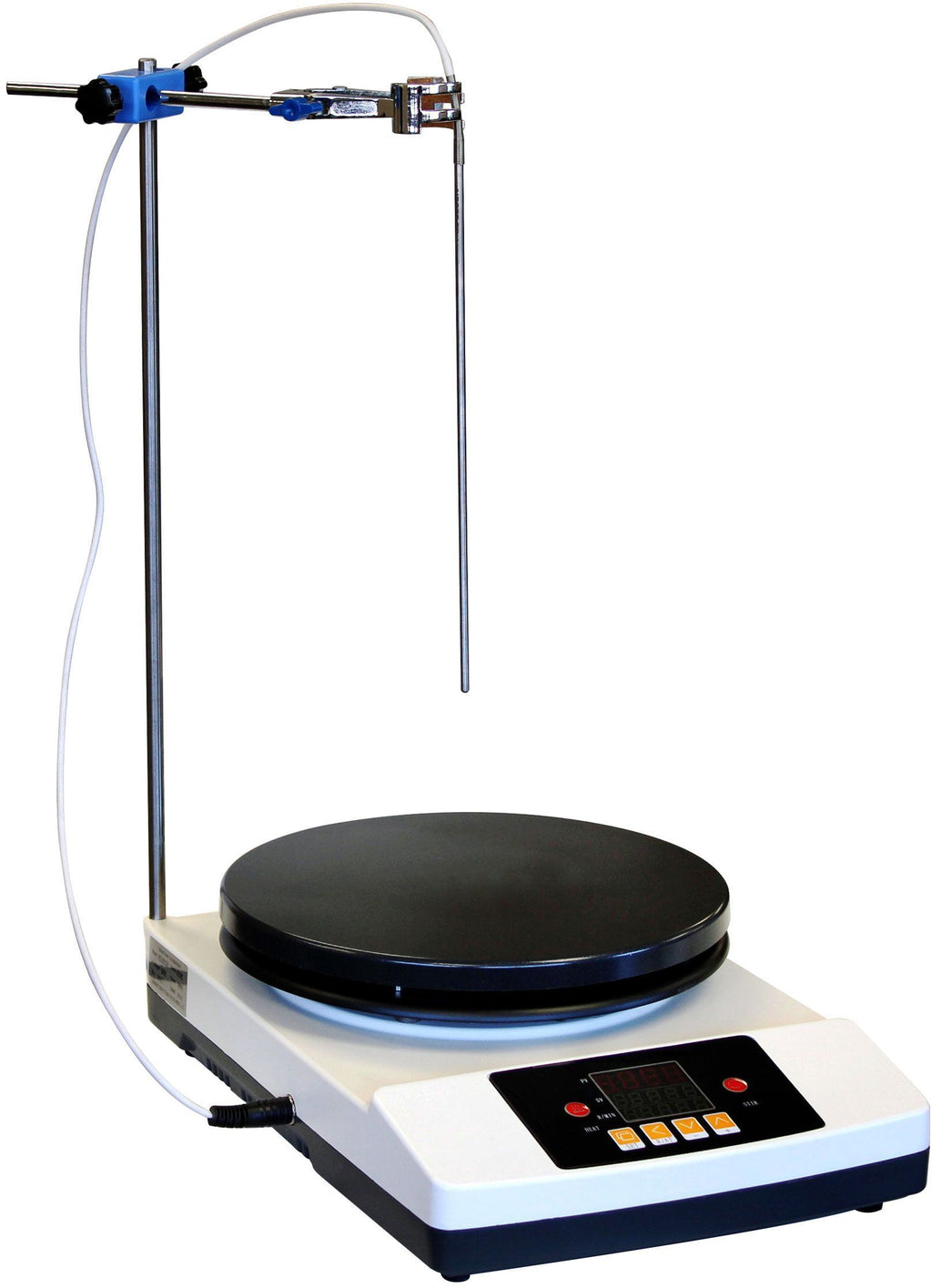

The Across International HP11 Digital Heated Magnetic Stirrer is a large-capacity laboratory hot plate stirrer designed for precise heating and efficient magnetic mixing. Using a rotating magnetic field beneath the heating surface, the unit spins a PTFE-coated stir bar inside glass vessels to create uniform agitation without mechanical contact.
Magnetic stirrers are widely used in chemistry, biology, pharmaceutical research, and laboratory testing because they provide quiet operation, minimal maintenance, and reduced contamination risk compared to mechanical stirring systems.
The HP11 model features PID digital temperature control, adjustable stirring speeds up to 2000 RPM, and a large 11-inch ceramic-coated aluminum heating plate capable of reaching temperatures up to 350°C. With a maximum stirring capacity of 2 gallons, the HP11 is ideal for larger laboratory reactions, solution preparation, and heating applications.
Key Features
Large Laboratory Hot Plate Stirrer
-
Combines heating and magnetic stirring
-
Large 11-inch heating plate
-
Digital control interface for precise operation
High Temperature Heating Plate
Temperature Range
-
Ambient to 350°C
Heating Plate Diameter
-
11 inches
Material
-
Ceramic-coated aluminum
The chemical-resistant ceramic surface provides excellent heat distribution and durability for laboratory environments.
High-Speed Magnetic Stirring
Stirring Speed Range
-
110 – 2000 RPM
Motor Type
-
Brushless DC motor
Motor Power
-
40 watts
Maximum Stirring Capacity
-
2 gallons (water as media)
Digital PID Temperature Control
The HP11 features an integrated PID controller for accurate heating and mixing control.
Display Features
-
Digital temperature display
-
Digital stirring speed display
Controller Type
-
PID temperature controller
External Temperature Probe
An included PT100 temperature probe allows accurate monitoring of liquid temperature directly inside the vessel.
Probe Specifications
-
Cable length: 35 inches
-
Probe length: 11 inches
-
Probe diameter: 5 mm
Advantages of Magnetic Stirring
Magnetic stirrers are commonly used in laboratories because they offer:
-
Quiet operation
-
Minimal maintenance
-
No exposed mechanical components
-
Easy sterilization and cleaning
-
Reduced contamination risk
Because glass does not interfere with magnetic fields, stir bars operate efficiently in beakers, laboratory flasks, and reaction vessels.
Magnetic stirrers are ideal for:
-
Chemical reactions
-
Laboratory solution mixing
-
Biological experiments
-
Pharmaceutical preparation
-
Sample preparation and heating
For highly viscous liquids or very large volumes, mechanical stirring systems may be required.
Electrical Requirements
Voltage
-
110V
Frequency
-
60 Hz
Phase
-
Single phase
Power Consumption
-
1,000 watts
Physical Specifications
Unit Dimensions
-
11 × 16 × 4.75 inches
Shipping Dimensions
-
16 × 22 × 10 inches
Unit Weight
-
18 lbs
Shipping Weight
-
32 lbs
Safety Features
-
Thermocouple failure protection
-
Built-in fuse protection
-
Stable ceramic heating plate surface
Certifications
-
ETL tested to UL and CSA standards (optional)
-
CE certified
Ideal Applications
The HP11 heated magnetic stirrer is ideal for:
-
Chemical laboratories
-
Pharmaceutical research labs
-
University laboratories
-
Biotechnology research facilities
-
Industrial R&D labs
-
Sample preparation and reaction heating
What's Included
-
1 × Ai HP11 Digital Heated Magnetic Stirrer
-
1 × External Temperature Probe
-
1 × Internal Temperature Plug
-
1 × Boss Head
-
1 × 16" Stainless Steel Support Rod
-
2 × PTFE Coated Stir Bars
-
1 × PTFE Magnetic Stir Bar Remover
-
1 × 4-Prong Stainless Steel Clamp
-
1 × User Manual
Warranty
-
1 Year Manufacturer Warranty
