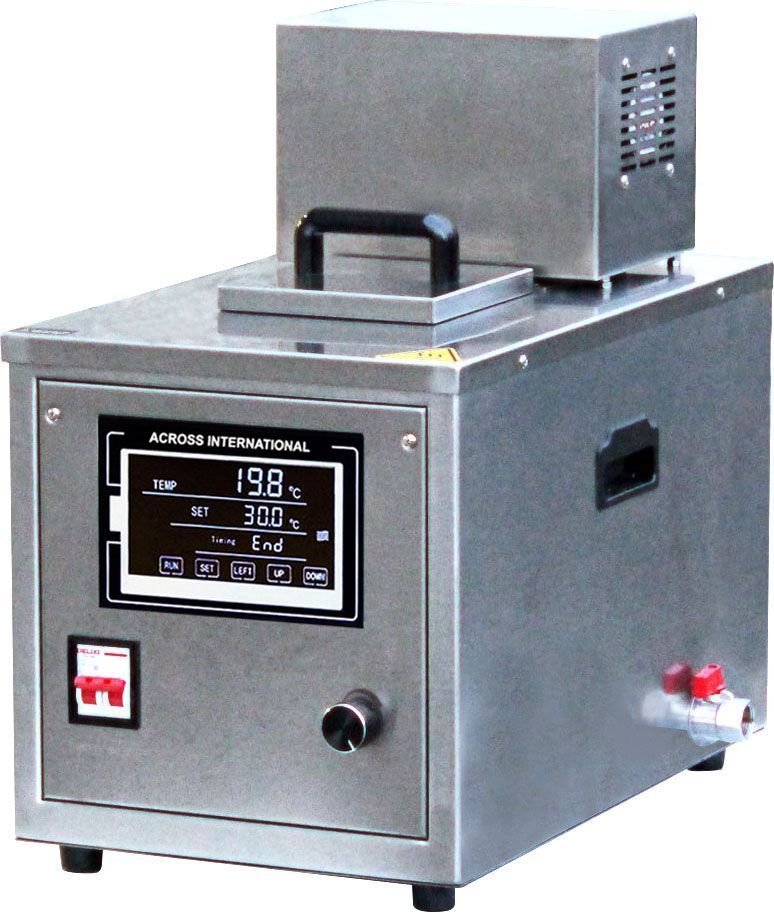

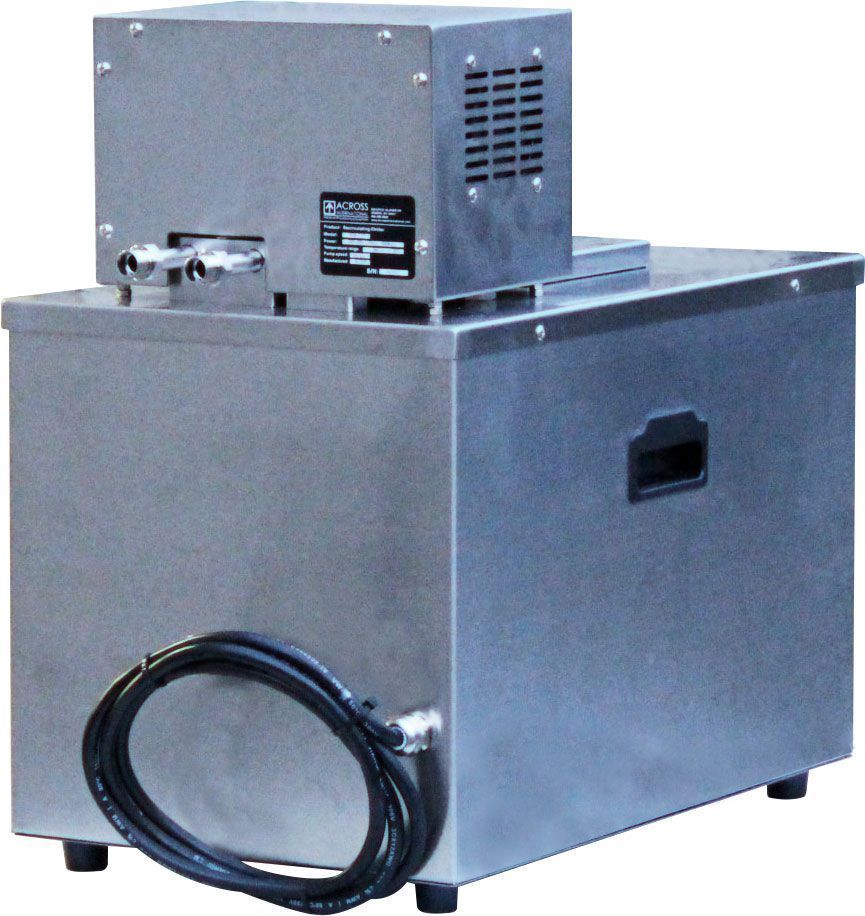

Description
The Across International Ai H200-15 Stainless Steel Heated Recirculator delivers precise temperature control, powerful circulation, and long-term reliability for laboratory heating applications. Built with a 2,800-watt heating system, adjustable high-flow recirculating pump, and advanced PID temperature controller, the H200-15 provides stable and accurate heating performance for demanding lab environments.
Designed for compatibility with glass reactors, distillation systems, and laboratory heating processes, this unit features a durable all-steel construction, ANSI standard stainless steel reservoir, and quiet high-performance circulation pump capable of maintaining consistent flow rates up to 21 liters per minute.
The large 7" touchscreen PID controller allows for precise monitoring and adjustment of temperature settings, while the front-mounted controller design keeps electronics away from heat sources, helping extend the lifespan of internal components.
With its compact footprint, powerful heating capacity, and high-precision control, the Ai H200-15 is an ideal solution for laboratories requiring reliable recirculating heating up to 200°C.
Key Features
• Powerful 2,800W heating capacity for rapid and stable heating performance
• Wide temperature range: Ambient to 200°C
• Adjustable recirculating pump delivering up to 21 liters per minute
• Maximum pump head: 16 ft (5 meters)
• Advanced digital PID temperature controller for precise thermal control
• Large 7" TFT touchscreen display with 0.1°C adjustment increments
• Front-mounted control panel protects electronics from heat exposure
• ANSI standard Type 304 stainless steel reservoir for durability and corrosion resistance
• All-steel construction for long-term laboratory use
• Compact footprint to conserve valuable lab bench space
• Quiet operation ideal for laboratory environments

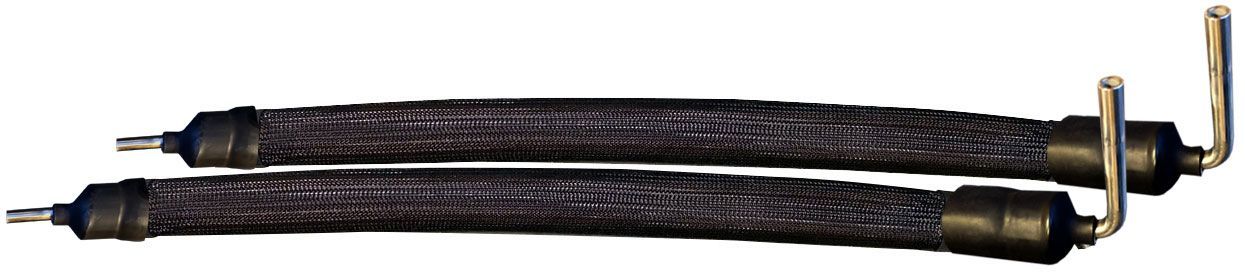

• Includes heavy-duty insulated stainless steel tubing rated to 250°C
Ideal Applications
The Ai H200 Heated Recirculator is commonly used for:
• Glass reactor temperature control
• Short path distillation systems
• Chemical processing applications
• Laboratory heating circulation systems
• Extraction and synthesis processes
• Industrial lab heating applications
Technical Specifications
Temperature Range
Ambient to 200°C
Heating Capacity
2,800 Watts
Electrical Requirements
220V | 60Hz | Single Phase | 2,900 Watts
Recirculating Pump
Flow Rate: Up to 21 liters per minute (adjustable)
Maximum Head: 16 ft (5 meters)
Pump Power: 100 Watts

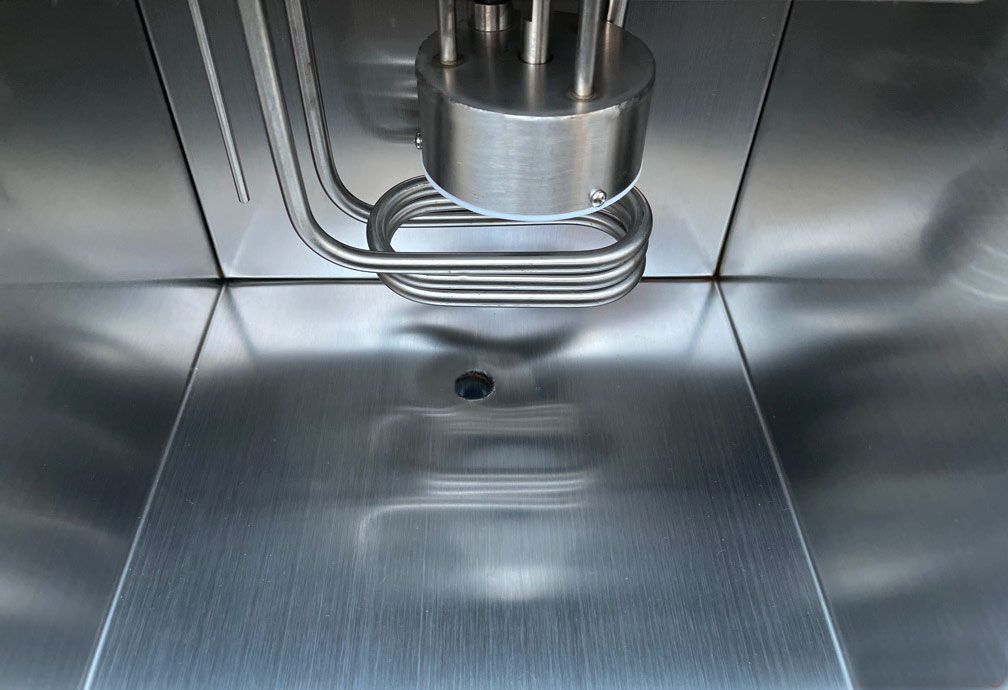

Reservoir
Material: Type 304 Stainless Steel
Capacity: 7 Liters (1.8 Gallons)

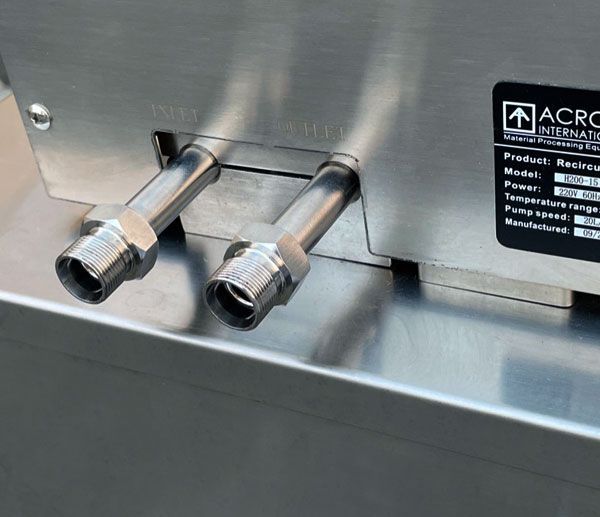

Thermo Fluid Connection: M16 x 2
Fluid Drain Port: 3/8" hose barb with on/off valve
Temperature Controller
Controller Type: Digital Microprocessor PID Control
Display: 7" TFT Touchscreen
Display Units: Celsius (°C)
Temperature Adjustment: 0.1°C increments
Temperature Accuracy: ± 2°C
Operating Environment
Temperature: -15°C / 5°F to 25°C / 77°F
Humidity: < 66%
Dimensions & Weight
Unit Dimensions: 11.5" x 19" x 19" (W x D x H)
Shipping Dimensions: 16" x 24" x 22"
Unit Weight: 35 lbs
Shipping Weight: 50 lbs
Safety & Protection
• Short circuit protection
• Ground protection
• Over-current protection
• Over-temperature protection
• Upper and lower temperature alarm system
Certifications & Compliance
ETL tested to UL and CSA standards
UL 61010-1:2012 Ed.3 + R:29Apr2016
CSA C22.2 #61010-1:2012 Ed.3
What's Included
• Ai H200-15 200°C Heated Recirculator
• 2 Sets – 250°C rated insulated stainless steel tubing (40") with M16 fittings
• 1/2" NPT to 3/8" hose barb drain port adapter
• M16 Nuts, Ferrules, and Sleeves (4 sets)
• User Manual
Optional Adapter Kit (For Glass Reactors)
M16 Male to 3/4" NPT Adapter Kit — $118.99
Includes:
• 2 × M16 x 1.0 male to 1/2" NPT female adapters
• 2 × 1/2" NPT male to 3/4" NPT male adapters
Designed for seamless connection to Across International glass reactor systems.
Warranty
1 Year Manufacturer Warranty
