Description
The Across International Ai H200-15 Stainless Steel Heated Recirculator is designed to deliver high-precision temperature control, powerful circulation, and reliable heating performance for laboratory and industrial applications. Featuring a 2,800-watt heating system, adjustable recirculating pump, and advanced digital PID controller, this heated recirculator provides stable and accurate temperature control for demanding processes.
The system utilizes a force/suction circulation pump capable of delivering consistent flow rates up to 15 liters per minute, making it ideal for use with glass reactors, distillation equipment, and other laboratory heating applications.
A large 7-inch TFT touchscreen controller provides intuitive temperature monitoring and control with 0.1°C adjustment increments, allowing users to achieve precise thermal stability. The front-mounted controller design protects sensitive electronics from heat exposure, extending the lifespan of the control system.
Constructed with ANSI standard Type 304 stainless steel and a durable all-steel housing, the Ai H200-15 offers long-term durability while maintaining a compact footprint that conserves valuable laboratory space.
Key Features
• Powerful 2,800W heating capacity for rapid heat-up and stable temperature control
• Wide operating temperature range: Ambient to 200°C
• Adjustable recirculating pump delivering up to 15 L/min flow rate
• Maximum pump head: 16 ft (5 meters)
• Advanced microprocessor PID controller for precise temperature stability

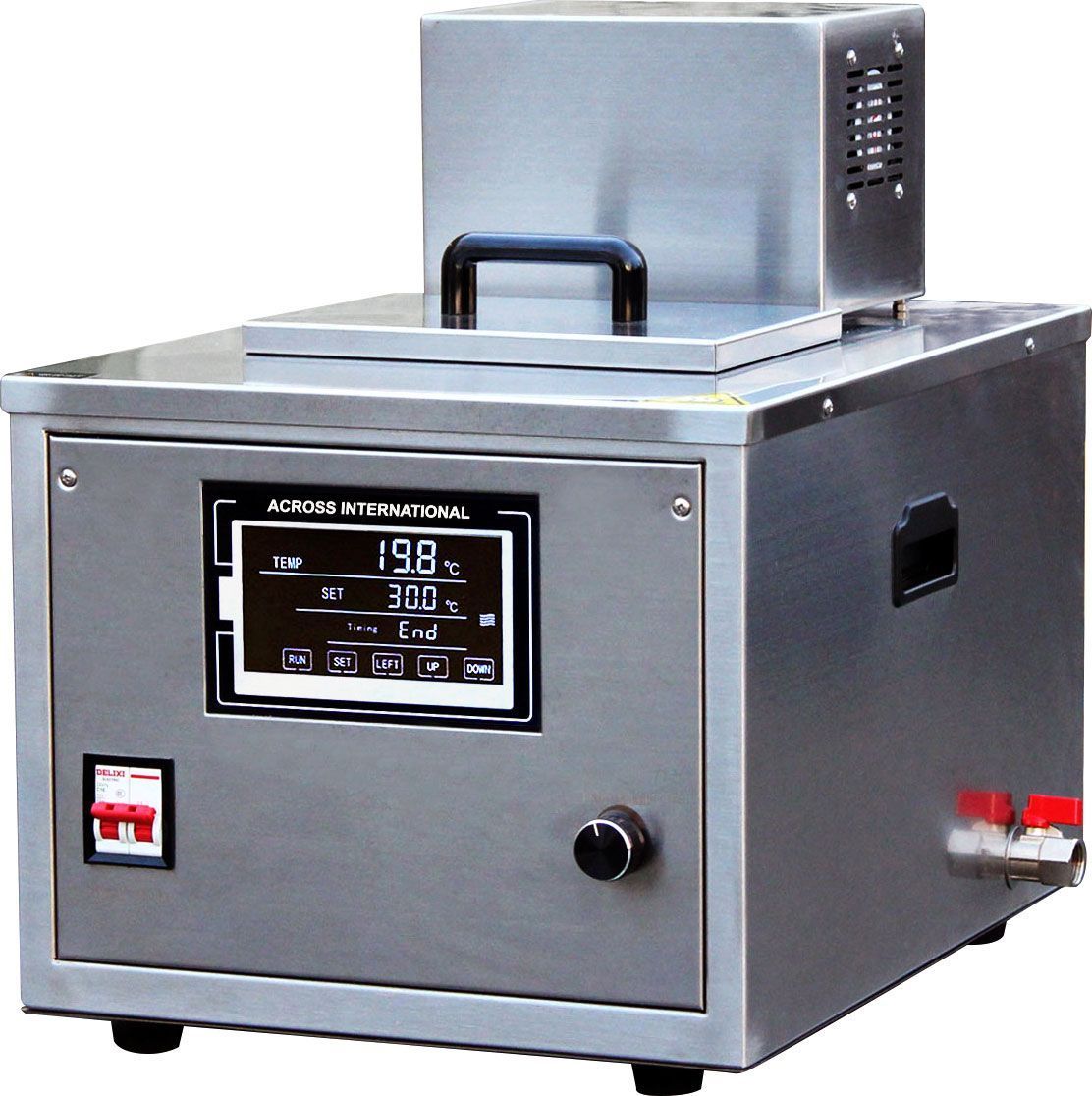

• Large 7" TFT touchscreen display with intuitive controls
• Front-mounted control panel protects electronics from heat exposure

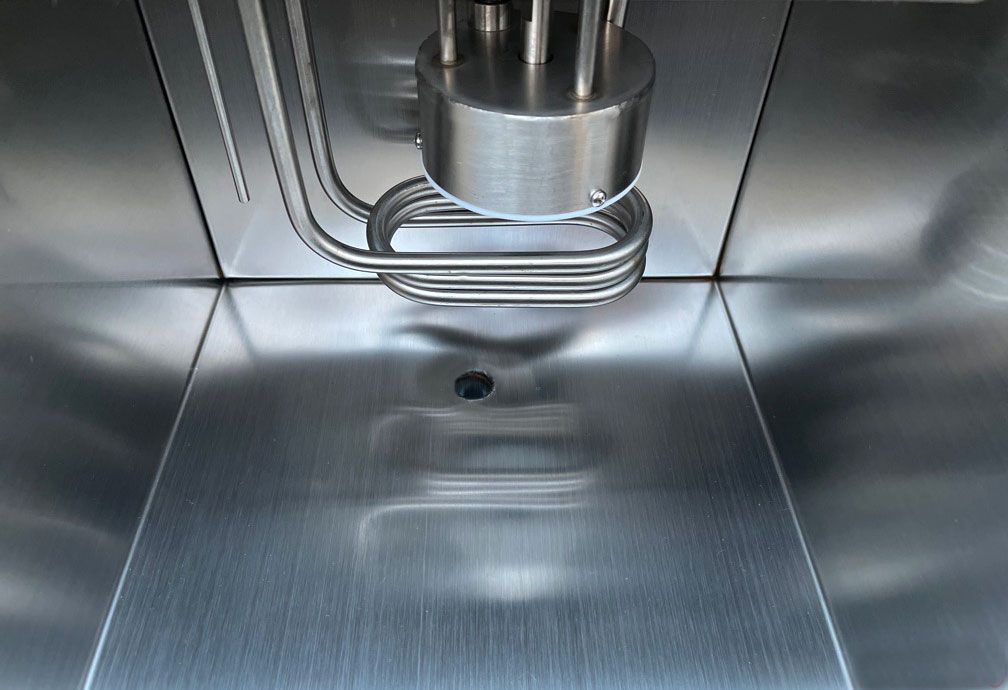

• ANSI standard Type 304 stainless steel reservoir
• All-steel construction for maximum durability
• Compact footprint for efficient lab space usage
• Quiet operation ideal for laboratory environments
• Includes 250°C rated insulated stainless steel tubing
Ideal Applications
The Ai H200 Heated Recirculator is commonly used for:
• Glass reactor temperature control
• Short path distillation systems
• Chemical processing and synthesis
• Laboratory heating circulation
• Extraction and distillation processes
• Industrial laboratory applications
Technical Specifications
Temperature Range
Ambient to 200°C
Electrical Requirements
220V | 60Hz | Single Phase | 2,900 Watts
Heating Capacity
2,800 Watts
Recirculating Pump
Flow Rate: Up to 15 L/min (adjustable)
Maximum Head: 16 ft / 5 meters
Pump Power: 100 Watts
Reservoir
Dimensions: 10 x 12 x 8 inches (W x D x H)
Material: Type 304 Stainless Steel
Capacity: 15 Liters (4 Gallons)

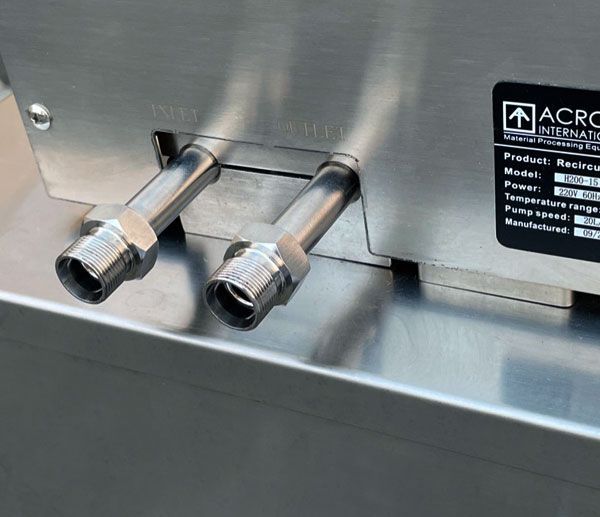

Thermo Fluid Connection: M16 x 2
Fluid Drain Port: 3/8" hose barb with on/off valve
Temperature Controller
Controller Type: Digital Microprocessor PID Control
Display: 7" Touchscreen TFT Display
Temperature Unit: Celsius (°C)
Adjustment Increment: 0.1°C
Temperature Accuracy: ± 2°C
Operating Temperature Range: Ambient to 200°C
Operating Environment
Temperature: -15°C (5°F) to 25°C (77°F)
Humidity: < 66%
Dimensions & Weight
Unit Dimensions: 14.75 x 19 x 18.25 inches (W x D x H)
Shipping Dimensions: 17 x 22 x 22 inches
Unit Weight: 40 lbs
Shipping Weight: 55 lbs
Safety & Protection
• Short circuit protection
• Ground protection
• Over-current protection
• Over-temperature protection
• Upper and lower temperature alarm system
Certifications & Compliance
ETL tested to UL and CSA standards
UL 61010-1:2012 Ed.3 + R:29Apr2016
CSA C22.2 #61010-1:2012 Ed.3
What's Included
• Ai H200-15 200°C Heated Recirculator (1 unit)

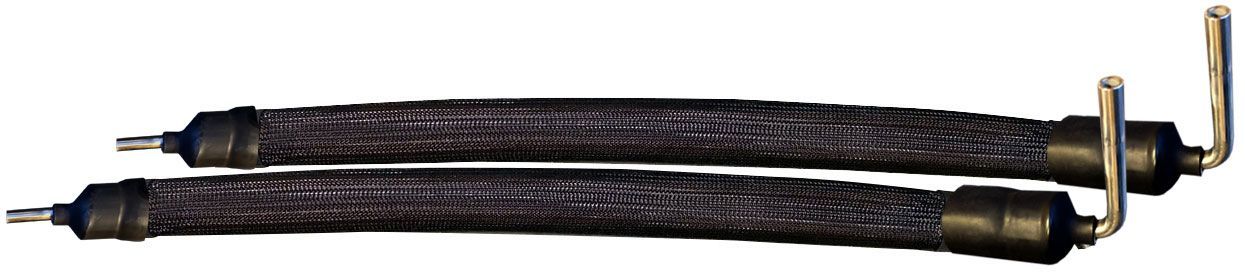

• 250°C rated insulated stainless steel tubing (40") with M16 fittings – 2 sets
• 1/2" NPT to 3/8" hose barb drain port adapter – 1 pc
• M16 nuts, ferrules, and sleeves – 4 sets
• User Manual
Optional Adapter Kit for Glass Reactors
M16 Male to 3/4" NPT Adapter Kit — $118.99
Includes:
• 2 × M16 x 1.0 male to 1/2" NPT female adapters
• 2 × 1/2" NPT male to 3/4" NPT male adapters
Designed for easy connection to Across International glass reactor systems.
Warranty
1 Year Manufacturer Warranty
