Description

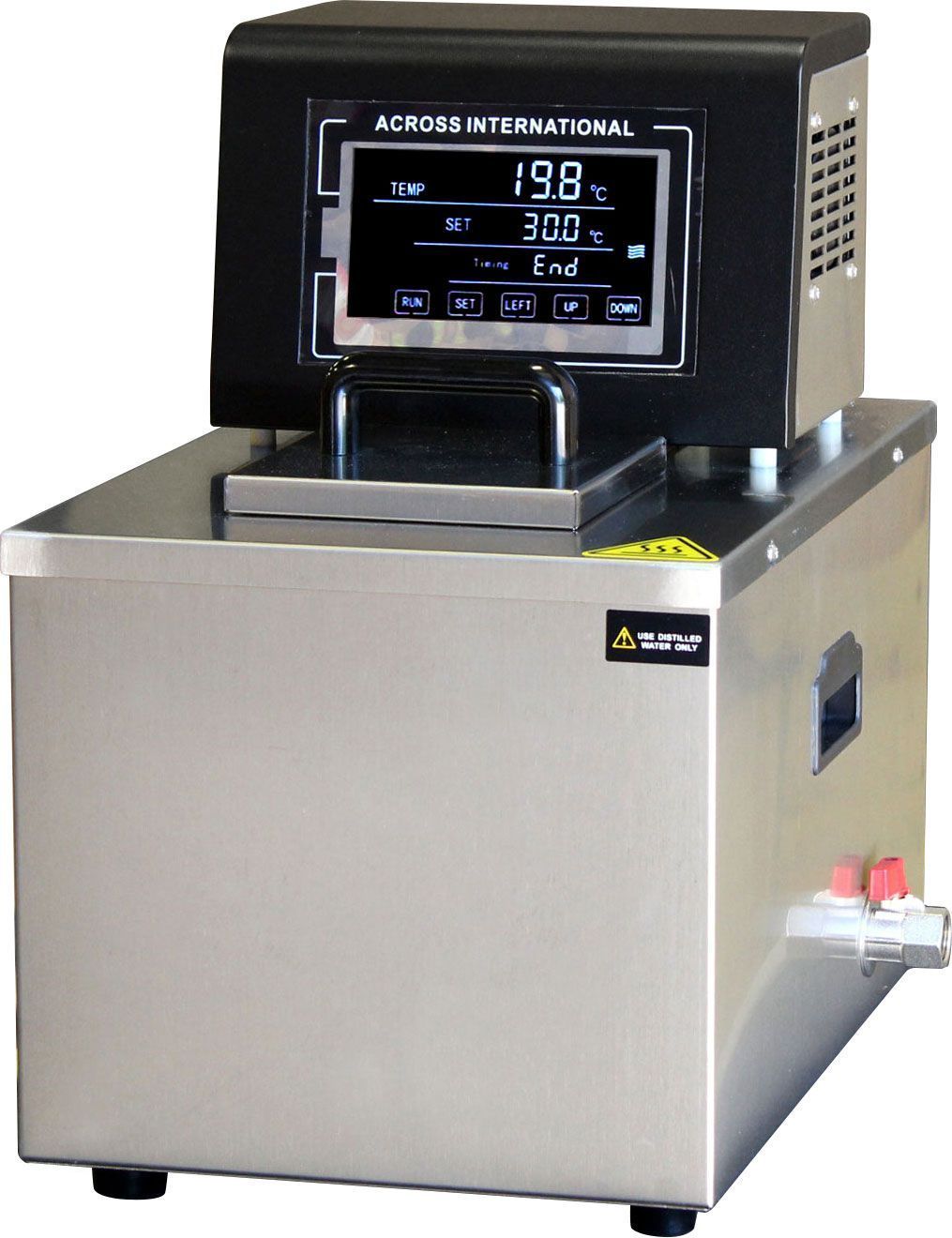

The Across International Ai H100-7 Heated Recirculator is a compact laboratory circulating heater designed to provide precise temperature control, powerful heating performance, and reliable fluid circulation.
Equipped with a 2,500-watt heating system and adjustable recirculating pump, the H100-7 delivers consistent temperature stability for laboratory equipment such as rotary evaporators, glass reactors, condensers, and distillation systems.

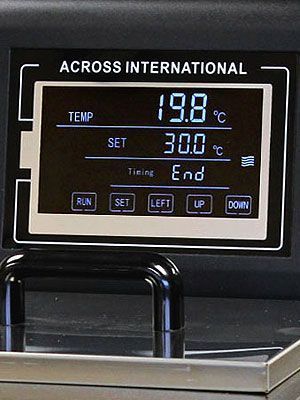

A 2nd generation 7-inch TFT touchscreen PID controller allows users to easily monitor and adjust system settings, ensuring accurate temperature regulation and simple operation.
With its all stainless steel construction and ANSI-standard reservoir, the H100-7 is built for durability and long-term reliability in laboratory and pilot-scale processing environments.
Key Features
Precision PID Temperature Control
The H100-7 utilizes a digital PID microprocessor controller for stable and accurate temperature regulation.
Benefits include:
• Temperature control accuracy of ±2°C
• Adjustable temperature steps of 0.1°C
• Easy monitoring via 7-inch TFT touch screen display
Powerful 2,500W Heating System
A 2,500-watt heating capacity enables rapid heating and consistent temperature maintenance during continuous operation.
Temperature Range
• Ambient to 100°C (no load)
Adjustable Recirculating Pump
The integrated pump provides strong and stable fluid circulation for external laboratory equipment.
Pump Performance
• Adjustable pumping speed
• Maximum flow rate: 20 liters per minute
• Maximum head: 16 feet (5 meters)

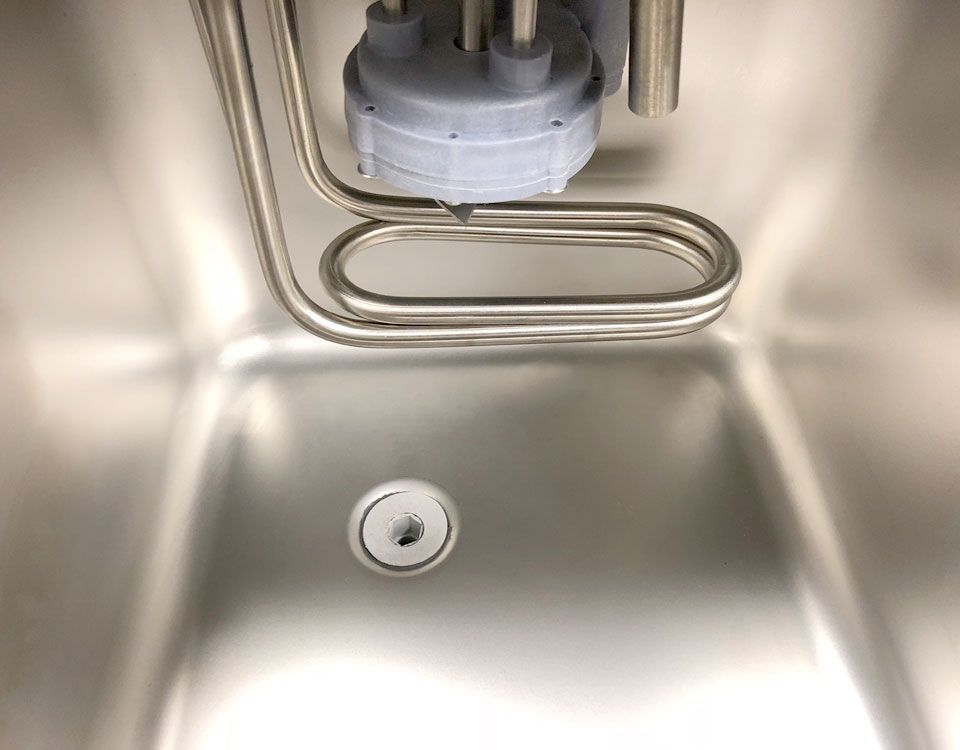

Stainless Steel Reservoir & Durable Construction
The H100-7 features all stainless steel construction, ensuring durability and corrosion resistance.
Reservoir Specifications
• Capacity: 7 liters (1.9 gallons)
• Material: Type 304 stainless steel
• ANSI standard construction
Compact Laboratory Design
A space-saving footprint allows the H100-7 to fit easily on laboratory benches while delivering high-performance heating capability.
Recommended Applications
The Ai H100-7 heated recirculator is commonly used for:
• Rotary evaporators (2L – 10L systems)
• Glass reactors
• Condensers
• Distillation systems
• Laboratory heating applications
Specifications
Electrical Requirements
• 220V, 60Hz, single phase
• 2,600 watts total power
Heating System
• Heating capacity: 2,500 watts
• Temperature range: Ambient to 100°C
• Temperature accuracy: ±2°C
Recirculating Pump
• Maximum flow rate: 20 liters per minute
• Maximum head: 16 ft (5 meters)
• Adjustable pumping speed
Reservoir
• Capacity: 7 liters (1.9 gallons)
• Dimensions: 7 x 10.5 x 5.5 inches (WxDxH)
• Material: Type 304 stainless steel

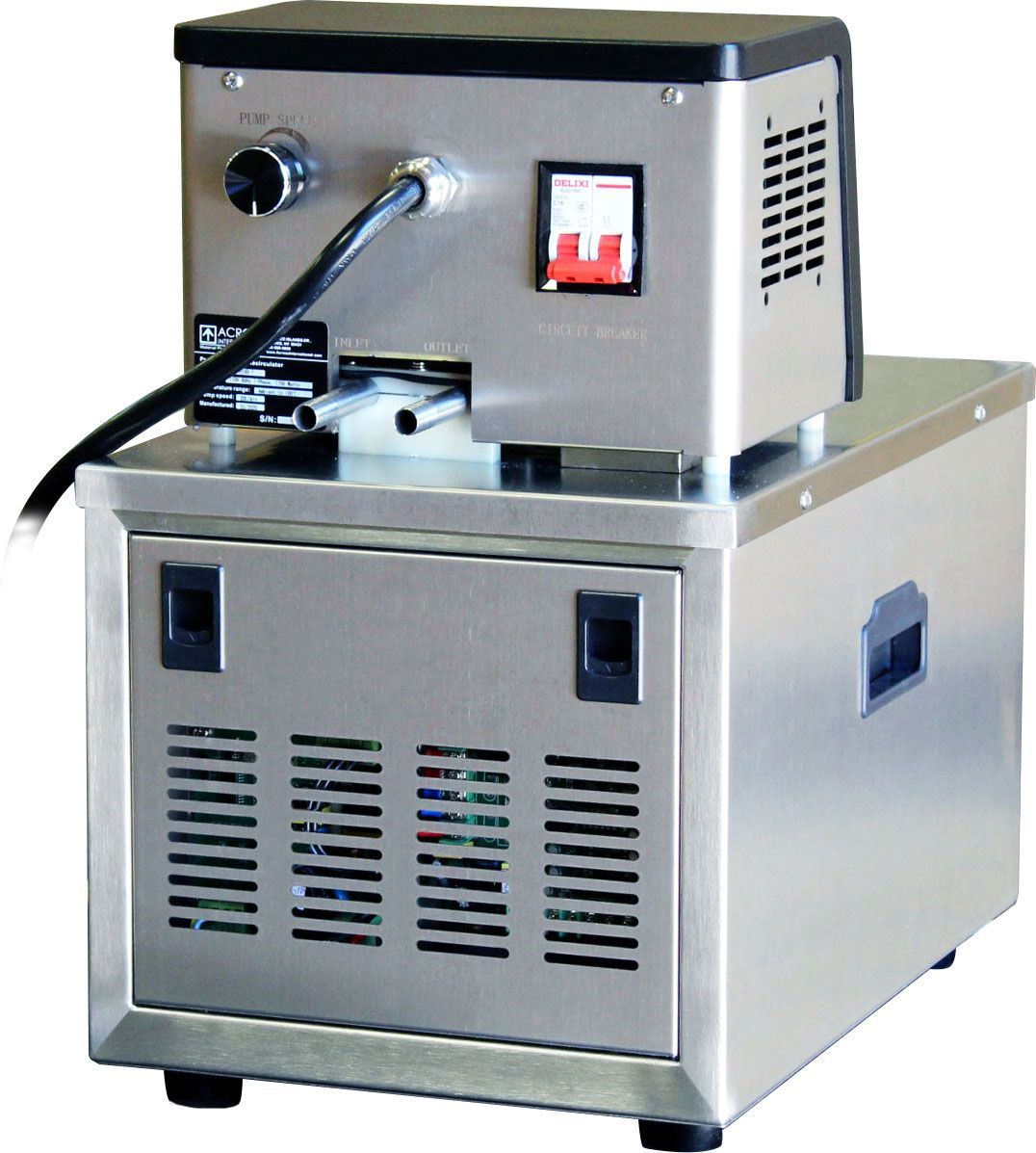

Thermo Fluid Connections
• 3/8" hose barb ×2
Drain Port
• 3/8" hose barb with on/off valve
Temperature Controller
• Digital microprocessor PID controller
• 7" TFT touch screen display
• Temperature step: 0.1°C
• Display unit: Celsius (°C)
Working Environment
• -15°C (5°F) to 25°C (77°F)
• Humidity <66%
Dimensions
Unit Dimensions
• 12 × 17 × 18 inches
Shipping Dimensions
• 17 × 20 × 22 inches
Weight
Unit Weight
• 30 lbs
Shipping Weight
• 36 lbs
Safety Features
• Short circuit protection
• Ground protection
• Over-current protection
• Over-temperature protection
• Upper and lower temperature alarm protection
Certifications
• ETL tested to UL and CSA standards
What's Included
• Ai H100-7 Heated Recirculator
• 10 ft connection tubing (3/8")
• 1/2" NPT to 3/8" hose barb drain port adapter
• User manual
Warranty
• 1 year manufacturer warranty
