Description

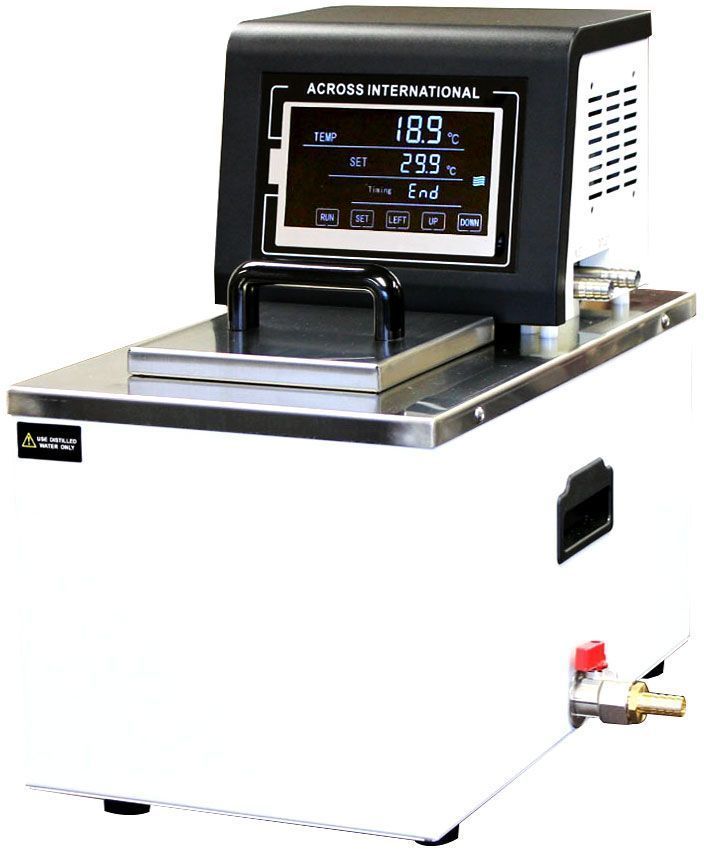

The Across International Ai H100-7 Heated Recirculator is a compact laboratory circulating heater designed to deliver precise temperature control, reliable performance, and quiet operation.
Equipped with a powerful 1,500-watt heating system and adjustable recirculating pump, the H100-7 provides stable temperature control for laboratory equipment such as rotary evaporators, glass reactors, condensers, and distillation systems.

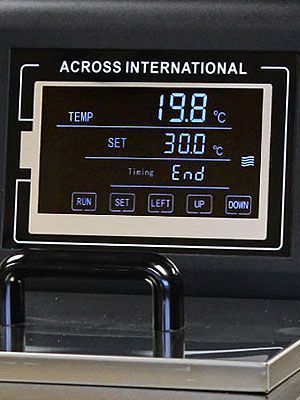

The unit features a 2nd generation 7-inch TFT touchscreen controller with PID temperature control, allowing users to monitor and adjust operating conditions with precision and ease.
With its all stainless steel reservoir and durable steel construction, the H100-7 is built for reliable operation in laboratory and pilot-scale processing environments.
Key Features
Precision Temperature Control
The H100-7 uses a digital PID microprocessor controller to maintain stable and accurate heating performance.
Benefits include:
• Temperature control accuracy within ±2°C
• Adjustable temperature steps of 0.1°C
• Easy monitoring via 7" touch screen display
This ensures consistent thermal performance for sensitive laboratory processes.
Powerful 1,500W Heating System
A 1,500-watt heating capacity allows the unit to rapidly heat circulating fluid while maintaining stable temperature control during operation.
Temperature Range
• Ambient to 100°C (no load)
Adjustable Recirculating Pump
The integrated pump provides strong and consistent fluid circulation for heating external laboratory equipment.
Pump Performance
• Adjustable pumping speed
• Flow rate: up to 20 liters per minute
• Maximum head: 16 feet (5 meters)

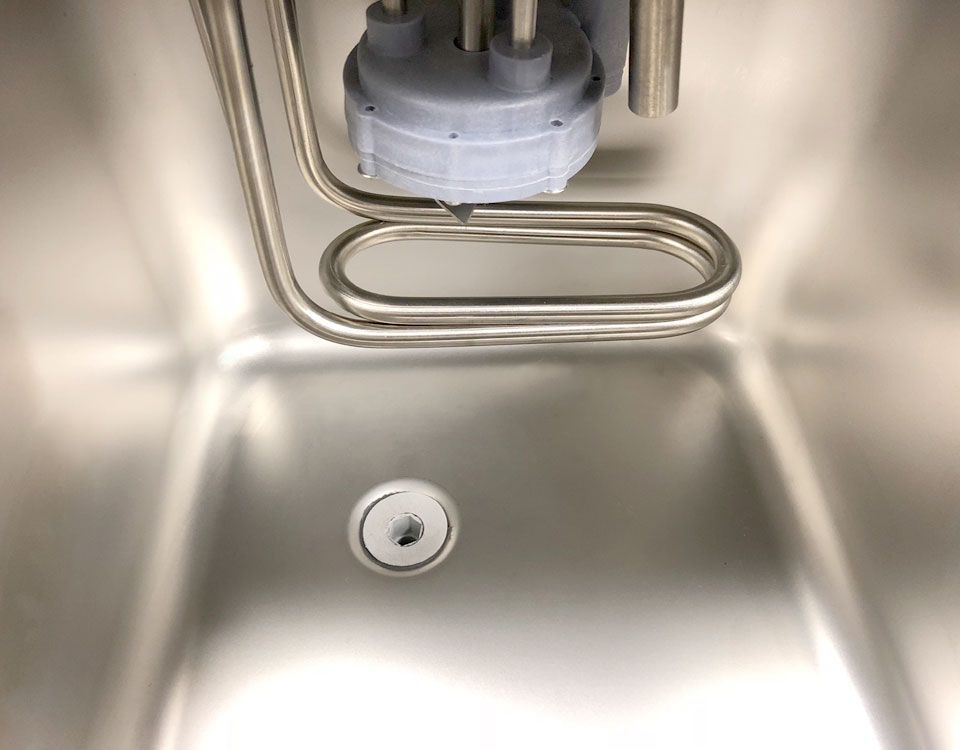

Durable Stainless Steel Reservoir
The internal reservoir is constructed from Type 304 stainless steel, meeting ANSI standards for durability and chemical resistance.
Reservoir Capacity
• 7 liters (1.9 gallons)
Compact Laboratory Footprint
The H100-7 features a compact design that saves valuable bench space while still delivering high-performance heating capability.
Recommended Applications
The Ai H100-7 is commonly used for:
• Rotary evaporators (2L – 10L systems)
• Glass reactors
• Condensers
• Distillation systems
• Laboratory heating applications
Specifications
Electrical Requirements
• 110V, 60Hz, single phase
• 1,600 watts total power
Heating System
• Heating capacity: 1,500 watts
• Temperature range: Ambient to 100°C
• Temperature accuracy: ±2°C
Recirculating Pump
• Maximum flow rate: 20 liters per minute
• Maximum head: 16 ft (5 meters)
• Adjustable pumping speed
Reservoir
• Capacity: 7 liters (1.9 gallons)
• Dimensions: 7 x 10.5 x 5.5 inches (WxDxH)
• Material: Type 304 stainless steel
Thermo Fluid Connections
• 3/8" hose barb ×2
Drain Port
• 3/8" hose barb with on/off valve
Temperature Controller
• Digital PID microprocessor controller
• 7-inch TFT touch screen display
• Temperature step: 0.1°C
• Display unit: Celsius (°C)
Working Environment
• -15°C (5°F) to 25°C (77°F)
• Humidity <66%
Dimensions
Unit Dimensions
• 10.5 × 17 × 17 inches
Shipping Dimensions
• 17 × 20 × 22 inches
Weight
Unit Weight
• 30 lbs
Shipping Weight
• 36 lbs
Safety Features
• Short circuit protection
• Ground protection
• Over-current protection
• Over-temperature protection
• Upper and lower temperature alarm protection
Certifications
• ETL tested to UL and CSA standards
What's Included
• Ai H100-7 Heated Recirculator
• 10 ft connection tubing (3/8")
• 1/2" NPT to 3/8" hose barb drain port adapter
• User manual
Warranty
• 1 year manufacturer warranty
