Description

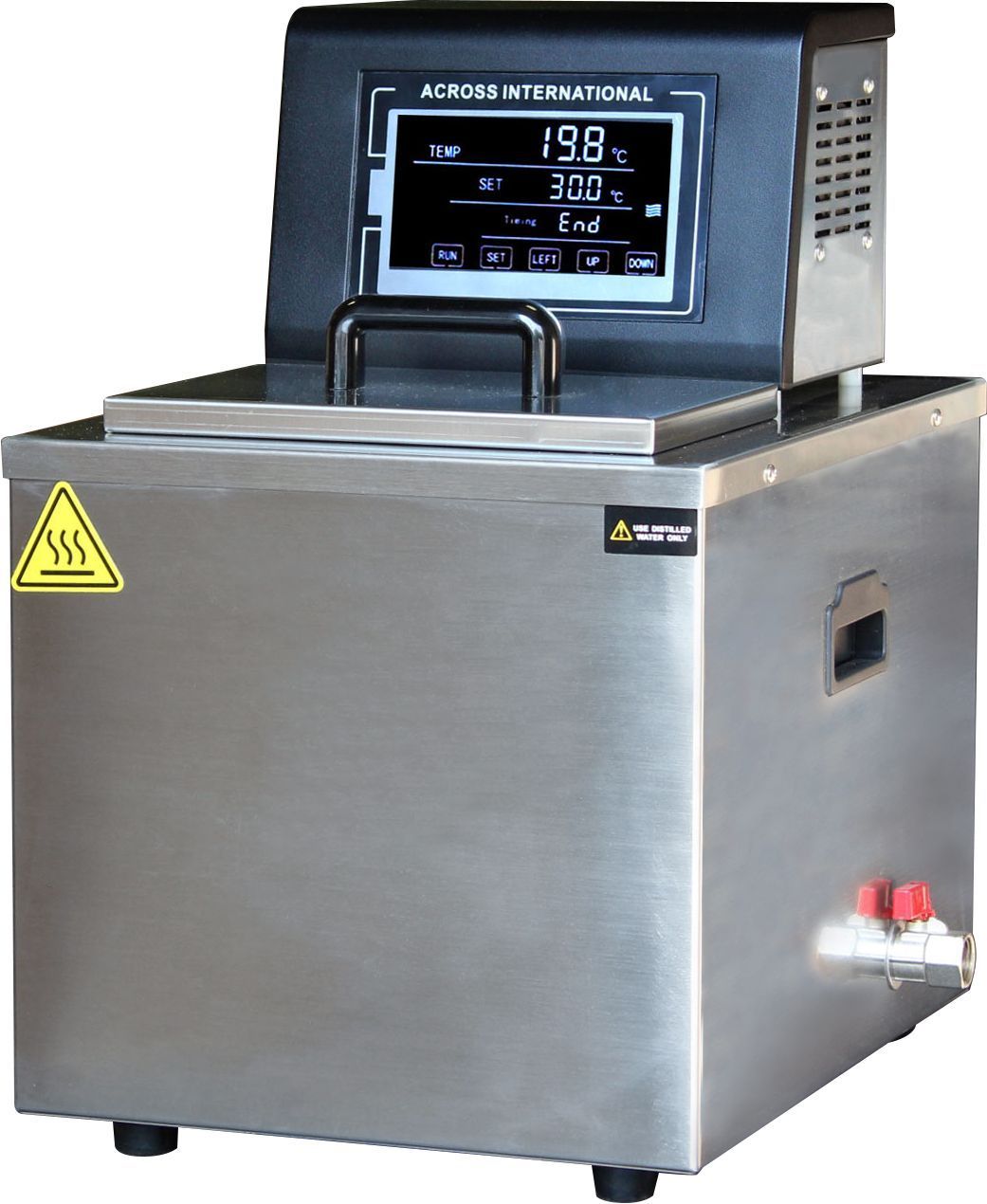

The Across International Ai H100-15 Heated Recirculator delivers reliable performance, precise temperature control, and quiet operation for laboratory heating applications. Designed for use with rotary evaporators, glass reactors, condensers, and distillation systems, the H100-15 provides stable fluid circulation and accurate temperature regulation.
Powered by a 2,500-watt heating system and adjustable recirculating pump, this unit ensures consistent heating performance for laboratory processes. The 2nd generation 7-inch TFT touchscreen controller with PID temperature control allows users to easily monitor and adjust system parameters.
Built with an all stainless steel reservoir and durable steel construction, the H100-15 offers long-lasting reliability while maintaining a compact footprint to conserve valuable laboratory space.
Key Features
Precision PID Temperature Control
The H100-15 uses a digital PID microprocessor controller to maintain stable temperature regulation.
Benefits include:
• Temperature accuracy of ±2°C
• Adjustable temperature steps of 0.1°C
• Easy monitoring via 7-inch TFT touch screen display
Powerful 2,500W Heating System
A 2,500-watt heater provides rapid heating and consistent temperature stability.
Temperature Range:
• Ambient to 100°C (no load)
Adjustable Recirculating Pump
The integrated pump provides strong and consistent fluid circulation for connected laboratory equipment.
Pump Performance:
• Maximum flow rate: 20 liters per minute
• Adjustable pumping speed
• Maximum head: 16 feet (5 meters)

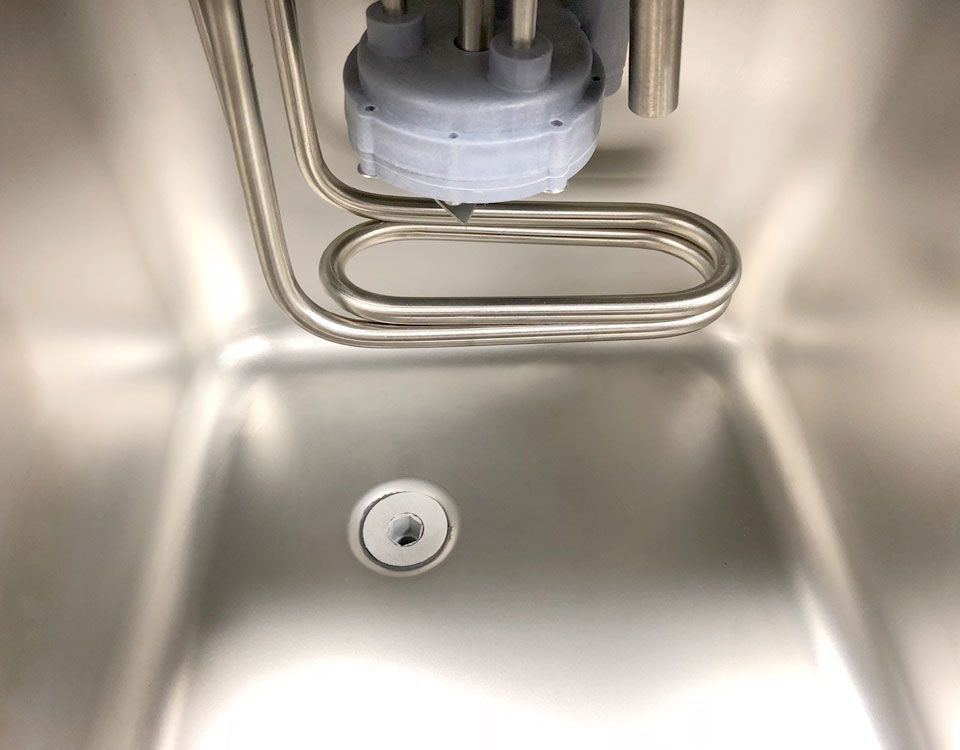

Large Stainless Steel Reservoir
The H100-15 includes an ANSI-standard Type 304 stainless steel reservoir for durability and corrosion resistance.
Reservoir Capacity:
• 15 liters (4 gallons)
Compact Laboratory Design
Despite its larger reservoir capacity, the H100-15 maintains a compact footprint to save bench space while delivering reliable heating performance.
Recommended Applications
The Ai H100-15 heated recirculator is commonly used for:
• Rotary evaporators (2L – 10L systems)
• Glass reactors
• Condensers
• Distillation systems
• Laboratory heating and temperature control
Specifications
Electrical Requirements
• 220V, 60Hz, single phase
• 2,600 watts total power
Heating System
• Heating capacity: 2,500 watts
• Temperature range: Ambient to 100°C
• Temperature accuracy: ±2°C
Recirculating Pump
• Maximum flow rate: 20 liters per minute
• Maximum head: 16 ft (5 meters)
• Adjustable pumping speed
Reservoir
• Capacity: 15 liters (4 gallons)
• Dimensions: 9.5 × 12 × 7.5 inches (WxDxH)
• Material: Type 304 stainless steel

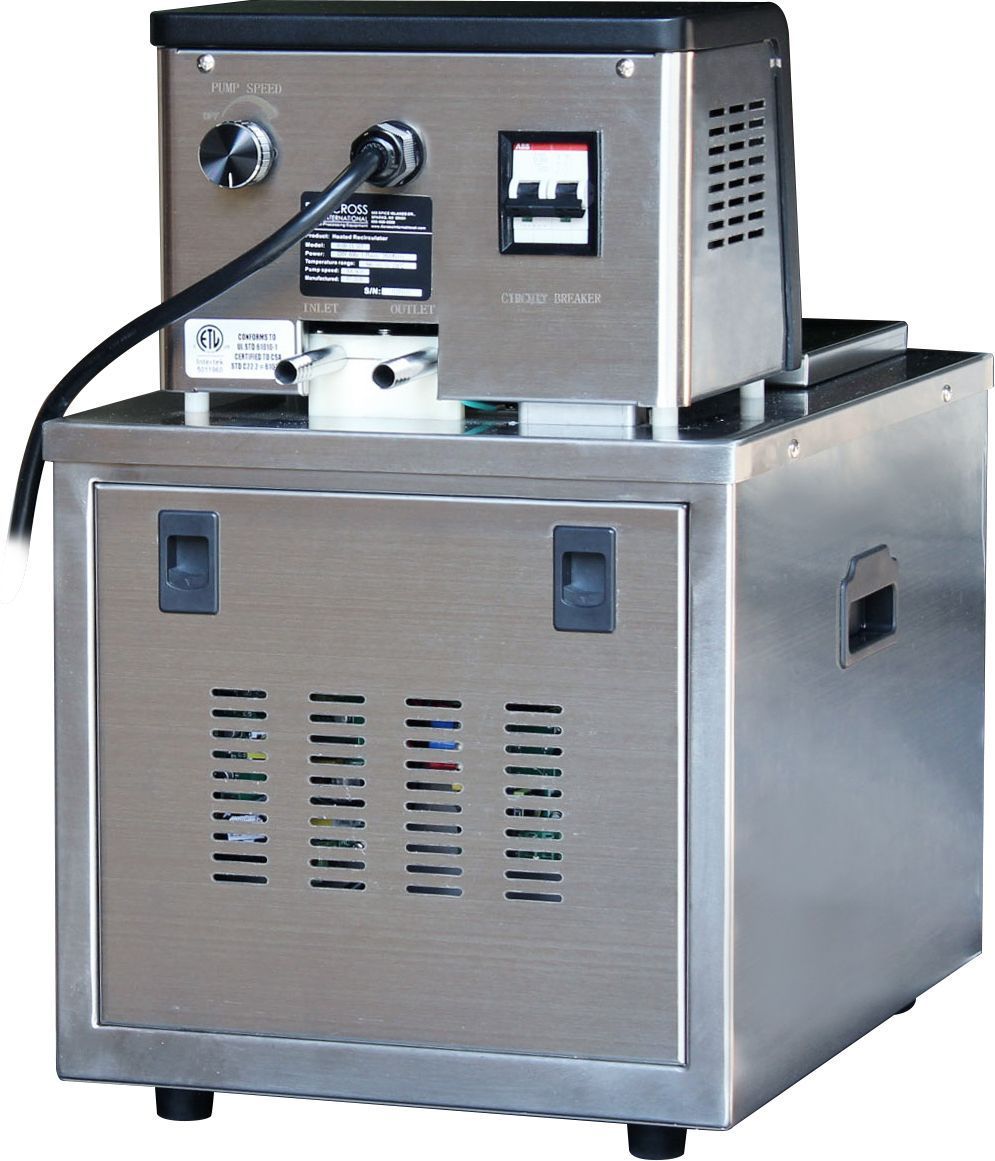

Thermo Fluid Connections
• 3/8" hose barb ×2
Drain Port:
• 3/8" hose barb with on/off valve

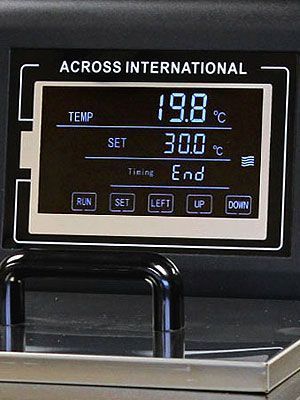

Temperature Controller
• Digital PID microprocessor controller
• 7-inch TFT touch screen display
• Temperature step: 0.1°C
• Display unit: Celsius (°C)
Working Environment
• -15°C (5°F) to 25°C (77°F)
• Humidity <66%
Dimensions
Unit Dimensions:
• 12.5 × 17 × 19.25 inches
Shipping Dimensions:
• 17 × 20 × 22 inches
Weight
Unit Weight:
• 30 lbs
Shipping Weight:
• 36 lbs
Safety Features
• Short circuit protection
• Ground protection
• Over-current protection
• Over-temperature protection
• Upper and lower temperature alarm protection
Certifications
• ETL tested to UL and CSA standards
What's Included
• Ai H100-15 Heated Recirculator
• 10 ft connection tubing (3/8")
• 1/2" NPT to 3/8" hose barb drain port adapter
• User manual
Warranty
• 1-year manufacturer warranty
