Description

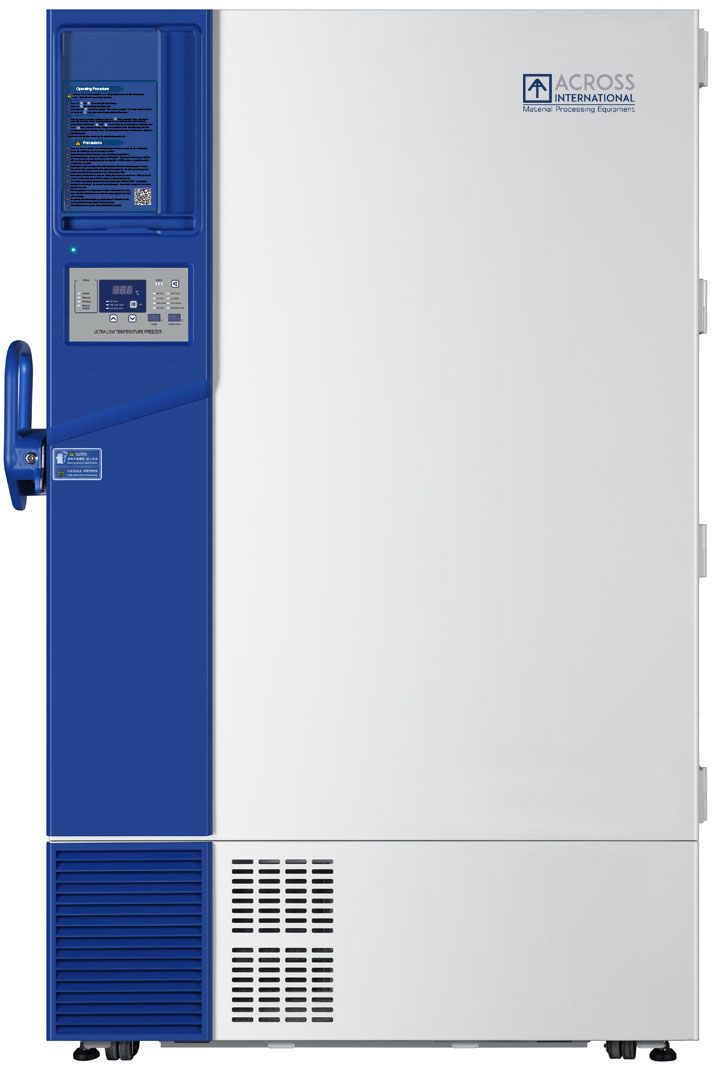

The Across International Ai RapidChill G34he -86°C Ultra-Low Temperature Freezer is designed for high-capacity ultra-low temperature storage of sensitive biological samples and vaccines. With an expansive 34 cubic foot storage chamber, this Energy Star certified ULT laboratory freezer provides dependable performance for research laboratories, pharmaceutical facilities, hospitals, and biotech institutions.
The RapidChill G34he features advanced Vacuum Insulated Panel (VIP) technology and an energy-efficient hydrocarbon refrigeration system, enabling fast pull-down times, excellent temperature uniformity, and extremely low power consumption. The system can reach -86°C in approximately 6 hours while maintaining temperature stability within ±3°C.
Unlike most ULT freezers, the G34he is fully compatible with both 50Hz and 60Hz power, allowing it to operate in North America, Europe, Asia, and South America, making it ideal for global laboratories and research facilities.
Equipped with dual compressors, long-term USB data logging, RS-485 monitoring, and advanced alarm protection, the RapidChill G34he delivers secure and reliable storage for critical laboratory materials.
Key Features
• Ultra-low temperature range: -40°C to -86°C
• Large 34 cubic foot storage capacity
• 50/60Hz compatible for global use
• Energy Star certified high-efficiency design
• VIP (Vacuum Insulated Panel) insulation technology
• Dual compressor cascade refrigeration system

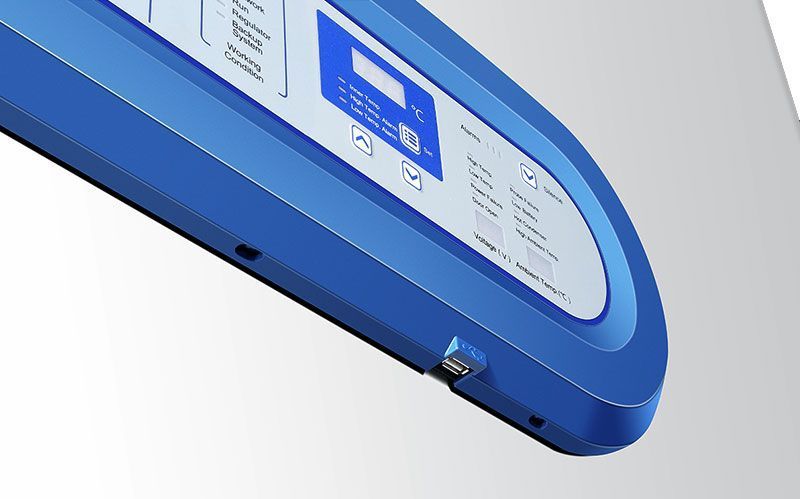

• Microprocessor temperature controller with digital display
• 48-hour battery backup for alarms and controller
• USB data logging with up to 15 years of stored temperature records
• RS-485 communication for remote monitoring
• Ultra-quiet operation at approximately 47 dBA
Ideal Applications
The Ai RapidChill Ultra-Low Temperature Freezer is ideal for:
• Vaccine storage
• DNA and RNA sample preservation
• Virus sample storage
• Serum and organ storage
• Pharmaceutical laboratories
• Biotechnology research facilities
• Medical research institutions
The unit is CDC and VFC compliant, making it suitable for regulated medical environments.
Advanced Cooling & Energy Efficiency
The RapidChill G34he utilizes VIP (Vacuum Insulated Panel) insulation, significantly improving thermal performance while reducing energy consumption.
Combined with a hydrocarbon cascade refrigeration system, the freezer delivers:
• Faster cooling performance
• Reduced operating costs
• Lower environmental impact
• Improved chamber temperature stability
The system also incorporates inverter technology, delivering energy consumption of approximately 0.33 kWh/day/cu-ft, outperforming many competing ULT freezer models.
Security & Alarm System
The freezer includes a comprehensive safety and monitoring system:
• High temperature alarm
• Low temperature alarm
• Power failure alarm
• Door open alarm
• Filter clogging alarm
• Sensor error alarm
• High ambient temperature alarm
• Low battery alarm
• High/low voltage alarms
• Password protection
• Lockable external door
Technical Specifications
Electrical Requirements
Voltage: 220V
Frequency: 50/60Hz
Power Consumption: 1300 Watts
Current: 7 Amps
Temperature Performance
Temperature Range: -40°C to -86°C
Time to Reach -86°C: Approximately 6 hours
Temperature Uniformity: ±3°C
Recovery Time (-86°C to -50°C): 5 hours (door closed, ambient 25°C)
1-Minute Door Open Recovery: 40 minutes
Chamber Specifications
Interior Dimensions: 40 x 28 x 51.5 inches
Interior Capacity: 34 Cubic Feet

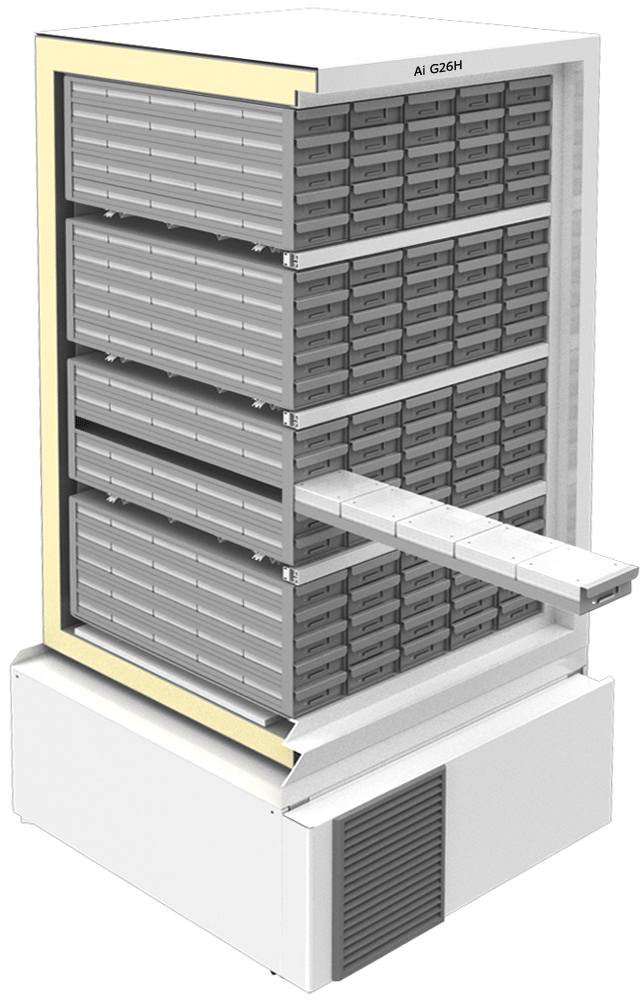

Cryo Box Capacity: 700 boxes (5 x 5 x 2 inch)
Maximum Shelf Load Capacity: 278 lbs (126 kg)
Maximum Unit Load Capacity: 1111 lbs (504 kg)
Interior Material: Powder Coated Steel
Insulation: VIP (Vacuum Insulated Panel)

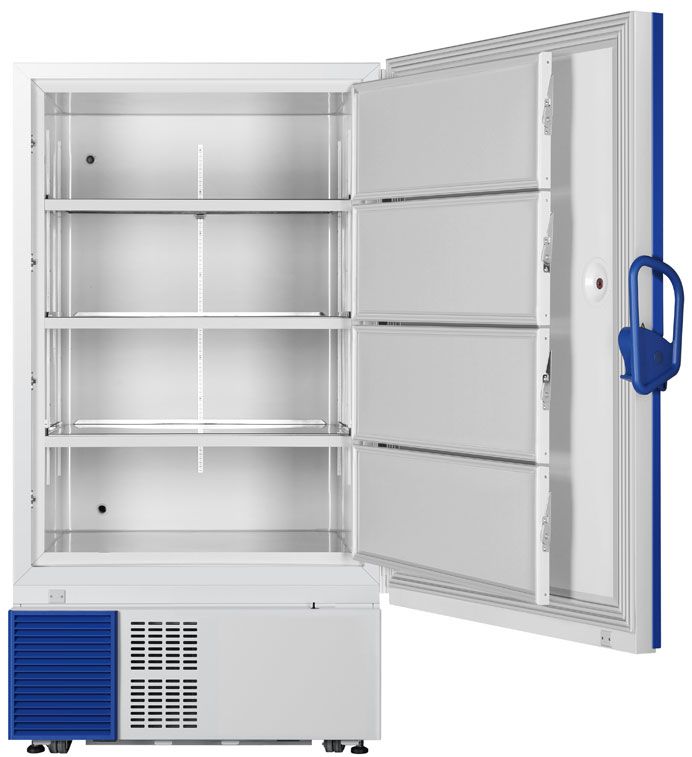

Shelving
Fully adjustable shelving system designed for flexible storage configuration.

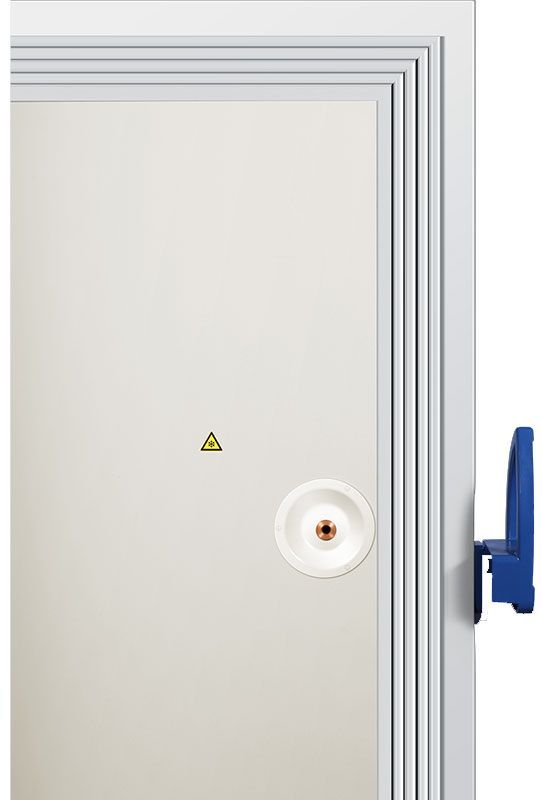

Door & Sealing System
Inner Doors: Multiple internal compartments
External Door: Lockable external door
Sealing System: Dual silicone sealing gaskets for airtight insulation
Communication & Data Logging
Standard Interfaces:
• USB data logging (stores up to 15 years of temperature data)
• RS-485 communication
Optional:
• 4-20mA transmitter
Mobility
Built-in mobile casters for easier positioning and installation.
Operating Environment
Temperature: 10°C – 32°C
Humidity: <80% RH
Altitude: Below 2000 meters
Installation Requirements:
• Maintain 12 inches clearance from walls
• Use dedicated grounded power outlet
• Extension cord must be less than 10 feet
Noise Level
47 dBA
Dimensions & Weight
Unit Dimensions: 51 x 39.5 x 78 inches (W x D x H)
Shipping Dimensions: 54 x 43.5 x 84.5 inches
Unit Weight: 990 lbs
Shipping Weight: 1070 lbs
Safety Protections
• Compressor over-temperature protection
• Ambient over-temperature protection
• Power surge delay protection
• Sensor failure protection
• Over-temperature and low-temperature protection
• Power failure protection
• Ground protection
Alarm notifications include:
• Low battery
• Door ajar
• Condenser clogging
• System failure
Certifications & Compliance
Certified to:
• UL 61010-1
• CSA C22.2
• Energy Star
• CE
What's Included
• Ai RapidChill G34he -86°C Ultra-Low Temperature Upright Freezer
• Ice scraper
• Door keys (2)
• Mounting brackets
• User manual
Important Setup Instructions
Allow the freezer to stand upright for 24 hours before powering on after delivery.
This unit is not designed for use on mobile platforms.
Warranty
2-Year Full Service Warranty
5-Year Parts Warranty
10-Year Compressor Warranty
