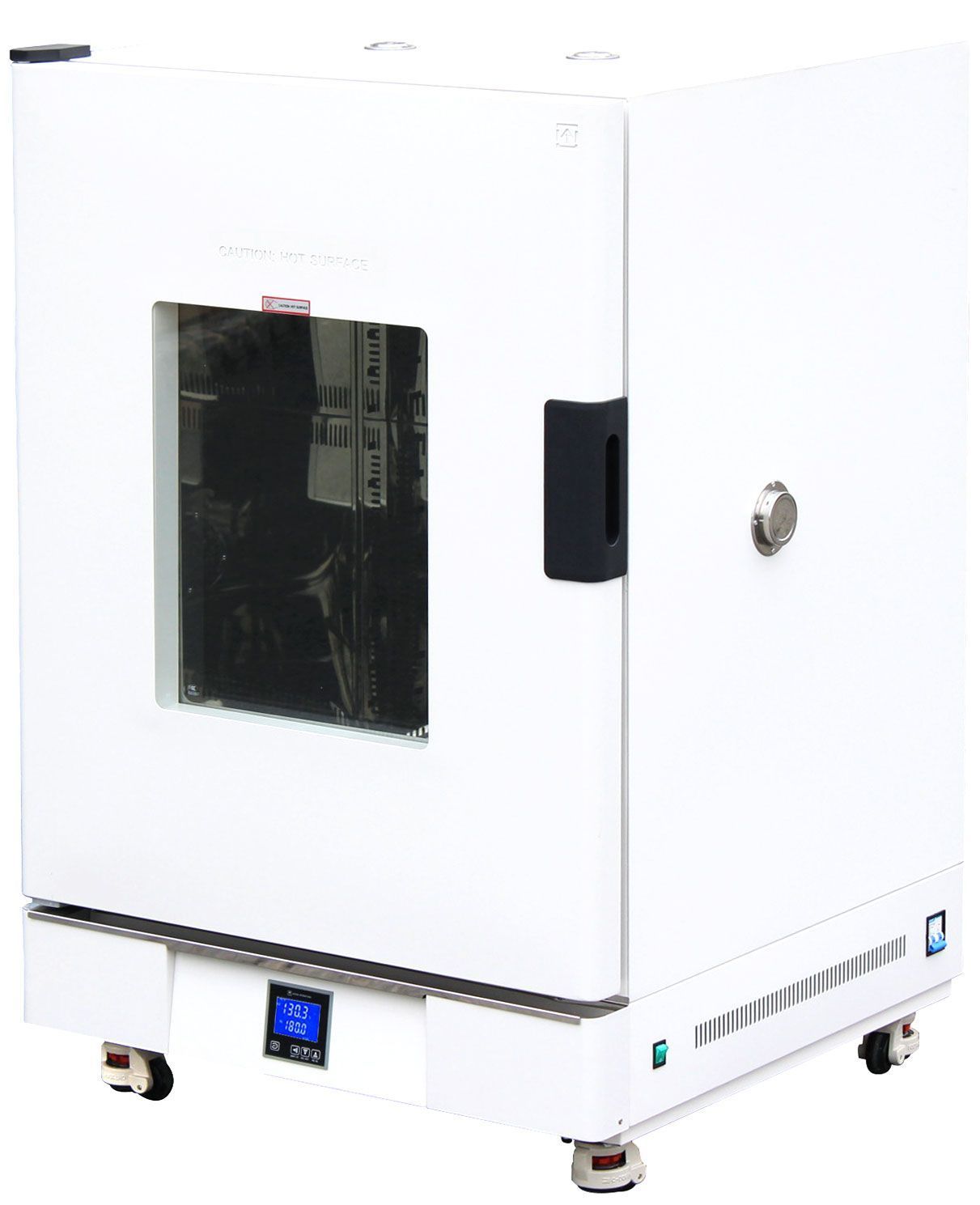

The Across International 14.5 Cu Ft Forced Air Laboratory Oven is a high-capacity drying and sterilization oven designed for laboratory, medical, and industrial research environments. Featuring a 316L stainless steel chamber, this oven offers exceptional corrosion resistance and cleanliness for sensitive applications such as medical device drying, sterilization, and pharmaceutical sample preparation.

Equipped with forced-air convection heating and microcontroller-based temperature control, the oven provides dependable heating performance and excellent temperature uniformity throughout the chamber. The integrated memory retention function automatically restores previous settings after power interruptions, allowing the oven to resume operation seamlessly once power returns.

With a large 14.5 cubic foot chamber capacity, this oven is ideal for laboratories requiring high-volume drying, sterilization, and temperature-controlled processing.

---

Key Features

316L Stainless Steel Chamber

• High-grade 316L stainless steel interior

• Superior corrosion resistance for pharmaceutical and medical applications

• Ideal for sterilization and high-purity laboratory environments

Precision Digital Temperature Control

• Microcontroller-based control improves temperature accuracy and uniformity

• Built-in temperature calibration capability

• Digital interface allows precise control of heating parameters

Forced-Air Convection Heating

• Forced-air circulation ensures even heat distribution throughout the chamber

• Maintains stable and consistent heating conditions

• Gentle downward airflow reduces disturbance to samples

Memory Retention Function

• Automatically resumes previous operating settings after power interruption

• Ensures uninterrupted laboratory workflows

Temperature Alarm System

• Alarm activates when temperature moves outside the desired operating range

Moisture Control

• Adjustable dual moisture escape ports allow humidity to vent during drying processes

Heavy-Duty Laboratory Construction

• Corrosion-resistant 316L stainless steel chamber

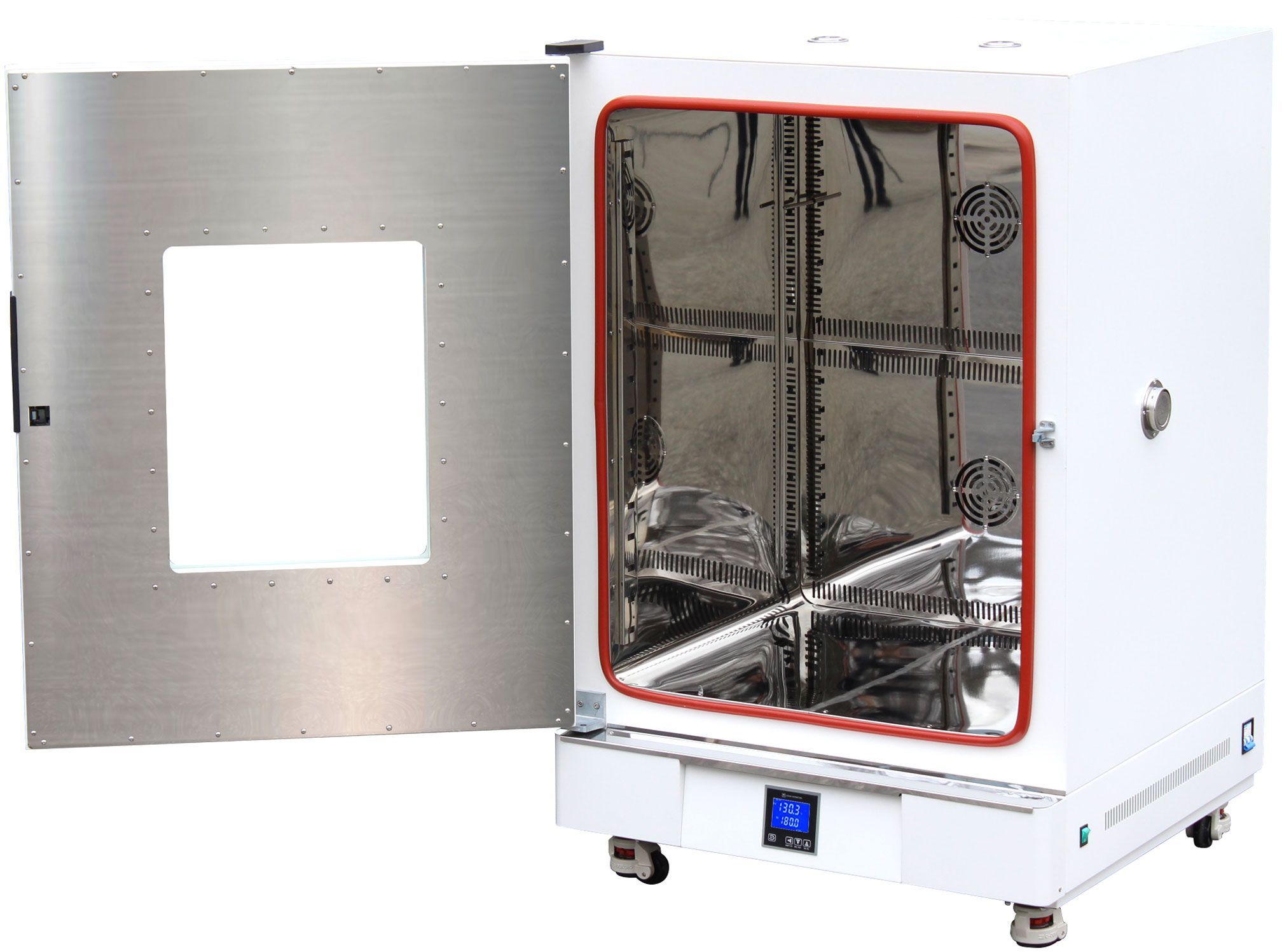

• Double-glazed observation window allows safe monitoring of samples during operation

Integrated Safety Protection

• Overheat protection system automatically shuts down the oven if temperature exceeds safe limits or sensor failure occurs

Ideal Applications

• Medical device drying and sterilization

• Laboratory sample preparation and drying

• Pharmaceutical and biotechnology laboratories

• Materials testing and research applications

---

Technical Specifications

Electrical Requirements

• Voltage: 208–240 VAC

• Frequency: 50/60 Hz

• Phase: Single Phase

• Power Consumption: 3800 Watts

Note: This model is available in 220V single phase only.

---

Chamber

• Capacity: 14.5 Cubic Feet

• Interior Dimensions: 27" × 25" × 35.5" (W × D × H)

• Chamber Material: 316L Stainless Steel

---

Temperature Control

• Temperature Range: Ambient to 250°C

• Controller: Digital Microcontroller

• Timer Range: 1 – 9999 minutes

---

Air Circulation

• Forced-air convection heating system

• Designed for consistent temperature distribution throughout the chamber

---

Moisture & Access Ports

Moisture Escape Ports

• Two adjustable 2" diameter moisture vents located on top of oven

Access Port

• 2" diameter access port with removable cover

---

Dimensions & Weight

• Unit Dimensions: 33.5" × 34" × 52.25"

• Shipping Dimensions: 40" × 38" × 58"

• Shipping Weight: 435 lbs

---

Shelf System

Included Shelves

• 2 Stainless Steel Wire Shelves Included

Shelf Capacity

• Maximum Rack Capacity: 16 shelves

• Shelf Spacing: 2 inches between racks

Additional shelves available separately.

---

Materials & Construction

• Chamber Interior: 316L Stainless Steel

• Observation Window: Double-glazed tempered glass

• Exterior Housing: Laboratory-grade metal construction

---

Safety Features

• Overheat protection system

• Automatic shutdown if temperature exceeds safe limits

• Sensor failure protection

---

Compliance & Certifications

• CE Certified

• ETL tested to UL & CSA standards (optional)

---

What's Included

• 1 × Across International 14.5 Cu Ft Forced Air Oven (316L Chamber)

• 2 × Stainless Steel Wire Shelves

• 4 × L-Brackets

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty
