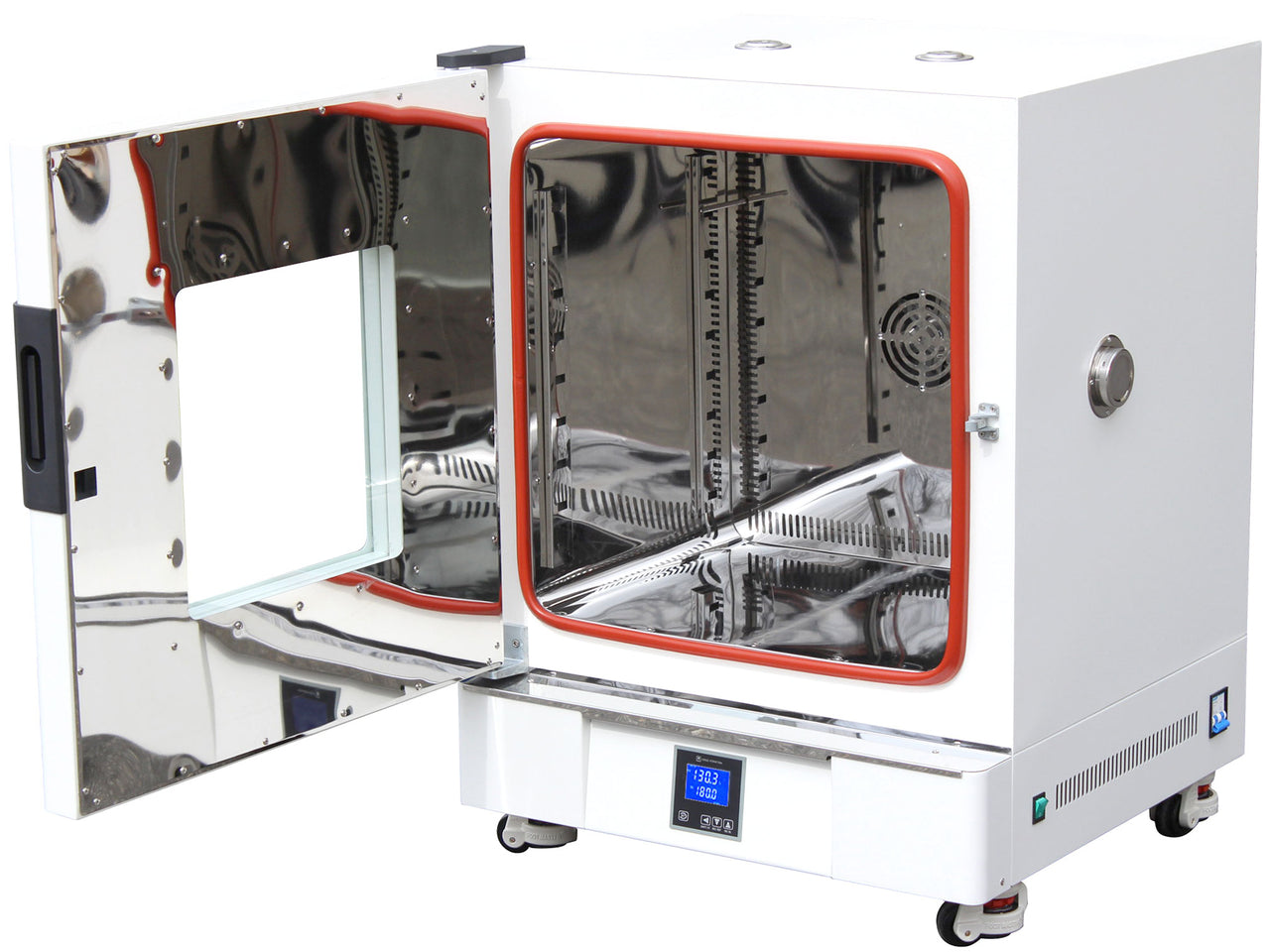

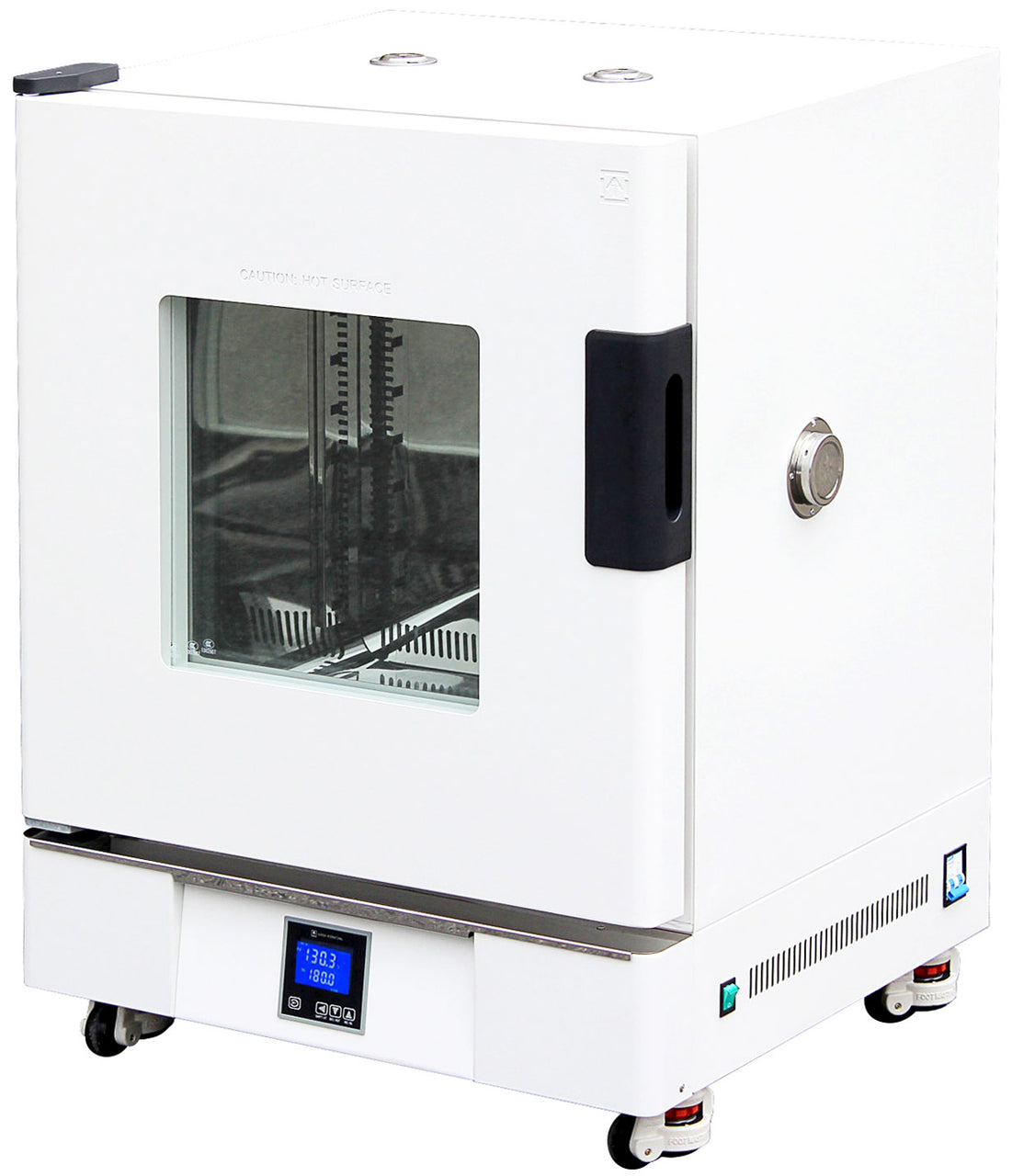

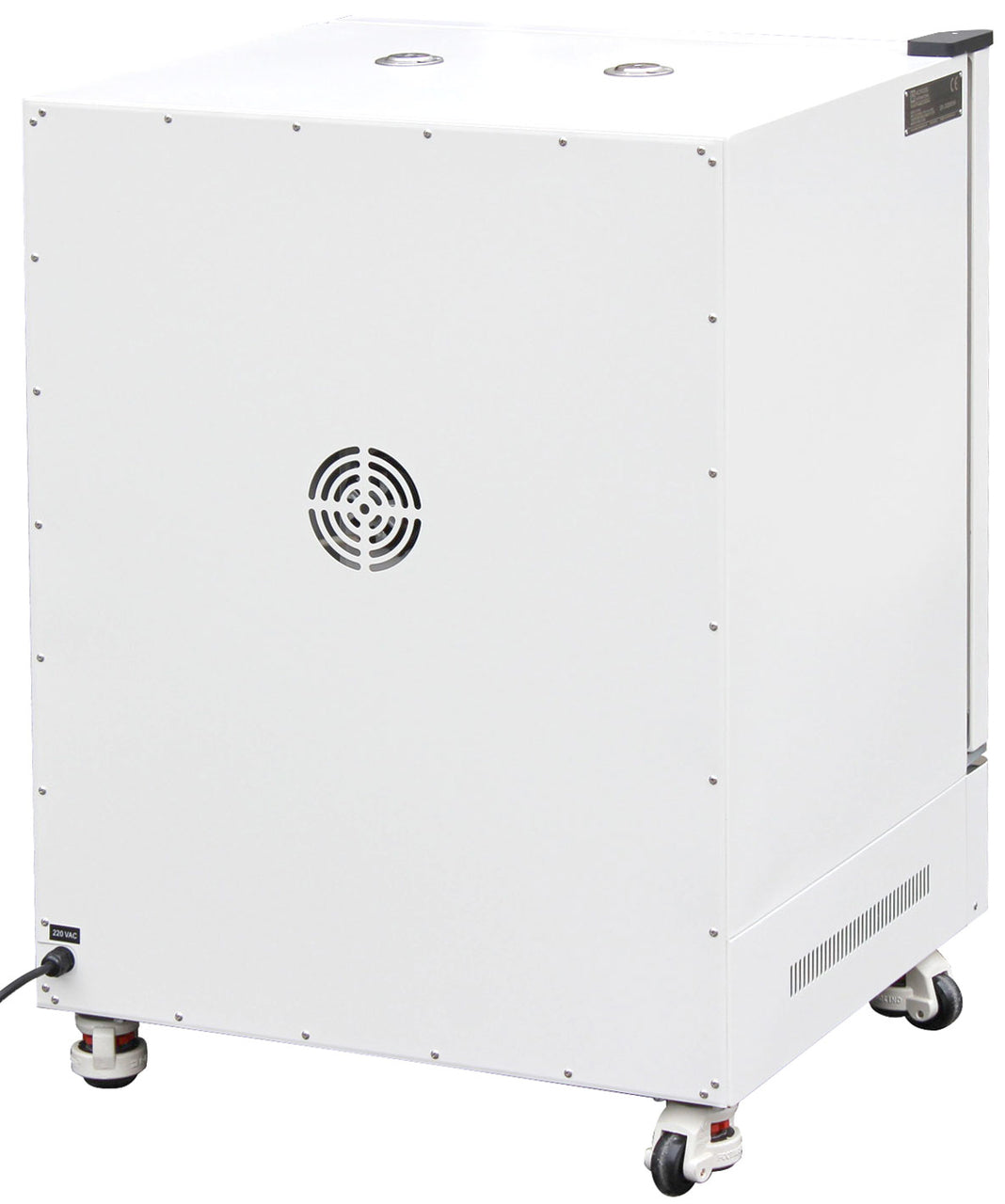

The Across International 4.8 Cu Ft Forced Air Laboratory Oven is a high-capacity drying and sterilization oven designed for laboratory, medical, and research applications. Featuring forced-air convection heating and digital microcontroller temperature control, this oven provides dependable temperature uniformity and precise heating performance across the entire chamber.

The oven utilizes a microcontroller-based control system that enhances temperature precision and allows operators to set temperature alarms when readings move outside the desired range. The integrated memory retention function restores previous settings after power interruptions, allowing the oven to resume operation automatically once power returns.

With a spacious 4.8 cubic foot chamber capacity, this laboratory oven is ideal for facilities requiring larger batch drying, sterilization, and materials testing processes while maintaining consistent temperature control.

---

Key Features

Precision Digital Temperature Control

• Microcontroller-based control improves temperature accuracy and stability

• Built-in temperature calibration capability

• Digital control system for easy temperature and timer adjustments

Forced-Air Convection Heating

• Forced-air circulation distributes heat evenly throughout the chamber

• Maintains uniform heating conditions across all samples

• Gentle downward airflow minimizes disruption to sensitive materials

Memory Retention Function

• Automatically resumes previous operating settings after power loss

• Ensures uninterrupted laboratory workflows

Temperature Alarm System

• Alarm alerts operators when temperature moves outside the selected range

Moisture Control

• Adjustable dual moisture escape ports help remove humidity during drying

Durable Laboratory Construction

• Corrosion-resistant stainless steel interior chamber

• Double-glazed observation window allows safe monitoring of samples during operation

Integrated Safety Protection

• Overheat protection system automatically shuts off power if temperature exceeds limits or sensor failure occurs

Ideal Applications

• Medical device drying and sterilization

• Laboratory sample preparation

• Materials testing and research applications

• Pharmaceutical and biotechnology laboratories

---

Technical Specifications

Electrical Requirements

• Voltage: 208–240 VAC

• Frequency: 50/60 Hz

• Phase: Single Phase

• Power Consumption: 2500 Watts

Note: This model is available in 220V single phase only.

---

Chamber

• Capacity: 4.8 Cubic Feet

• Interior Dimensions: 22" × 16" × 22" (W × D × H)

• Chamber Material: Stainless Steel

---

Temperature Control

• Temperature Range: Ambient to 250°C

• Controller: Digital Microcontroller

• Timer Range: 1 – 9999 minutes

---

Air Circulation

• Forced-air convection heating system

• Designed for consistent temperature distribution throughout the chamber

---

Moisture & Access Ports

Moisture Escape Ports

• Two adjustable 2" diameter moisture vents located on top of the oven

Access Port

• 2" diameter access port with removable cover

---

Dimensions & Weight

• Unit Dimensions: 30" × 26" × 34"

• Shipping Dimensions: 32" × 32" × 44"

• Shipping Weight: 310 lbs

---

Shelf System

Included Shelves

• 2 Stainless Steel Wire Shelves Included

Shelf Capacity

• Maximum Rack Capacity: 9 shelves

• Shelf Spacing: 2 inches between racks

Additional shelves available separately.

---

Materials & Construction

• Chamber Interior: Corrosion-resistant stainless steel

• Observation Window: Double-glazed tempered glass

• Exterior Housing: Industrial laboratory-grade metal construction

---

Safety Features

• Overheat protection system

• Automatic shutdown if temperature exceeds safe limits

• Sensor failure protection

---

Compliance & Certifications

• CE Certified

• ETL tested to UL & CSA standards (optional)

---

What's Included

• 1 × Across International 4.8 Cu Ft Forced Air Oven

• 2 × Stainless Steel Wire Shelves

• 4 × L-Brackets

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty
