Description

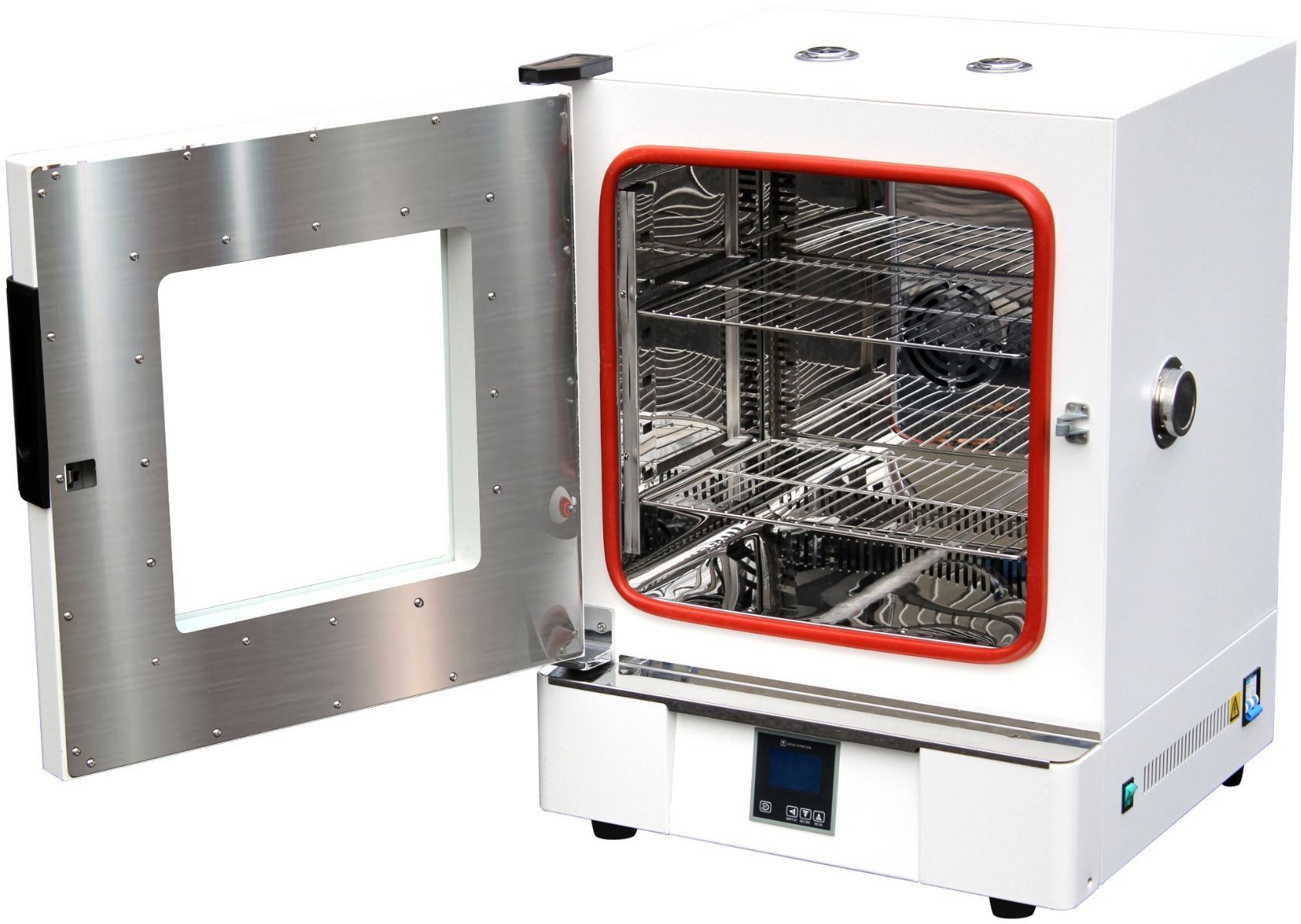

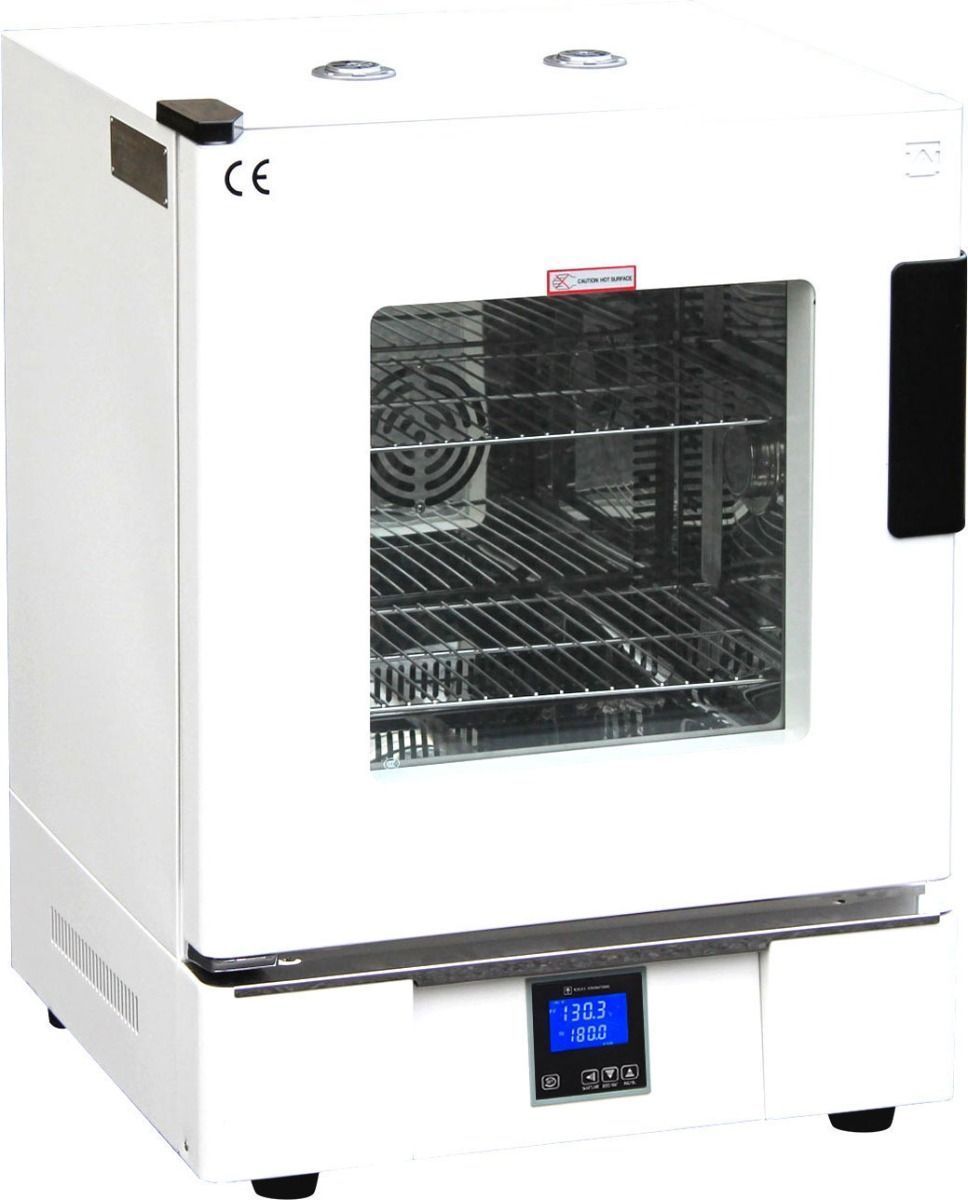

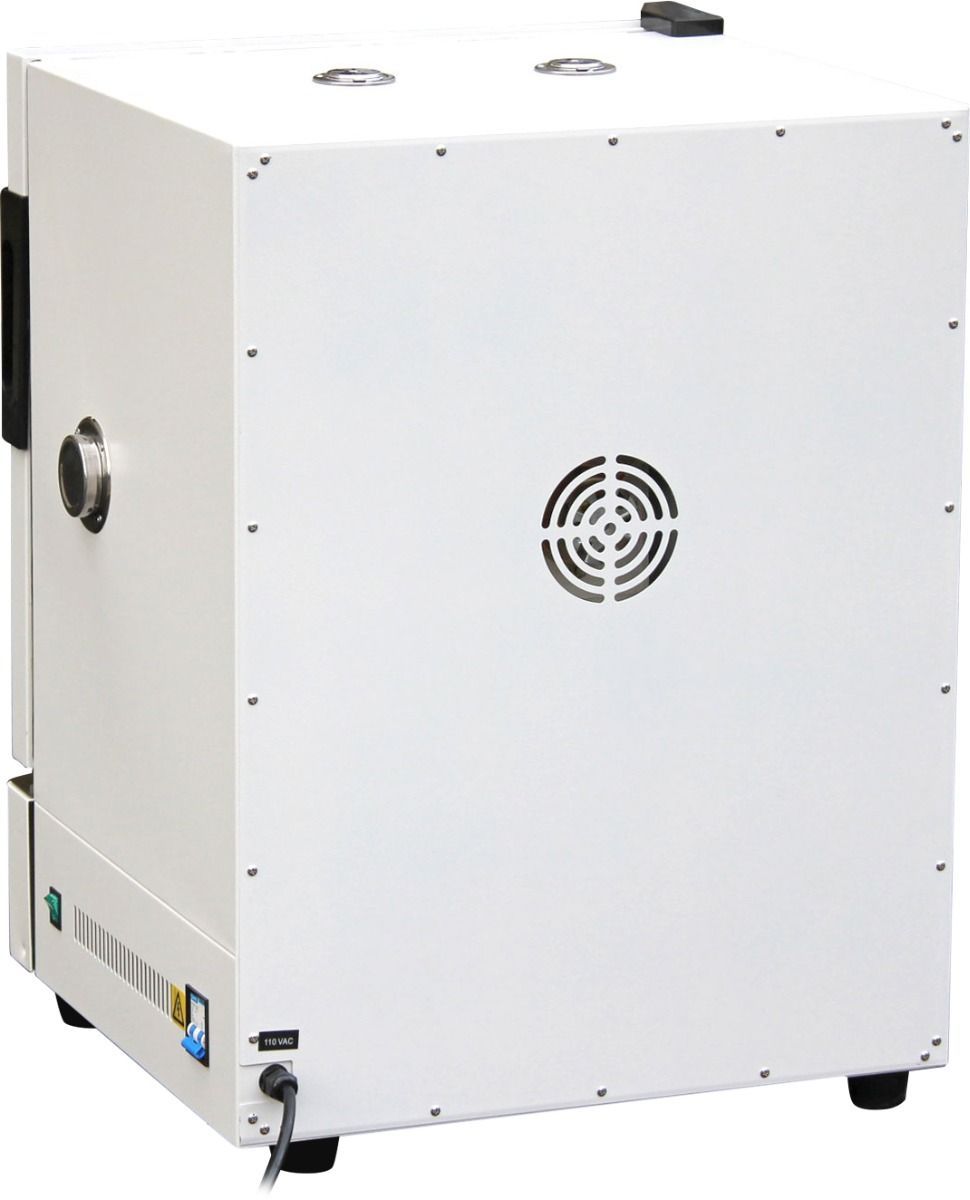

The Across International 2.5 Cu Ft Forced Air Laboratory Oven is a precision-controlled drying and sterilization oven designed for laboratory, medical, and research environments. Featuring a 316L stainless steel chamber, this oven provides exceptional corrosion resistance and cleanliness for applications requiring high-purity processing such as medical device drying, sterilization, and laboratory sample preparation.
Equipped with forced-air convection heating and microcontroller-based temperature control, this laboratory oven delivers reliable temperature stability and excellent heat uniformity. The integrated memory function automatically restores previous settings after power interruptions, allowing the oven to resume operation without manual reset.
With a larger 2.5 cubic foot chamber capacity, this unit provides increased throughput while maintaining the compact footprint required for laboratory benchtop installations.
Key Features
316L Stainless Steel Chamber
-
High-grade 316L stainless steel interior
-
Superior corrosion resistance for laboratory and medical environments
-
Ideal for sterilization and controlled drying applications
Precision Digital Temperature Control
-
Microcontroller-based temperature control improves accuracy and uniformity
-
Built-in temperature calibration capability
-
Digital display for easy monitoring
Forced-Air Convection Heating
-
Forced-air circulation distributes heat evenly throughout the chamber
-
Maintains stable and uniform temperature conditions
-
Gentle airflow minimizes disturbance to samples
Memory Retention Function
-
Automatically resumes previous operating settings after power loss
-
Ensures consistent laboratory processes
Temperature Alarm System
-
Alarm triggers when temperature moves outside the desired range
Moisture Control
-
Adjustable dual moisture escape ports help remove humidity during drying processes
Laboratory-Grade Construction
-
Corrosion-resistant 316L stainless steel chamber
-
Double-glazed observation window for safe monitoring
Integrated Safety Protection
-
Overheat protection system automatically shuts down the oven if temperature exceeds safe limits or sensor failure occurs
Ideal Applications
-
Medical device drying and sterilization
-
Laboratory sample drying
-
Pharmaceutical research applications
-
Controlled heating for laboratory testing
Technical Specifications
Electrical Requirements
-
Voltage: 110VAC
-
Frequency: 60Hz
-
Phase: Single Phase
-
Power Consumption: 1700 Watts
Chamber
-
Capacity: 2.5 Cubic Feet
-
Interior Dimensions: 17.75" × 11.5" × 18" (W × D × H)
-
Material: 316L Stainless Steel
Temperature Control
-
Temperature Range: Ambient to 250°C
-
Controller: Digital Microcontroller
-
Timer Range: 1 – 9999 minutes
Air Circulation
-
Forced-air convection heating system
-
Designed for uniform temperature distribution throughout the chamber
Moisture & Access Ports
Moisture Escape Ports
-
Two adjustable 2" moisture escape ports located on top of the oven
Access Port
-
2" diameter access port with removable cover
Dimensions & Weight
-
Unit Dimensions: 24" × 22" × 30.5"
-
Shipping Dimensions: 28.5" × 28.25" × 38"
-
Shipping Weight: 190 lbs
Shelf System
Included Shelves
-
2 Stainless Steel Wire Shelves Included
Shelf Capacity
-
Maximum Rack Capacity: 7 shelves
-
Shelf Spacing: 2 inches between racks
Additional shelves available separately.
Materials & Construction
-
Chamber Interior: 316L Stainless Steel
-
Observation Window: Double-glazed tempered glass
-
Exterior Housing: Laboratory-grade metal construction
Safety Features
-
Overheat protection system
-
Automatic shutdown if temperature exceeds safe limits
-
Sensor failure protection
Compliance & Certifications
-
CE Certified
-
ETL tested to UL & CSA standards (optional)
What's Included
-
1 × Across International 2.5 Cu Ft Forced Air Oven
-
2 × Stainless Steel Wire Shelves
-
4 × L-Brackets
-
1 × 110V 3-Prong Power Cord
-
1 × User Manual
Warranty
-
1 Year Manufacturer Warranty
