Description

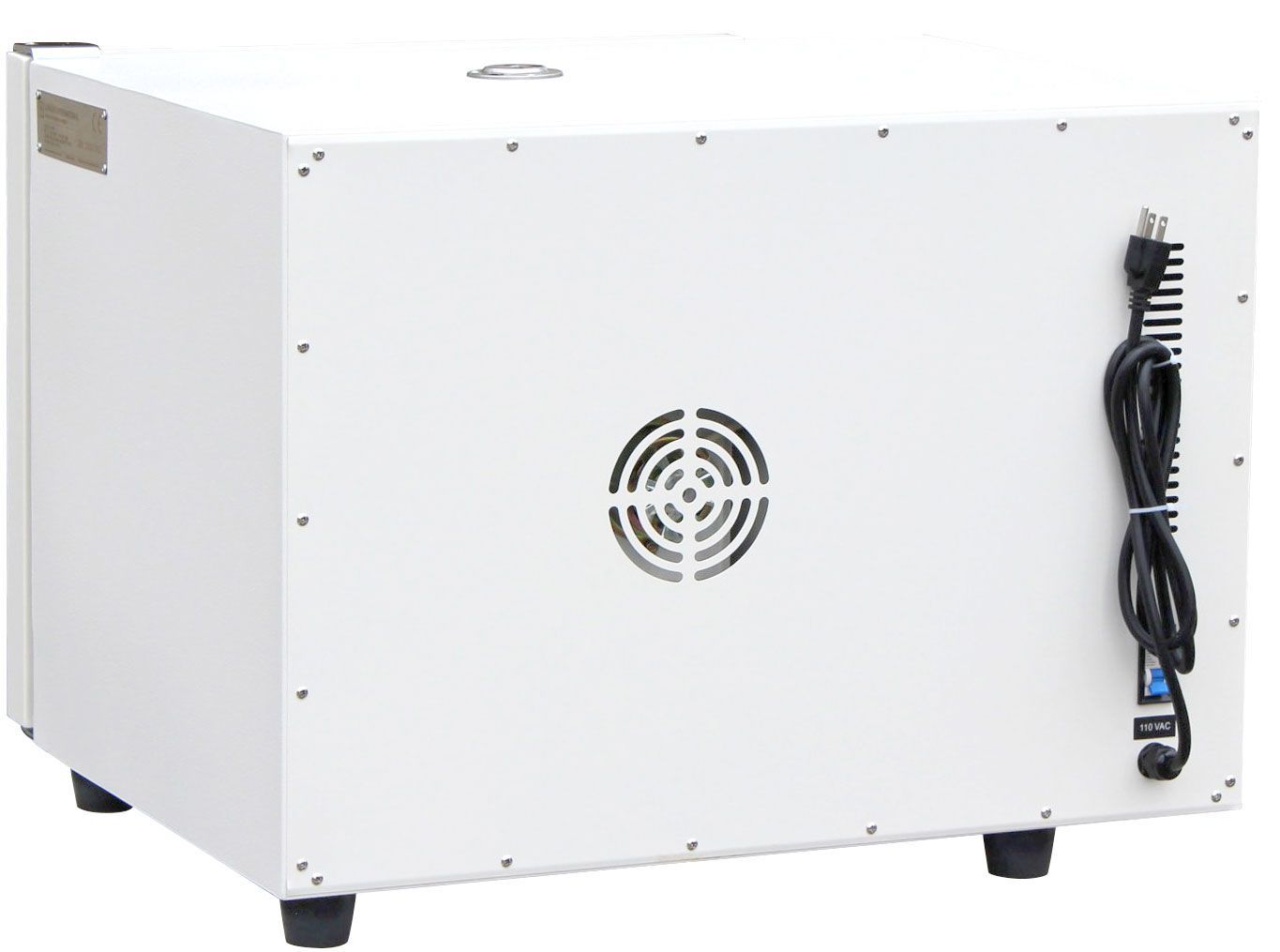

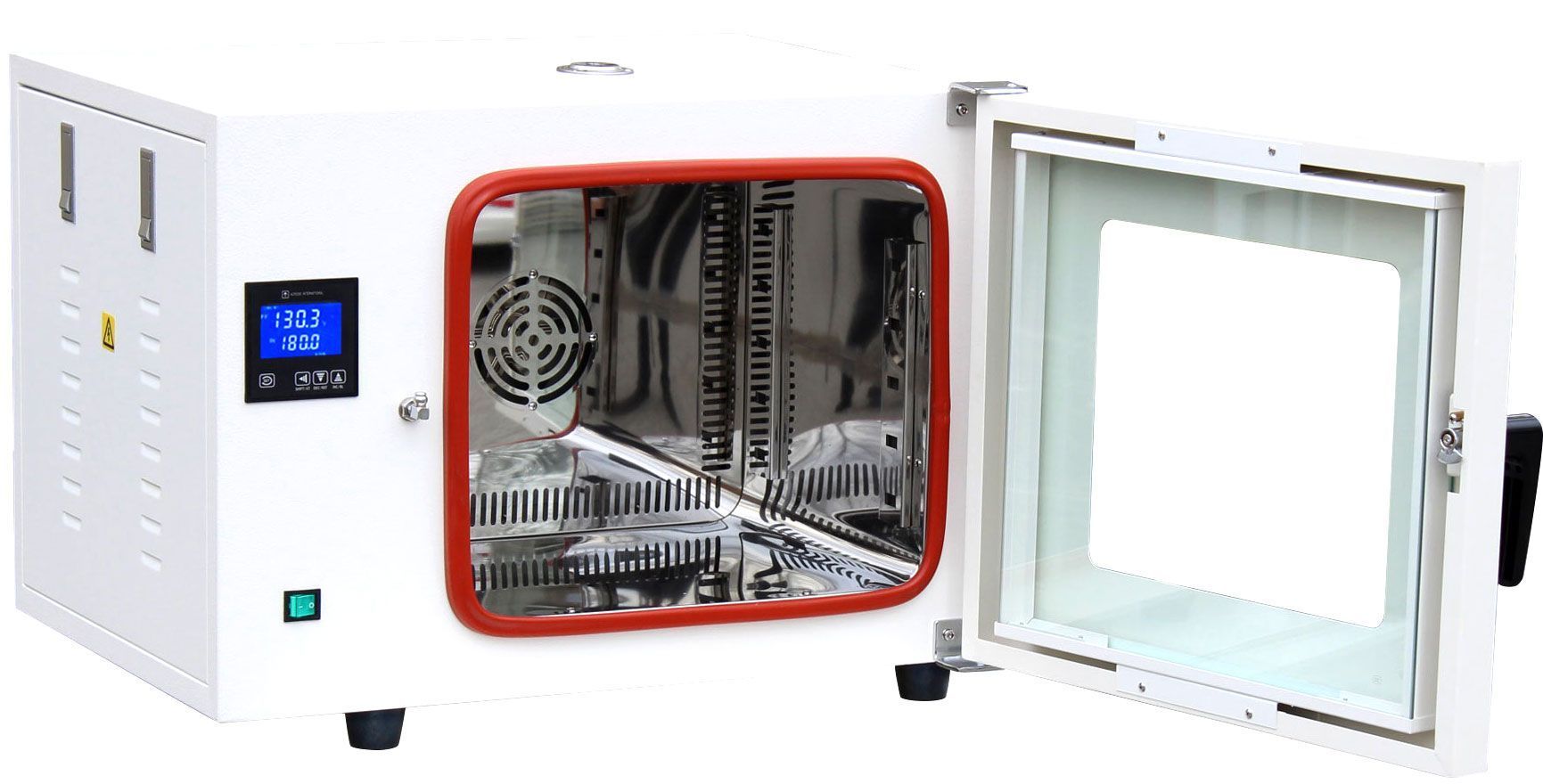

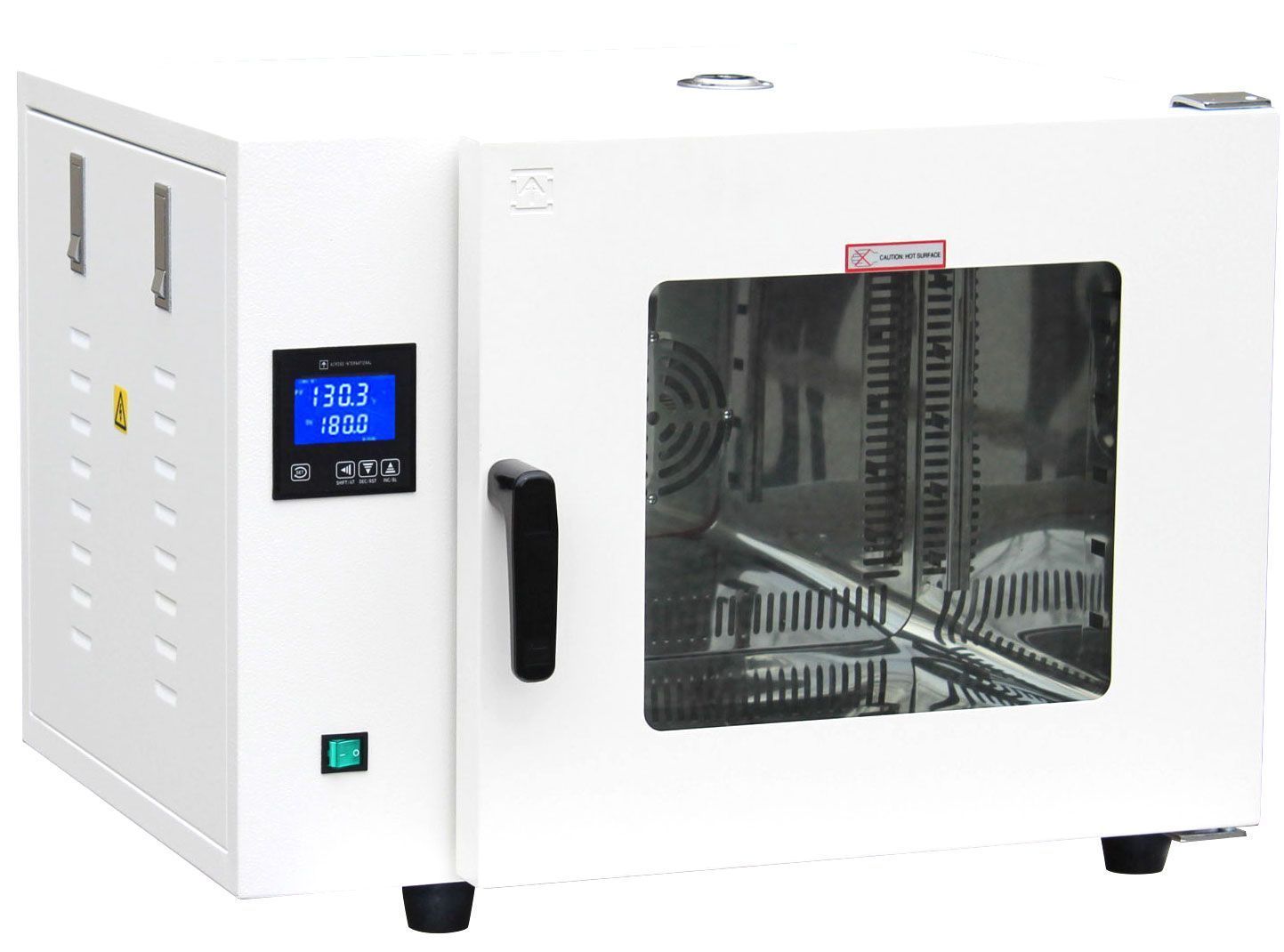

The Across International 1.9 Cu Ft Forced Air Laboratory Oven is a precision-controlled drying oven designed for laboratory, medical, and research environments. Featuring a 316L stainless steel chamber, this benchtop oven provides superior corrosion resistance and cleanliness for applications such as medical device drying, sterilization, and laboratory sample preparation.
Using forced-air convection heating and microcontroller-based temperature control, this laboratory oven delivers reliable temperature stability and excellent heat uniformity throughout the chamber. The integrated memory function automatically restores previous settings after power interruptions, allowing the oven to resume operation seamlessly once power returns.
Designed for dependable laboratory performance, this oven provides controlled heating and drying in a compact unit suitable for research labs, hospitals, and biotechnology facilities.
Key Features
316L Stainless Steel Chamber
-
High-grade 316L stainless steel interior
-
Excellent corrosion resistance for laboratory and medical environments
-
Ideal for sterilization, drying, and high-purity processing
Precision Digital Temperature Control
-
Microcontroller-based control improves temperature accuracy and uniformity
-
Built-in temperature calibration capability
-
Digital display for easy monitoring
Forced-Air Convection Heating
-
Forced-air circulation distributes heat evenly throughout the chamber
-
Maintains dependable and uniform temperature conditions
-
Gentle downward airflow reduces disturbance to samples
Memory Retention Function
-
Automatically restores previous operating settings after power interruption
-
Ensures continuity of laboratory processes
Temperature Alarm System
-
Alarm activates if temperature moves outside the desired range
Moisture Control
-
Adjustable moisture escape port allows humidity to vent during drying
Laboratory-Grade Construction
-
Corrosion-resistant 316L stainless steel chamber
-
Double-glazed observation window for safe monitoring of samples
Integrated Safety Protection
-
Overheat protection automatically shuts off power if temperature exceeds safe limits or if sensor failure occurs
Ideal Applications
-
Medical device drying and sterilization
-
Laboratory sample preparation
-
Pharmaceutical and biotech laboratory use
-
Controlled heating and drying processes
Technical Specifications
Electrical Requirements
-
Voltage: 110VAC
-
Frequency: 60Hz
-
Phase: Single Phase
-
Power Consumption: 900 Watts
Chamber
-
Capacity: 1.9 Cubic Feet
-
Interior Dimensions: 16" × 13.5" × 13.75" (W × D × H)
-
Chamber Material: 316L Stainless Steel
Temperature Control
-
Temperature Range: Ambient to 200°C
-
Controller: Digital Microcontroller
-
Timer Range: 1 – 9999 minutes
Air Circulation
-
Forced-air convection heating system
-
Designed for uniform heat distribution throughout the chamber
Moisture & Access Ports
Moisture Escape Port
-
2" adjustable moisture vent located on top of oven
Optional Access Port
-
2" diameter access port available with cover
Dimensions & Weight
-
Unit Dimensions: 27.5" × 22" × 20.75"
-
Shipping Dimensions: 32" × 28" × 27"
-
Unit Weight: 95 lbs
-
Shipping Weight: 150 lbs
Shelf System
Included Shelves
-
2 Stainless Steel Wire Shelves Included
Shelf Capacity
-
Maximum Rack Capacity: 5 shelves
-
Shelf Spacing: 2 inches between racks
Additional shelves available separately.
Materials & Construction
-
Chamber Interior: 316L Stainless Steel
-
Observation Window: Double-glazed tempered glass
-
Exterior Housing: Laboratory-grade metal construction
Safety Features
-
Overheat protection system
-
Automatic shutdown if temperature exceeds safe limits
-
Sensor failure protection
Compliance & Certifications
-
CE Certified
-
ETL tested to UL & CSA standards (optional)
What's Included
-
1 × Across International 1.9 Cu Ft Forced Air Oven
-
2 × Stainless Steel Wire Shelves
-
4 × L-Brackets
-
1 × 110V 3-Prong Power Cord
-
1 × User Manual
Warranty
-
1 Year Manufacturer Warranty
