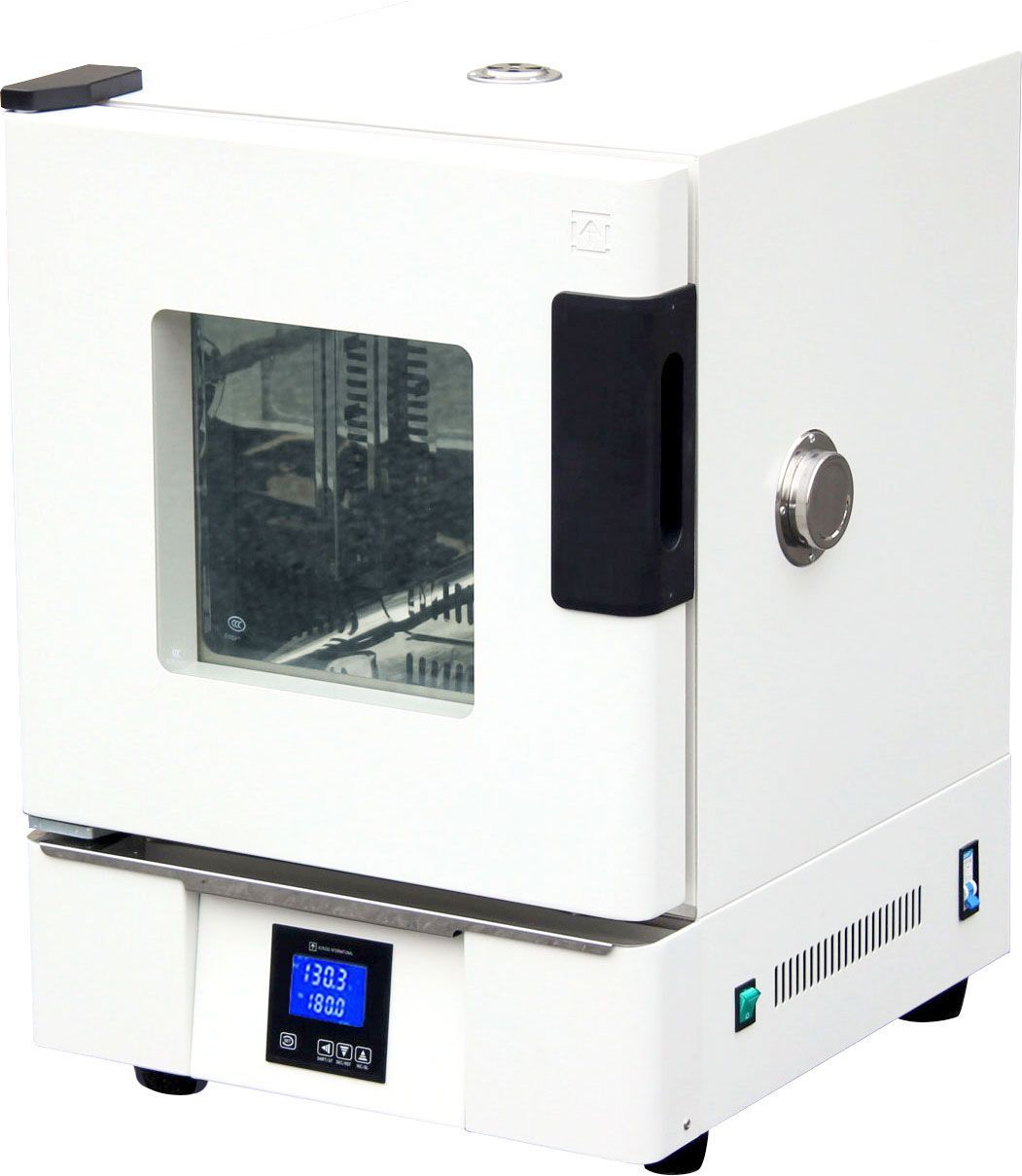

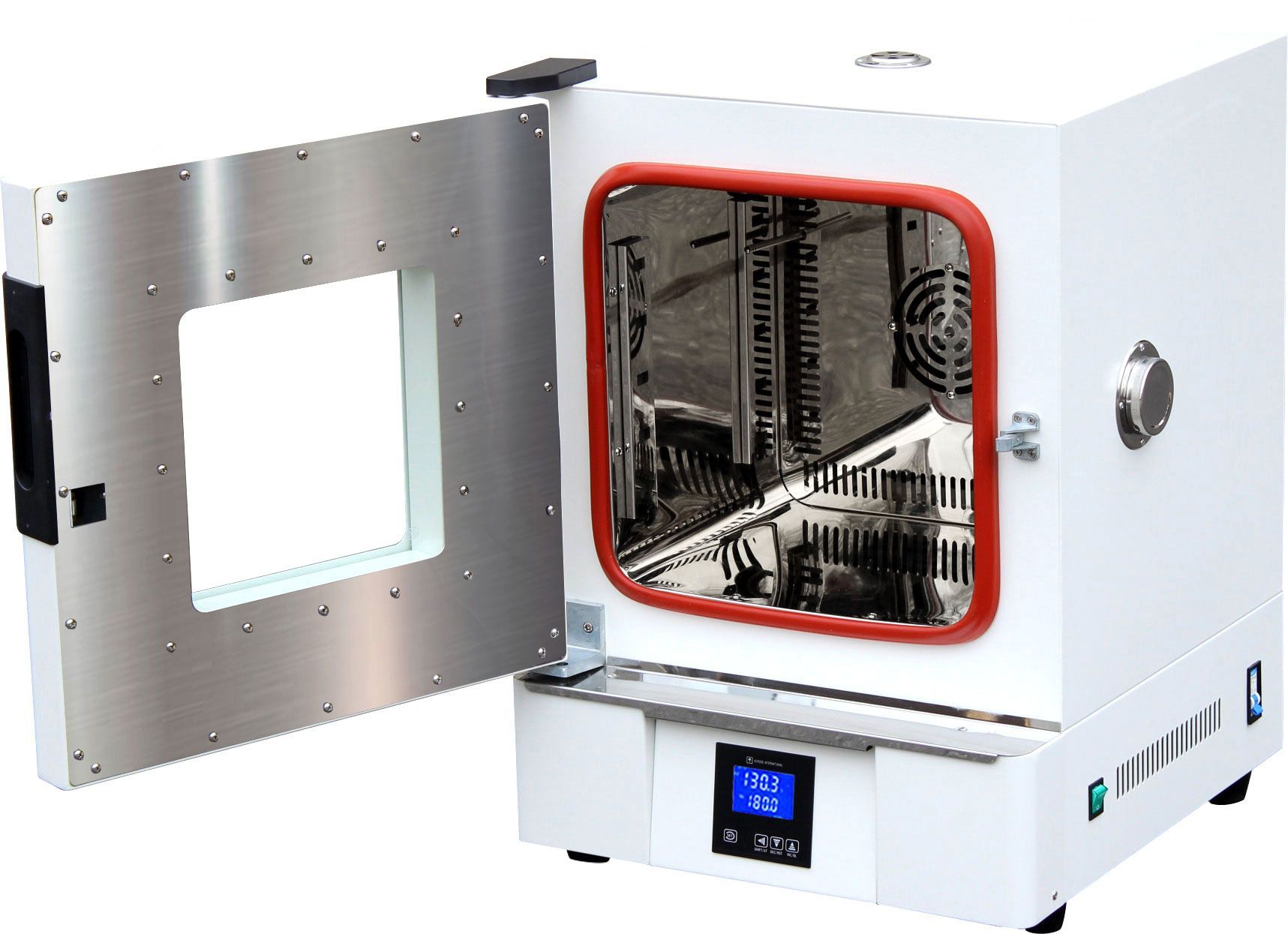

The Across International 1.5 Cu Ft Forced Air Laboratory Oven is a precision-controlled drying oven designed for laboratory, medical, and research environments. Featuring a 316L stainless steel chamber, this oven provides superior corrosion resistance and cleanliness for sensitive applications such as medical device drying, sterilization, and laboratory sample preparation.

Equipped with forced-air convection heating and digital microcontroller temperature control, the oven delivers consistent heating performance and excellent temperature uniformity throughout the chamber. The integrated memory function restores previous settings after power loss, ensuring uninterrupted operation when power returns.

This benchtop laboratory oven is ideal for laboratories that require precise drying, sterilization, and controlled heating in a compact yet high-performance unit.

---

Key Features

316L Stainless Steel Chamber

• High-grade 316L stainless steel interior

• Excellent corrosion resistance for medical and laboratory applications

• Ideal for sterilization and high-purity drying environments

Precision Digital Temperature Control

• Microcontroller-based temperature control improves accuracy and stability

• Built-in temperature calibration capability

• Digital display for easy temperature monitoring

Forced-Air Convection Heating

• Forced-air circulation ensures uniform heat distribution

• Provides consistent drying and heating performance

• Gentle downward airflow minimizes disturbance to samples

Memory Retention Function

• Automatically restores previous settings after power interruption

• Ensures uninterrupted operation once power is restored

Temperature Alarm System

• Alarm triggers when temperature exceeds the selected range

Moisture Control

• Adjustable moisture escape port helps remove humidity during drying

Durable Laboratory Construction

• Corrosion-resistant stainless steel chamber

• Double-glazed observation window allows safe monitoring of samples

Integrated Safety Protection

• Overheat protection automatically shuts off power if temperature exceeds limits or sensor failure occurs

Ideal Applications

• Medical device drying

• Laboratory sterilization

• Sample preparation

• Pharmaceutical and research laboratory use

---

Technical Specifications

Electrical Requirements

• Voltage: 110VAC

• Frequency: 60Hz

• Phase: Single Phase

• Power Consumption: 1200 Watts

---

Chamber

• Capacity: 1.5 Cubic Feet

• Interior Dimensions: 13.25" × 12" × 14" (W × D × H)

• Chamber Material: 316L Stainless Steel

---

Temperature Control

• Temperature Range: Ambient to 250°C

• Controller: Digital Microcontroller

• Heating Elements: Located at rear of oven

• Timer Range: 1 – 9999 minutes

---

Air Circulation

• Forced-air convection heating

• Gentle downward airflow along chamber walls for improved sample protection

---

Moisture & Access Ports

Moisture Escape Port

• 2" adjustable vent located on top of oven

Access Port

• 2" diameter access port with cover

---

Dimensions & Weight

• Unit Dimensions: 20" × 21" × 27.5"

• Shipping Dimensions: 27" × 24" × 31"

• Shipping Weight: 110 lbs

---

Shelf System

Included Shelves

• 2 Stainless Steel Wire Shelves Included

Shelf Capacity

• Maximum Rack Capacity: 5 shelves

• Shelf Spacing: 2 inches between racks

Additional shelves available separately.

---

Materials & Construction

• Chamber Interior: 316L Stainless Steel

• Observation Window: Double-glazed tempered glass

• Exterior Construction: Laboratory-grade metal housing

---

Safety Features

• Overheat protection system

• Automatic shutdown when temperature exceeds safe limits

• Sensor failure protection

---

Compliance & Certifications

• CE Certified

• ETL tested to UL & CSA standards (optional)

---

What's Included

• 1 × Across International 1.5 Cu Ft Forced Air Oven (316L Chamber)

• 2 × Stainless Steel Wire Shelves

• 4 × L-Brackets

• 1 × 110V 3-Prong Power Cord

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty
