Description
The Across International Ai EasyChill E29 -30°C Upright Laboratory Freezer is designed for large-capacity storage of biological samples, vaccines, and temperature-sensitive laboratory materials. With a spacious 29 cubic foot chamber and advanced compressor cooling system, this laboratory freezer provides fast cooling, excellent temperature uniformity, energy-efficient operation, and extremely quiet performance.
The EasyChill series features a microprocessor temperature controller with digital monitoring of chamber temperature, ambient temperature, and input voltage, ensuring reliable operation and accurate temperature control between -10°C and -30°C.
With Energy Star certification, UL compliance, and universal 115V–230V auto-detect power capability, the Ai EasyChill E29 is ideal for laboratories, hospitals, pharmaceutical facilities, and research institutions requiring dependable -30°C storage.
Key Features
• Temperature range: -10°C to -30°C
• Large 29 cubic foot storage capacity
• Energy Star certified energy-efficient design
• UL certified laboratory freezer
• Universal 115V–230V auto-detect power compatibility
• Microprocessor temperature controller with digital display
• Fast cooling to -30°C in approximately 2.5 hours
• Dual sealing gaskets for improved insulation
• Lockable external door for secure storage
• Quiet operation at approximately 37 dBA
Ideal Applications
The Ai EasyChill -30°C Freezer is ideal for storing:
• COVID-19 vaccines
• DNA and RNA samples
• Virus samples
• Biological specimens
• Pharmaceutical products
• Laboratory reagents
• Serum and organ samples
Commonly used in:
• Medical laboratories
• Hospitals and clinics
• Pharmaceutical manufacturing facilities
• Biotechnology research labs
• Public health institutions
Temperature Performance
Temperature Range: -10°C to -30°C
Cooling Type: Direct cooling
Time to Reach -30°C: Approximately 2.5 hours
Temperature Uniformity: ±3°C
Recovery Time (-30°C to 0°C with door closed): Approximately 6 hours
Electrical Requirements
Voltage: 115V–230V (±10%) Auto-Detect
Frequency: 50/60Hz
Phase: Single Phase
Power Consumption: 470 Watts
Compressor & Cooling System
Cooling Method: Direct cooling
Defrost Mode: Manual
Refrigerant: R290 environmentally friendly refrigerant
Chamber Specifications
Interior Dimensions: 29.5 x 29.7 x 57.5 inches (W x D x H)
Interior Material: Coated steel
Storage Capacity: 28.9 Cubic Feet

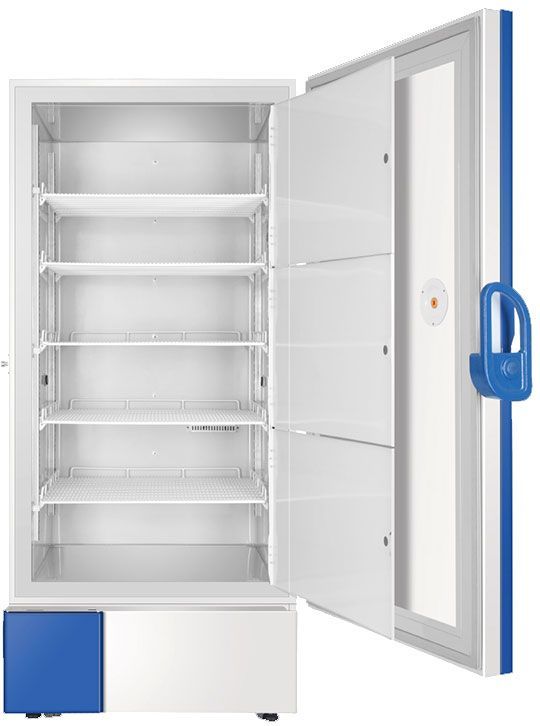

Storage Configuration
Shelves Included: 5 adjustable shelves
The shelving system allows flexible storage of vaccine boxes, laboratory samples, and biological materials.
Door & Sealing System
Inner Doors: 3 internal doors
Outer Door: 1 lockable external door
Sealing System: Dual sealing gaskets
This design improves temperature stability and energy efficiency while protecting sensitive materials.
Controller & Monitoring
Controller Type: Microprocessor controlled
Displays:
• Chamber temperature
• Ambient temperature
• Input voltage
Backup Battery: 48 hours (controller and alarms)
Access Ports
Total Access Ports: 2
Allows installation of temperature monitoring probes or data logging sensors.
Operating Environment
Ambient Temperature: 10°C to 32°C
Ideal Operating Temperature: 18°C to 25°C
Humidity: <85% RH
Altitude: Below 2000 meters
Installation Requirements:
• Maintain 12 inches clearance from walls
• Use dedicated grounded electrical outlet
• Extension cord must be less than 10 feet
Noise Level
37 dBA
Quiet operation suitable for laboratories, clinics, and research facilities.
Dimensions & Weight
Unit Dimensions: 39 x 37.5 x 78 inches (W x D x H)
Shipping Dimensions: 41 x 42 x 83 inches
Unit Weight: 463 lbs
Shipping Weight: 625 lbs
Safety & Alarm Protection
• Compressor over-temperature protection
• Compressor power surge delay protection
• Door open alarm
• Power failure alarm
• Sensor error alarm
• Low battery alarm
• High/low temperature alarms
• High ambient temperature alarm
• Lockable external door
Certifications & Compliance
Certified to:
• UL 61010-1
• CSA C22.2
• Energy Star
What's Included
• Ai EasyChill E29 -30°C Upright Laboratory Freezer
• Adjustable shelves (5)
• Ice scraper
• User manual
Important Setup Instructions
Allow the freezer to stand upright for 24 hours before powering on after delivery.
This unit is not designed for use on mobile platforms.
Warranty
1 Year Manufacturer Warranty
