Description
The Across International Ai EasyChill E18 -30°C Upright Laboratory Freezer is designed for large-capacity storage of biological samples, vaccines, and temperature-sensitive laboratory materials. With a spacious 18 cubic foot chamber and efficient HC compressor refrigeration system, this laboratory freezer provides fast cooling, excellent temperature uniformity, and energy-efficient operation.
The EasyChill series utilizes a microprocessor-controlled temperature system with LED display, ensuring reliable temperature management between -10°C and -30°C. A dual-door design with dual sealing gaskets helps maintain consistent internal temperatures while improving energy efficiency.
Built for laboratories, hospitals, and pharmaceutical facilities, the Ai EasyChill E18 provides secure storage for vaccines, biological samples, and research materials, while maintaining quiet and reliable operation.

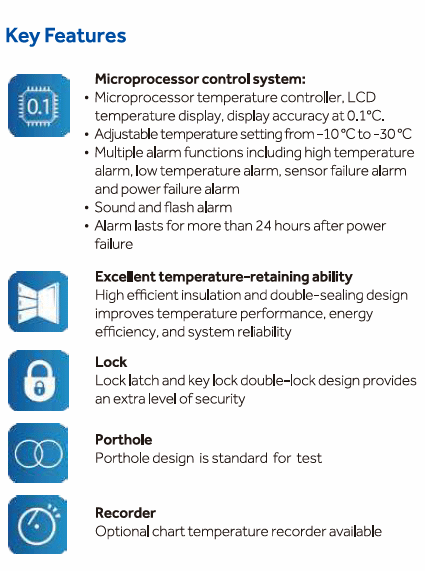

Key Features
• Temperature range: -10°C to -30°C
• Large 18 cubic foot storage capacity
• UL certified laboratory freezer
• Fast cooling to -30°C in approximately 3 hours
• Microprocessor temperature controller with LED display
• Dual-door design with dual sealing gaskets
• Energy-efficient HC refrigerant system
• Lockable doors for secure storage
• Battery backup for alarm system (48 hours)
• Quiet operation at approximately 43 dBA
Ideal Applications
The Ai EasyChill -30°C Freezer is ideal for storing:
• COVID-19 vaccines
• DNA and RNA samples
• Virus samples
• Biological specimens
• Serum and organ samples
• Pharmaceutical products
• Laboratory reagents
Commonly used in:
• Medical laboratories
• Hospitals and clinics
• Pharmaceutical manufacturing facilities
• Biotechnology research labs
• Public health institutions
Temperature Performance
Temperature Range: -10°C to -30°C
Cooling System: Direct cooling
Time to Reach -30°C: Approximately 3 hours
Temperature Uniformity: ±4°C
Recovery Time (-30°C to -10°C with door closed): Approximately 5 hours
Electrical Requirements
Voltage: 115V (±10%)
Frequency: 60Hz
Phase: Single Phase
Power Consumption: 600 Watts
Current: 6.5A
Compressor & Cooling System
Compressor Power: 110V, 60Hz
Cooling Method: Direct cooling
Defrost Mode: Manual
Refrigerant: CFC-free HC refrigerant
Chamber Specifications
Interior Dimensions: 27 x 24 x 48.3 inches (W x D x H)
Interior Material: Coated steel
Storage Capacity: 17.9 Cubic Feet
Number of Chambers: Two

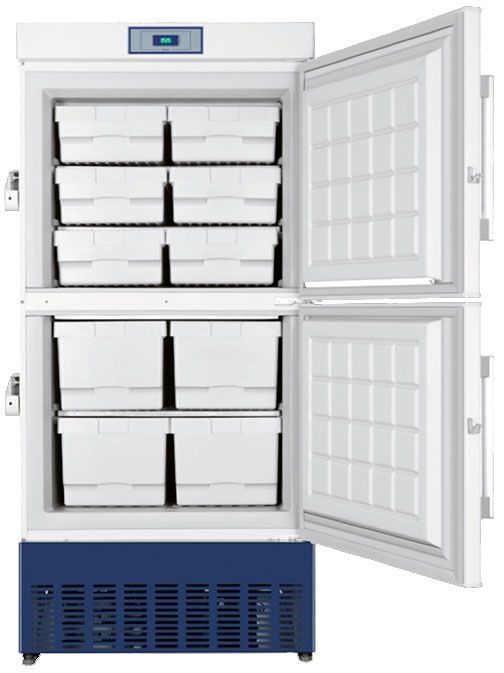

Storage Configuration
Storage Bins Included: 10 Plastic Storage Bins
The bin system allows organized storage and easy access to laboratory samples and materials.

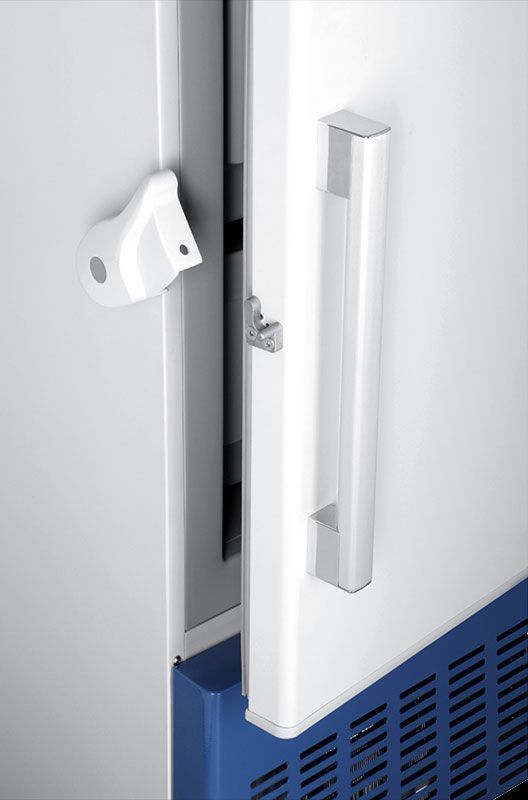

Door & Sealing System
Door Type: Dual lockable doors
Sealing System: Dual sealing gaskets
This design improves temperature stability and energy efficiency while protecting sensitive materials.

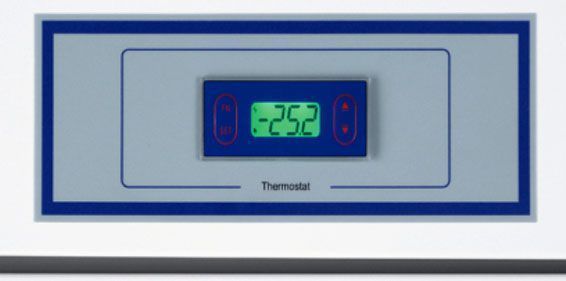

Controller & Monitoring
Controller Type: Microprocessor controlled
Display: LED temperature display
Backup Battery: 48 hours (controller and alarms)
Remote Alarm Capability: Included
Access Port
Quantity: 1
Location: Left side of the freezer
Allows installation of temperature monitoring probes or data logging sensors.
Operating Environment
Ambient Temperature: 10°C to 32°C
Ideal Operating Temperature: 18°C to 25°C
Humidity: <85% RH
Altitude: Below 2000 meters
Installation Requirements:
• Maintain 12 inches clearance from walls
• Use dedicated grounded electrical outlet
• Extension cord must be less than 10 feet
Noise Level
43 dBA
Quiet operation suitable for laboratories, clinics, and research facilities.
Dimensions & Weight
Unit Dimensions: 36 x 36 x 73 inches (W x D x H)
Shipping Dimensions: 39 x 39 x 81 inches
Unit Weight: 360 lbs
Shipping Weight: 440 lbs
Safety & Alarm Protection
• Compressor over-temperature protection
• Compressor power surge delay protection
• Lockable external doors
• Sensor error alarms
• High temperature alarm
• Low temperature alarm
• Low battery alarm
• Remote alarm capability
Certifications & Compliance
Certified to:
• UL 61010-1
• CSA C22.2
What's Included
• Ai EasyChill E18 -30°C Upright Laboratory Freezer
• Plastic storage bins (10)
• Ice scraper
• User manual
Important Setup Instructions
Allow the freezer to stand upright for 24 hours before powering on after delivery.
This unit is not designed for use on mobile platforms.
Warranty
1 Year Manufacturer Warranty
