Description

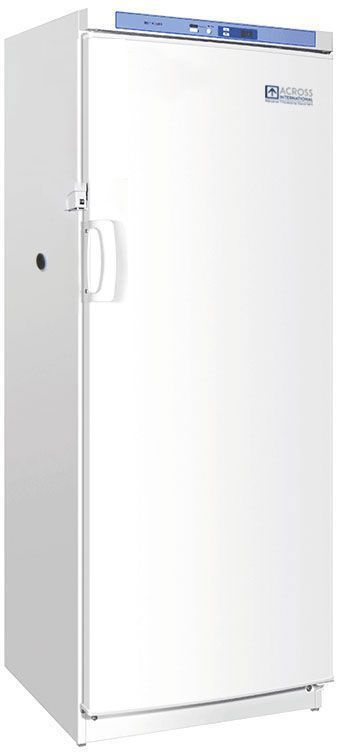

The Across International Ai EasyChill E09 -25°C Laboratory Freezer is designed for reliable mid-capacity storage of temperature-sensitive laboratory samples, vaccines, and biological materials. With a 9.3 cubic foot chamber and efficient compressor cooling system, this upright laboratory freezer delivers fast cooling performance and consistent temperature stability between -10°C and -25°C.
The EasyChill series features a microprocessor temperature controller, direct cooling system, and CFC-free R600a refrigerant, providing dependable operation with low energy consumption and quiet performance. A lockable door, dual sealing gaskets, and built-in alarm protection help safeguard valuable samples and materials.
With its compact footprint and organized storage bins, the Ai EasyChill E09 freezer is ideal for laboratories, pharmaceutical facilities, hospitals, and research institutions requiring dependable -25°C sample storage.
Key Features
• Temperature range: -10°C to -25°C
• 9.3 cubic foot storage capacity
• Microprocessor temperature controller with LED display
• Direct cooling system for reliable performance
• UL certified laboratory freezer
• Lockable door with dual sealing gaskets
• High and low temperature alarms
• Power failure alarm protection
• CFC-free environmentally friendly refrigerant (R600a)
• Ultra-quiet operation at approximately 34 dBA
Ideal Applications
The Ai EasyChill -25°C Freezer is ideal for storing:
• COVID-19 vaccines
• DNA and RNA samples
• Virus samples
• Biological specimens
• Pharmaceutical products
• Laboratory reagents
• Serum and organ samples
Commonly used in:
• Medical laboratories
• Hospitals and clinics
• Pharmaceutical facilities
• Biotechnology research labs
• Public health laboratories
Temperature Performance
Temperature Range: -10°C to -25°C
Cooling Type: Direct cooling
Defrost Mode: Manual
This system provides stable internal temperatures for reliable biological and pharmaceutical storage.
Electrical Requirements
Voltage: 115V (±10%)
Frequency: 60Hz
Phase: Single Phase
Current: 2.6A
Compressor System
Compressor Power: 110V, 60Hz
Cooling System: Direct cooling
Refrigerant: R600a HC refrigerant (CFC-free)

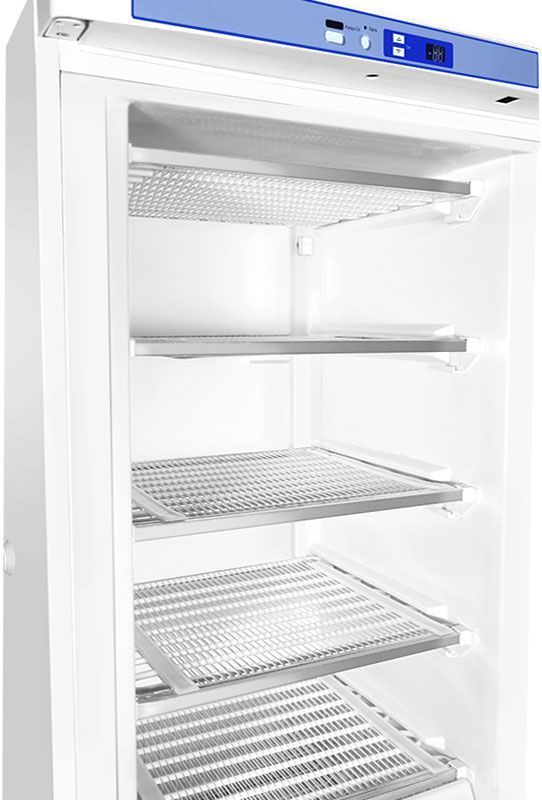

Chamber Specifications
Interior Dimensions: 19 x 18 x 56 inches (W x D x H)
Interior Material: Coated Steel
Storage Capacity: 9.3 Cubic Feet

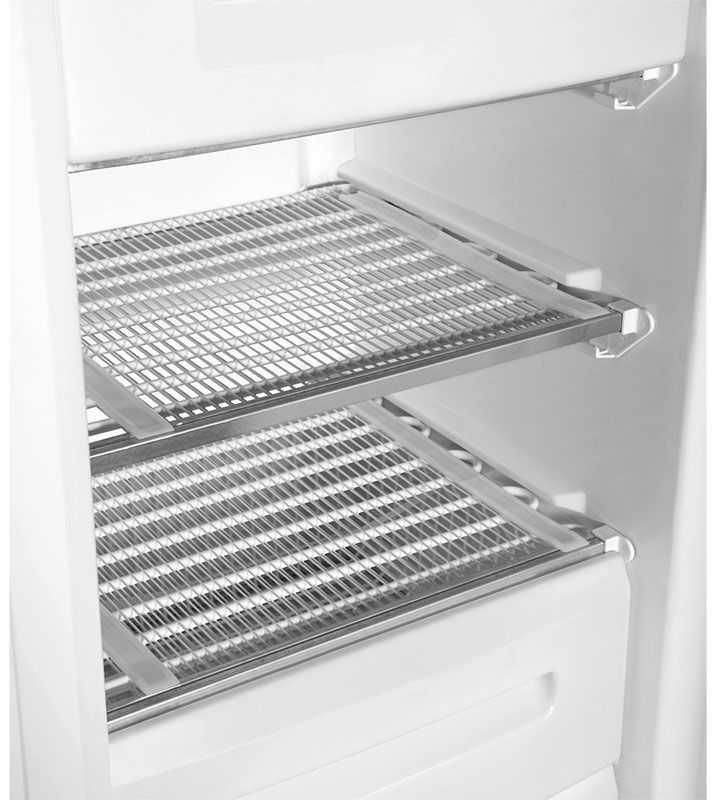

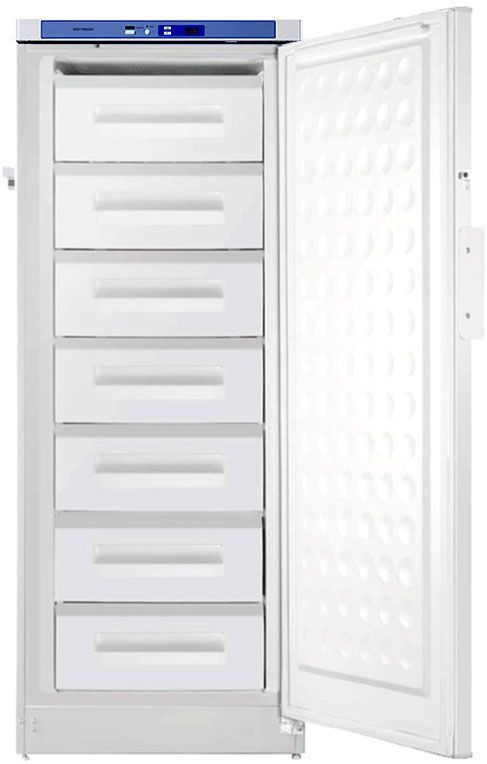

Storage Configuration
Storage Bins Included: 7
The included plastic bins help organize samples and allow efficient inventory management for laboratory storage.
Door & Sealing System
Door Type: Lockable external door
Sealing System: Dual sealing gaskets
The sealing system helps maintain stable internal temperatures while improving energy efficiency.

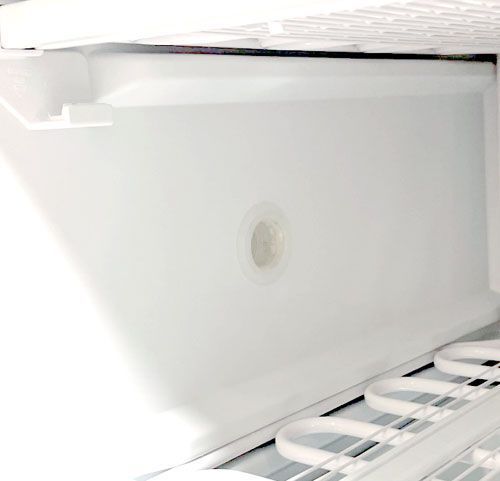

Access Port
Quantity: 1
Diameter: 1 inch
Location: Left side of the freezer
Allows installation of temperature probes or monitoring sensors.
Operating Environment
Ambient Temperature: 10°C to 32°C
Ideal Operating Temperature: 10°C to 25°C
Humidity: <85% RH
Altitude: Below 2000 meters
Installation Requirements:
• Maintain 12 inches clearance from walls
• Use dedicated grounded electrical outlet
• Extension cord must be less than 10 feet
Noise Level
34 dBA
Quiet operation suitable for laboratories, clinics, and research facilities.
Dimensions & Weight
Unit Dimensions: 27.5 x 28 x 65.5 inches (W x D x H)
Shipping Dimensions: 30.5 x 30 x 74 inches
Unit Weight: 195 lbs
Shipping Weight: 205 lbs
Safety Protections
• Compressor over-temperature protection
• Compressor power surge delay protection
• High temperature alarm
• Low temperature alarm
• Power failure alarm
• Lockable door for secure storage
Certifications & Compliance
Certified to:
• UL 61010-1
• CSA C22.2
What's Included
• Ai EasyChill E09 -25°C Laboratory Freezer
• Plastic storage bins (7)
• Ice scraper
• Door handle and lock washers
• User manual
Important Setup Instructions
Allow the freezer to stand upright for 24 hours before powering on after delivery.
This unit is not designed for use on mobile platforms.
Warranty
1 Year Manufacturer Warranty
