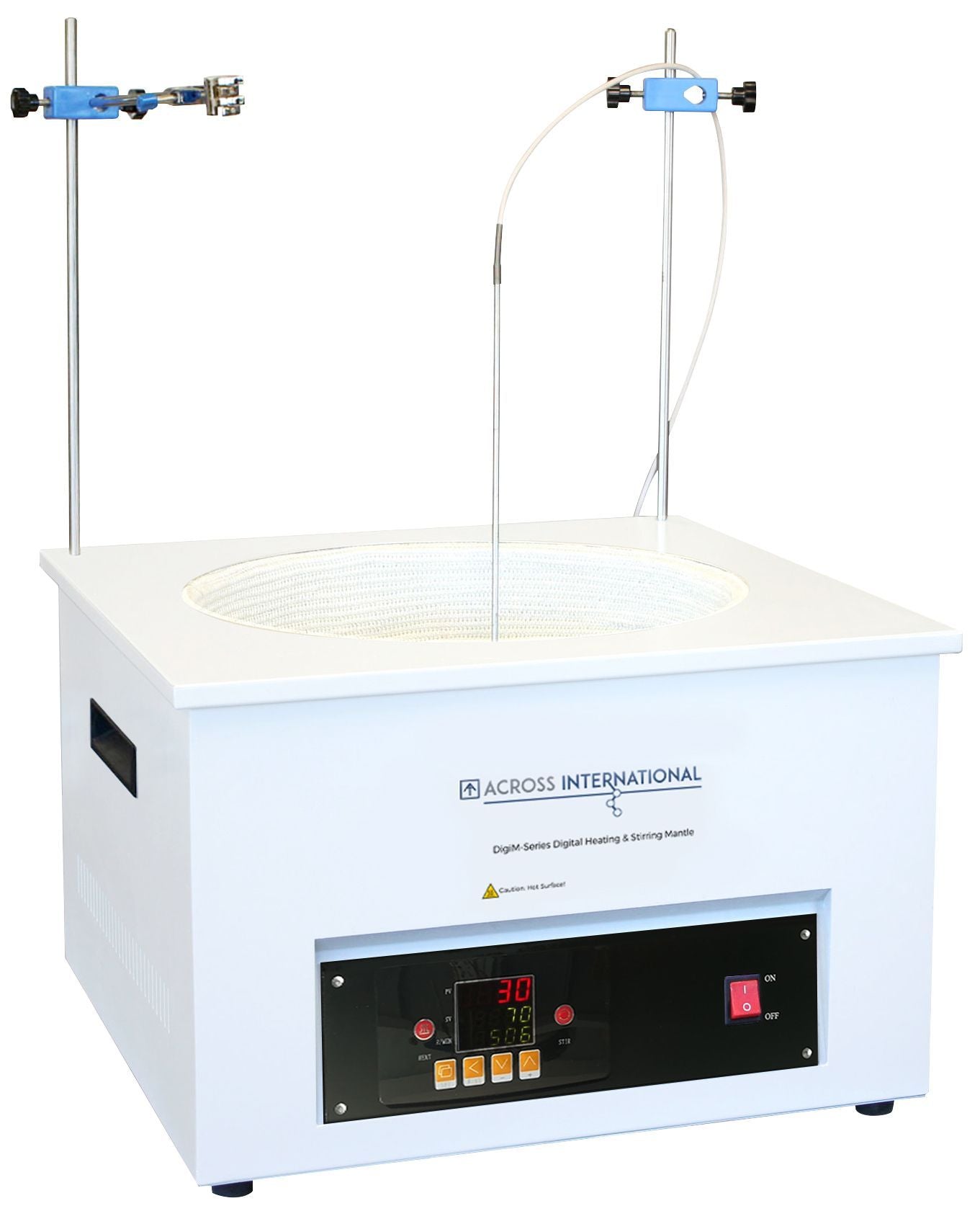

The Across International DigiM 20L Digital Heating and Stirring Mantle is designed for precise temperature control and powerful magnetic stirring in large-scale laboratory applications. Featuring PID digital temperature control, a brushless DC stirring motor, and an easy-to-read digital display, this heating mantle delivers reliable performance for demanding distillation and chemical processing environments.

The DigiM series is equipped with dual thermocouples for accurate temperature and stirring speed detection, ensuring stable heating and consistent mixing. Each heating mantle is pre-treated before shipment, eliminating smoke or odors during the initial heating process.

With a heating capacity up to 300°C, stirring speeds up to 1200 RPM, and compatibility with round-bottom flasks up to 20 liters, the DigiM 20L heating mantle is ideal for large distillation systems, chemical synthesis, and industrial laboratory processes.

---

Key Features

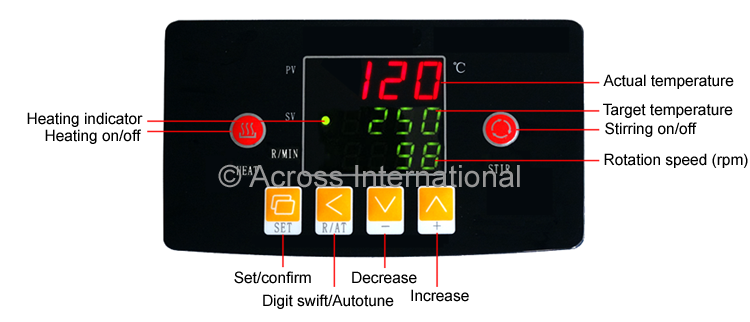

Digital Temperature & Stirring Control

• Large digital display for easy operation

• PID temperature controller for precise heating

• Adjustable stirring speed with digital readout

High-Capacity Laboratory Heating

• Heating range from ambient temperature to 300°C

• Uniform heating for large round-bottom flasks

• Pre-treated heating jacket prevents smoke or odors

Integrated Magnetic Stirring System

• Stirring speed range 110 – 1200 RPM

• Powered by a 40W brushless DC motor

• Provides smooth and reliable mixing

Dual Thermocouple Monitoring

• Two thermocouples ensure accurate detection of temperature and rotation speed

• Enhances safety and operational stability

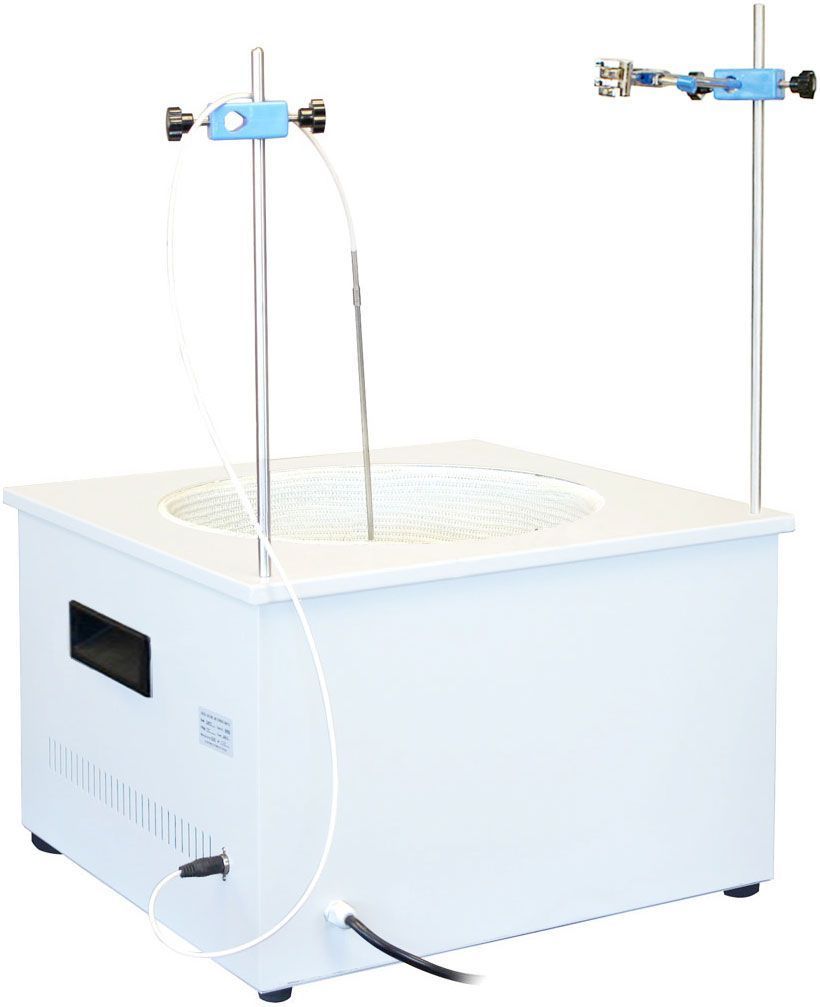

External Temperature Probe

• PT100 stainless steel probe

• Ideal for monitoring reaction temperatures

• Provides precise temperature control for distillation processes

Heavy-Duty Laboratory Design

• Supports large flasks up to 20 liters

• Designed for industrial and high-capacity laboratory setups

---

Ideal Applications

• Large-scale distillation systems

• Chemical synthesis and reactions

• Pharmaceutical research laboratories

• Cannabis extraction laboratories

• Industrial laboratory heating applications

• Academic research laboratories

---

Electrical Specifications

• Voltage: 220V

• Frequency: 50/60Hz

• Phase: Single Phase

• Power Consumption: 2900 Watts

• Current: 13.2 A

---

Heating Specifications

• Temperature Range: Ambient to 300°C

---

Stirring Specifications

• Minimum Speed: 110 RPM

• Maximum Speed: 1200 RPM

• Motor Power: 40 Watts

• Motor Type: Brushless DC Motor

---

Controller

• PID temperature control

• Digital temperature display

• Digital stirring speed display

---

External Thermocouple

• Type: PT100

• Cable Length: 43 inches

• Probe Length: 15 inches

• Probe Diameter: 5 mm

• Probe Material: Stainless Steel

---

Flask Holder Specifications

• Maximum Flask Capacity: 20 Liters

• Top Opening Diameter: 14.5 inches

• Depth: 7.5 inches

---

Dimensions & Weight

Unit Dimensions

• 20.5 × 20.5 × 13 inches

Shipping Dimensions

• 24 × 24 × 18 inches

Weight

• Unit Weight: 40 lbs

• Shipping Weight: 50 lbs

---

Safety Features

• Thermocouple failure protection

---

Certifications

• CE Certified

• ETL tested to UL and CSA standards (optional)

---

What's Included

• 1 × DigiM 20L Digital Heating & Stirring Mantle

Accessories

• 1 × External Temperature Probe

• 1 × Internal Temperature Plug

• 2 × Boss Heads

• 2 × Stainless Steel Support Rods

• 2 × PTFE-Coated Stir Bars

• 1 × PTFE Magnetic Stir Bar Remover

• 2 × 4-Prong Stainless Steel Clamps

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty
