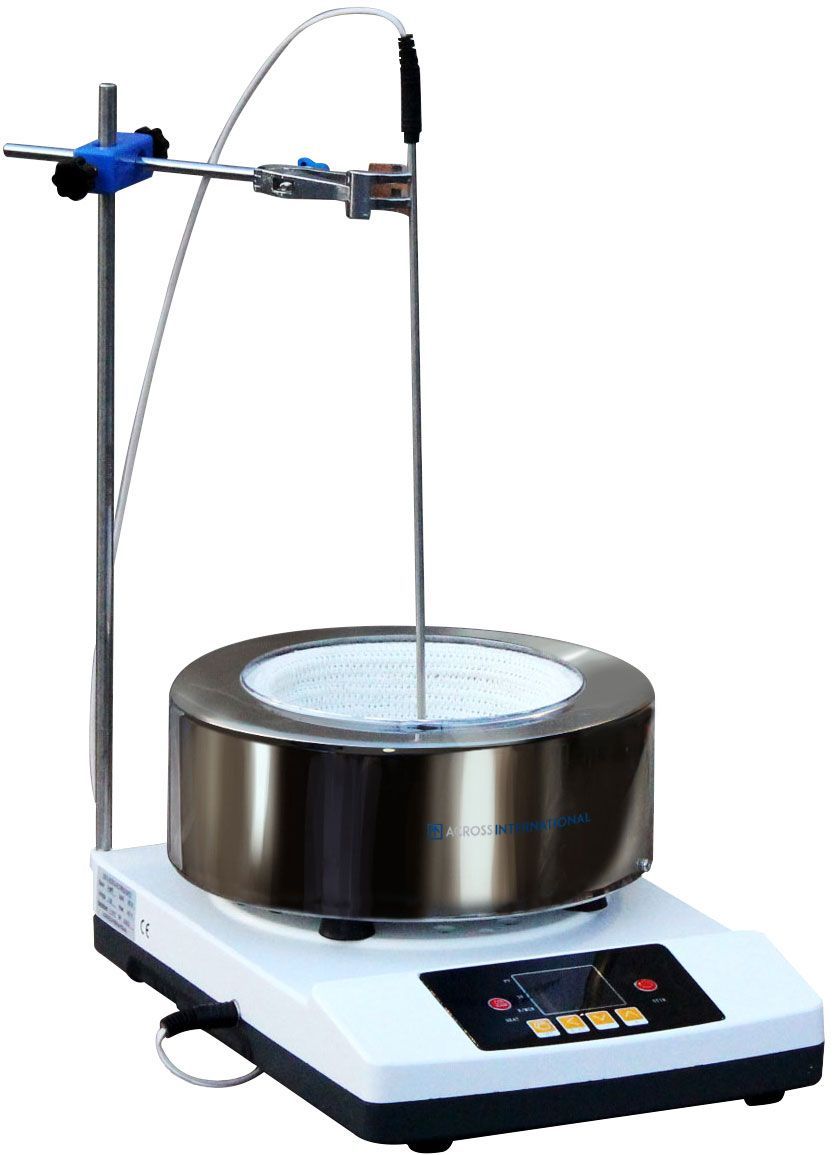

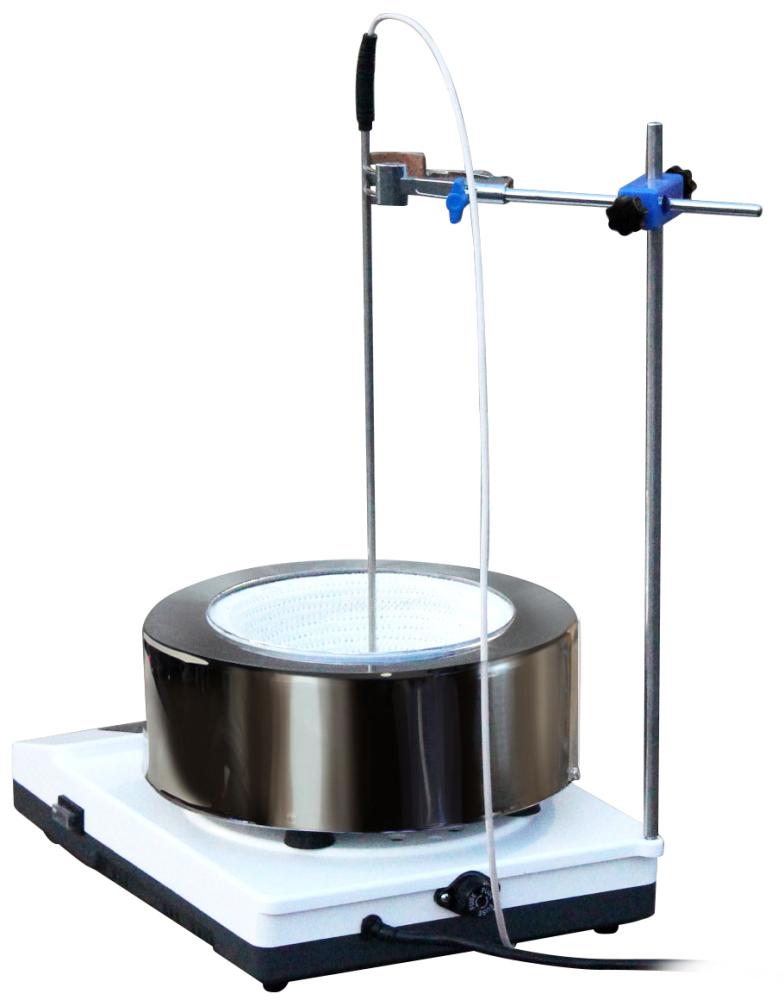

The Across International DigiM 2L Digital Heating and Stirring Mantle provides precise temperature control and reliable magnetic stirring for laboratory distillation, chemical reactions, and heating applications. Designed for professional laboratory environments, this heating mantle features digital PID temperature control, a brushless DC stirring motor, and an easy-to-read display interface for accurate operation.

The DigiM mantle includes two sets of thermocouples for accurate temperature and speed detection, ensuring stable and reliable heating performance. The heating jacket is pre-treated before shipment, preventing smoke or odors during the initial heating process.

With heating capability up to 300°C, adjustable stirring speeds up to 1200 RPM, and support for round-bottom flasks up to 2 liters, the DigiM mantle is ideal for small-scale distillation systems, chemical reactions, and laboratory heating applications.

---

Key Features

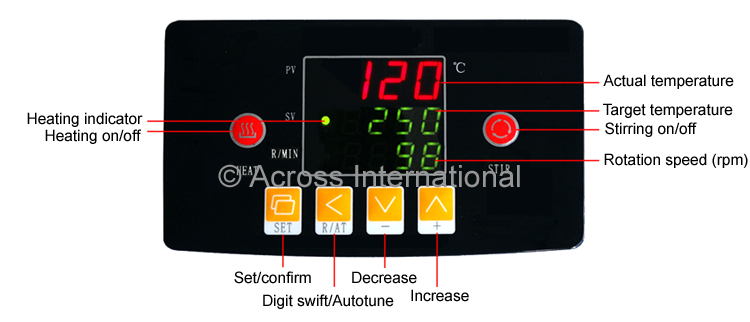

Digital Temperature & Stirring Control

• Large digital display for easy monitoring

• PID temperature control for precise heating

• Independent control of heating and stirring speeds

Efficient Laboratory Heating

• Temperature range from ambient to 300°C

• Uniform heating through durable heating jacket

• Pre-treated heating jacket eliminates smoke and odor during startup

Integrated Magnetic Stirring System

• Adjustable stirring speeds 110 – 1200 RPM

• Powered by 40W brushless DC motor

• Smooth and consistent stirring performance

Dual Thermocouple Monitoring

• Two thermocouples monitor heating and stirring

• Provides accurate temperature and speed detection

External Temperature Probe

• PT100 stainless steel probe

• Allows precise external temperature measurement

• Ideal for distillation and reaction monitoring

Laboratory-Grade Construction

• Designed for laboratory glassware and distillation setups

• Compatible with round-bottom flasks up to 2 liters

---

Ideal Applications

• Short path distillation systems

• Chemical reactions and synthesis

• Laboratory heating and mixing

• Cannabis extraction research

• Pharmaceutical research

• Educational laboratory use

---

Electrical Specifications

• Voltage Options:

  • 110V 60Hz 1-Phase – 700 Watts, 8A

  • 220V 50/60Hz 1-Phase – 700 Watts, 4A

---

Heating Specifications

• Temperature Range: Ambient to 300°C

---

Stirring Specifications

• Minimum Speed: 110 RPM

• Maximum Speed: 1200 RPM

• Motor Power: 40 Watts

• Motor Type: Brushless DC Motor

---

Controller

• PID temperature control

• Digital temperature display

• Digital stirring speed display

---

External Thermocouple

• Type: PT100

• Cable Length: 40 inches

• Probe Length: 9 inches

• Probe Diameter: 5 mm

• Probe Material: Stainless Steel

---

Flask Holder Specifications

• Maximum Flask Capacity: 2 Liters

• Top Opening Diameter: 6.5 inches

• Heating Mantle Depth: 4 inches

---

Dimensions & Weight

Unit Dimensions

• 11 × 16 × 8.5 inches

Shipping Dimensions

• 20 × 14 × 13 inches

Weight

• Unit Weight: 14 lbs

• Shipping Weight: 25 lbs

---

Safety Features

• Thermocouple failure protection

---

Certifications

• CE Certified

• ETL Tested to UL and CSA Standards (optional)

---

What's Included

• 1 × DigiM 2L Digital Heating & Stirring Mantle

Accessories

• 1 × External Temperature Probe

• 1 × Internal Temperature Plug

• 1 × Boss Head

• 1 × Stainless Steel Support Rod

• 2 × PTFE-Coated Stir Bars

• 1 × PTFE Magnetic Stir Bar Remover

• 1 × 4-Prong Stainless Steel Clamp

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty

---
