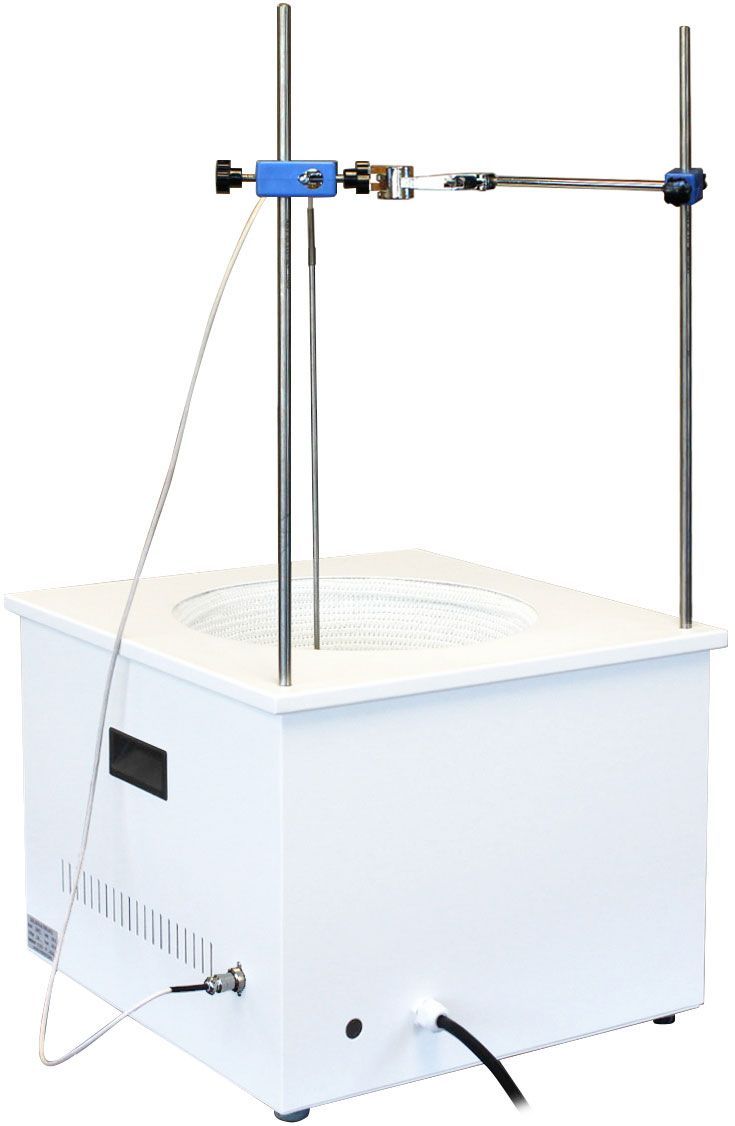

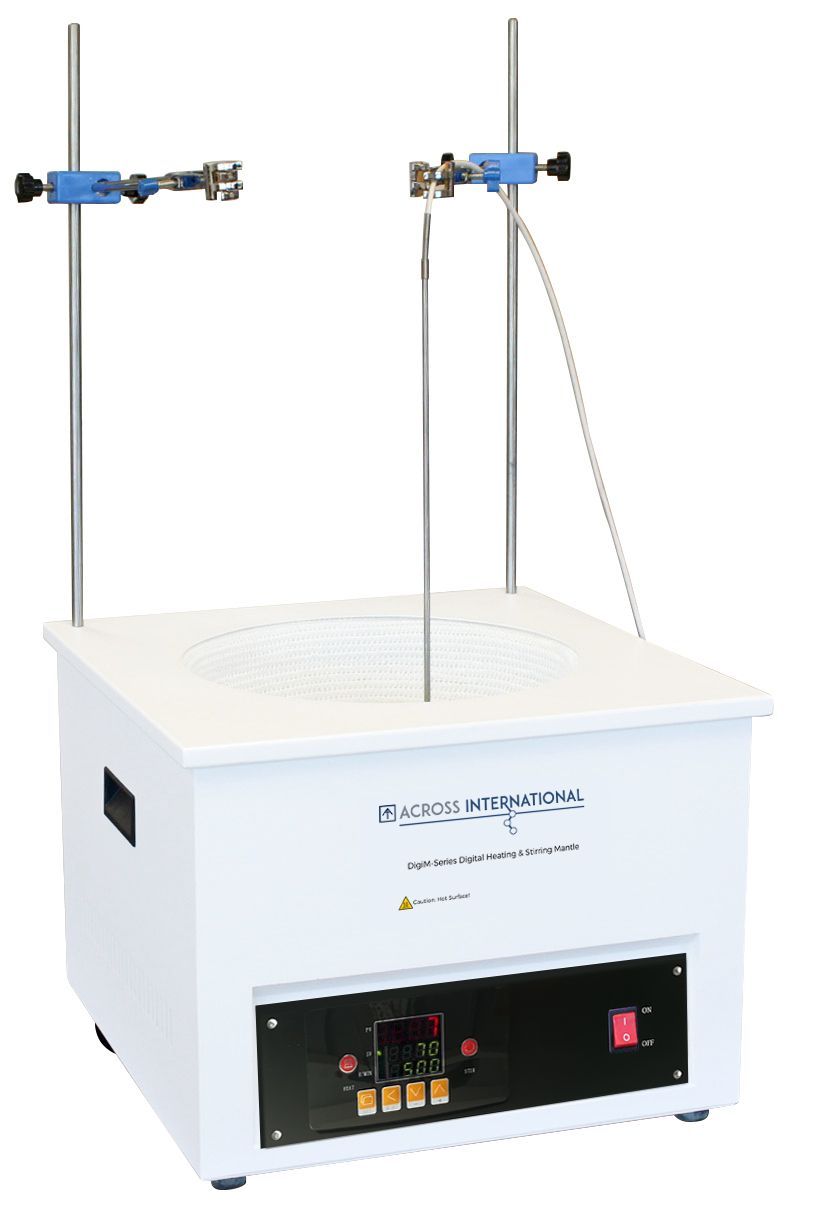

The Across International DigiM 10L Digital Heating and Stirring Mantle provides precise temperature and stirring control for laboratory distillation, chemical reactions, and heating applications. Designed for professional laboratory use, this heating mantle features digital PID temperature control, a brushless DC stirring motor, and an easy-to-read display interface for accurate operation.

The DigiM mantle includes two sets of thermocouples for reliable temperature and speed detection, ensuring stable heating and mixing performance. Its heating jacket is pre-treated before shipment, eliminating smoke and odors during initial heating.

With a maximum flask capacity of 10 liters, adjustable stirring speeds up to 1200 RPM, and heating capability up to 300°C, the DigiM mantle is ideal for short path distillation systems, chemical synthesis, extraction processes, and laboratory heating applications.

---

Key Features

Digital Temperature & Stirring Control

• Large digital display for easy operation

• PID temperature control for precise heating

• Independent control of heating and stirring speeds

High-Performance Heating

• Temperature range from ambient to 300°C

• Uniform heating through durable heating jacket

• Pre-treated heating mantle eliminates smoke or odor during startup

Integrated Magnetic Stirring System

• Stirring speed range 110 – 1200 RPM

• Powered by 40W brushless DC motor

• Smooth and reliable stirring performance

Dual Thermocouple Monitoring

• Two sets of thermocouples for accurate temperature and speed detection

• Ensures reliable heating control and safety

External Temperature Probe

• PT100 stainless steel probe

• Provides precise external temperature monitoring

• Ideal for distillation and reaction control

Laboratory-Grade Construction

• Designed for laboratory distillation systems

• Supports round-bottom flasks up to 10 liters

• Durable construction for long-term use

---

Ideal Applications

• Short path distillation systems

• Chemical synthesis

• Laboratory heating and mixing

• Pharmaceutical research

• Cannabis extraction labs

• Chemical and materials research

---

Electrical Specifications

• Voltage Options:

  • 110V 60Hz 1-Phase – 2050 Watts, 24A

  • 220V 50/60Hz 1-Phase – 2050 Watts, 12A

---

Heating Specifications

• Temperature Range: Ambient to 300°C

---

Stirring Specifications

• Minimum Speed: 110 RPM

• Maximum Speed: 1200 RPM

• Motor Power: 40 Watts

• Motor Type: Brushless DC Motor

---

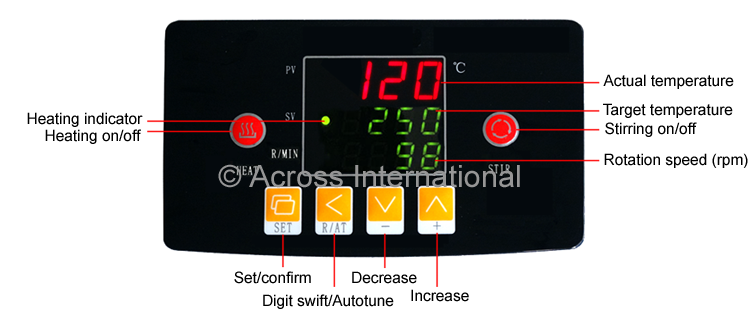

Controller

• PID temperature control

• Digital temperature display

• Digital rotation speed display

---

External Thermocouple

• Type: PT100

• Cable Length: 43 inches

• Probe Material: Stainless Steel

• Probe Length: 15 inches

• Probe Diameter: 5 mm

---

Flask Holder Specifications

• Maximum Flask Capacity: 10 Liters

• Top Opening Diameter: 11.75 inches

• Heating Mantle Depth: 6.5 inches

---

Dimensions & Weight

Unit Dimensions

• 18 × 17.5 × 13 inches

Shipping Dimensions

• 22 × 21 × 18 inches

Weight

• Unit Weight: 30 lbs

• Shipping Weight: 40 lbs

---

Safety Features

• Thermocouple failure protection

• Stable PID temperature control

---

Certifications

• CE Certified

• ETL Tested to UL and CSA Standards (optional)

---

What's Included

• 1 × DigiM 10L Digital Heating & Stirring Mantle

Accessories

• 1 × External Temperature Probe

• 1 × Internal Temperature Plug

• 1–2 × Boss Heads (depending on model)

• 1–2 × Stainless Steel Support Rods

• 2 × PTFE-Coated Stir Bars

• 1 × PTFE Magnetic Stir Bar Remover

• 1–2 × 4-Prong Stainless Steel Clamps

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty
