Description

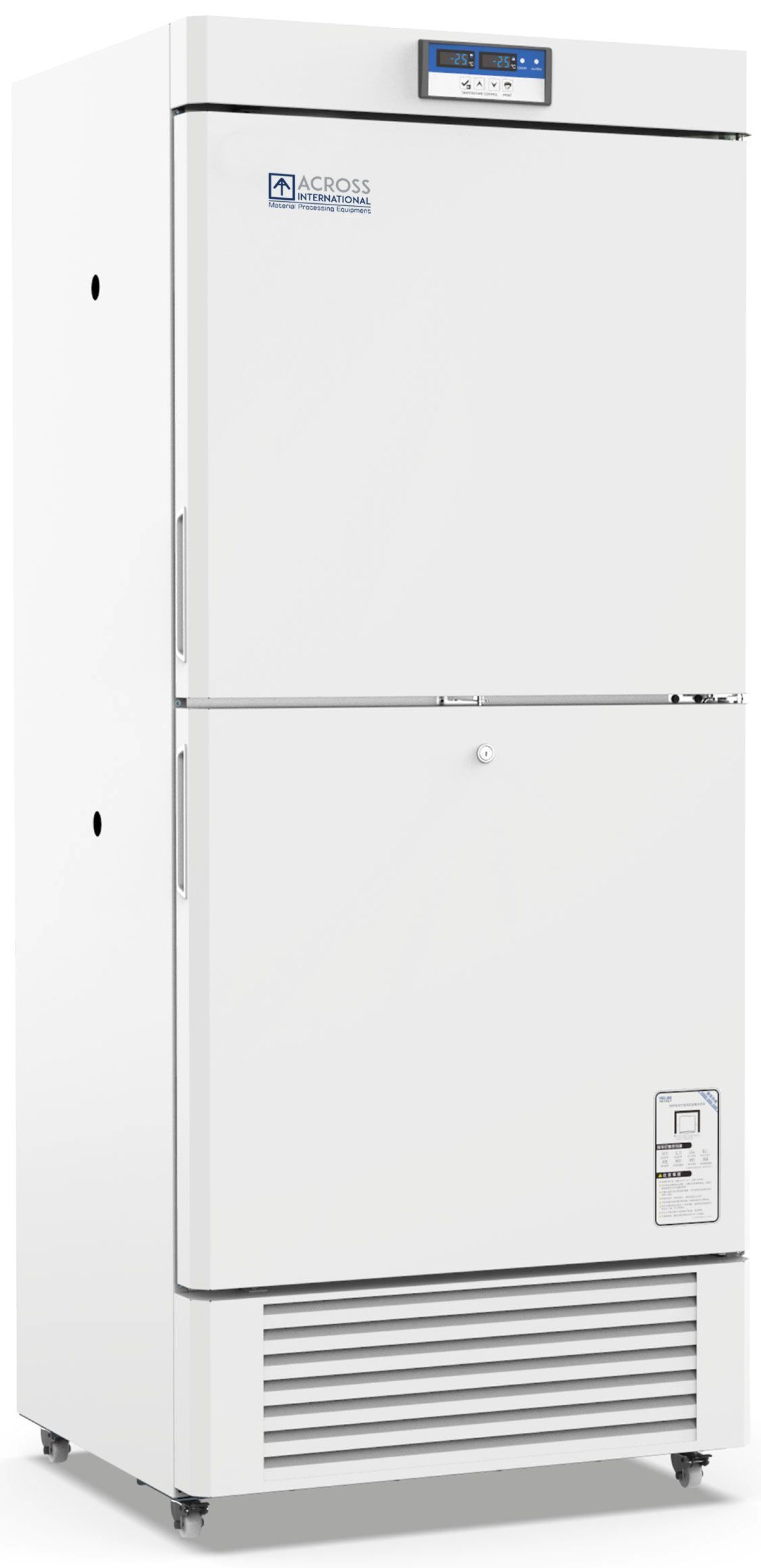

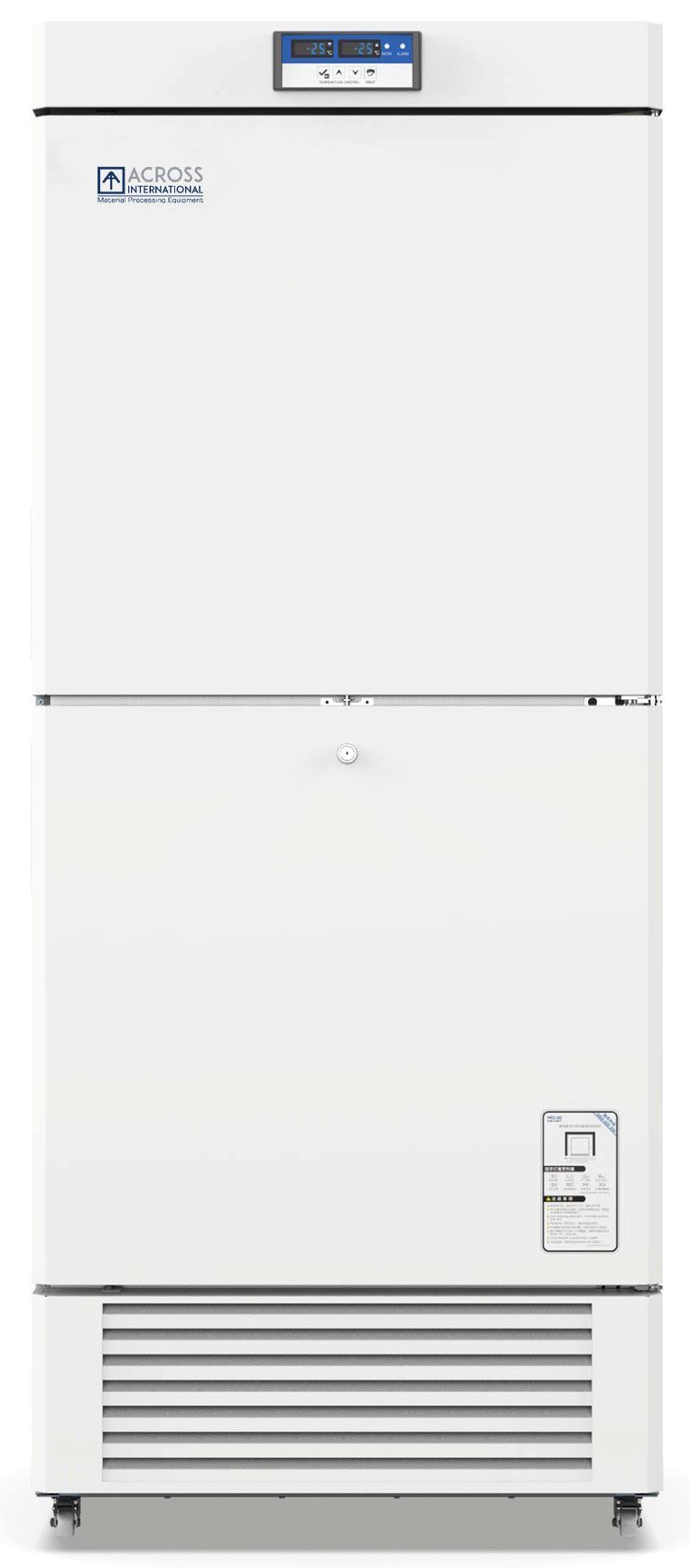

The Across International Ai DeepFreeze D16 -40°C Upright Freezer is designed for reliable low-temperature storage of laboratory samples, vaccines, and biological materials. With a 16 cubic foot stainless steel interior and dual-chamber design, this freezer provides organized storage while maintaining consistent temperature performance for sensitive materials.
The DeepFreeze D16 features a high-efficiency compressor system with direct cooling technology, delivering dependable performance with low power consumption, reduced noise levels, and minimal maintenance requirements. Dual silicone sealing gaskets ensure airtight insulation, helping maintain stable temperatures between -20°C and -40°C.
Equipped with a 48-hour battery backup system, remote alarm capability, and integrated data export through USB, the Ai DeepFreeze freezer provides advanced monitoring and protection for valuable samples.
Key Features
• Temperature range: -20°C to -40°C
• Large 16 cubic foot storage capacity
• Dual chamber design for organized storage
• Stainless steel interior for durability and easy cleaning
• Direct cooling system for efficient performance
• Dual silicone sealing gaskets for airtight operation
• 48-hour battery backup for controller operation
• USB interface for data export and storage
• Built-in remote alarm and RS-485 communication port
• Quiet operation at approximately 52 dBA
• Environmentally friendly R290 refrigerant
Ideal Applications
The Ai DeepFreeze -40°C Freezer is ideal for:
• Covid-19 vaccine storage
• DNA and RNA sample storage
• Virus sample preservation
• Serum and organ storage
• Pharmaceutical laboratories
• Medical research facilities
• Biotechnology laboratories
Security & Alarm Protection
To safeguard valuable samples, the freezer includes multiple monitoring systems:
• High temperature alarm
• Low temperature alarm
• Power failure alarm
• Door open alarm
• Filter clogging alarm
• System failure alarm
• Sensor error alarm
• Condenser overheat alarm
• Password protection
• Lockable external doors
Technical Specifications
Electrical Requirements
Voltage: 110V (±10%)
Frequency: 60Hz
Phase: Single Phase
Current: 8.89A
Temperature Performance
Temperature Range: -20°C to -40°C
Cooling Method: Direct cooling
Defrost Mode: Manual
Refrigerant: R290 (environmentally friendly)
Compressor System
Number of Compressors: Two
Compressor Style: Parallel

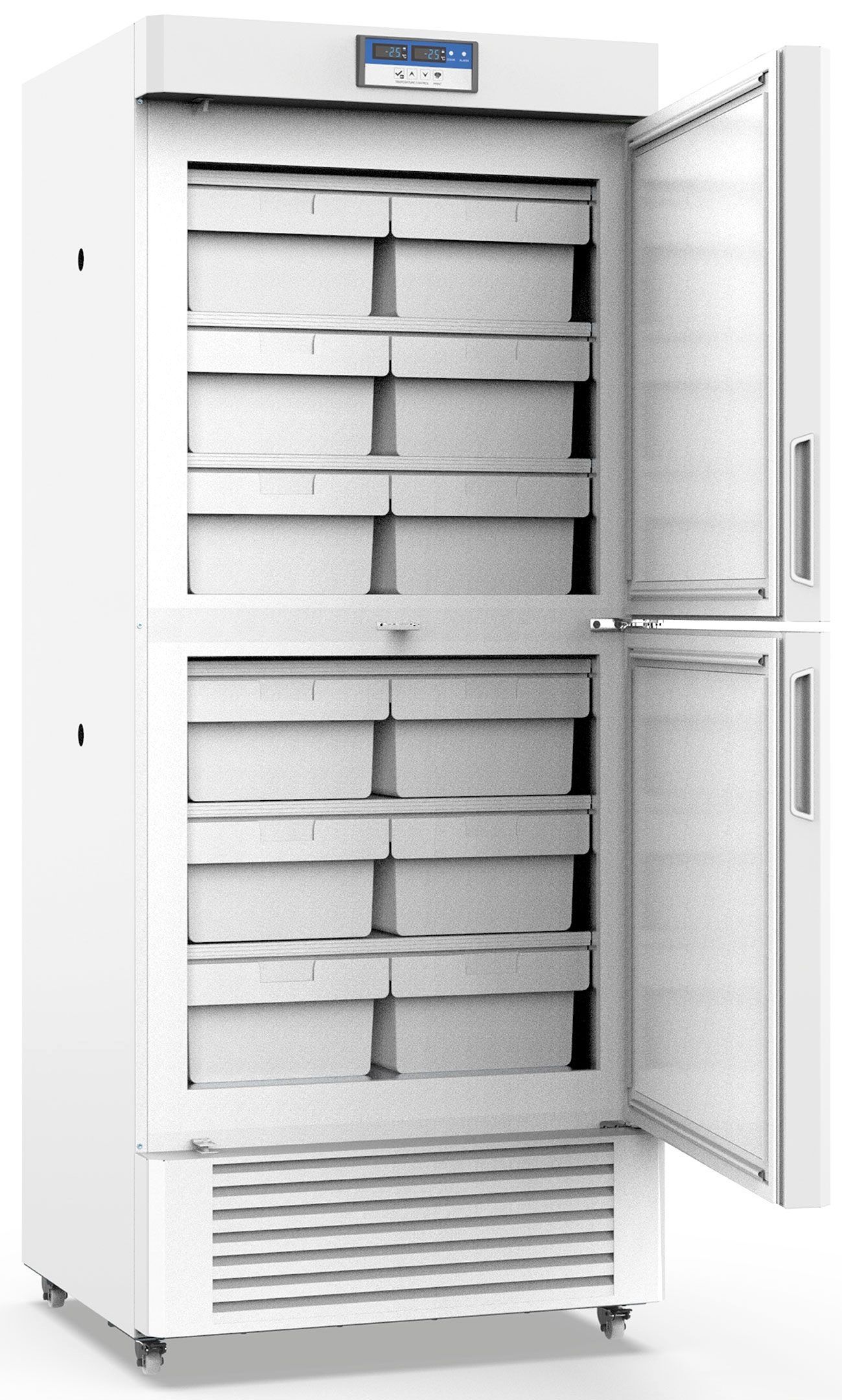

Chamber Specifications
Interior Dimensions: 25.5 x 22.5 x 24.5 inches (W x D x H)
Interior Material: Stainless Steel
Storage Volume: 15.9 Cubic Feet
Number of Chambers: Two

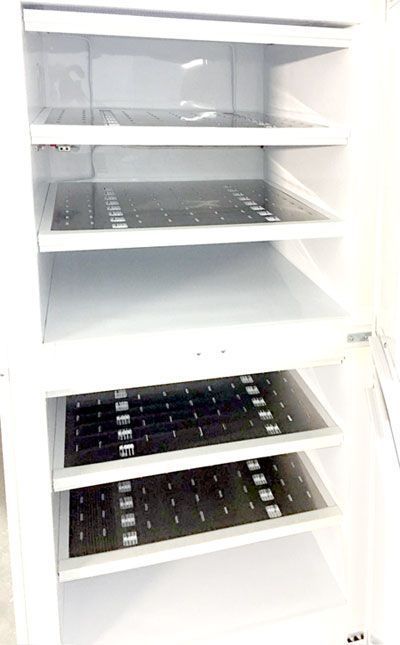

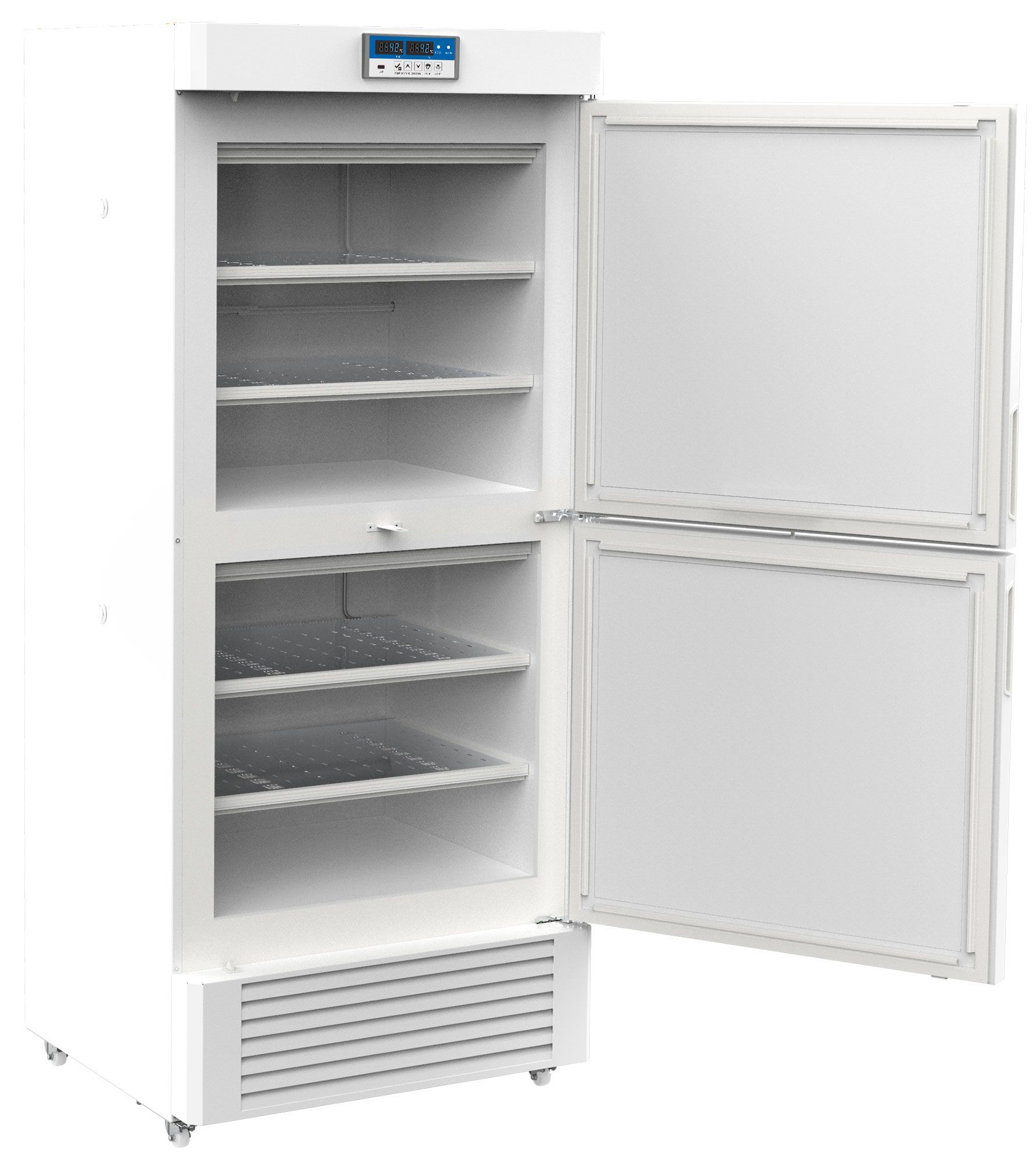

Shelving
Total Shelves: 4
Shelf Configuration: Two shelves per chamber
Shelf Material: Stainless Steel
Shelf Style: Fixed
Doors
Total Doors: 2
Door Type: Lockable external doors
Sealing System: Dual silicone sealing gaskets
Access Ports
Total Access Ports: Two

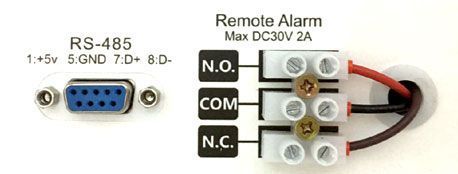

Communication & Data Interface
Included:
• USB data export
• Remote alarm system
• RS-485 communication port
• 4-20mA transmitter
Mobility
Built-in swivel casters: Four
• Two locking casters
Operating Environment
Temperature: 16°C – 32°C
Humidity: < 80% RH
Altitude: Below 2000 meters
Installation Requirements:
• Maintain 12 inches clearance from walls
• Use dedicated grounded power outlet
• Extension cords must be less than 10 feet
Noise Level
52 dBA

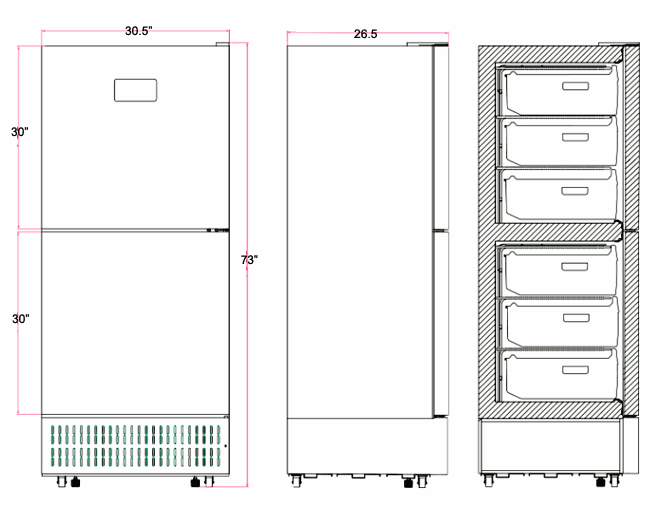

Dimensions & Weight
Unit Dimensions: 30.5 x 26.5 x 73 inches (W x D x H)
Shipping Dimensions: 37.5 x 34.5 x 80 inches
Unit Weight: 320 lbs
Shipping Weight: 345 lbs
Safety Protections
• Compressor over-temperature protection
• Compressor power surge delay protection
• Power failure protection
• Low battery alarm
• Door open alarm
• Filter clogging alarm
• System failure alarm
• Sensor error alarm
• Condenser overheating protection
What's Included
• Ai DeepFreeze D16 -40°C Upright Freezer
• Ice scraper
• Two additional access port caps
• Door keys (2)
• User manual
Important Setup Instructions
Allow the freezer to stand upright for 24 hours before turning on power after delivery.
This unit is not designed for mobile platform use.
Warranty
1 Year Manufacturer Warranty
