Across International
Price:
$1,450.00

Description

The Across International Clear5 Short Path Distillation Kit is a high-performance 5L molecular distillation system designed for efficient purification and separation of heat-sensitive compounds. Built with heavy-wall borosilicate glass and a vacuum-jacketed vapor pathway, this system minimizes heat loss while maximizing condensation efficiency during distillation.

The redesigned vacuum jacketed distillation head features a larger vapor channel and increased internal diameter, allowing for improved vapor flow and more efficient fractionation. This design helps prevent clogging and ensures smooth operation throughout the distillation process.

Constructed from high-quality borosilicate glass 3.3, the Clear5 system provides excellent thermal stability, chemical resistance, and durability for laboratory environments.

This kit includes the 5L distillation head, boiling flask, receiving flasks, adapters, thermometer ports, and support accessories, making it an ideal solution for laboratory distillation, cannabis extraction research, chemical purification, and molecular distillation applications.

Key Features

Redesigned Vacuum Jacketed Distillation Head

  • Larger vapor channel improves vapor flow

  • Increased internal diameter enhances fractionation efficiency

  • Prevents clogging during distillation

  • Vacuum jacket reduces heat loss

Heavy Wall Laboratory Glassware

  • Made from borosilicate glass 3.3

  • Thick wall construction improves durability

  • Excellent resistance to thermal stress

Efficient Molecular Distillation

  • Vacuum jacketed vapor channel improves condensation efficiency

  • Maintains stable temperature during distillation

Precision Temperature Monitoring

  • Thermometer ports located on both the boiling flask and distillation head

  • PTFE thermometer adapters with Viton gaskets ensure airtight sealing

Flexible System Connections

  • GL-16 adapters for recirculating fluid connections

  • 3/8" hose barb connections for vacuum systems

  • Compatible with laboratory chillers and vacuum pumps

Ideal Applications

  • Molecular distillation

  • Cannabis extraction and distillation

  • Essential oil purification

  • Pharmaceutical compound separation

  • Laboratory distillation research

  • Chemical purification processes

Glassware Specifications

  • Glass Material: High Borosilicate Glass 3.3

  • Distillation Head: Vacuum Jacketed

  • Heavy-wall laboratory glass construction

Joint Sizes

  • Boiling Flask to Distillation Head: 34/45 joint

  • Boiling Flask Thermometer Port: 24/40 joint

  • Distillation Head Thermometer Port: 14/20 joint

  • Receiving Flask Ports: 24/40 joints

System Connections

  • Recirculating Fluid Connection: GL-16 adapter

  • Vacuum Connection: 3/8" hose barb

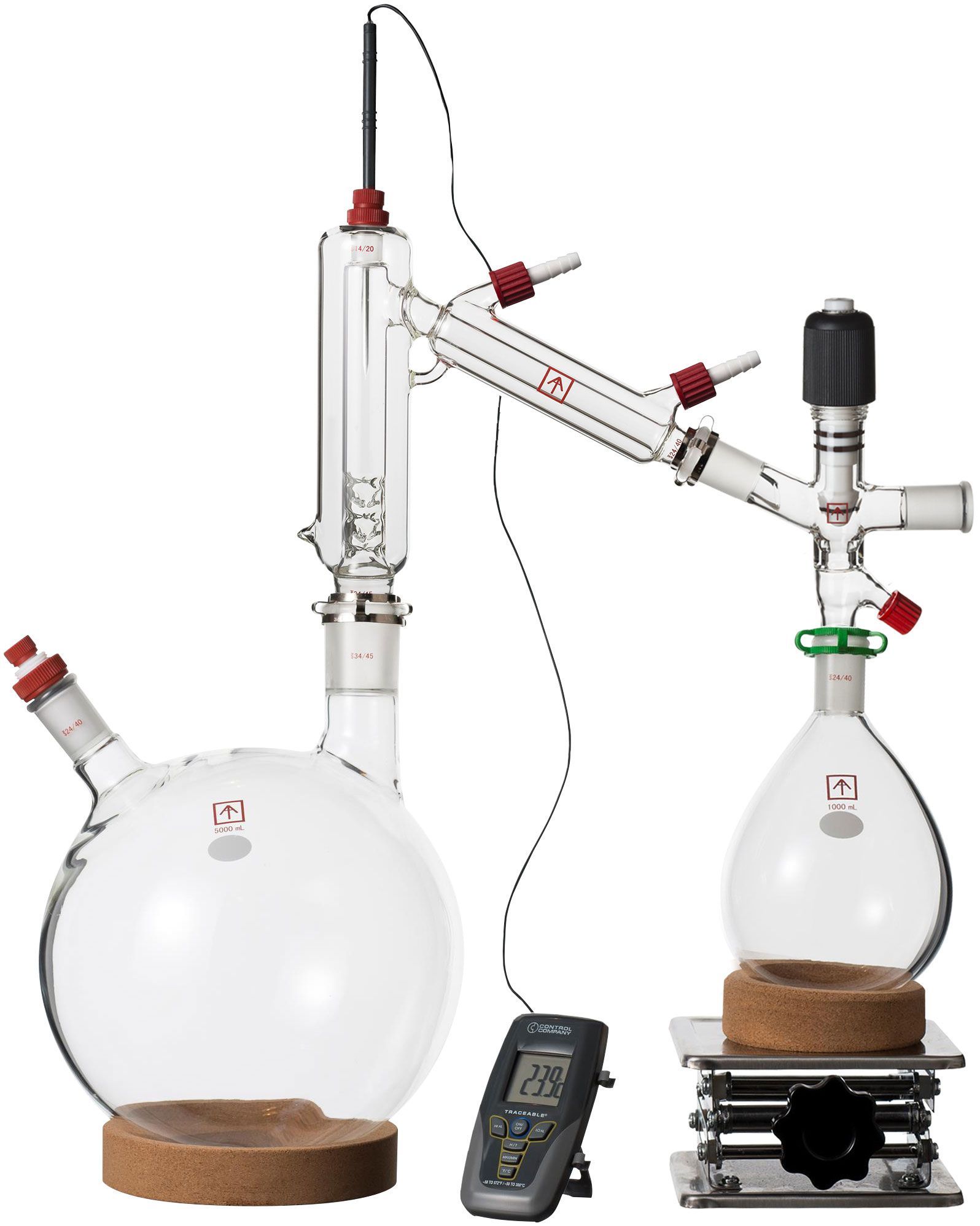

What's Included

Distillation Head Assembly

  • 1 × Heavy Wall Vacuum Jacketed 5L Distillation Head

    • Multiple Vigreux fractionation columns

    • Integrated cooling channel

    • 14/20 thermometer port

Boiling Flask

  • 1 × Heavy Wall 2-Neck Round Bottom Flask

    • One vertical center neck

    • One angled side neck

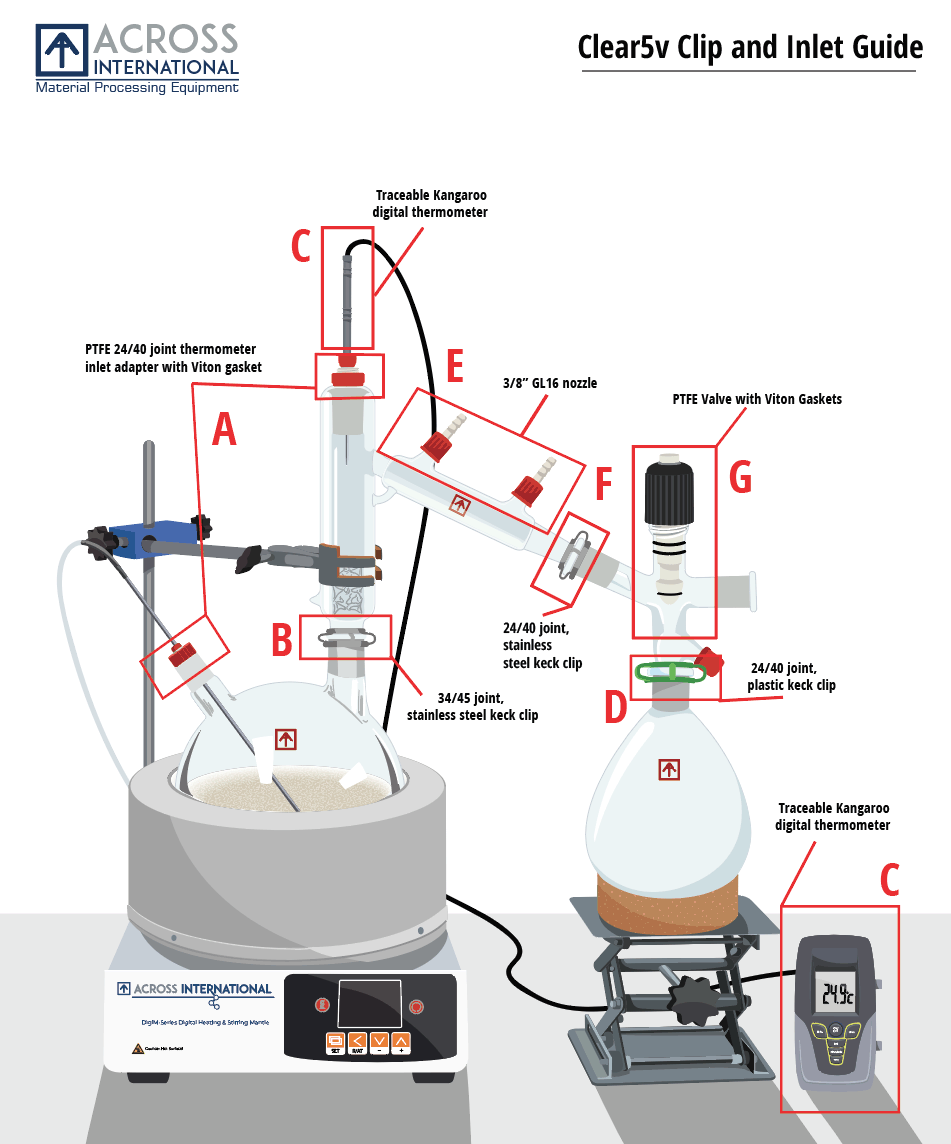

Thermometer Adapters

  • 2 × PTFE 24/40 Thermometer Inlet Adapters with Viton Gaskets

Receiving System

  • 2 × 500mL Heavy Wall Round Bottom Receiving Flasks (24/40 joint)

Glass Accessories

  • 1 × 24/40 Pennyhead Glass Stopper

  • 1 × 24/40 Round-Top Glass Feeding Funnel

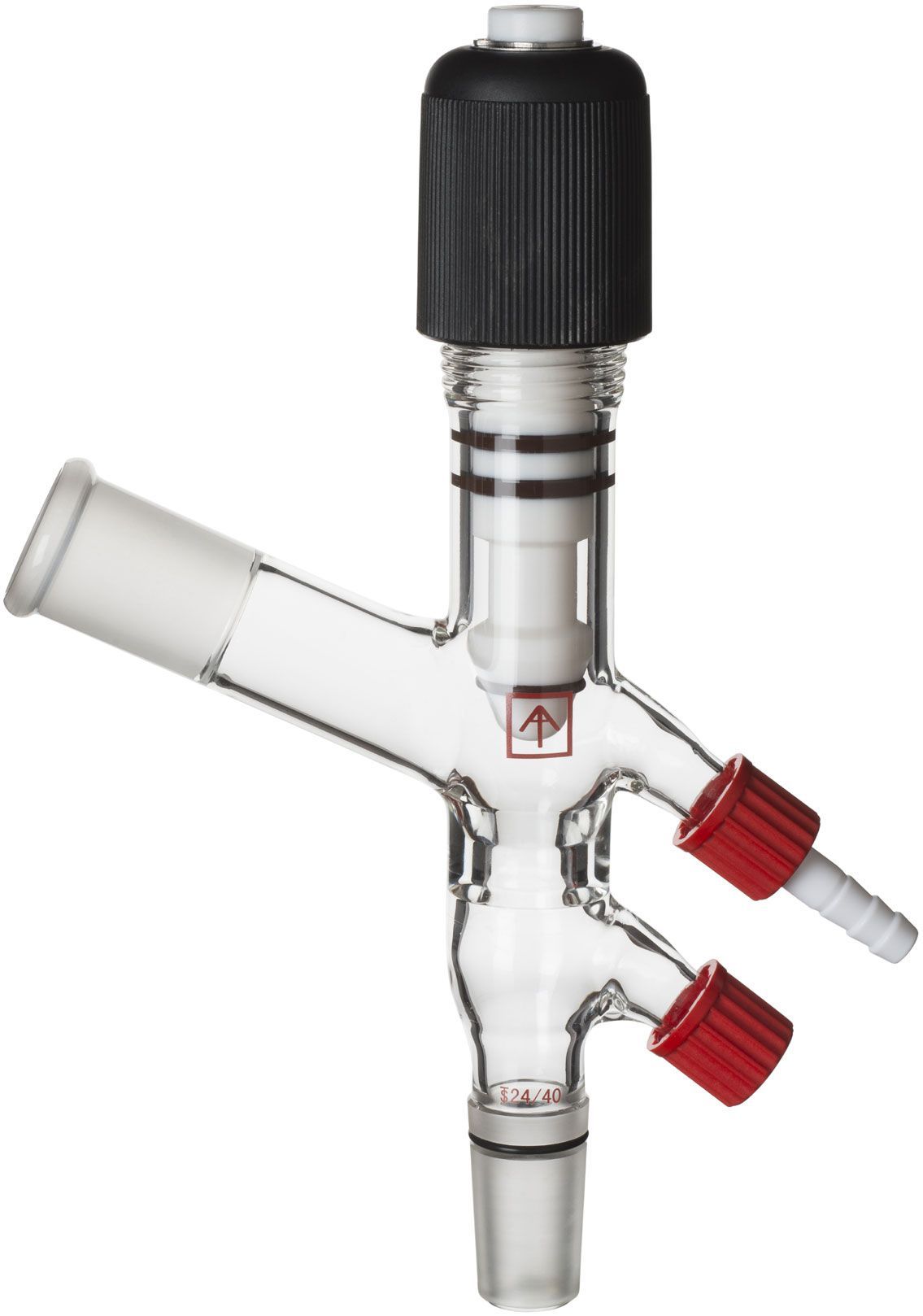

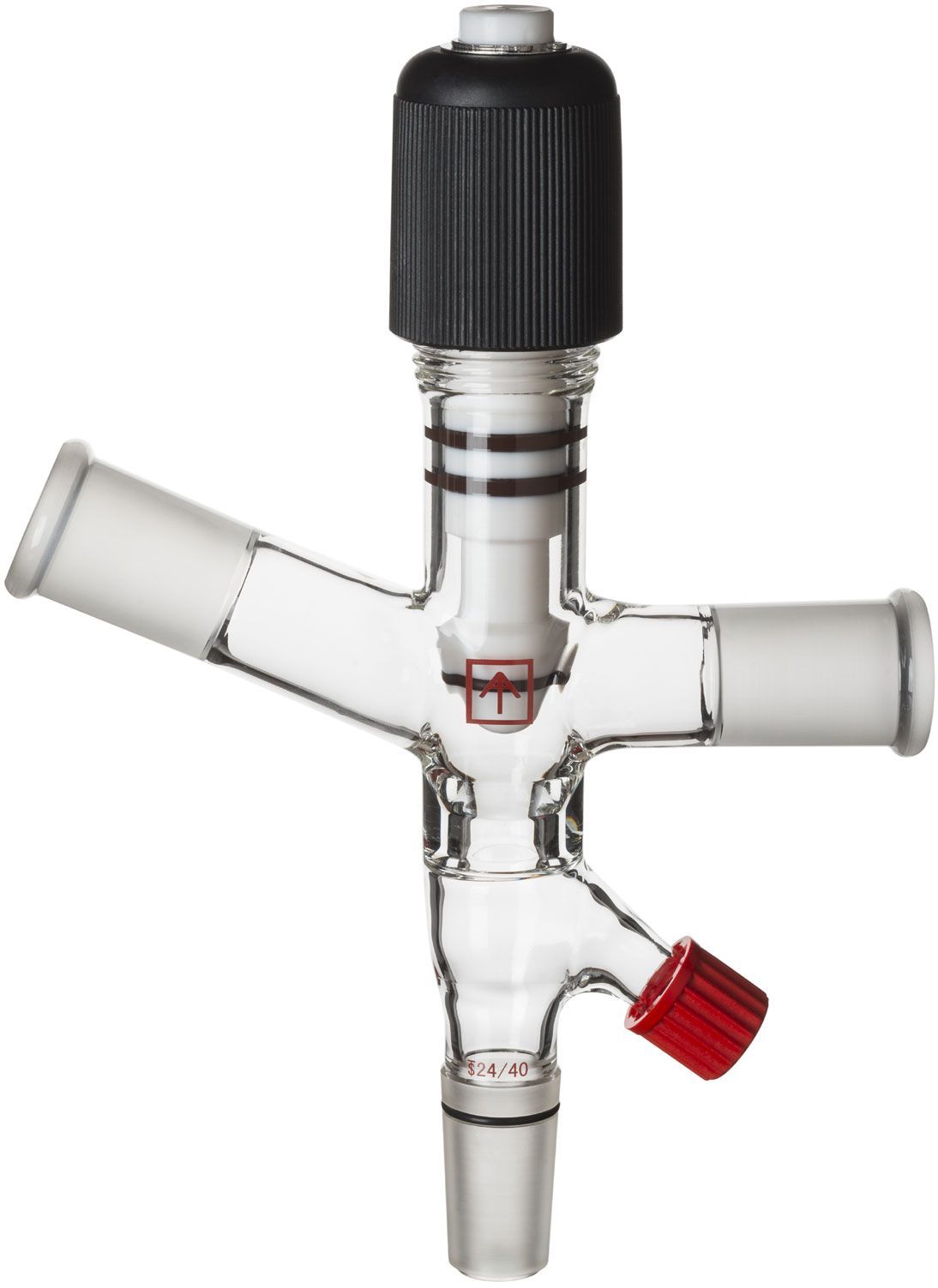

  • 1 × Valved Adapter with Two 24/40 Joints and One GL-16 Port

  • 1 × Glass 3/8" Hose Barb Tee Adapter

Laboratory Hardware

  • 2 × Stainless Steel Keck Clips (24/40 and 34/45)

  • 3 × Plastic Keck Clips (24/40)

Laboratory Support Equipment

  • 2 × Cork Ring Stands

    • One for 5L flask

    • One for 1L receiving flask

  • 1 × Stainless Steel Lab Jack

    • Size: 6 × 6 inches

    • Height Range: 3" – 9.5"

Measurement & Accessories

  • 1 × Traceable Kangaroo Digital Thermometer

  • 1 × Dow Corning High Vacuum Grease (5.3 oz)

Glassware Notice

Glassware does not include a manufacturer warranty.

Minor cosmetic blemishes may occur during manufacturing but will not affect performance or functionality. All glassware is inspected prior to shipping to ensure no defective components are sent to customers.

Recommended Equipment (Sold Separately)

For optimal operation, the following equipment is recommended:

  • Vacuum pump

  • Recirculating chiller

  • Heating mantle

  • Cold trap
