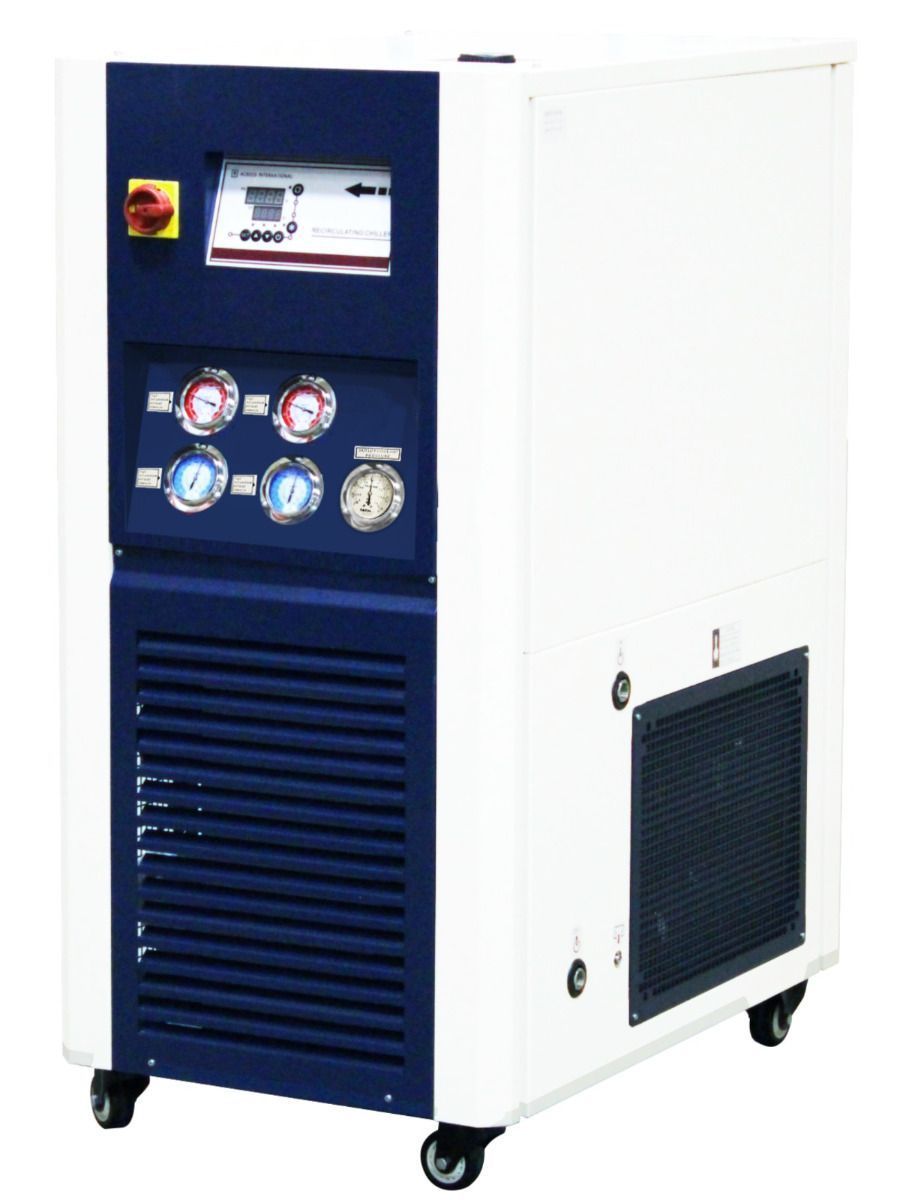

The Across International C80-10 Recirculating Chiller is an ultra-low temperature laboratory cooling system designed for applications requiring precise temperature control at extremely low temperatures. This high-performance closed-loop thermostatic chiller provides reliable cooling for laboratory equipment such as jacketed reactors, rotary evaporators, analytical instrumentation, vacuum systems, ICP systems, plasma etching equipment, and laser systems.

Powered by a dual-compressor cascade refrigeration system, the C80-10 delivers cooling performance down to -75°C (-103°F) while maintaining stable temperature control through a microprocessor PID temperature controller. The system includes a powerful 30 L/min recirculating pump and stainless steel reservoir, ensuring efficient heat transfer and dependable cooling for demanding laboratory applications.

Designed for industrial laboratory use, the C80-10 offers plug-and-play installation, durable steel construction, and a large cooling capacity suitable for 20L jacketed reactors and advanced chemical processing systems.

Note: Ultimate temperatures of -75°C are measured under no-load conditions.

---

Key Features

Ultra-Low Temperature Cooling (-75°C)

• Cooling capability down to -75°C (-103°F)

• Ideal for demanding laboratory cooling applications

Dual Compressor Cascade System

• Two compressors for ultra-low temperature performance

• Reliable cooling for industrial laboratory systems

Precision Temperature Control

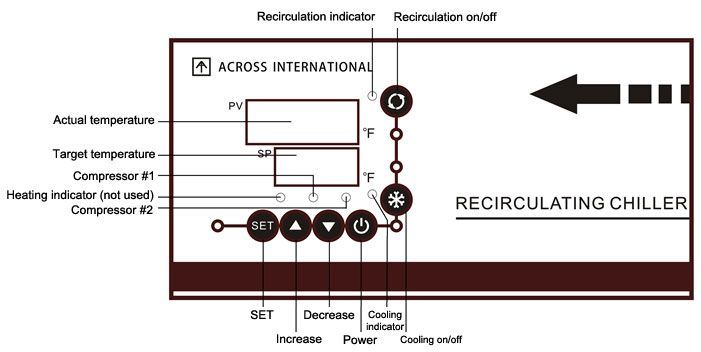

• Digital microprocessor PID temperature controller

• Temperature accuracy of ±2°C

• Stable cooling performance for sensitive laboratory processes

Closed Loop Cooling System

• Eliminates the need for tap water cooling

• Reduces laboratory water consumption

• Environmentally efficient cooling solution

High-Flow Recirculating Pump

• Pumping speed up to 30 L/min (8 gallons/min)

• Provides consistent coolant flow for high-performance systems

Built-In Fluid Filter

• Protects recirculating pump

• Prevents contamination and blockage

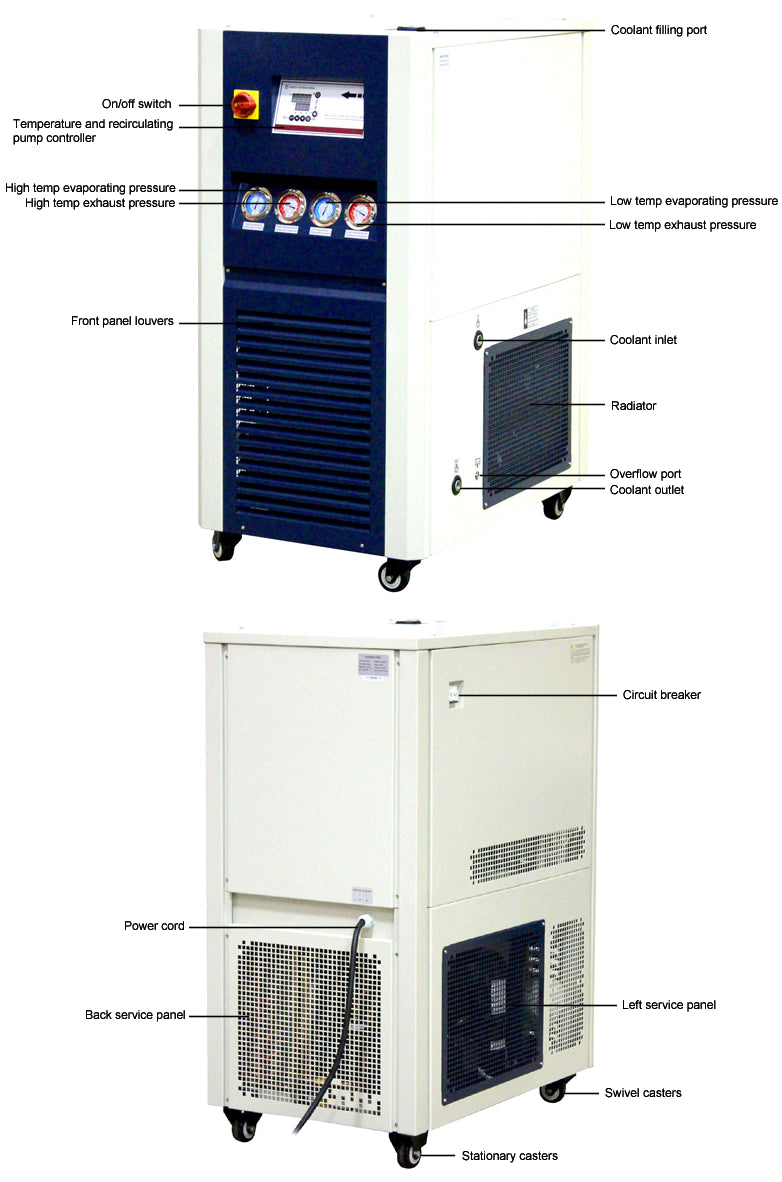

Industrial-Grade Construction

• Durable powder-coated stainless steel housing

• Stainless steel coolant reservoir

• Built-in swivel casters for mobility

Plug-and-Play Operation

• Fully assembled system

• Ready for installation and immediate use

---

Ideal Applications

• Jacketed chemical reactors

• Rotary evaporators

• Analytical instrumentation

• Laser etching equipment

• ICP systems

• Plasma etching systems

• Vacuum systems

---

Technical Specifications

Temperature Control

• Working Temperature Range: -60°C to -75°C

• Temperature Accuracy: ±2°C

• Controller Type: Digital Microprocessor PID

• Display Unit: Celsius (°C)

• Temperature Sensor: Pt100

Note: This unit is not designed to operate above -60°C.

---

Electrical Requirements

• Voltage: 220V

• Frequency: 60Hz

• Phase: Single Phase

• Current: 22A

• Power Consumption: 4,750 Watts

---

Cooling Capacity

(Assuming working environment of 25°C / 77°F)

• 2000W at -40°C

• 1500W at -50°C

• 1000W at -60°C

• 280W at -75°C

• 180W at -78°C

---

Compressor System

• Manufacturer: KK

• Compressor Type: Dual Compressor Cascade System

• Power: 208-230V 60Hz

• Refrigerants:

  • R404A (2680g)

  • R23 (710g)

---

Recirculating Pump

• Pump Type: Centrifugal

• Model: 25PLBR30-10

• Pumping Speed: 30 L/min (8 gallons/min)

• Power: 280W

• Maximum Pressure: 1 bar

---

Reservoir

• Capacity: 10 Liters (2.6 gallons)

• Dimensions: 17.5 × 7 × 8.5 inches

• Material: Type 304 Stainless Steel

Connections

• Chilling Fluid Connection: 1/2" NPT

• Drain Port: 3/8" hose barb

---

Radiator

Fan Motor

• Manufacturer: Boyoung

• Model: YWF 4E-350

• Power: 220V 60Hz 0.8A (180W)

• Rotation Speed: 1600 RPM

• Airflow Rate: 2500 m³/hour

Maintenance:

• Clean radiator fins every 3 months using a fin comb.

---

Environmental Operating Conditions

• Ambient Temperature: 5°C to 35°C

• Maximum Humidity: <70% RH

• Indoor laboratory use only

---

Dimensions & Weight

• Unit Dimensions: 38.5 × 25 × 52 inches

• Shipping Dimensions: 44 × 30 × 64 inches

• Unit Weight: 515 lbs

• Shipping Weight: 615 lbs

---

Safety Features

• Compressor over-temperature protection

• Short circuit protection

• Ground fault protection

• Over-current protection

• Over-voltage protection

• Over-heat protection

---

Recommended Equipment Pairing

Recommended for use with:

• Across International 20L Jacketed Reactors (6L jacket volume)

---

What's Included

• 1 × Across International C80-10 Recirculating Chiller

• 11 ft 3/8" Insulated Chilling Fluid Tubing

• 2 × 1/2" NPT Chilling Fluid On/Off Valves

• 2 × 1/2" NPT to 3/8" Barb Adapters

• 2 × 1/2" NPT Connectors

• 1 × PTFE Sealing Tape

• 1 × Cleaning Brush

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty

---

Compliance & Certifications

• UL 61010-1:2012

• CSA C22.2 #61010-1:2012

• ETL tested to UL & CSA standards
