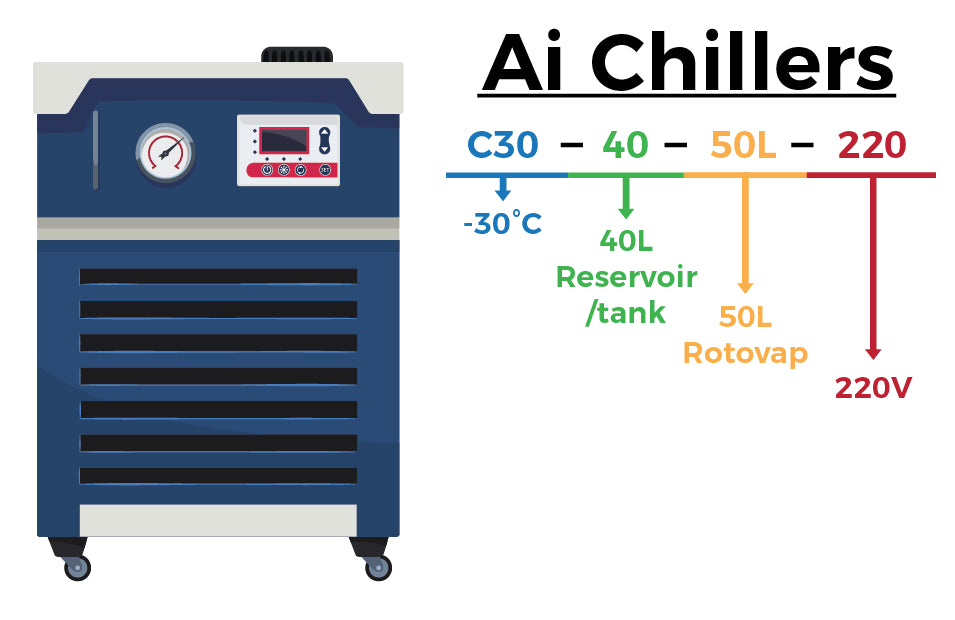

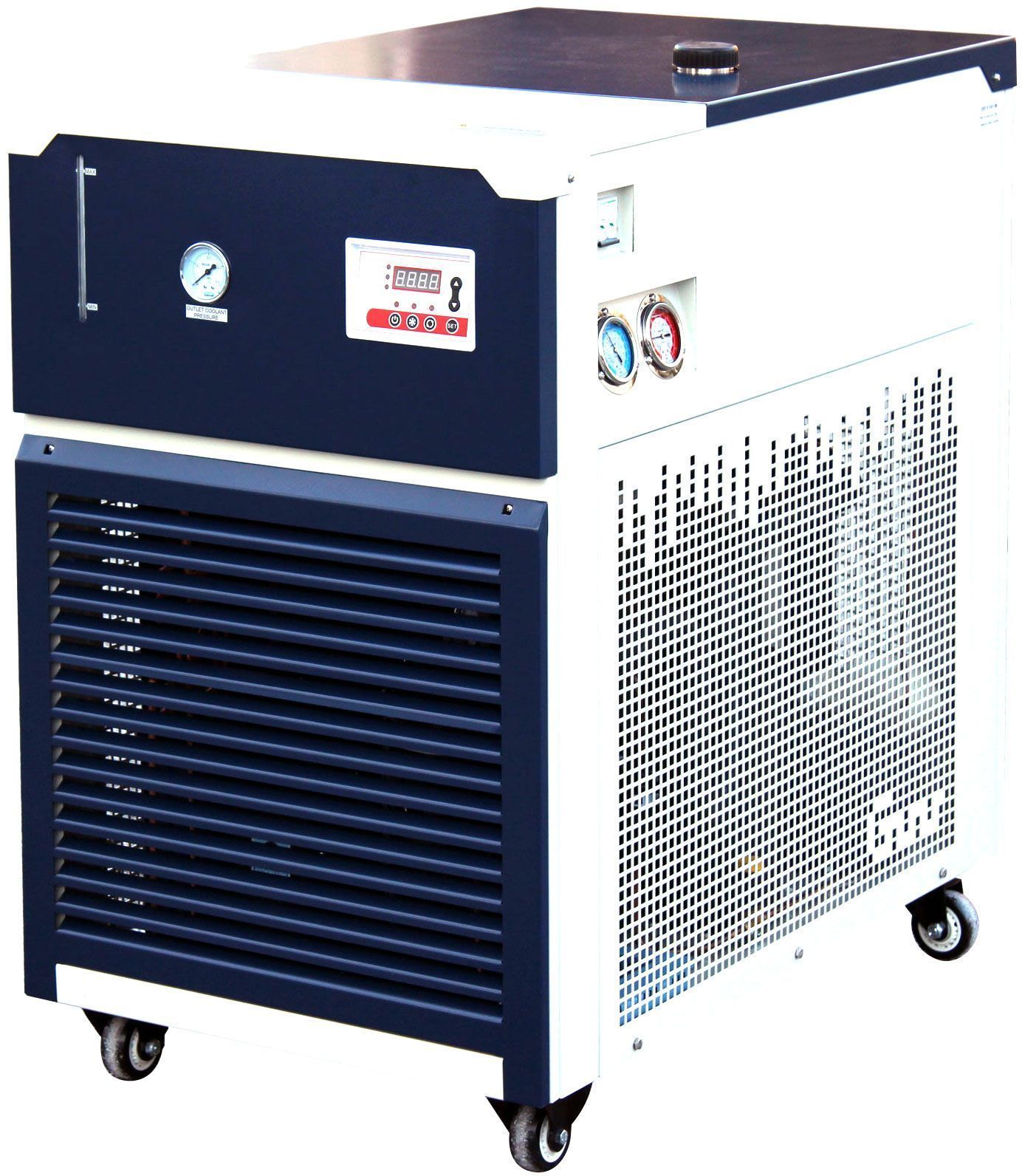

The Across International C30-40 Recirculating Chiller is a high-capacity thermostatic laboratory chiller designed for demanding cooling applications requiring precise temperature control and powerful cooling below ambient temperatures. This compressor-based closed-loop recirculating chiller provides reliable cooling for large laboratory systems including rotary evaporators, analytical instrumentation, vacuum systems, ICP equipment, plasma etching systems, laser etching equipment, and jacketed reactors.

Powered by a high-performance compressor and microprocessor PID temperature controller, the C30-40 delivers stable cooling performance down to -30°C (-22°F) while maintaining consistent coolant circulation. The system features a large 40-liter stainless steel reservoir and high cooling capacity up to 5,000W, making it ideal for 50L rotary evaporators and large-scale laboratory distillation systems.

This recirculating chiller also serves as an efficient tap water replacement, eliminating water waste while providing stable and eco-friendly cooling for laboratory processes.

Note: The ultimate temperature of -30°C (-22°F) is measured under no-load conditions.

---

Key Features

Deep Cooling Performance (-30°C)

• Cooling capability down to -30°C (-22°F)

• Ideal for high-capacity laboratory cooling applications

Precision Temperature Control

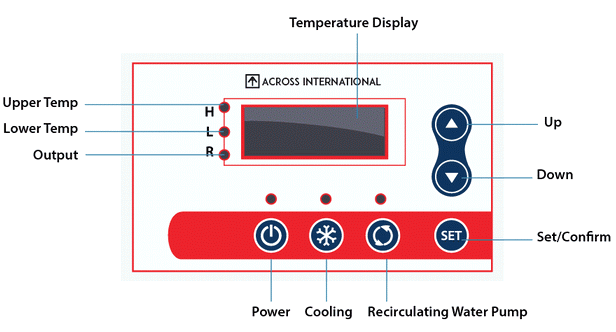

• Digital microprocessor PID temperature controller

• Maintains stable and accurate cooling performance

• Temperature accuracy of ±2°C

Closed Loop Cooling System

• Eliminates the need for tap water cooling

• Reduces water consumption and operating costs

• Provides environmentally friendly cooling

High-Flow Recirculating Pump

• Pumping speed up to 30 L/min (8 gallons/min)

• Provides efficient cooling for large laboratory systems

Built-In Fluid Filter

• Protects the recirculating pump

• Prevents system blockage and contamination

Heavy-Duty Industrial Construction

• Durable all-steel housing

• 304 stainless steel coolant reservoir

• Built-in swivel casters for easy mobility

Eco-Friendly Refrigeration System

• Uses R404A refrigerant

• Efficient compressor-based cooling technology

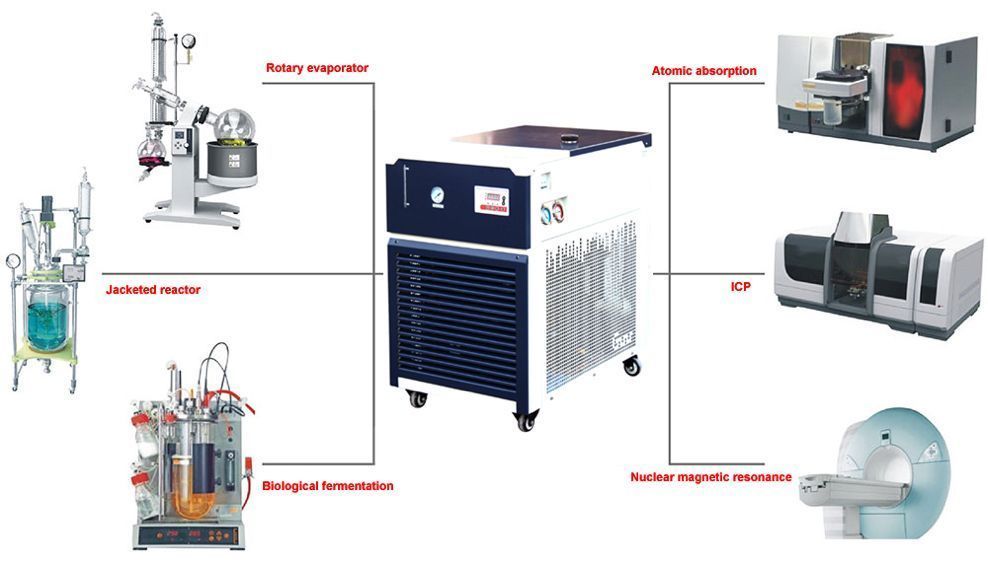

Ideal Applications

• Rotary evaporators

• Analytical instrumentation

• Laser etching systems

• ICP systems

• Vacuum systems

• Plasma etching

• Jacketed chemical reactors

---

Technical Specifications

Temperature Control

• Temperature Range: Ambient to -30°C (no load)

• Temperature Accuracy: ±2°C

• Controller Type: Digital Microprocessor PID

• Display Unit: Celsius (°C)

• Temperature Sensor: Pt100

Note: -30°C ultimate temperature is measured under empty load conditions.

---

Electrical Requirements

• Voltage: 220V

• Frequency: 60Hz

• Phase: Single Phase

• Current: 18A

• Power Consumption: 3,960 Watts

Note: This unit is not compatible with 50Hz power.

---

Cooling Capacity

(Assuming working environment of 25°C / 77°F)

• 5,000W at 0°C

• 3,000W at -10°C

• 1,800W at -20°C

• 1,000W at -30°C

---

Compressor

• Manufacturer: KK

• Power: 208–230V 60Hz

• Number of Compressors: 1

• Refrigerant: R404A (3.2 kg)

---

Recirculating Pump

• Model: 25PLBR30-10

• Pump Type: Centrifugal

• Pump Output: 280 Watts

• Pumping Speed: 30 L/min (8 gallons/min)

• Maximum Pressure: 1 bar

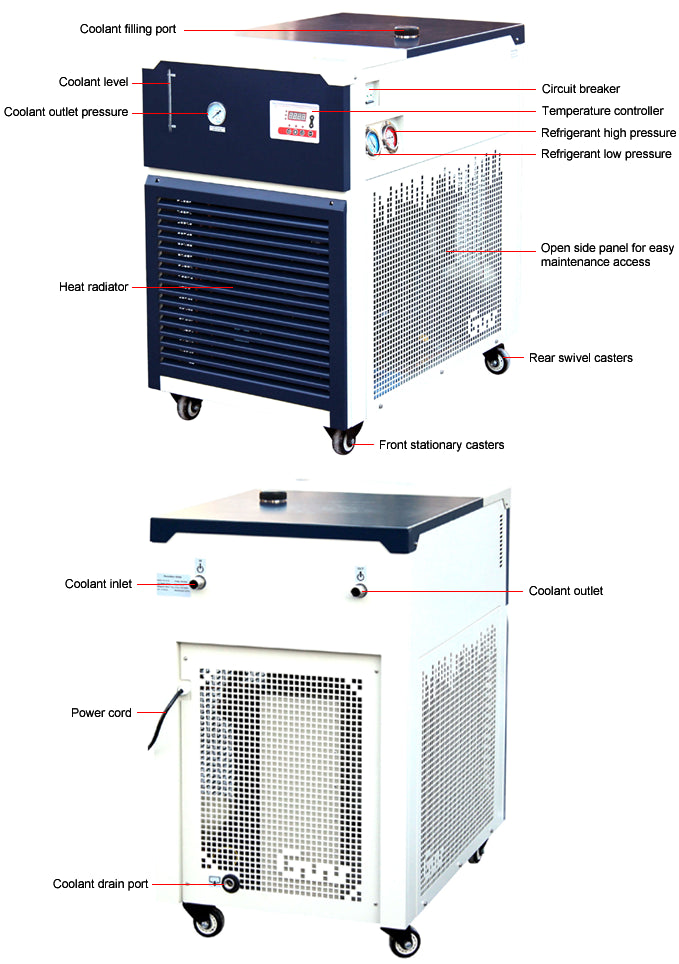

• Coolant Outlet Pressure: Displayed on built-in pressure gauge

---

Reservoir

• Capacity: 40 Liters (10.6 gallons)

• Material: Polished Type 304 Stainless Steel

• Reservoir Dimensions: 17.5" × 17.5" × 9.5"

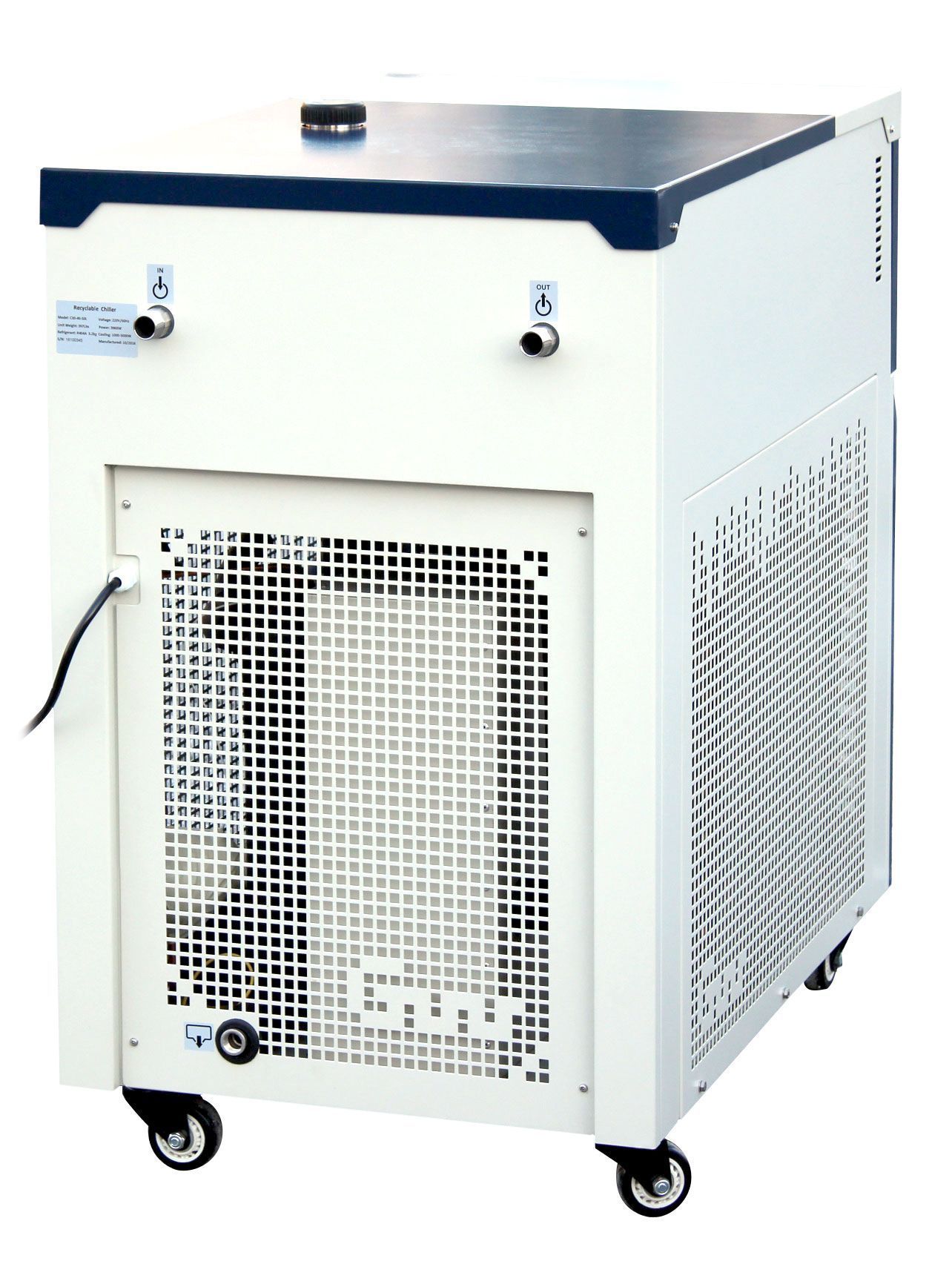

Connections

• Chilling Fluid Connection: 3/4" NPT

• Drain Port: 1/2" NPT

• Overflow Port: 3/8" hose barb

---

Radiator

Fan Motor

• Manufacturer: Boyoung

• Model: YWF4E-400

• Power: 220V 60Hz 1.3A (300W)

• Rotation Speed: 1550 RPM

• Air Flow Rate: 4240 m³/hour

Maintenance Recommendation:

• Clean radiator fins every three months using a fin comb

---

Recommended Coolant

For temperatures above 50°F / 10°C

• Distilled water

For temperatures between 50°F / 10°C and -22°F / -30°C

• 50% ethylene glycol + 50% distilled water

---

Environmental Operating Conditions

• Operating Temperature: -15°C to 25°C

• Maximum Humidity: <66% RH

• Indoor laboratory use only

---

Dimensions & Weight

• Unit Dimensions: 25" × 40" × 41"

• Shipping Dimensions: 30" × 46" × 51"

• Unit Weight: 365 lbs

• Shipping Weight: 480 lbs

---

Safety Features

• Compressor over-temperature protection

• Compressor delay start protection

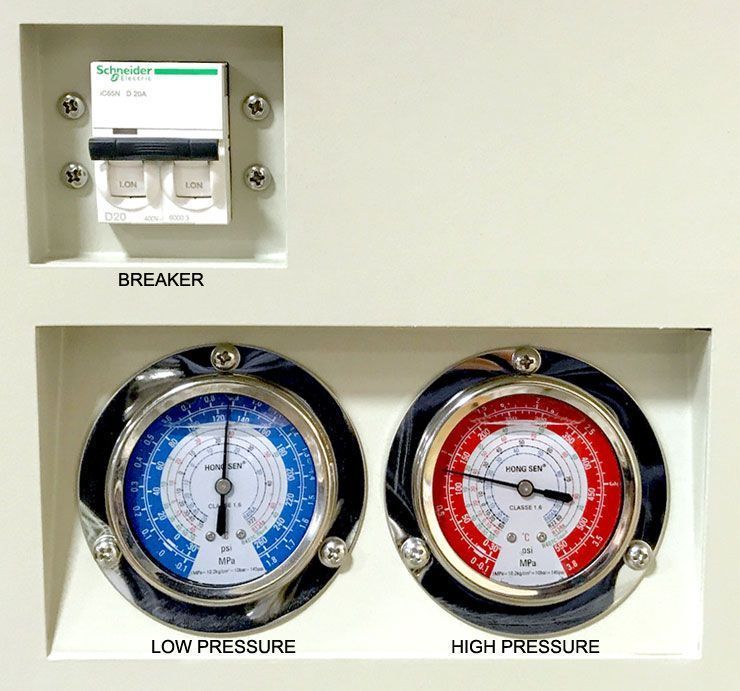

• Short circuit protection

• Ground fault protection

• Over-current protection

• Over-voltage protection

---

Recommended Equipment Pairing

Recommended for use with:

• Across International 50L SolventVap Rotary Evaporators

---

What's Included

• 1 × Across International C30-40 Recirculating Chiller

• 11 ft 3/8" Insulated Chilling Fluid Tubing

• 3 × 1/2" NPT to 3/8" Barb Connectors with On/Off Valve

• 2 × 3/4" NPT Male to 1/2" NPT Female Adapters

• 1 × PTFE Sealing Tape

• 1 × Cleaning Brush

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty

---

Compliance & Certifications

• UL 61010-1:2012

• CSA C22.2 #61010-1:2012

• ETL tested to UL & CSA standards
