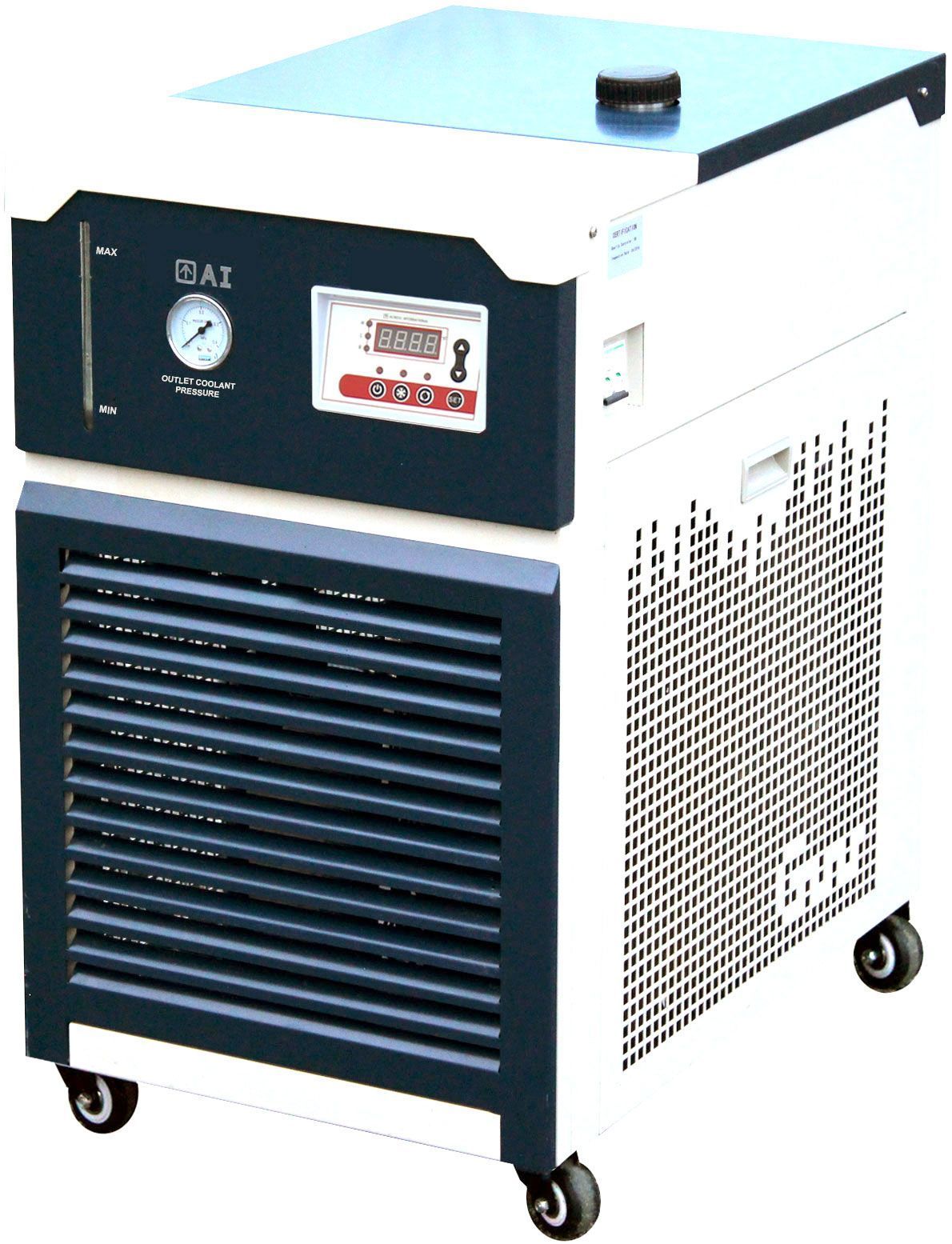

The Across International C30 Recirculating Chiller is a high-capacity laboratory cooling system designed for applications requiring precise temperature control and powerful cooling below ambient temperatures. This compressor-based closed-loop recirculating chiller is ideal for cooling equipment such as rotary evaporators, analytical instrumentation, ICP systems, plasma etching equipment, laser systems, vacuum systems, and jacketed reactors.

Featuring a microprocessor PID temperature controller and powerful recirculating pump, the C30 provides stable cooling performance down to -30°C (-22°F) while maintaining consistent coolant circulation. With a large 30-liter stainless steel reservoir and increased cooling capacity, this model is specifically designed for 20L rotary evaporators and large laboratory distillation systems.

This recirculating chiller also serves as an efficient tap water replacement, eliminating water waste while delivering stable and eco-friendly cooling for laboratory equipment.

Note: The ultimate temperature of -30°C (-22°F) is measured under no-load conditions.

---

Key Features

Deep Cooling Performance (-30°C)

• Cooling capability down to -30°C (-22°F)

• Ideal for applications requiring cooling well below ambient temperature

Precision Temperature Control

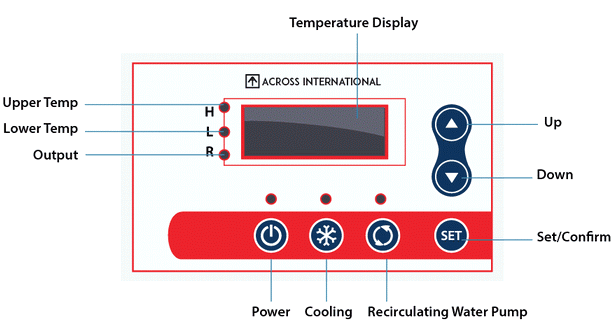

• Digital microprocessor PID temperature controller

• Provides stable and reliable temperature regulation

• Temperature accuracy of ±2°C

Closed Loop Cooling System

• Eliminates the need for tap water cooling

• Reduces laboratory water consumption

• Provides environmentally friendly cooling performance

High-Flow Recirculating Pump

• Pumping speed up to 20 L/min (5.3 gallons/min)

• Ensures efficient heat transfer for large laboratory systems

Built-In Fluid Filter

• Protects the recirculating pump

• Prevents blockage and contamination

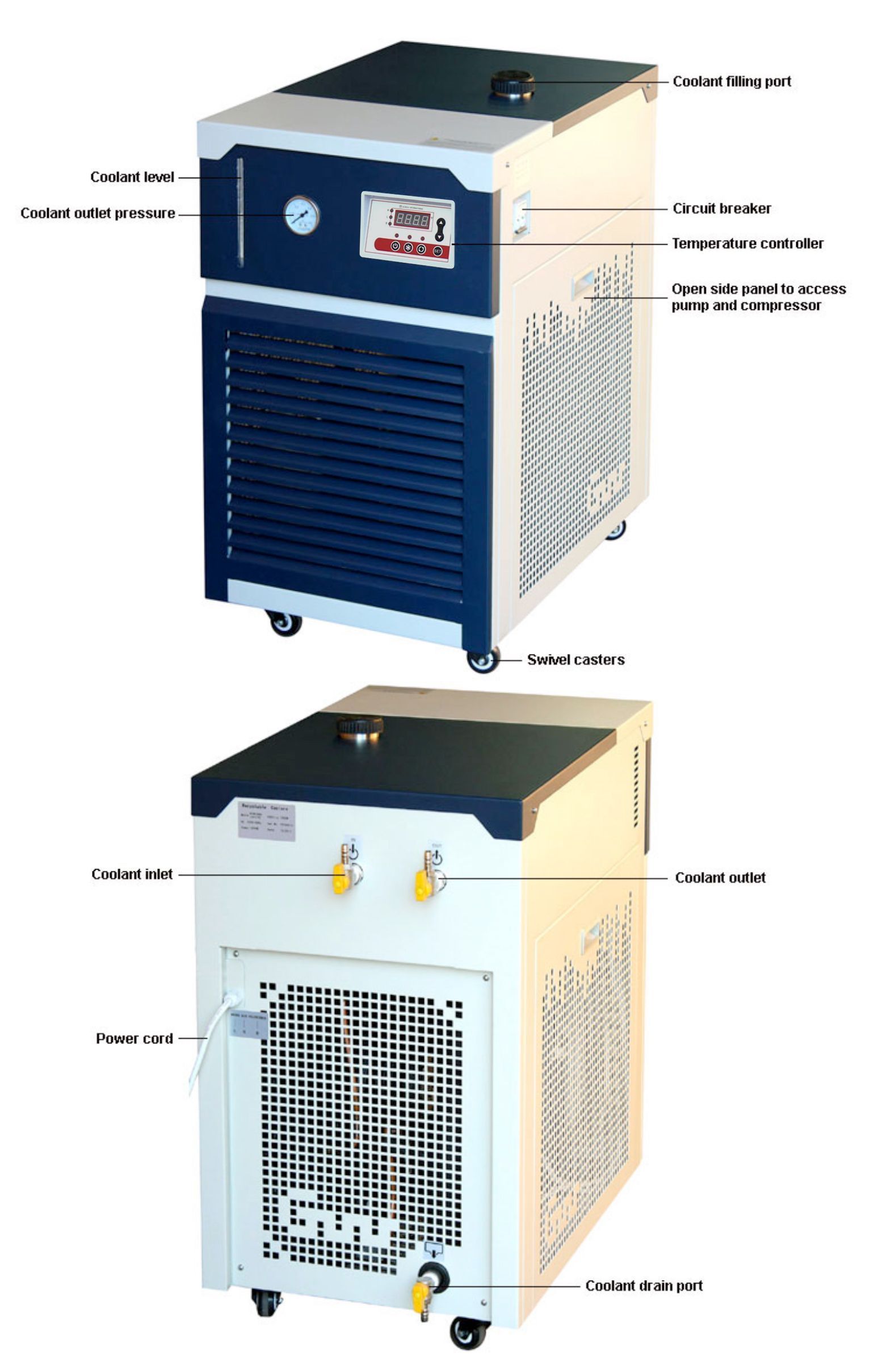

Heavy-Duty Laboratory Construction

• Durable all-steel housing

• 304 stainless steel coolant reservoir

• Built-in swivel casters for mobility

Eco-Friendly Refrigeration System

• Uses R410A refrigerant

• Efficient compressor-based cooling technology

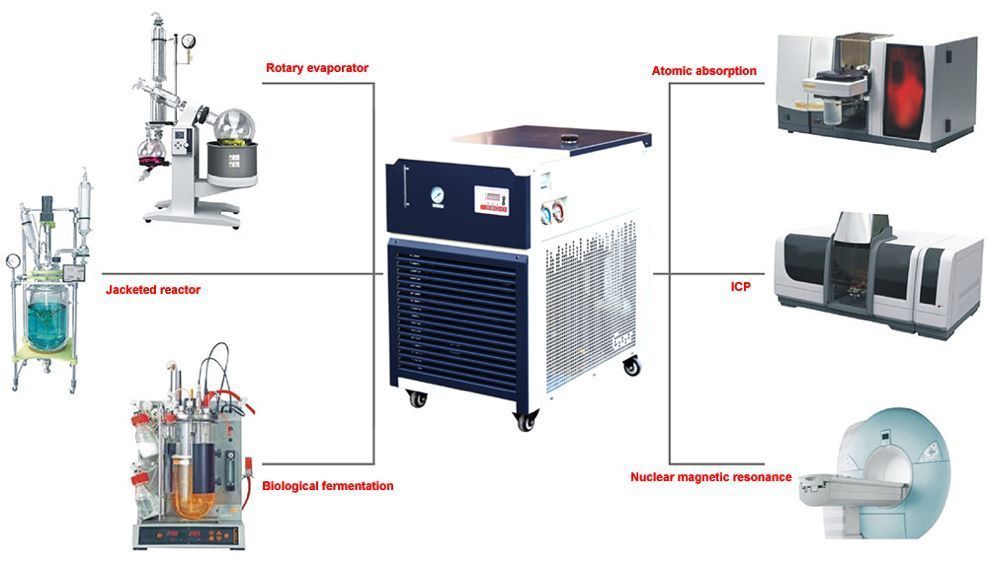

Ideal Applications

• Rotary evaporators

• Analytical instrumentation

• Laser etching systems

• ICP systems

• Vacuum systems

• Plasma etching

• Jacketed chemical reactors

---

Technical Specifications

Temperature Control

• Temperature Range: Ambient to -30°C (no load)

• Temperature Accuracy: ±2°C

• Controller Type: Digital Microprocessor PID

• Display Unit: Celsius (°C)

• Temperature Sensor: Pt100

Note: -30°C ultimate temperature is measured under empty load conditions.

---

Electrical Requirements

• Voltage: 220V

• Frequency: 60Hz

• Phase: Single Phase

• Current: 9A

• Power Consumption: 1,990 Watts

Note: This model is not compatible with 50Hz power.

---

Cooling Capacity

(Assuming working environment of 25°C / 77°F)

• 2800W at 0°C

• 1800W at -10°C

• 1000W at -20°C

• 500W at -30°C

---

Compressor

• Manufacturer: Panasonic

• Power: 208–230V 60Hz

• Number of Compressors: 1

• Refrigerant: R410A

---

Recirculating Pump

• Pump Type: Centrifugal

• Pump Output: 100 Watts

• Pumping Speed: 20 L/min (5.3 gallons/min)

• Maximum Head: 20 ft (6 meters)

• Maximum Pressure: 5.8 psi

• Coolant Outlet Pressure: Displayed on built-in pressure gauge

---

Reservoir

• Capacity: 30 Liters (8 gallons)

• Dimensions: 15" × 23" × 7"

• Material: Polished Type 304 Stainless Steel

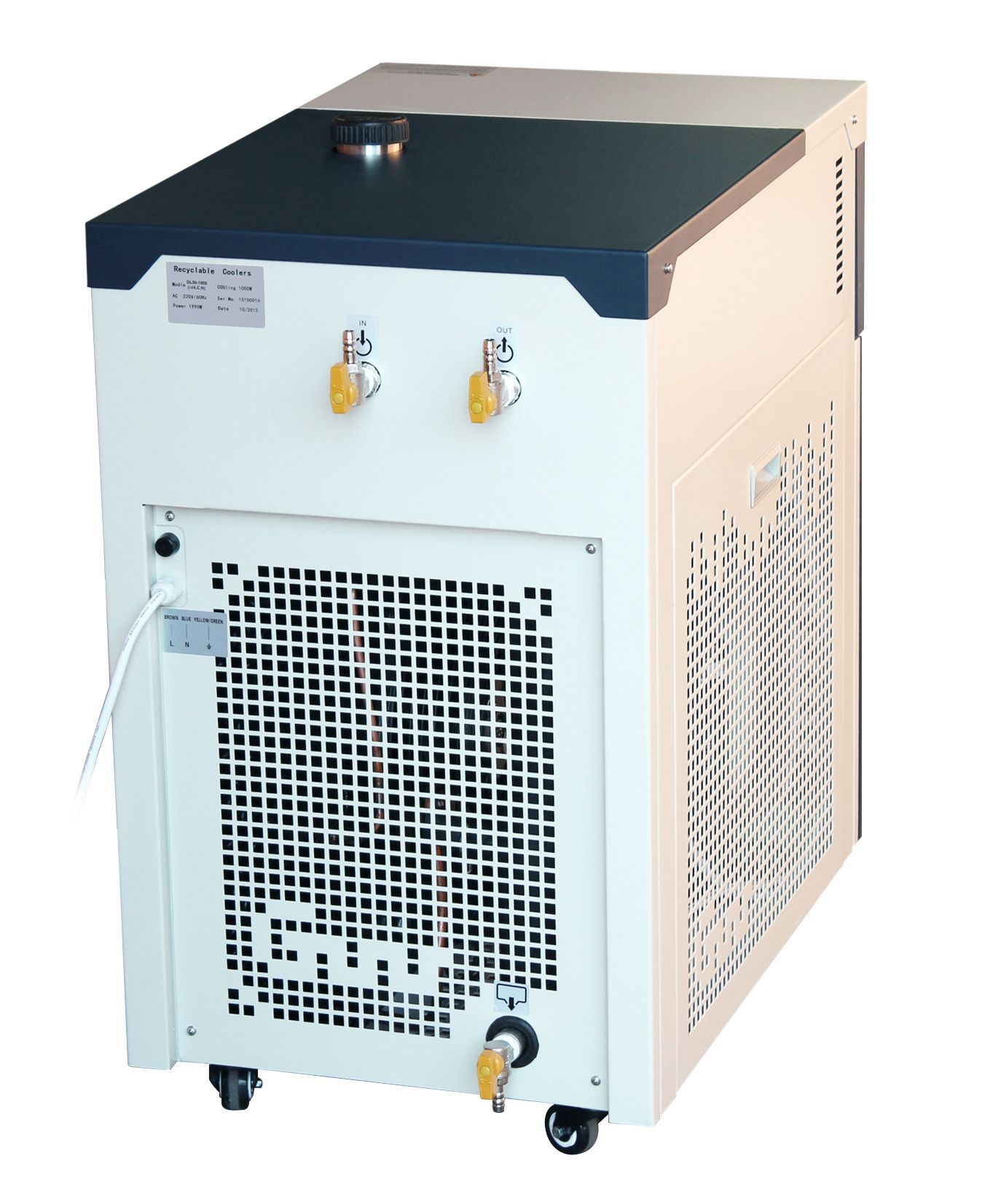

• Chilling Fluid Connections: 3/8" hose barb × 2

---

Recommended Coolant

For temperatures above 50°F / 10°C

• Distilled water

For temperatures between 50°F / 10°C and -22°F / -30°C

• 50% ethylene glycol + 50% distilled water

---

Environmental Operating Conditions

• Operating Temperature: -15°C to 25°C

• Maximum Humidity: <66% RH

• Indoor laboratory use only

---

Dimensions & Weight

• Unit Dimensions: 19.5" × 30" × 34"

• Shipping Dimensions: 25" × 38" × 45"

• Unit Weight: 220 lbs

• Shipping Weight: 280 lbs

---

Safety Features

• Compressor over-temperature protection

• Compressor delay start protection

• Short circuit protection

• Ground fault protection

• Over-current protection

---

Recommended Equipment Pairing

Recommended for use with:

• Across International 20L SolventVap Rotary Evaporators

---

What's Included

• 1 × Across International C30 Recirculating Chiller

• 11 ft 3/8" Insulated Chilling Fluid Tubing

• 3 × 3/8" Stainless Steel Fluid Connectors with On/Off Valve

• 1 × PTFE Sealing Tape

• 1 × Cleaning Brush

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty

---

Compliance & Certifications

• UL 61010-1:2012

• CSA C22.2 #61010-1:2012

• ETL tested to UL & CSA standards
