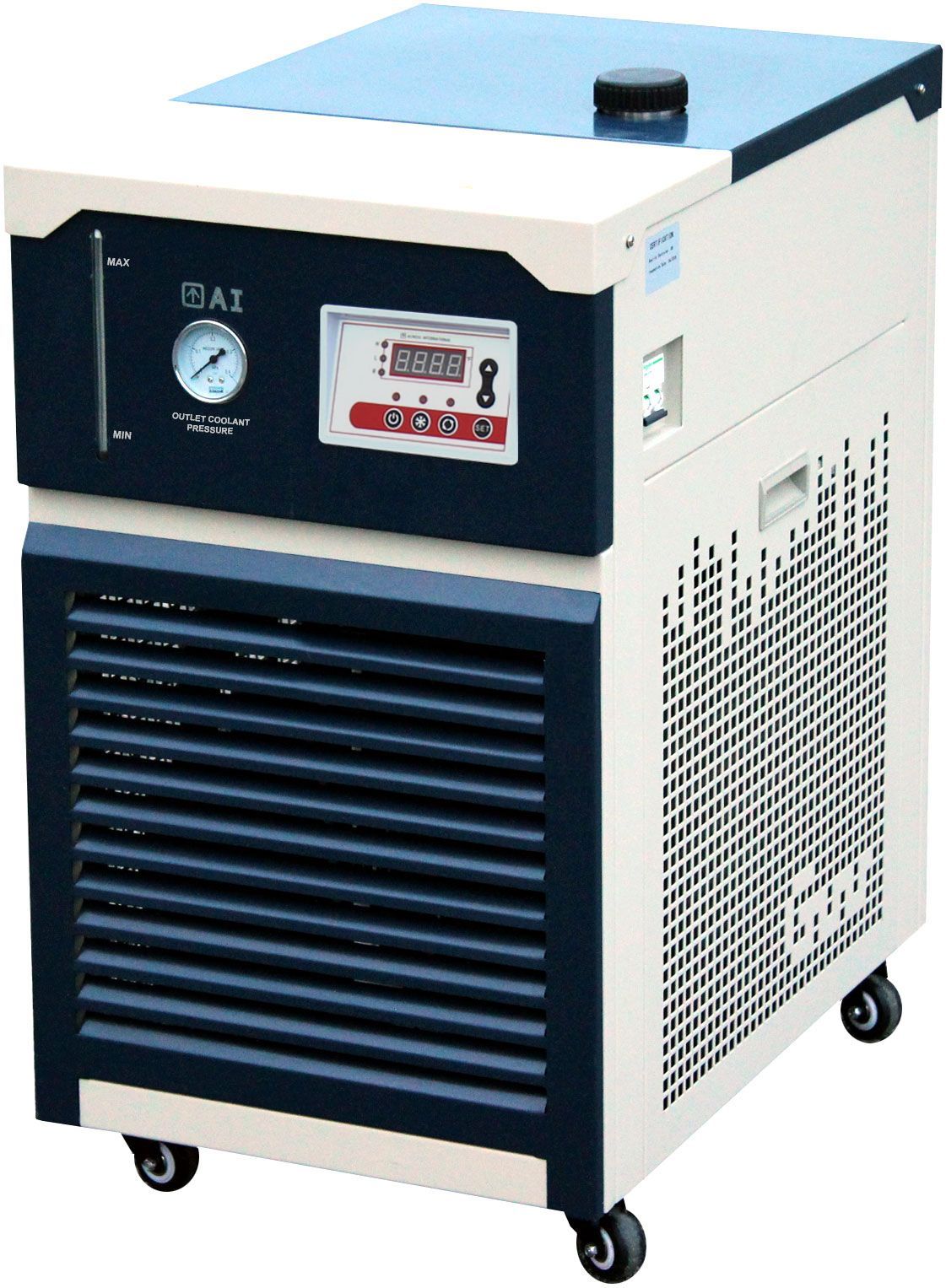

The Across International C30 Recirculating Chiller is a high-performance thermostatic laboratory chiller designed for applications requiring reliable cooling and precise temperature control below ambient temperatures. This closed-loop recirculating chiller is ideal for cooling laboratory equipment such as rotary evaporators, analytical instrumentation, ICP systems, laser etching equipment, vacuum systems, plasma etching systems, and jacketed reactors.

Powered by a compressor-based cooling system and advanced microprocessor PID temperature controller, the C30 provides dependable cooling performance down to -30°C (-22°F). A powerful centrifugal recirculating pump delivers up to 20 L/min flow, ensuring efficient heat transfer and stable system performance for demanding laboratory processes.

With an enlarged 17-liter stainless steel reservoir and increased cooling capacity, this model is specifically designed for 10L rotary evaporators and larger laboratory distillation systems.

Note: The ultimate temperature of -30°C (-22°F) is measured under no-load conditions.

---

Key Features

Deep Cooling Performance (-30°C)

• Cooling capability down to -30°C (-22°F)

• Ideal for applications requiring temperatures significantly below ambient

Precision Temperature Control

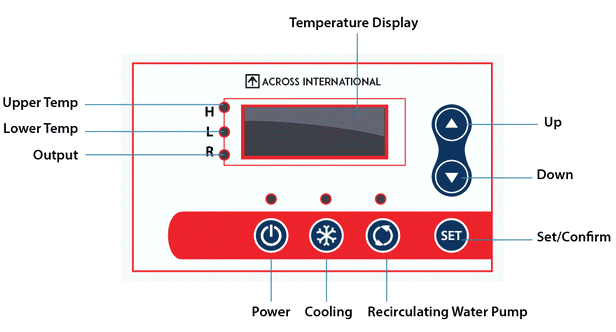

• Digital microprocessor PID temperature controller

• Provides stable temperature regulation

• Temperature accuracy of ±2°C

Closed Loop Cooling System

• Eliminates the need for tap water cooling

• Reduces laboratory water consumption

• Provides environmentally friendly cooling

High-Flow Recirculating Pump

• Pumping speed up to 20 L/min (5.3 gallons/min)

• Efficient coolant circulation for larger systems

Built-In Fluid Filter

• Protects the recirculating pump

• Prevents system blockage and contamination

Durable Industrial Construction

• Heavy-duty steel housing

• 304 stainless steel reservoir

• Built-in swivel casters for easy mobility

Eco-Friendly Refrigeration System

• Uses R410A refrigerant

• Efficient compressor-based cooling

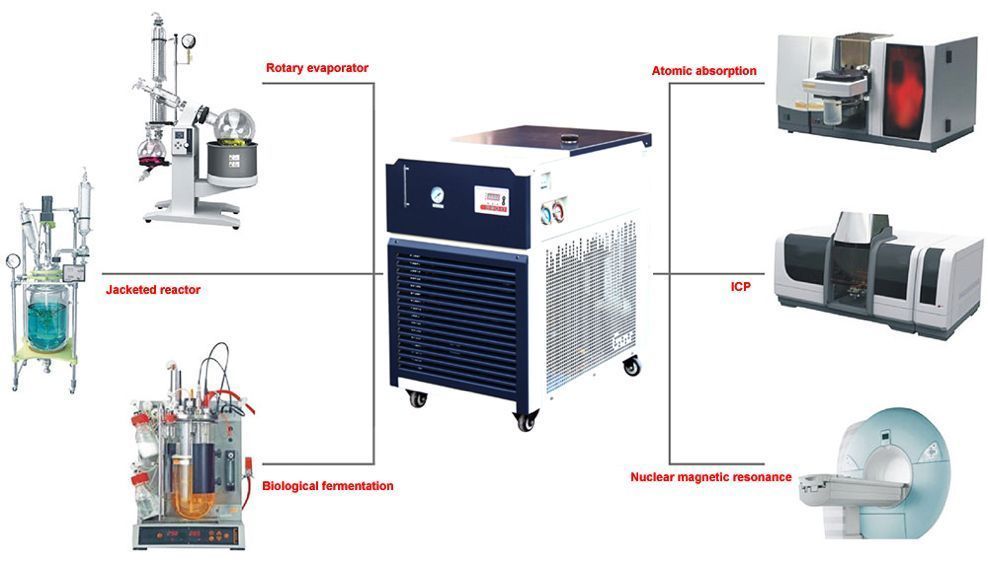

Ideal Applications

• Rotary evaporators

• Analytical instrumentation

• Laser etching equipment

• ICP systems

• Vacuum systems

• Plasma etching

• Jacketed chemical reactors

---

Technical Specifications

Temperature Control

• Temperature Range: Ambient to -30°C (no load)

• Temperature Accuracy: ±2°C

• Controller Type: Digital Microprocessor PID

• Display Unit: Celsius (°C)

• Temperature Sensor: Pt100

Note: -30°C ultimate temperature is measured under empty load conditions.

---

Electrical Requirements

• Voltage: 220V

• Frequency: 60Hz

• Phase: Single Phase

• Power Consumption: 1200 Watts

Note: This model is not compatible with 50Hz power.

---

Cooling Capacity

(Assuming working environment of 25°C / 77°F)

• 1750W at 0°C

• 1100W at -10°C

• 700W at -20°C

• 300W at -30°C

---

Compressor

• Manufacturer: Panasonic

• Power: 208–230V 60Hz

• Number of Compressors: 1

• Refrigerant: R410A

---

Recirculating Pump

• Pump Type: Centrifugal

• Pump Output: 100 Watts

• Pumping Speed: 20 L/min (5.3 gallons/min)

• Maximum Head: 20 ft (6 meters)

• Maximum Pressure: 5.8 psi

• Coolant Outlet Pressure: Displayed on built-in pressure gauge

---

Reservoir

• Capacity: 17 Liters (4.5 gallons)

• Material: Polished Type 304 Stainless Steel

• Chilling Fluid Connections: 3/8" hose barb × 2

---

Recommended Coolant

For temperatures above 50°F / 10°C

• Distilled water

For temperatures between 50°F / 10°C and -22°F / -30°C

• 50% ethylene glycol + 50% distilled water

---

Environmental Operating Conditions

• Operating Temperature: -15°C to 25°C

• Maximum Humidity: <66% RH

• Indoor laboratory use only

---

Dimensions & Weight

• Unit Dimensions: 18" × 26.5" × 30.5"

• Shipping Dimensions: 23" × 32" × 40"

• Unit Weight: 175 lbs

• Shipping Weight: 235 lbs

---

Safety Features

• Compressor over-temperature protection

• Compressor delay start protection

• Short circuit protection

• Ground fault protection

• Over-current protection

---

Recommended Equipment Pairing

Recommended for use with:

• Across International 10L SolventVap Rotary Evaporators

---

What's Included

• 1 × Across International C30 Recirculating Chiller

• 11 ft 3/8" Insulated Chilling Fluid Tubing

• 3 × 3/8" Stainless Steel Fluid Connectors with On/Off Valve

• 1 × PTFE Sealing Tape

• 1 × Cleaning Brush

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty

---

Compliance & Certifications

• UL 61010-1:2012

• CSA C22.2 #61010-1:2012

• ETL tested to UL & CSA standards
