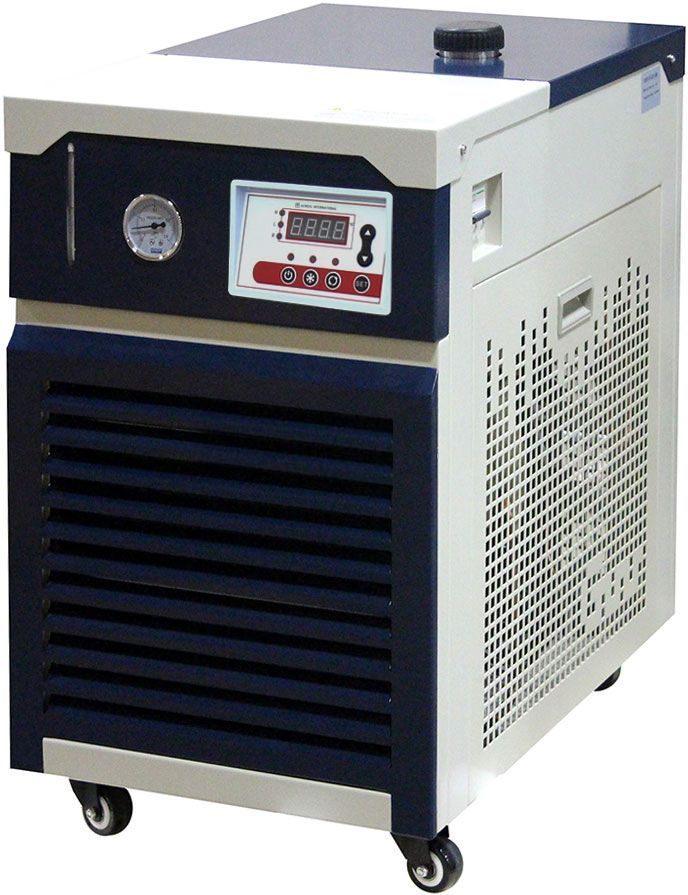

The Across International C30 Recirculating Chiller is a high-performance closed-loop laboratory cooling system designed for applications requiring precise temperature control and reliable cooling below ambient temperatures. This compressor-based recirculating chiller provides dependable cooling for laboratory equipment such as rotary evaporators, analytical instruments, laser etching systems, ICP equipment, vacuum systems, plasma etching tools, and jacketed reactors.

Featuring a microprocessor PID temperature controller and powerful recirculating pump, the C30 delivers stable temperature control and consistent coolant flow for demanding laboratory processes. With a cooling capability down to -30°C (-22°F), this chiller is ideal for laboratories requiring deeper cooling capacity than standard recirculating chillers.

The system also serves as an efficient tap water replacement, eliminating water waste while delivering consistent and environmentally friendly cooling performance.

Note: The ultimate temperature of -30°C (-22°F) is measured under no-load conditions.

---

Key Features

Deep Cooling Performance (-30°C)

• Cooling capability down to -30°C (-22°F)

• Ideal for applications requiring cooling well below ambient temperature

Precision Temperature Control

• Digital microprocessor PID temperature controller

• Provides stable and accurate temperature regulation

• Temperature accuracy of ±2°C

Closed Loop Cooling System

• Eliminates tap water usage

• Reduces water consumption and operating costs

• Provides stable and environmentally friendly cooling

Powerful Recirculating Pump

• Pumping speed up to 20 L/min (5.3 gallons/min)

• Strong circulation ensures efficient heat transfer

Built-In Chilling Fluid Filter

• Protects recirculating pump

• Prevents blockage and system contamination

Durable Laboratory Construction

• Heavy-duty all-steel housing

• Stainless steel reservoir for corrosion resistance

• Built-in casters for easy mobility

Eco-Friendly Refrigeration System

• Uses R410A refrigerant

• Efficient compressor-based cooling system

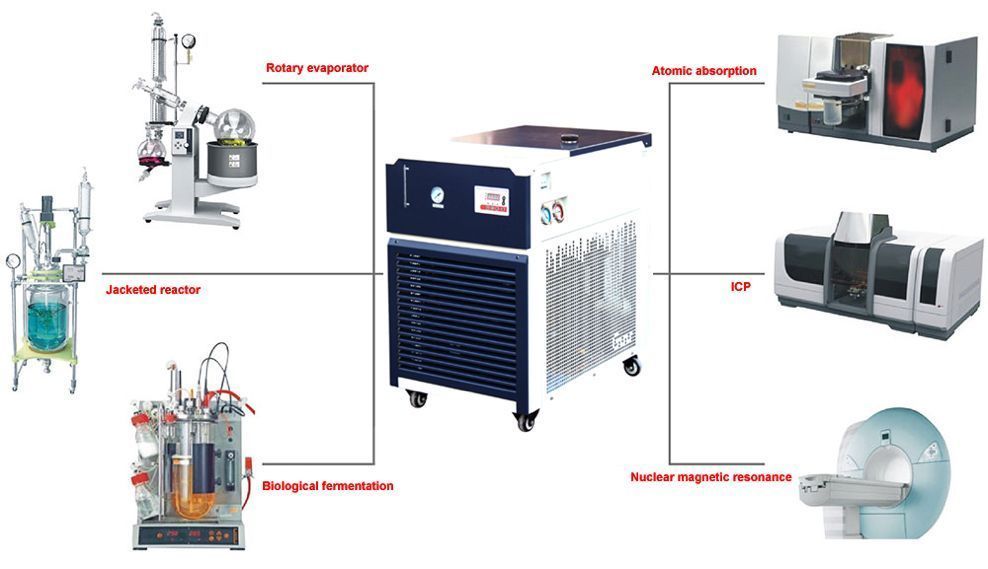

Ideal Applications

• Rotary evaporators

• Analytical instrumentation

• Laser etching equipment

• ICP systems

• Vacuum systems

• Plasma etching equipment

• Jacketed chemical reactors

---

Technical Specifications

Temperature Control

• Temperature Range: Ambient to -30°C (no load)

• Temperature Accuracy: ±2°C

• Controller Type: Digital Microprocessor PID

• Display Unit: Celsius (°C)

• Temperature Sensor: Pt100

Note: -30°C ultimate temperature is measured under empty load conditions.

---

Electrical Requirements

• Voltage: 220V

• Frequency: 60Hz

• Phase: Single Phase

• Power Consumption: 1,100 Watts

Note: This model is not compatible with 50Hz power.

---

Cooling Capacity

(Assuming working environment of 25°C / 77°F)

• 1250W at 0°C

• 800W at -10°C

• 300W at -20°C

• 150W at -30°C

---

Compressor

• Manufacturer: Panasonic

• Power: 208–230V 60Hz

• Number of Compressors: 1

• Refrigerant: R410A

---

Recirculating Pump

• Pump Type: Centrifugal

• Pump Output: 100 Watts

• Pumping Speed: 20 L/min (5.3 gallons/min)

• Maximum Head: 20 ft (6 meters)

• Maximum Pressure: 5.8 psi

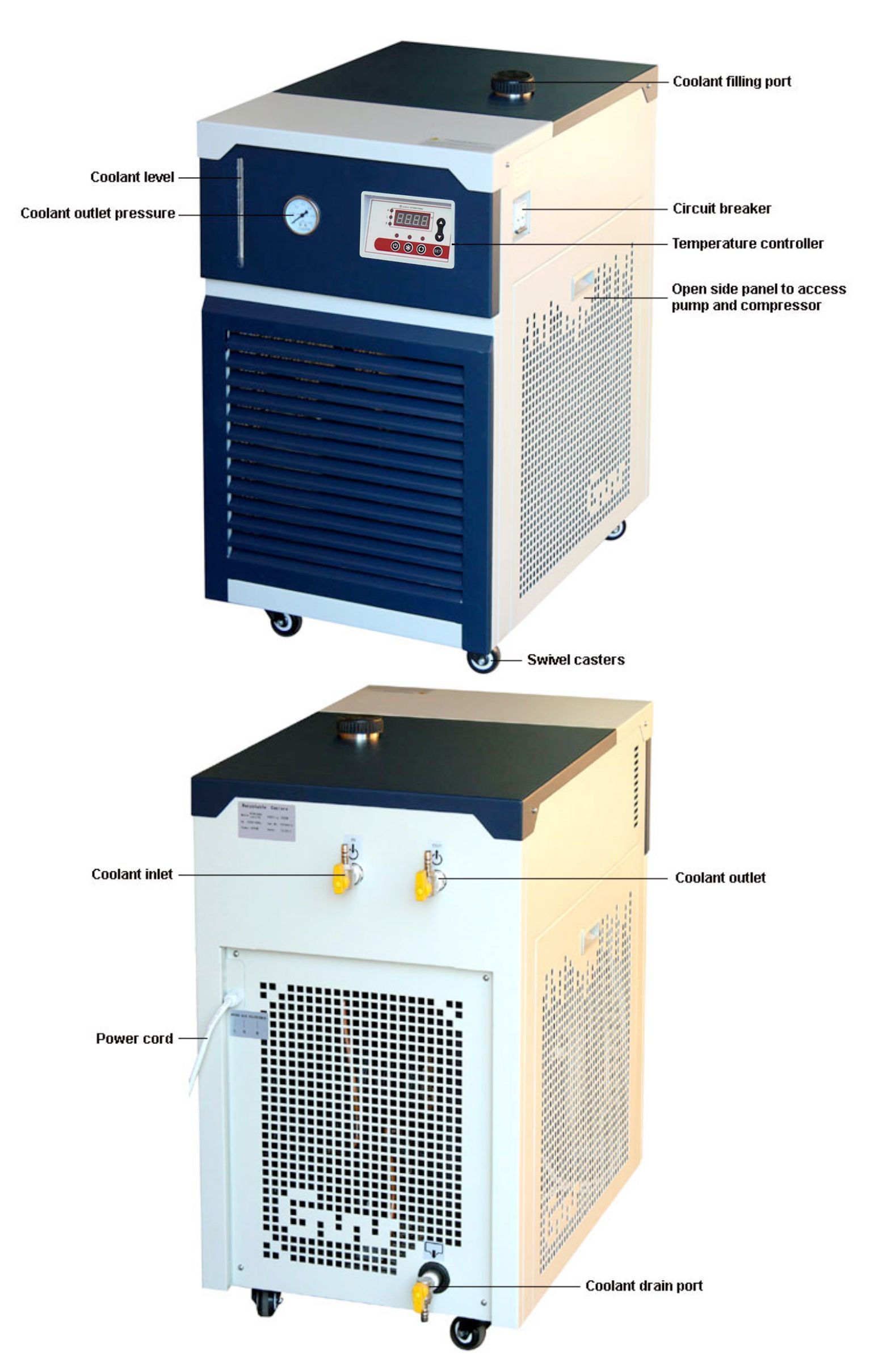

• Coolant Outlet Pressure: Displayed on built-in pressure gauge

---

Reservoir

• Capacity: 10 Liters (2.6 gallons)

• Material: Polished Type 304 Stainless Steel

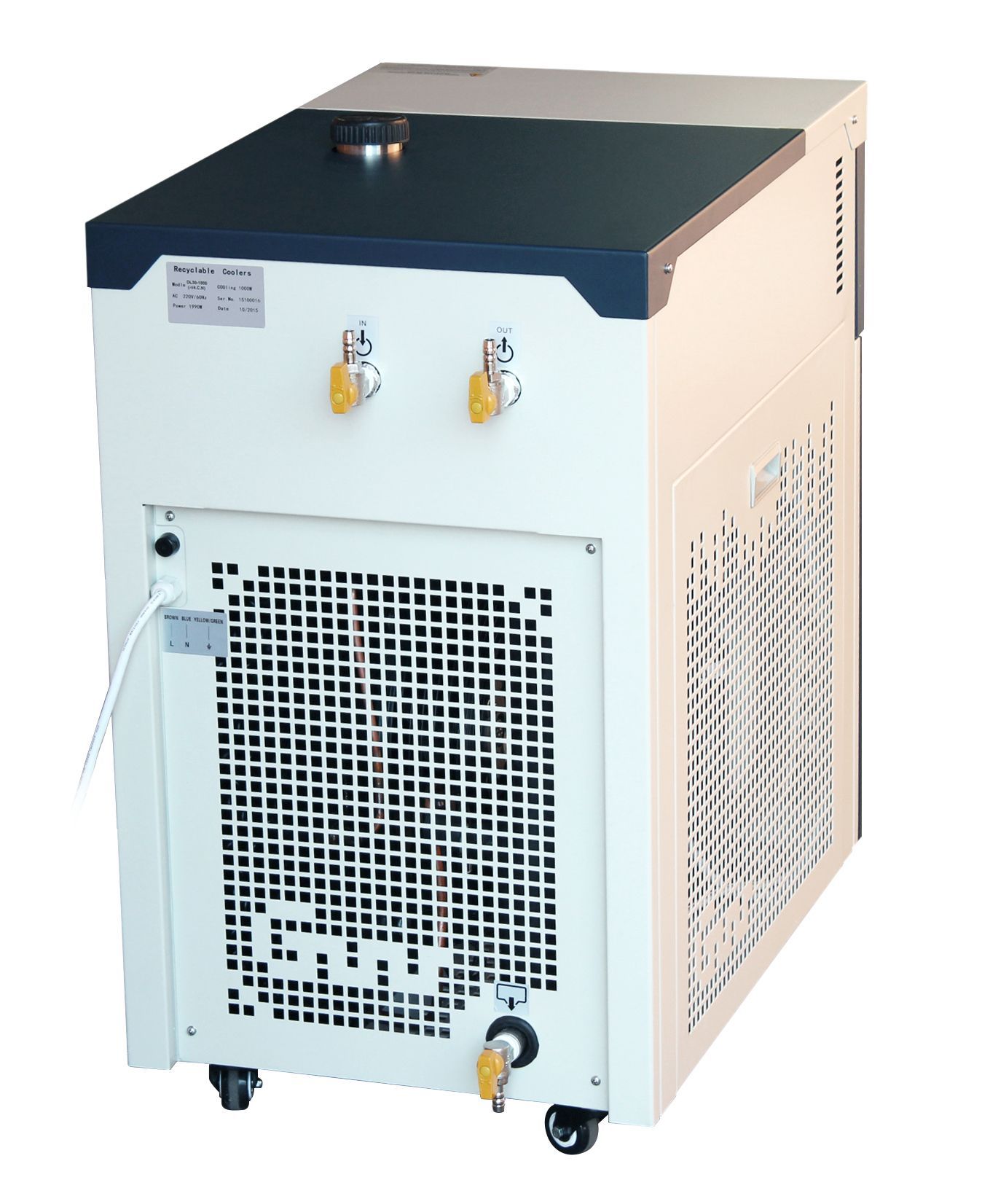

• Chilling Fluid Connections: 3/8" hose barb × 2

---

Recommended Coolant

For temperatures above 50°F / 10°C

• Distilled water

For temperatures between 50°F / 10°C and -22°F / -30°C

• 50% ethylene glycol + 50% distilled water

---

Environmental Operating Conditions

• Operating Temperature: -15°C to 25°C

• Maximum Humidity: <66% RH

• Indoor laboratory use only

---

Dimensions & Weight

• Unit Dimensions: 17" × 26.5" × 27"

• Shipping Dimensions: 22" × 32" × 36"

• Unit Weight: 155 lbs

• Shipping Weight: 210 lbs

---

Safety Features

• Compressor over-temperature protection

• Compressor delay start protection

• Short circuit protection

• Ground fault protection

• Over-current protection

---

Recommended Equipment Pairing

Recommended for use with:

• Across International 5L SolventVap Rotary Evaporators

---

What's Included

• 1 × Across International C30 Recirculating Chiller

• 11 ft 3/8" Insulated Chilling Fluid Tubing

• 3 × 3/8" Stainless Steel Fluid Connectors with On/Off Valves

• 1 × PTFE Sealing Tape

• 1 × Cleaning Brush

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty

---

Compliance & Certifications

• UL 61010-1:2012

• CSA C22.2 #61010-1:2012

• ETL tested to UL & CSA standards
