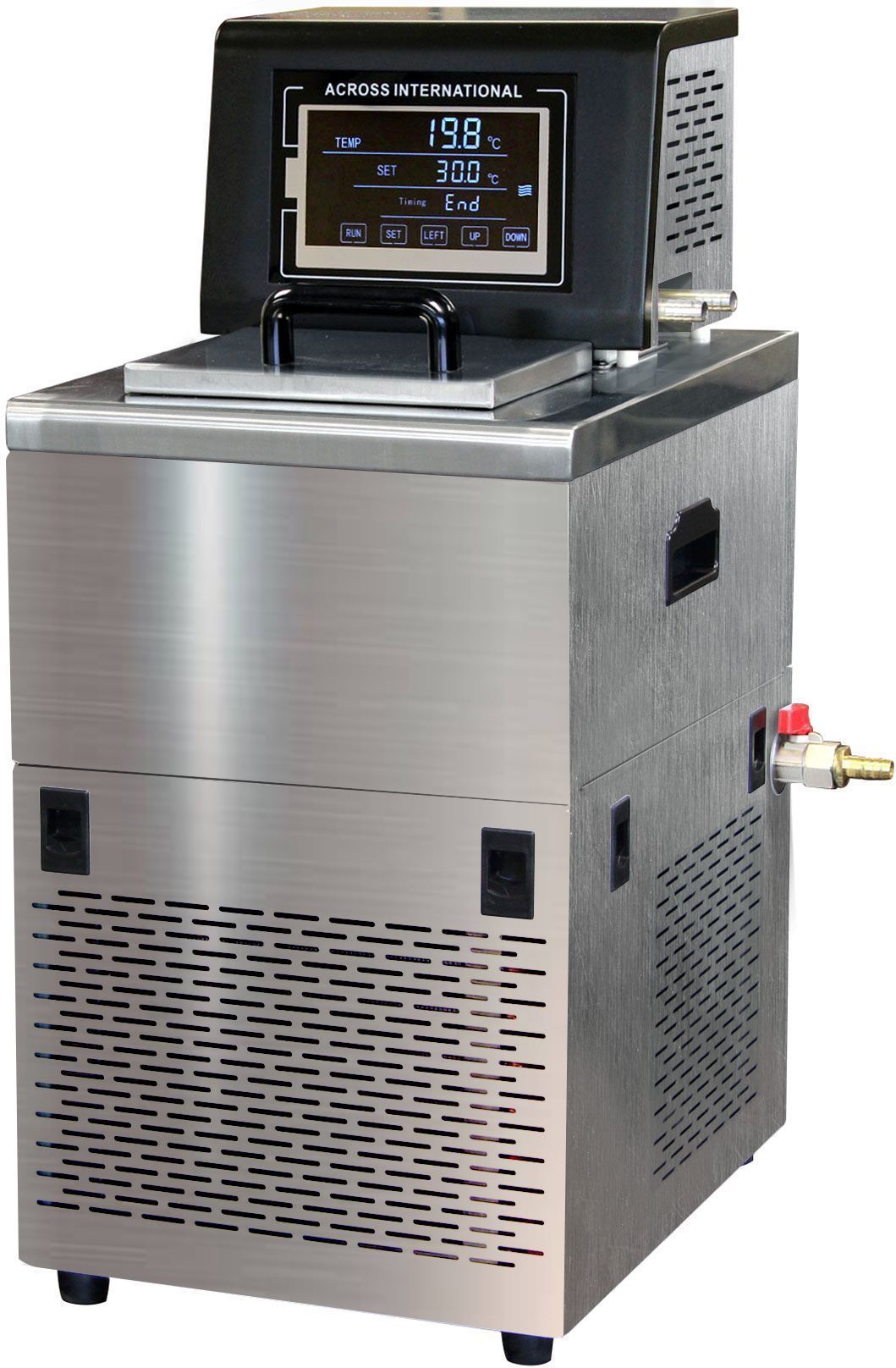

The Across International C20 Recirculating Chiller is a high-performance thermostatic laboratory chiller designed for applications requiring precise temperature control and reliable cooling performance. This closed-loop recirculating chiller is ideal for cooling laboratory equipment such as rotary evaporators, analytical instrumentation, vacuum systems, laser etching systems, ICP instruments, plasma etching equipment, and jacketed reactors.

Powered by a compressor-based cooling system and microprocessor PID temperature controller, the C20 provides dependable temperature regulation from -20°C to 99°C. The integrated 20 L/min recirculating pump ensures consistent fluid flow, allowing efficient heat transfer and stable operating conditions for laboratory processes.

Equipped with a 2nd generation 7-inch TFT touchscreen controller, the system provides intuitive operation and precise temperature adjustments, making it an ideal cooling solution for laboratories requiring accurate temperature control below ambient levels.

Note: The ultimate temperature of -20°C is measured under no-load conditions.

---

Key Features

Wide Temperature Range (-20°C to 99°C)

• Supports both cooling and heating applications

• Ideal for systems requiring precise thermal control

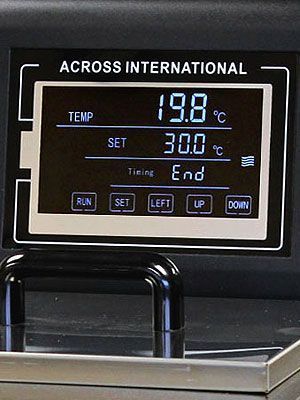

Advanced Touchscreen Control

• 2nd Generation 7" TFT touchscreen controller

• Microprocessor PID temperature control

• Temperature adjustments in 0.1°C increments

Closed Loop Cooling System

• Eliminates the need for tap water cooling

• Reduces water consumption and operating costs

• Provides stable and environmentally friendly cooling

Powerful Recirculating Pump

• Adjustable pumping speed up to 20 liters per minute

• Strong circulation ensures efficient heat transfer

Durable Laboratory Construction

• All stainless steel housing and reservoir

• Heavy-duty steel construction for long-term durability

Eco-Friendly Refrigeration System

• Uses R404A refrigerant

• Efficient compressor-based cooling

Ideal Applications

• Rotary evaporators

• Short path distillation systems

• Analytical instrumentation

• Vacuum systems

• Laser etching equipment

• ICP and plasma etching systems

• Jacketed chemical reactors

---

Technical Specifications

Temperature Control

• Temperature Range: -20°C to +99°C (no load)

• Temperature Accuracy: ±2°C

• Temperature Step Resolution: 0.1°C

• Controller Type: Digital Microprocessor PID

• Display: 7" TFT Touchscreen

• Display Units: Celsius (°C)

Note: -20°C ultimate temperature is measured under empty load conditions.

---

Electrical Requirements

• 110V 60Hz Single Phase – 1,500 Watts

• 220V 50/60Hz Single Phase – 2,500 Watts

---

Compressor

• Manufacturer: SECOP (formerly Danfoss), Germany

• Refrigerant: R404A (190g)

• Number of Compressors: 1

---

Cooling Capacity

• 420W at 20°C

• 410W at 10°C

• 390W at 0°C

• 350W at -10°C

• 300W at -20°C

---

Heating Capacity

• 2,000 Watts

---

Recirculating Pump

• Pumping Speed: Up to 20 L/min (adjustable)

• Maximum Head: 16 ft (5 meters)

• Maximum Pressure: 6.5 psi

---

Reservoir

• Capacity: 7.3 Liters (1.9 gallons)

• Dimensions: 8" × 10" × 5.5"

• Material: Polished Type 304 Stainless Steel

• Chilling Fluid Connection: 3/8" hose barb × 2

• Drain Port: 3/8" hose barb with on/off valve

---

Recommended Coolant

For temperatures above 50°F / 10°C

• Distilled water

For temperatures between 50°F / 10°C and -4°F / -20°C

• 50% ethylene glycol + 50% distilled water

Do NOT use Ai Chill-50 heat transfer fluid with this unit.

---

Environmental Operating Conditions

• Operating Temperature: -15°C to 25°C

• Maximum Humidity: <66% RH

• Indoor laboratory use only

---

Dimensions & Weight

• Unit Dimensions: 12" × 15.5" × 26"

• Shipping Dimensions: 15" × 20" × 30"

• Unit Weight: 68 lbs

• Shipping Weight: 100 lbs

---

Safety Features

• Compressor over-temperature protection

• Compressor surge delay protection

• Over-current protection

• Short circuit and ground protection

• Upper and lower temperature alarms

• Compressor delayed start protection

---

Recommended Equipment Pairing

This chiller is recommended for use with:

• Across International 2L SolventVap Rotary Evaporators

• Across International 2L, 5L, or 10L Short Path Distillation Systems

---

What's Included

• 1 × Across International C20 Recirculating Chiller

• 2 × 5 ft 3/8" Insulated Chilling Fluid Tubing

• 1 × 1/2" NPT to 3/8" Hose Barb Drain Port Adapter

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty

---

Compliance & Certifications

• UL 61010-1:2012

• CSA C22.2 #61010-1:2012

• ETL tested to UL & CSA standards
