Description
High-Throughput Smart Evaporator for Bump-Free Sample Concentration

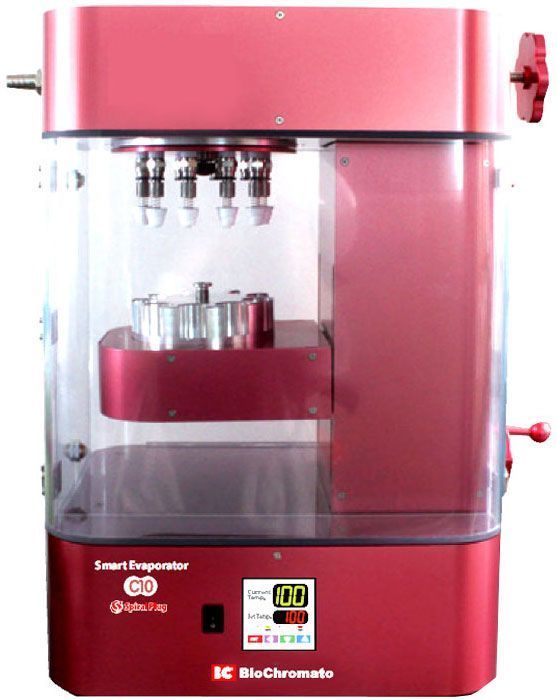

The BioChromato C10 Smart Evaporator is a high-capacity bump-free solvent evaporation system designed to concentrate samples directly inside vials with maximum efficiency and minimal sample loss. Using vacuum-assisted vortex evaporation technology and spiral plug design, the C10 allows solvents to evaporate smoothly without bumping, splashing, or sample contamination.
Unlike traditional evaporation systems, the Smart Evaporator generates a controlled vortex inside the vial, which allows solvents to evaporate evenly and safely. The C10 model supports up to 10 samples simultaneously, making it ideal for laboratories requiring high-throughput sample preparation.
The integrated heating and inert gas purge functions accelerate solvent evaporation and improve laboratory workflow efficiency. This system is capable of evaporating difficult solvents such as DMSO, DMF, and water without bumping.
Manufactured in Japan by BioChromato, the C10 Smart Evaporator is widely used in pharmaceutical research, analytical chemistry laboratories, environmental analysis, material science, and biochemistry.
Key Features of the BioChromato C10 Smart Evaporator
Bump-Free Evaporation Technology
Patented spiral plug vortex evaporation system prevents solvent bumping while protecting valuable samples.
Process Up to 10 Samples Simultaneously
The 10-channel heating block allows laboratories to concentrate multiple samples at the same time, improving productivity.
Evaporate High-Boiling Solvents
Capable of evaporating difficult solvents including:
-
DMSO
-
DMF
-
Water
Direct Evaporation from Analytical Vials
Allows solvent removal directly from:
-
HPLC vials
-
LC/MS vials
-
GC vials
This eliminates sample transfer and reduces contamination risk.
Heating + Inert Gas Purge
Integrated heating and inert gas functions accelerate evaporation and allow hands-free solvent removal.
In-Vial Concentration
Samples can be concentrated directly inside the vial, preventing sample loss caused by transfers between containers.
Made in Japan
High-quality manufacturing from BioChromato Japan ensures reliability and consistent laboratory performance.
Typical Laboratory Applications
The BioChromato C10 Smart Evaporator is commonly used for:
-
Solvent removal after HPLC, LC/MS, or GC/MS analysis
-
Sample concentration after fractionation and purification
-
Solvent removal after NMR measurement
-
Concentration following solid phase extraction
-
Concentration of natural product extracts
-
Preparation of radioisotope-labeled compounds
-
Surfactant solution concentration
-
Multi-sample preparation for drug discovery and pigment analysis
Ideal Research Fields
This system is widely used in laboratories focused on:
-
Organic chemistry
-
Pharmaceutical research
-
Polymer chemistry
-
Environmental analysis
-
Biochemistry
-
Material science
Technical Specifications
Model
BioChromato C10 Smart Evaporator
Heating System
Heating block capacity:
10 vial holders

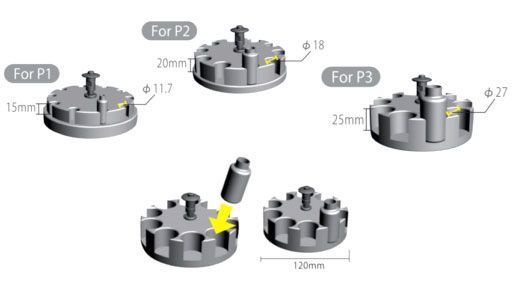

Compatible vial sizes:
-
φ11.7 mm – 1.5 mL vials (P1)
-
φ18 mm – 6 mL vials (P2)
-
φ27 mm – 20 mL vials (P3)
Heating temperature range:
Room temperature to 100 °C
Compatible Vials
-
P1: 1.5 mL vial (φ11.7 mm)
-
P2: 6 mL vial (φ18 mm)
-
P3: 20 mL vial (φ27 mm)
Operating Environment
Operating temperature:
10 °C – 40 °C
Humidity:
20% – 80%
Dimensions
13.8 × 11.8 × 21 in (W × D × H)
(excluding protruding parts)
Weight
44 lbs
Included Components
-
BioChromato C10 Bump-Free 10-Channel Smart Evaporator (110V) – 1
-
Hose Nipples – 2
-
Heating Block – 1
-
Plugs A – 2
-
Spiral Plugs – 10
-
Plugs B – 10
-
Vacuum Hose – 1
-
Handle C – 1
-
Splice for Vacuum Pump – 1
-
Power Cord – 1
-
Instruction Manual – 1
Advantages of Smart Evaporator Technology
Compared with traditional evaporation methods, the Smart Evaporator provides:
-
Faster solvent evaporation
-
Reduced sample loss
-
No solvent bumping
-
Direct in-vial concentration
-
Efficient multi-sample processing
