Description

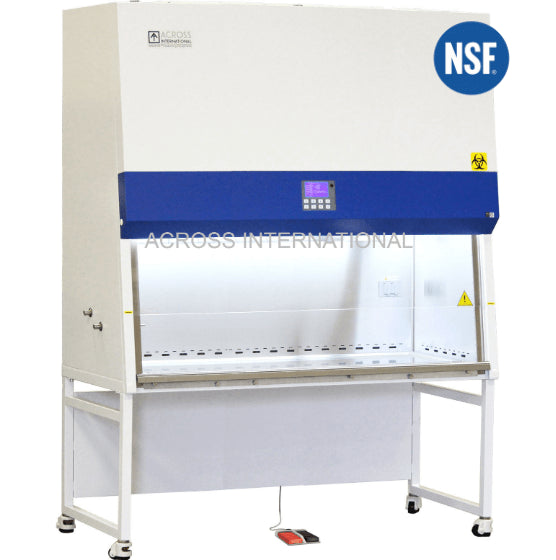

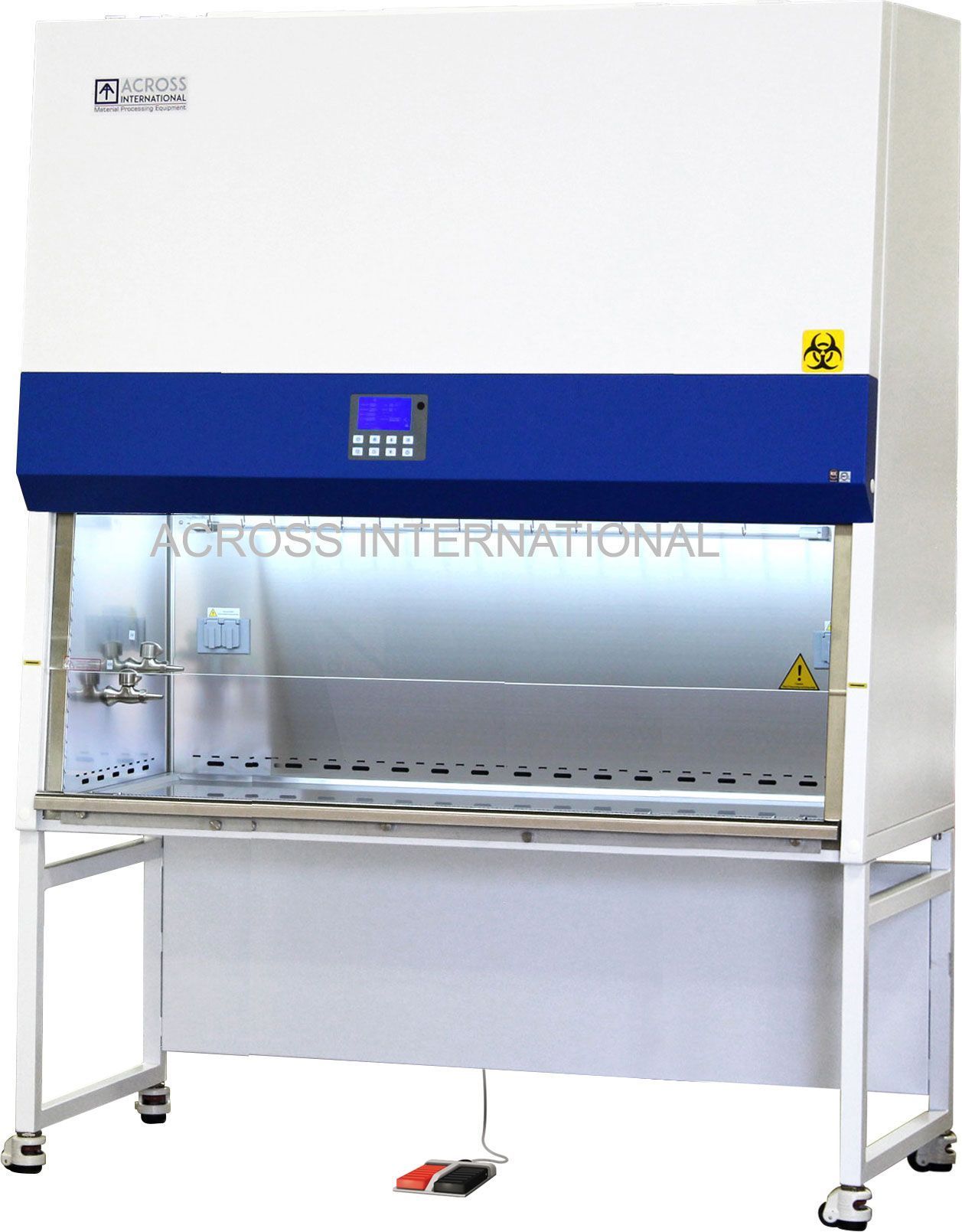

NSF Certified 6 Ft Biological Safety Cabinet for Laboratory Containment & Pathogen Handling
The Ai BC-6F 6 Ft Class II Type A2 Biosafety Cabinet is a NSF/ANSI 49 certified biological safety cabinet designed to safely handle biological materials while protecting laboratory personnel, research samples, and the surrounding environment.
A biosafety cabinet (BSC)—also referred to as a biological safety cabinet or microbiological safety cabinet—is an enclosed, ventilated laboratory workstation used when working with materials contaminated with or potentially contaminated by pathogens requiring a defined biosafety level.
The primary purpose of a biosafety cabinet is to prevent exposure to infectious agents while maintaining sterile conditions for laboratory procedures. The Ai Class II Type A2 cabinet uses advanced HEPA filtration and controlled airflow to remove harmful bacteria, viruses, and particulates before air exits the cabinet.
Unlike laminar flow clean benches that blow unfiltered air toward the user, this Class II biosafety cabinet filters all exhaust air through HEPA filters, making it ideal for microbiology research, pharmaceutical laboratories, virology testing, vaccine development, and COVID-19 specimen handling.

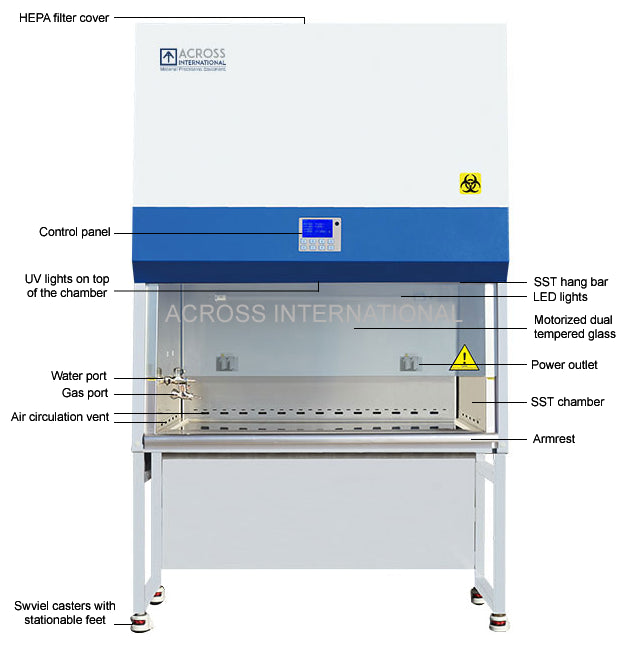

Key Features of the Ai Class II Type A2 Biosafety Cabinet
NSF/ANSI 49 Certified
Meets NSF/ANSI Standard 49 biosafety requirements for laboratory containment equipment.
Designed for Pathogen & COVID-19 Specimen Handling
Provides a safe environment for laboratories working with biological samples, viral cultures, and infectious agents.
Dual HEPA Filtration System
Two high-efficiency HEPA filters with 99.999% efficiency at 0.3 μm capture airborne contaminants and maintain sterile airflow.
Motorized Front Glass Viewing Window
Tempered safety glass panel with motorized adjustment and optional foot switch control for ergonomic operation.
UV Sterilization System
Integrated 30W germicidal UV lamp (253.7 nm) disinfects the chamber before and after laboratory use.
Advanced LCD Control Interface
Large LCD display with soft-touch controls and remote control operation for monitoring airflow and filter life.
Automatic Airflow Monitoring
Automatic airflow speed control with alarms for abnormal airflow, filter replacement, and unsafe window height.

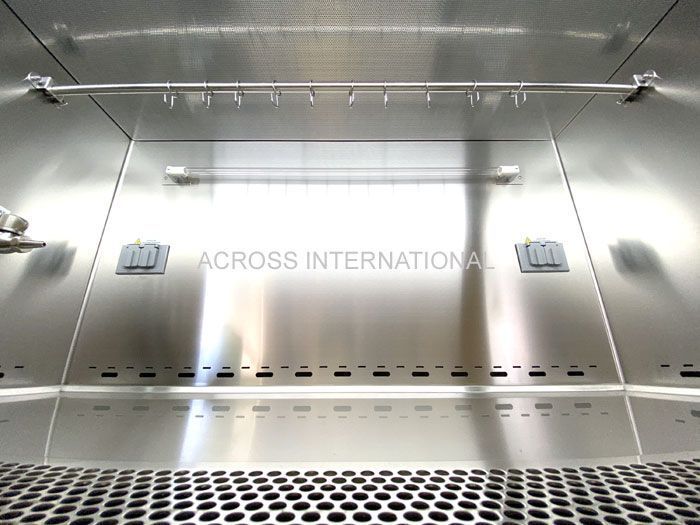

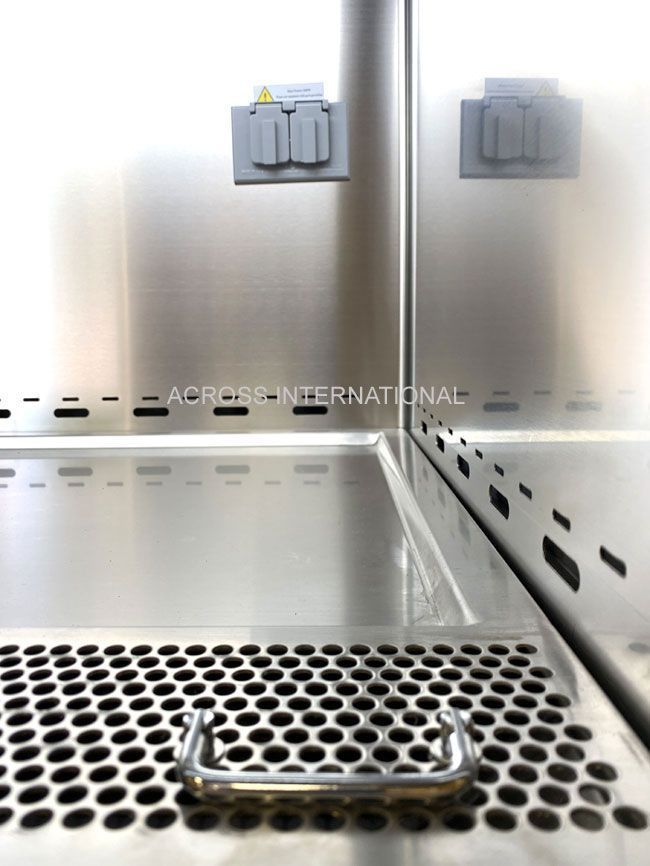

Stainless Steel Laboratory Chamber
Interior 304 stainless steel chamber provides durability, corrosion resistance, and easy sanitation.
Integrated Utilities

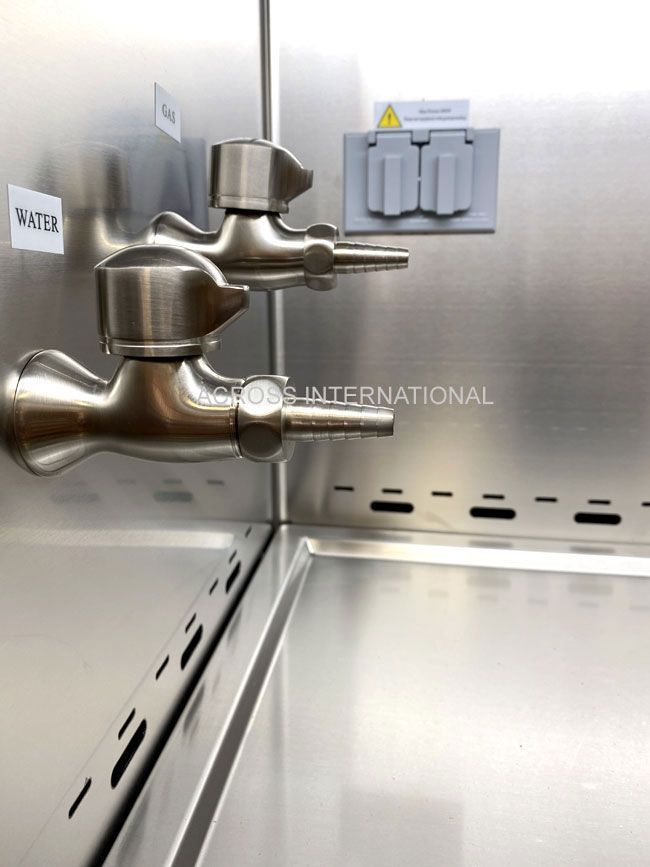

Built-in water port, gas port, electrical outlets, and hanging bar with hooks for convenient laboratory operations.
Easy Maintenance Design

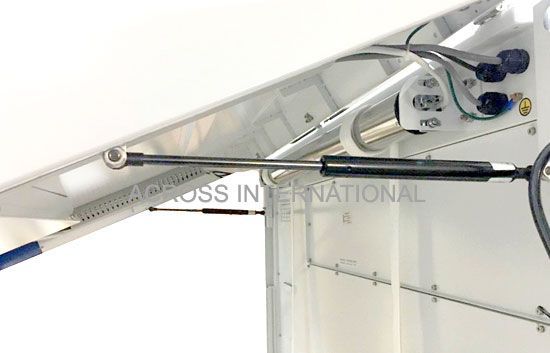

Pneumatic front panel supports allow easy cabinet servicing and maintenance.
What Is a Class II Type A2 Biosafety Cabinet?
A Class II Type A2 biosafety cabinet protects:
• Laboratory personnel
• The surrounding laboratory environment
• The sterility of samples being handled
Air enters through the front opening, creating a protective inward airflow barrier that prevents contaminated air from escaping the cabinet.
Inside the cabinet airflow system:
-
70% of air is recirculated through HEPA filters
-
30% is exhausted through the top vent
Because of this design, Type A2 cabinets represent approximately 90% of biosafety cabinets installed worldwide, making them the most commonly used biosafety cabinet configuration.
Operating Procedure
Before Use
-
Fully close the front glass panel.
-
Activate the UV sterilization light for 30 minutes.
-
Leave the room during the sterilization cycle.
-
Raise the front glass panel to the recommended opening height.
-
Turn on airflow circulation for 10 minutes before beginning work.
After Use
-
Fully close the glass panel.
-
Turn on the UV light for another 30 minutes for decontamination.
Biosafety Cabinet Usage Guidelines
To maintain proper containment and safety:
• Do not use flammable or explosive materials inside the cabinet
• Avoid volatile chemicals that could damage HEPA filters
• Do not release toxic chemical vapors into the cabinet
• Open flames are prohibited as they disrupt airflow patterns
• Use ≤10 mL disinfectant alcohol if needed
Recommended disinfectants include:
-
Sodium hypochlorite (bleach)
-
Iodophors (Wescodyne)
-
Phenolics (Hilphene, Vespene)
-
Quaternary ammonium compounds (Conflikt, Endbac II)
Installation Notice
⚠ Installation requires a forklift or crane due to the cabinet weight.
Technical Specifications
Model
BC-6F
Electrical Requirements
-
110V, 60Hz, Single Phase
-
500 Watts
Chamber Specifications
Dimensions:
67 × 23.5 × 26 in (W × D × H)
Material:
304 Stainless Steel
Features:
-
Four internal power outlets (<500W each)
-
Stainless steel gas port
-
Stainless steel water port
-
Stainless steel hanging bar with 10 hooks
-
Removable stainless steel work surface
-
29.5 in ground clearance
Lighting System
LED Lighting:
-
2 × 22W
-
1000 Lux brightness
UV Sterilization:
-
30W germicidal UV lamp
-
Wavelength: 253.7 nm
-
Recommended replacement interval: 600 hours
Airflow Performance
Airflow Volume:
-
Inflow: 825 CFM
-
Downflow: 710 CFM
-
Exhaust: 485 CFM
Airflow Speed:
-
Inflow: 100–110 FPM
-
Downflow: 60–70 FPM
Airflow distribution:
-
70% recirculated internally
-
30% exhausted through top vent
Recommended top clearance:
12 inches
HEPA Filtration
-
Two HEPA filters
-
99.999% efficiency at 0.3 μm
-
Filter life indicator with hour monitoring
-
Recommended replacement interval: 4,000 hours
Front Safety Glass Panel
Material:
-
Dual-layer laminated tempered safety glass
-
Thickness >5 mm
-
UV blocking
Opening heights:
-
Recommended opening: 10 inches
-
Maximum opening: 20.5 inches
Construction
Chamber:
304 stainless steel
Exterior cabinet:
Powder-coated steel
Casters:
Four casters with stabilizing feet
Noise Level
< 65 dB(A)
Dimensions & Weight
Unit weight:
820 lbs
Shipping weight:
952 lbs
Fully assembled:
73.5 × 30.5 × 90.5 in (W × D × H)
Without stand:
73.5 × 30.5 × 63.5 in
Shipping dimensions:
79.5 × 42.5 × 75 in
Safety Features
-
Abnormal airflow alarm
-
Filter replacement alarm
-
Unsafe front glass height alarm
Certifications
NSF/ANSI 49 Certified (C0559576)
Included Accessories
-
Ai 6 Ft Biosafety Cabinet
-
Detachable armrests (4)
-
On/off foot switch
-
Remote control
-
Bottom drain port assembly
-
Backup UV light tube
-
Hex wrench
-
Glass panel adjustment tool
-
Control board fuses (9)
-
Hex bolts (7)
-
Washer sets (7)
-
Standard 110V power cord
-
Stand assembly with casters
-
User manual
Warranty
1 Year Manufacturer Warranty
