Description
NSF Certified Class II Biosafety Cabinet for Safe Laboratory Containment

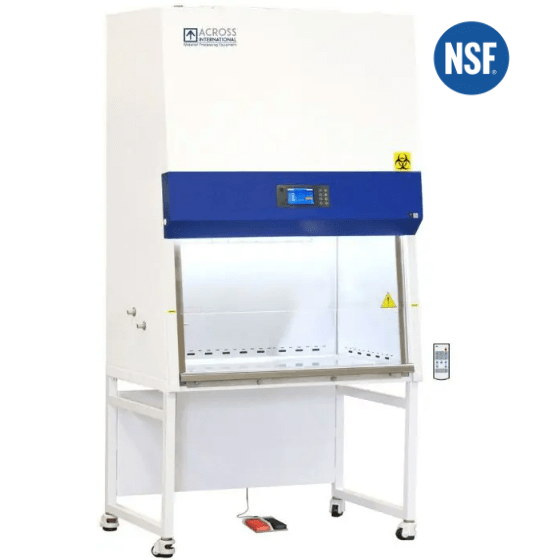

The Ai BC-3F 3 Ft Class II Type A2 Biosafety Cabinet is a NSF/ANSI 49 certified biological safety cabinet designed to safely handle potentially infectious materials while protecting laboratory personnel, sensitive samples, and the surrounding environment.
A biosafety cabinet (BSC)—also known as a biological safety cabinet or microbiological safety cabinet—is an enclosed, ventilated laboratory workstation used when working with biological materials contaminated with or potentially contaminated by pathogens requiring a defined biosafety level.
The primary purpose of a biosafety cabinet is to protect the laboratory worker and environment from harmful pathogens. The Ai Class II Type A2 cabinet uses dual HEPA filtration and controlled laminar airflow to capture bacteria, viruses, and airborne contaminants before the air exits the unit.
Unlike laminar flow clean benches that blow unfiltered air toward the user, this biosafety cabinet filters all exhaust air through HEPA filters, making it suitable for microbiology research, pharmaceutical laboratories, virology testing, and COVID-19 specimen handling.

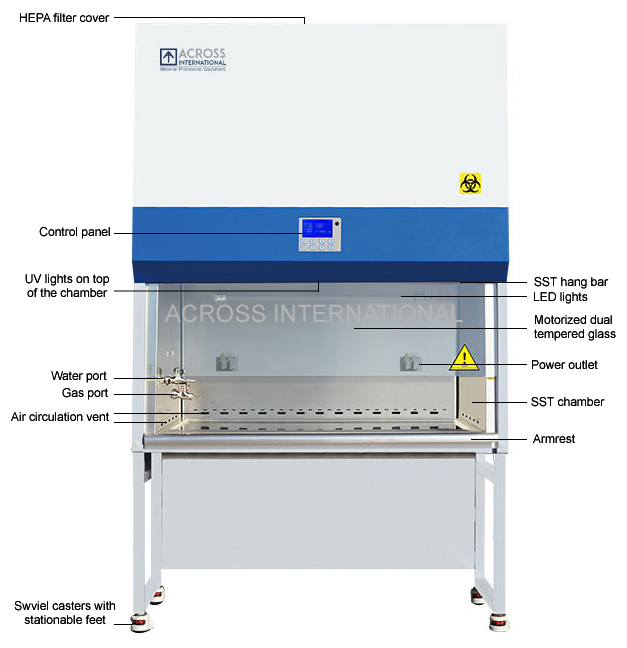

Key Features of the Ai Class II Type A2 Biosafety Cabinet
NSF/ANSI 49 Certified
Fully compliant with NSF/ANSI Standard 49, ensuring safe containment for biological research applications.
Ideal for Pathogen & COVID-19 Sample Handling
Designed for laboratories handling microbial cultures, viral samples, and biological materials requiring containment.
Dual HEPA Filtration System
Two HEPA filters with 99.999% efficiency at 0.3 μm capture airborne contaminants and maintain sterile airflow.
Motorized Front Glass Window
Tempered safety glass panel with motorized lift system and remote foot switch control for safe and convenient operation.
Built-in UV Sterilization
Integrated 20W germicidal UV lamp (253.7 nm) disinfects the chamber before and after laboratory work.
Advanced LCD Control System
Large LCD display with soft-touch controls and remote operation allows easy monitoring of airflow, filter life, and cabinet status.
Automatic Airflow Control
Automatically adjusts airflow speed and alerts users of abnormal airflow or filter replacement needs.
Durable Stainless Steel Chamber
Interior 304 stainless steel chamber provides excellent corrosion resistance and easy cleaning.
Anti-Mold & Antiseptic Coating
Specially treated cabinet housing prevents microbial buildup on external surfaces.
Easy Maintenance Design

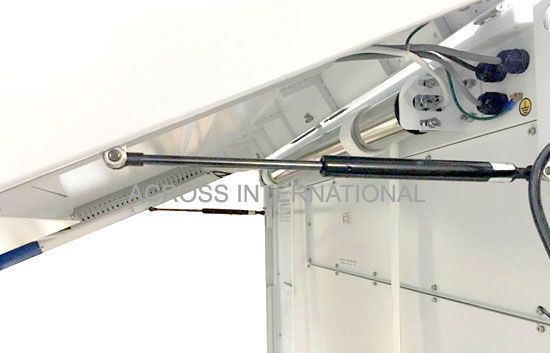

Pneumatic front panel supports allow quick access for cabinet maintenance and servicing.
What Is a Class II Type A2 Biosafety Cabinet?
A Class II Type A2 biosafety cabinet provides protection for:
-
Laboratory personnel
-
The surrounding environment
-
The sterility of research samples

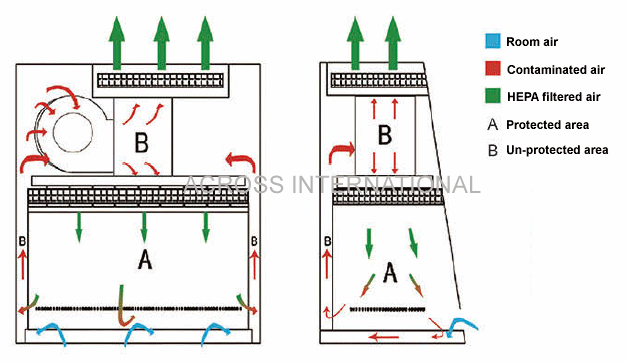

Air enters the cabinet through the front opening, creating a protective inward airflow barrier that prevents contaminated air from escaping into the laboratory.
Airflow distribution inside the cabinet:
-
70% recirculated internally through HEPA filters
-
30% exhausted through the top vent
Because of this design, Type A2 cabinets represent about 90% of biosafety cabinets installed worldwide, making them the most widely used BSC type.
Operating Procedure
Before Use
-
Fully close the front glass panel.
-
Activate the UV light for 30 minutes to disinfect the chamber.
-
Leave the room during the sterilization cycle.
-
Raise the glass panel to the recommended opening height.
-
Turn on airflow circulation for 10 minutes before beginning work.
After Use
-
Close the front glass panel.
-
Turn on the UV sterilization light for another 30 minutes for decontamination.
Biosafety Cabinet Usage Guidelines
To ensure safe operation:
• Do not use flammable or explosive materials
• Avoid volatile chemicals that could damage HEPA filters
• Do not introduce toxic chemical vapors
• Open flames are prohibited because they disrupt airflow patterns
• Only small quantities (≤10 mL) of disinfectant alcohol should be used
Recommended disinfectants include:
-
Sodium hypochlorite (bleach)
-
Iodophors (Wescodyne)
-
Phenolics (Hilphene, Vespene)
-
Quaternary ammonium compounds (Conflikt, Endbac II)
Installation Notice
⚠ Installation requires a forklift or crane due to the cabinet weight.
Technical Specifications
Model
BC-3F
Electrical Requirements
-
115V, 60Hz, Single Phase
-
400 Watts
-
Motor: 1/2 HP, 9A

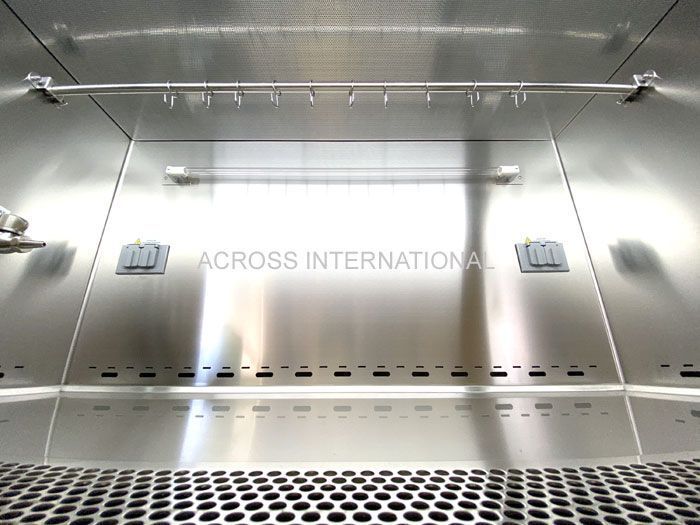

Chamber Specifications
Dimensions:
35.8 × 23.5 × 26 in (W × D × H)
Material:
304 Stainless Steel
Features:
-
Four internal power outlets (<500W)
-

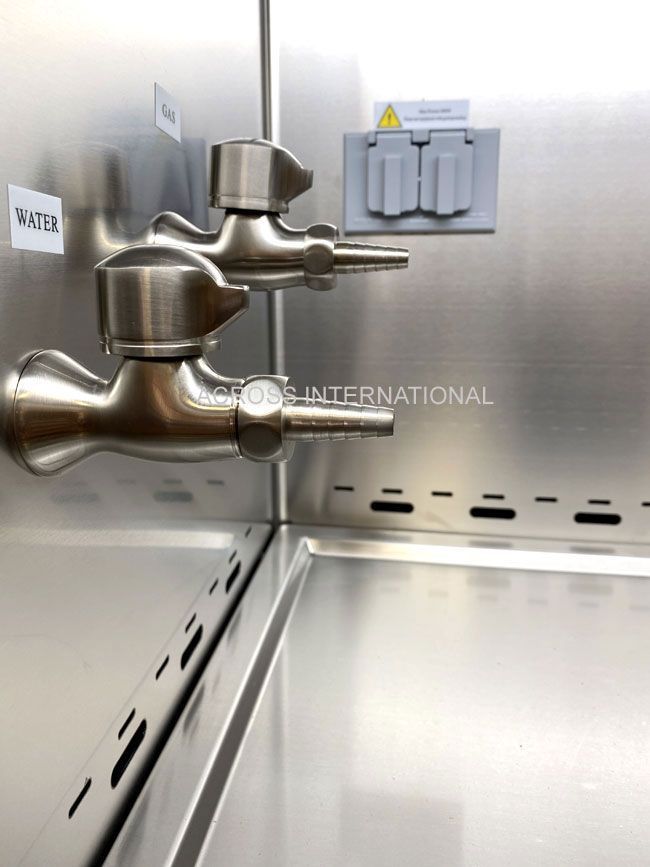

Stainless steel gas port
-
Stainless steel water port
-
Stainless steel hanging bar with 10 hooks
-
Removable stainless steel work surface
-
29.5 in ground clearance
Lighting System
LED Lighting:
-
2 × 10W
-
1000 Lux brightness
UV Sterilization:
-
20W germicidal UV lamp
-
Wavelength: 253.7 nm
-
Replacement interval: 600 hours
Airflow Performance
Airflow Volume:
-
Inflow: 255 CFM
-
Downflow: 380 CFM
-
Exhaust: 255 CFM
Airflow Speed:
-
Inflow: 100–110 FPM
-
Downflow: 60–70 FPM
Air distribution:
-
70% recirculated
-
30% exhausted
Recommended top clearance:
12 inches
HEPA Filtration
-
Two HEPA filters
-
99.999% efficiency at 0.3 μm
-
Filter hour indicator and life monitor
-
Recommended replacement interval: 4,000 hours
Front Safety Glass Panel
Material:
-
Laminated tempered safety glass
-
Thickness >5 mm
-
UV blocking
Opening heights:
-
Recommended opening: 10 inches
-
Maximum opening: 20.5 inches
Construction
Chamber:
-
304 stainless steel
Exterior cabinet:
-
Powder coated steel
Casters:
-
Four casters with stabilizing feet
Noise Level
< 65 dB(A)

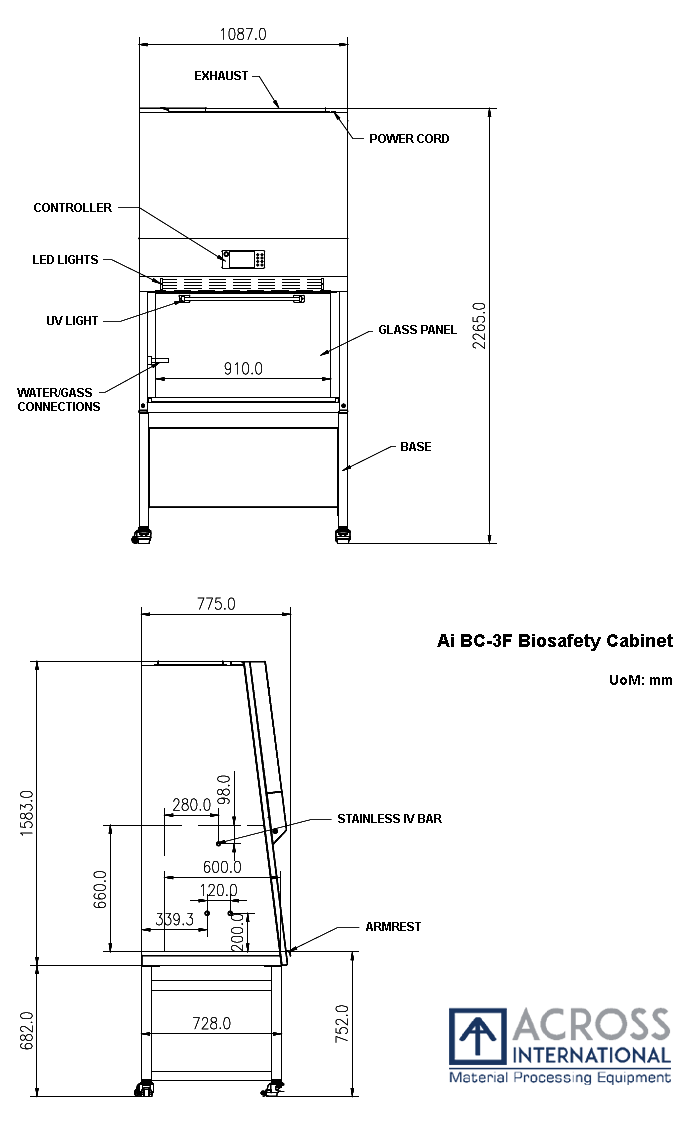

Dimensions & Weight
Unit weight:
450 lbs
Shipping weight:
595 lbs
Fully assembled:
42.8 × 30.5 × 89 in (W × D × H)
Without stand:
42.8 × 30.5 × 62.3 in
Shipping dimensions:
48 × 40 × 72.5 in
Safety Features
-
Abnormal airflow alarm
-
Filter replacement alarm
-
Front glass panel unsafe height warning
Certifications
NSF/ANSI 49 Certified (C0559576)
Included Accessories
-
Ai 3 Ft Biosafety Cabinet
-
Detachable armrests (2)
-
Foot switch for glass panel control
-
Remote control
-
Bottom drain port assembly
-
Backup UV light tube
-
Hex wrench
-
Glass panel motor adjustment tool
-
Control board fuses (9)
-
Hex bolts (7)
-
Washer sets (7)
-
Standard 110V power cord
-
Stand assembly with casters
-
User manual
Warranty
1 Year Manufacturer Warranty
