The Across International Ai B25-20L Thermal Shipping Cube is designed for secure, temperature-controlled transport of sensitive materials requiring ultra-cold conditions between -25°C and -15°C. This VIP-insulated shipping container utilizes rechargeable Phase Change Material (PCM) cold pads to maintain a stable temperature environment for up to 72 hours, ensuring safe transportation of valuable biological and pharmaceutical materials.

Constructed with advanced Vacuum Insulated Panel (VIP) technology, the shipping cube provides exceptional thermal performance. VIP insulation features a thermal conductivity of only 0.004 W/m·K, which is less than 20% of traditional polyurethane foam insulation, making it widely used in ultra-low temperature freezers, pharmaceutical cold chain logistics, and aerospace applications.

This reusable cold chain shipping container is ideal for transporting clinical trial materials, vaccines, pharmaceutical products, laboratory samples, and research materials where precise temperature control is essential.

---

Key Features

• Maintains temperature between -25°C and -15°C
• Up to 72 hours of temperature protection
• Includes six rechargeable PCM cold pads
• Vacuum Insulated Panel (VIP) technology for superior insulation
• Reusable and recyclable cold chain shipping solution
• Ideal for domestic and international shipments
• Reliable temperature protection for high-value biological materials
• Compact, lightweight design for reduced shipping costs

---

Ideal Applications

The Ai PCM Thermal Shipping Cube is designed for safe transportation of:

• Vaccines
• Clinical trial materials
• Pharmaceutical products
• Biological samples
• Laboratory reagents
• Research and development shipments
• Temperature-sensitive medical supplies

This system is commonly used in pharmaceutical logistics, biotechnology research, and medical laboratories.

---

Temperature Performance

Temperature Range: -25°C to -15°C

Minimum Temperature: -25°C

Temperature Duration: Up to 72 hours

The system is designed to maintain stable cold chain conditions even during unexpected shipping delays or extreme ambient temperatures.

---

Capacity & Dimensions

Interior Chamber Dimensions: 10 x 10 x 10 inches

Internal Volume: 20 liters (0.7 cubic feet)

Usable Volume After Cold Pads Installed: 0.6 cubic feet

---

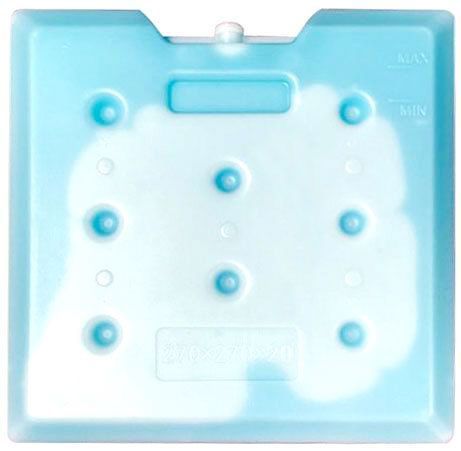

PCM Cold Pads

Included Cold Pads: 6

Thermal Fluid: Phase Change Material (PCM)

Color: Blue

Operating Temperature Range: -25°C to -15°C

Cold Pad Dimensions: 10.25 x 10.25 x 0.75 inches

Rechargeable: Yes

---

Insulation System

Insulation Type: Vacuum Insulated Panel (VIP)

Total Panels: 6

Panel Thickness: 1 inch

Thermal Conductivity: 0.004 W/m·K

VIP insulation provides superior thermal protection compared to traditional foam insulation, helping maintain consistent internal temperatures for extended shipping durations.

---

Standard Operating Procedure (Recommended Use)

Charging PCM Cold Pads

For -25°C Shipping:

1. Place PCM cold pads in a -40°C freezer for 24 hours

2. Position pads sideways (not upright)

3. Leave at least 1 inch spacing between pads

4. PCM is fully charged when the internal fluid becomes solid

After removing from freezer:

• Allow pads to sit at room temperature for approximately 15 minutes before use

---

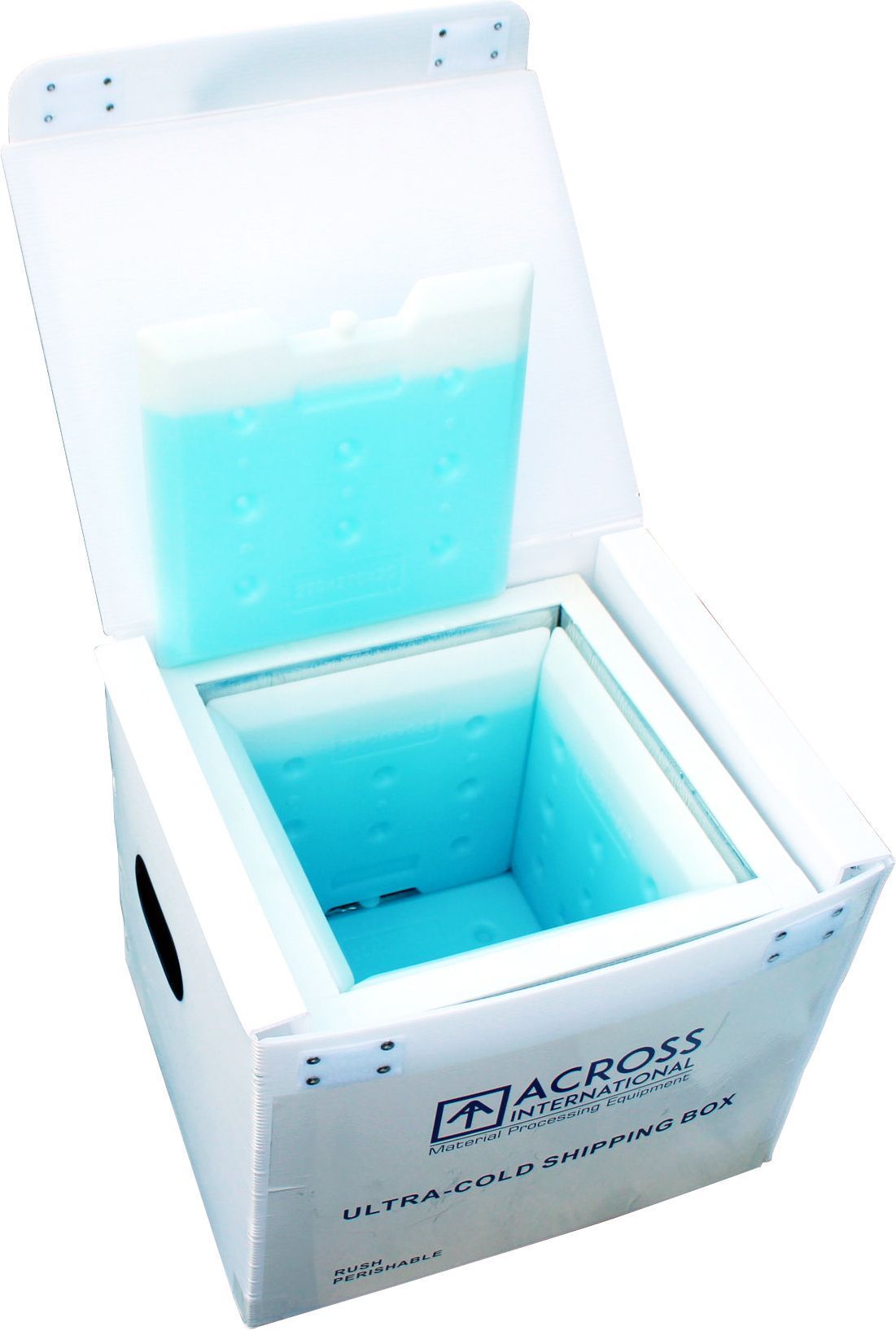

Packing Procedure

1. Place one PCM pad on the bottom of the container

2. Place four PCM pads along the inner walls

3. Insert the product load into the container

4. Place a temperature data logger (optional)

5. Place the sixth PCM pad on top of the load

6. Close the VIP insulated lid tightly

After 72 hours, replace all PCM pads with freshly charged pads if continued temperature control is required.

---

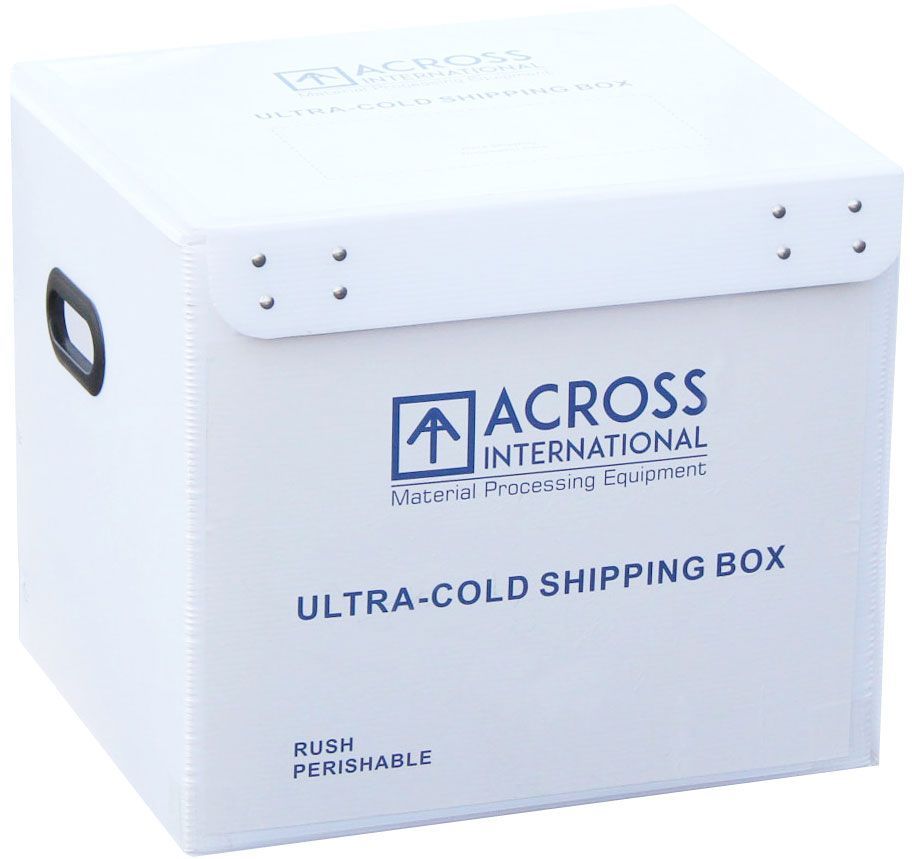

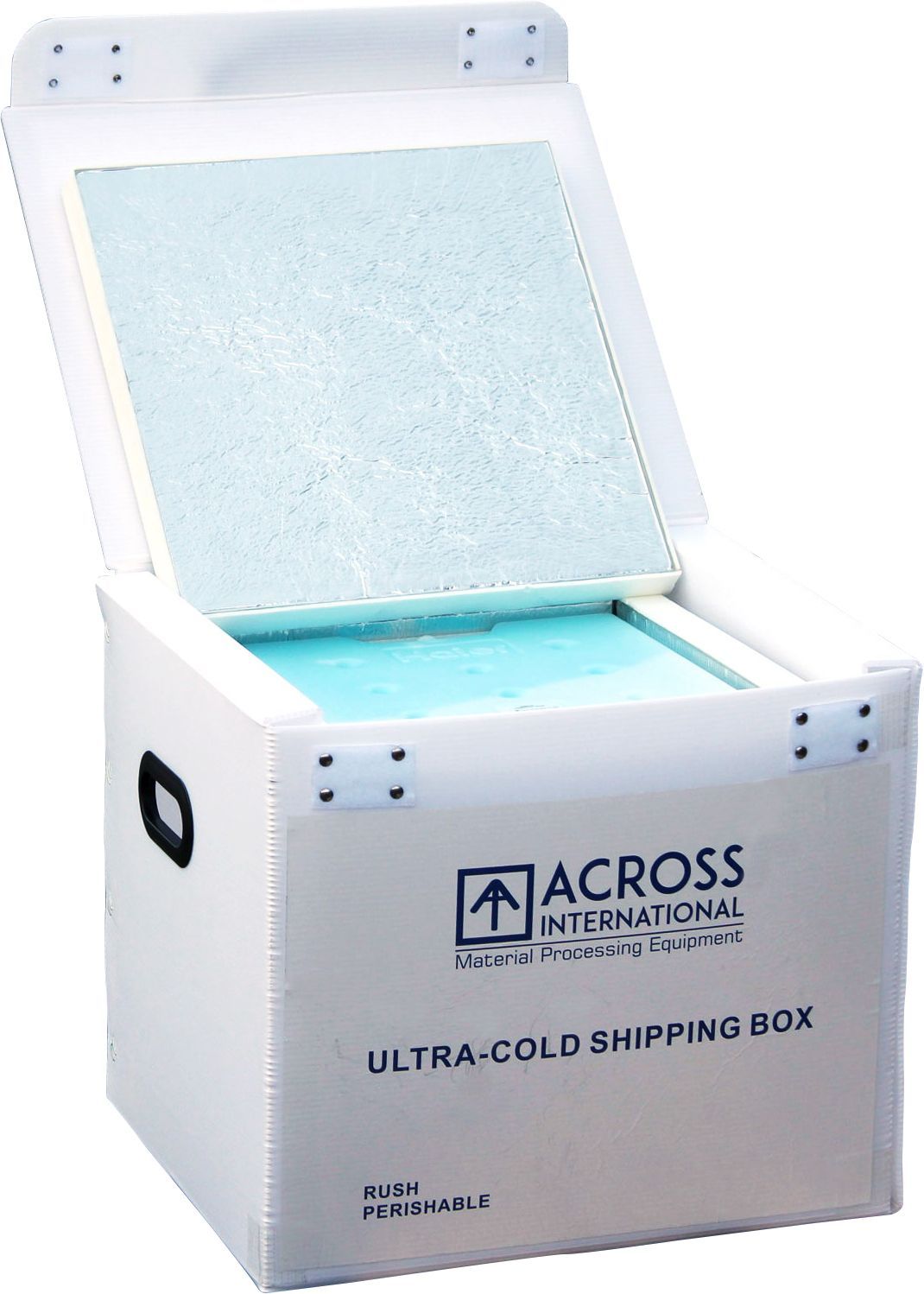

Shipping Container Specifications

Model Number: B25-20L

Weight: 25 lbs

External Dimensions: 16 x 13.5 x 14 inches (W x D x H)

Construction: VIP insulated thermal container

Reusable: Yes

Recyclable: Yes

---

Advantages Over Traditional Cold Chain Packaging

• Lower shipping costs due to compact design
• Longer temperature hold times than foam containers
• Reusable PCM cold packs reduce long-term shipping costs
• Reliable protection for sensitive medical and research materials

---

What's Included

• Ai B25-20L Thermal Shipping Cube

• Six PCM cold pads (-25°C to -15°C)

• VIP insulated container

---

Warranty

1 Year Manufacturer Warranty
