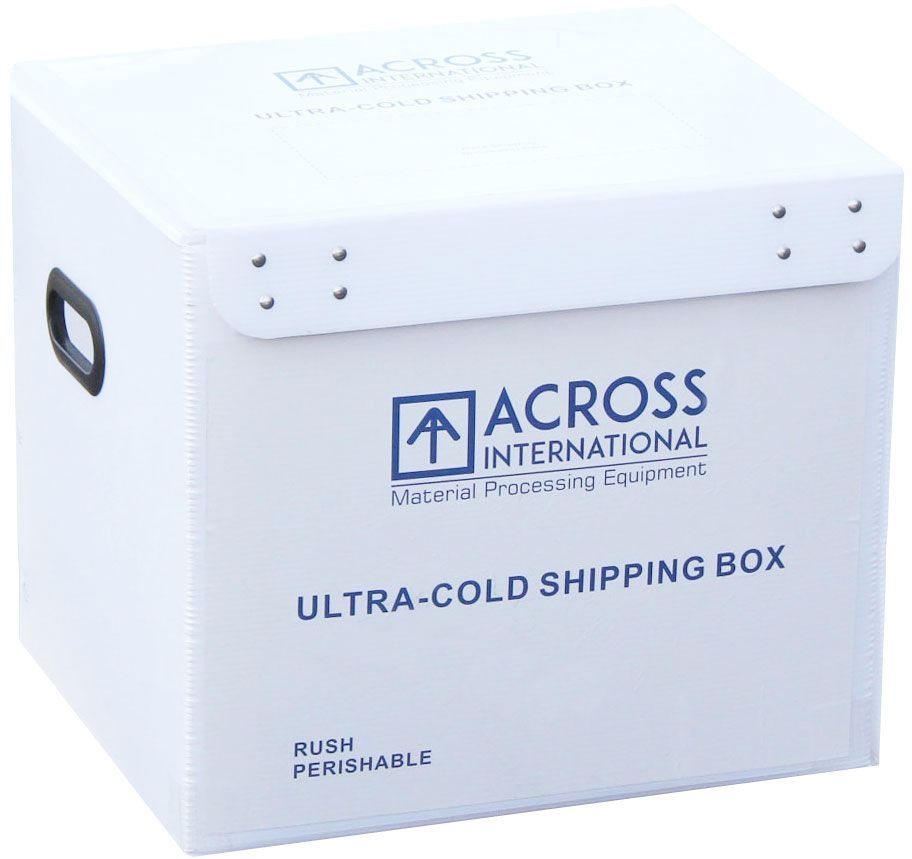

The Across International Ai B02-20L Thermal Shipping Cube is designed for safe, temperature-controlled transport of temperature-sensitive products requiring a stable 2–8°C environment. Utilizing rechargeable Phase Change Material (PCM) cold pads and Vacuum Insulated Panel (VIP) technology, this high-performance shipping container maintains reliable cold chain conditions for up to 72 hours.

The advanced VIP insulation system provides superior thermal protection with a conductivity rating of only 0.004 W/m·K, significantly outperforming traditional foam insulation. This technology is commonly used in ultra-low temperature freezers, pharmaceutical cold chain transport systems, and aerospace insulation applications.

The Ai B02-20L shipping cube is ideal for transporting vaccines, clinical trial materials, pharmaceutical products, laboratory reagents, and temperature-sensitive biological samples while minimizing shipping costs and protecting valuable materials from temperature excursions.

---

Key Features

• Maintains a stable temperature range of 2–8°C
• Up to 72 hours of temperature protection
• Includes six rechargeable PCM cold pads
• Vacuum Insulated Panel (VIP) insulation for superior thermal efficiency
• Reusable and recyclable cold chain solution
• Reliable performance in extreme ambient temperatures
• Compact and cost-efficient shipping container
• Ideal for domestic and international temperature-controlled shipments

---

Ideal Applications

The Ai PCM Thermal Shipping Cube is designed for transportation of:

• Vaccines and pharmaceutical products
• Clinical trial materials
• Biological samples
• Laboratory reagents
• Research and development shipments
• Temperature-sensitive medical supplies

These containers are commonly used in pharmaceutical logistics, biotechnology research, healthcare supply chains, and laboratory sample transport.

---

Temperature Performance

Temperature Range: 2°C to 8°C

Temperature Duration: Up to 72 hours

The system provides reliable temperature stability even during shipping delays or exposure to extreme external temperatures.

---

Capacity & Dimensions

Interior Chamber Dimensions: 10 x 10 x 10 inches

Internal Volume: 20 liters (0.7 cubic feet)

Usable Volume After Cold Pads Installed: 0.6 cubic feet

---

PCM Cold Pads

Included Cold Pads: 6

Thermal Fluid: Phase Change Material (PCM)

Color: White

Operating Temperature Range: 2°C to 8°C

Cold Pad Dimensions: 10.25 x 10.25 x 0.75 inches

Rechargeable: Yes

---

Insulation System

Insulation Type: Vacuum Insulated Panel (VIP)

Total Panels: 6

Panel Thickness: 1 inch

Thermal Conductivity: 0.004 W/m·K

VIP insulation provides significantly higher thermal efficiency compared to traditional polyurethane foam insulation, ensuring extended cold chain protection.

---

Recommended Standard Operating Procedure (SOP)

Charging PCM Cold Pads

For 2–8°C shipping:

1. Place PCM pads in a -18°C freezer for 24 hours

2. Position pads sideways (not upright)

3. Maintain 1 inch spacing between pads

4. PCM is fully charged once the internal fluid becomes solid

After removal from freezer:

• Allow PCM pads to sit at room temperature for approximately 15 minutes before packing

---

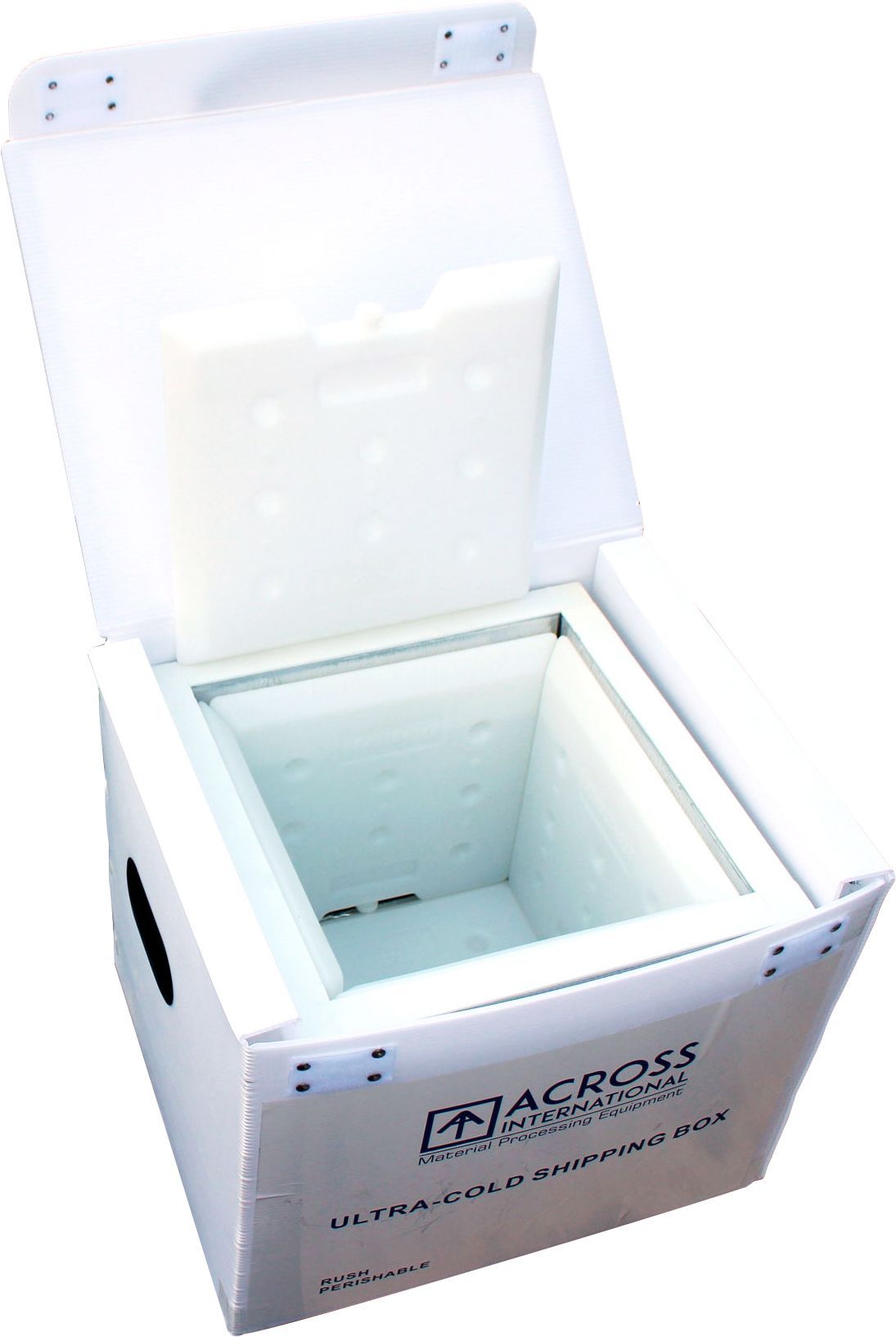

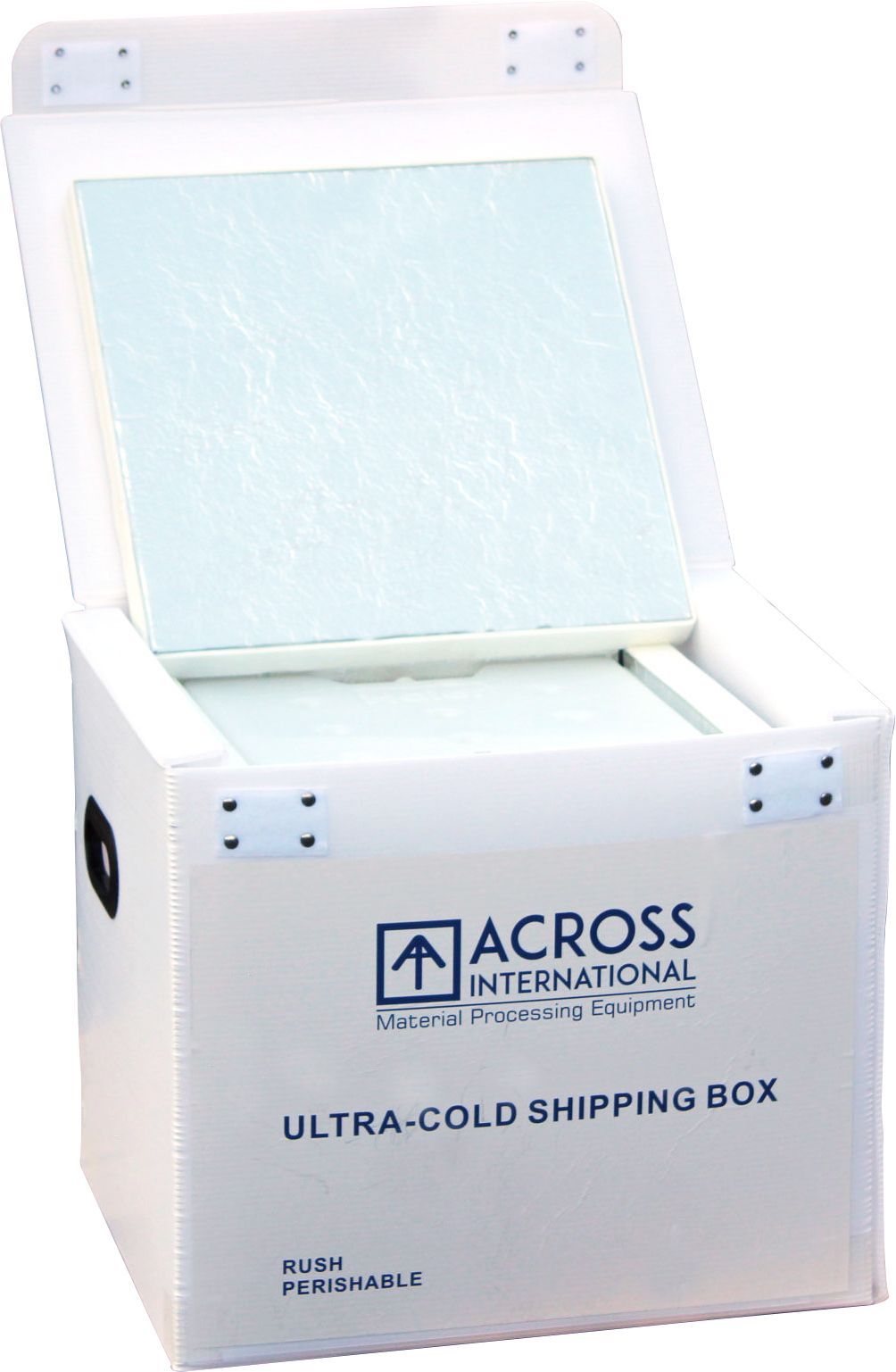

Packing Procedure

1. Place one PCM pad at the bottom of the container

2. Place four PCM pads along the inner walls

3. Insert the product load into the container

4. Place temperature data logger (optional)

5. Place the sixth PCM pad on top of the load

6. Close the VIP insulated lid tightly

After 72 hours, replace the six PCM pads with newly charged pads if continued temperature control is required.

---

Shipping Container Specifications

Model Number: B02-20L

Weight: 25 lbs

External Dimensions: 16 x 13.5 x 14 inches (W x D x H)

Construction: VIP insulated thermal container

Reusable: Yes

Recyclable: Yes

---

Advantages Over Traditional Shipping Coolers

• Longer temperature hold times than foam containers
• Lower shipping costs due to compact design
• Reusable PCM pads reduce long-term logistics costs
• Reliable protection for high-value medical and research shipments

---

What's Included

• Ai B02-20L Thermal Shipping Cube

• Six PCM cold pads (2–8°C temperature range)

• VIP insulated shipping container

---

Warranty

1 Year Manufacturer Warranty
