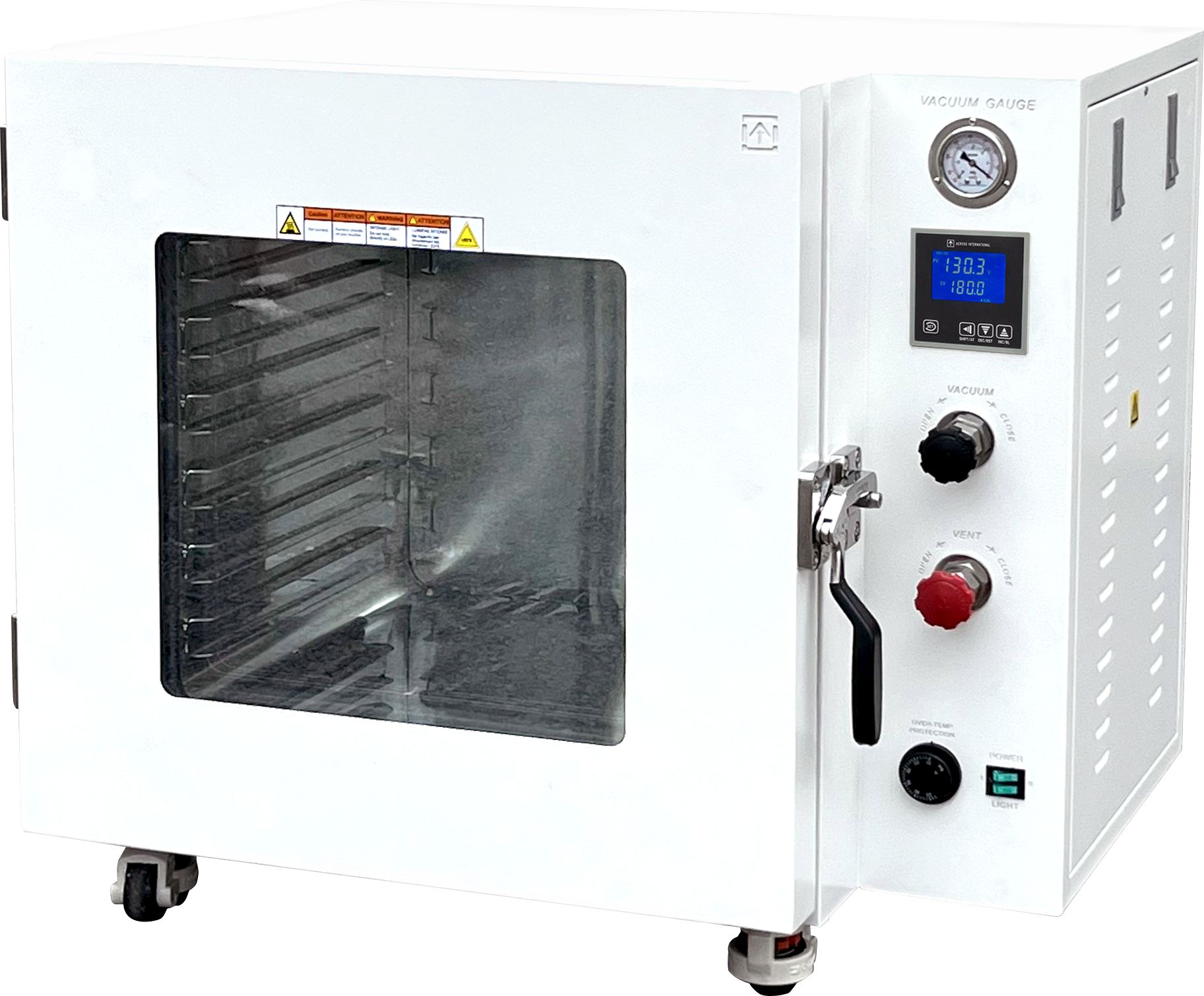

The Across International AT32-316L-UL Vacuum Oven is a UL-certified laboratory vacuum oven designed for high-purity laboratory, pharmaceutical, and extraction applications. Featuring a 3.2 cubic foot chamber constructed from 316L stainless steel, this vacuum oven provides superior corrosion resistance, cleanliness, and durability compared to standard stainless steel ovens.

The AT-X series utilizes advanced 5-sided chamber heating technology, delivering exceptional temperature uniformity and rapid heating performance. Combined with 4th generation PID temperature control, this system provides highly accurate temperature regulation and efficient energy usage.

Designed for flexibility and ease of maintenance, the oven includes removable aluminum shelves, allowing operators to adjust shelf configurations or remove shelves entirely for larger samples and easier chamber cleaning.

Each oven undergoes two separate 24-hour vacuum leak tests and is fully quality controlled in New Jersey or Nevada before shipment to ensure dependable long-term operation.

---

Key Features

UL Certified Laboratory Safety

• UL Listed and ETL compliant

• Meets safety standards required by laboratories and municipalities

• Built for reliable industrial and research environments

316L Stainless Steel Chamber

• High-grade 316L stainless steel construction

• Superior corrosion resistance for chemical and pharmaceutical applications

• Ideal for cleanroom, pharmaceutical, and high-purity processing

Advanced 5-Sided Heating Technology

• Heating elements on five chamber walls

• Provides excellent heat distribution and temperature uniformity

• Fast ramp rates and efficient heating performance

Precision Temperature Control

• 4th generation low proportional gain PID controller

• Microcomputer control with LCD display

• Temperature range: Ambient to 250°C (480°F)

Stainless Steel Vacuum System

• All stainless steel internal vacuum tubing and compression fittings

• Maintains vacuum up to 10× longer than rubber tubing systems

• Provides a clean and durable vacuum environment

Note: SST tubing refers to internal stainless steel tubing and compression fittings. External tubing not included.

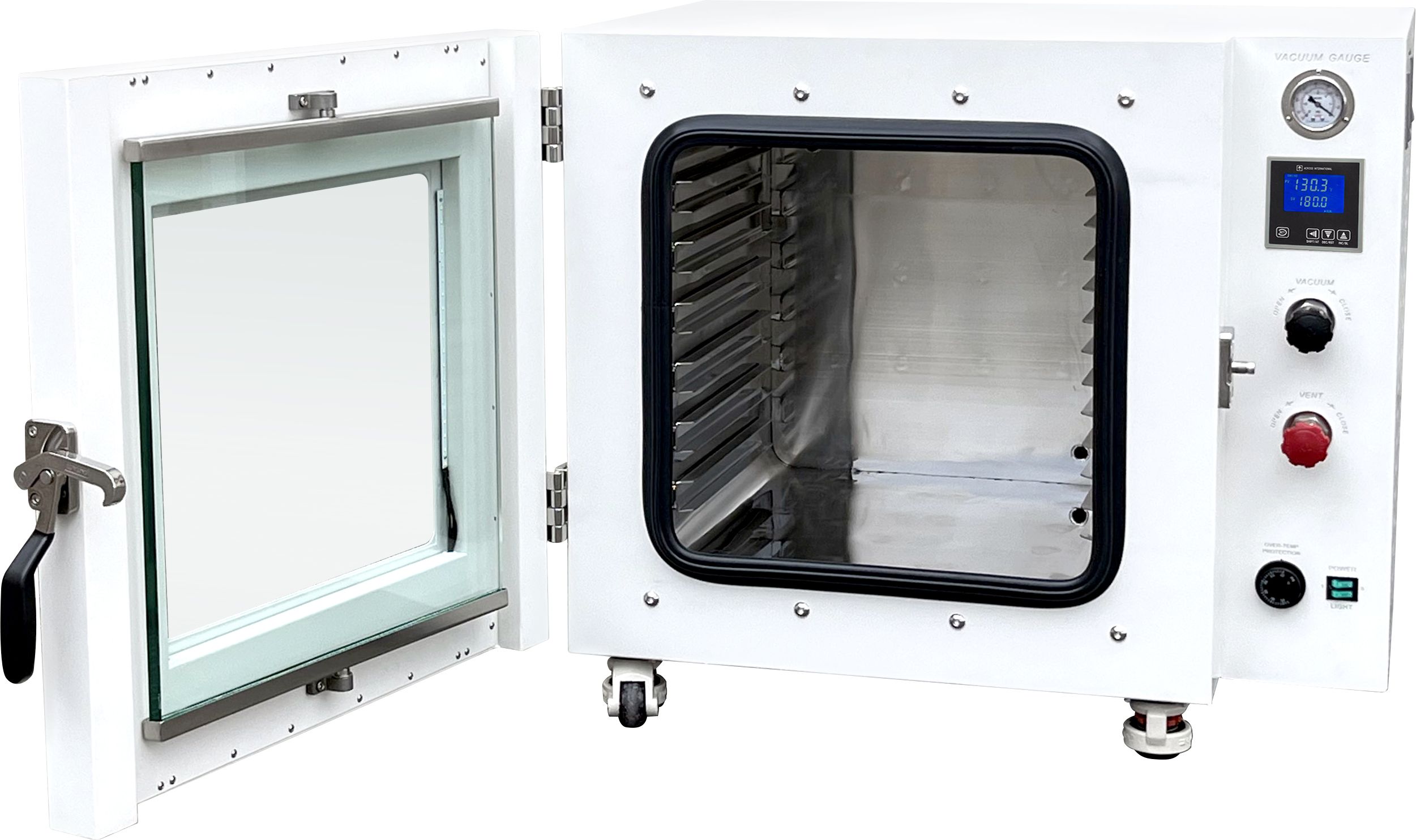

Removable Shelf Design

• Removable aluminum shelves allow flexible chamber configuration

• Easier cleaning and maintenance

• Accommodates larger materials when shelves are removed

KF25 Inlet Filtration System

• Included KF25 inlet filter

• Helps protect the vacuum system from contamination

High Accuracy Vacuum Monitoring

• Oil-filled mechanical vacuum gauge

• Provides stable and precise vacuum measurement

Built-In Safety Systems

• Secondary over-temperature protection dial

• Built-in circuit breaker

• Overheat shutdown protection

• Alarm notification system

Industrial Construction

• Dual-layer observation window with 5/8" tempered safety glass

• Stainless steel chamber for durability

• Built-in swivel casters with leveling feet

Fast US Shipping & Support

• Ships from New Jersey or Nevada

• US-based engineering support within 30 minutes

---

Technical Specifications

Electrical Requirements

• Voltage: 110V ±10%

• Frequency: 50/60Hz

• Phase: Single Phase

• Power Consumption: 2,500 Watts

---

Heating System

5-Sided Chamber Heating

• Left Heater: 600W

• Right Heater: 600W

• Top Heater: 600W

• Bottom Heater: 600W

• Rear Heater: 200W × 3

---

Chamber

• Capacity: 3.2 Cubic Feet

• Interior Dimensions: 18" × 18" × 18"

• Chamber Material: 316L Stainless Steel

---

Temperature Control

• Controller: Microcomputer PID controller with LCD display

• Temperature Range: Ambient to 250°C (480°F)

• Display Units: Fahrenheit or Celsius

• Temperature Uniformity: ±5% of setpoint

• Timer Range: 1 – 9999 minutes

Heating Performance

• Warm-up Time to 100°F: ~35 minutes

• Warm-up Time to 480°F: ~60 minutes

---

Vacuum System

• Ultimate Vacuum Level: Better than 500 microns / millitorr

• Mechanical Gauge Type: Oil-filled

• Mechanical Gauge Range: 0 – 30 inHg

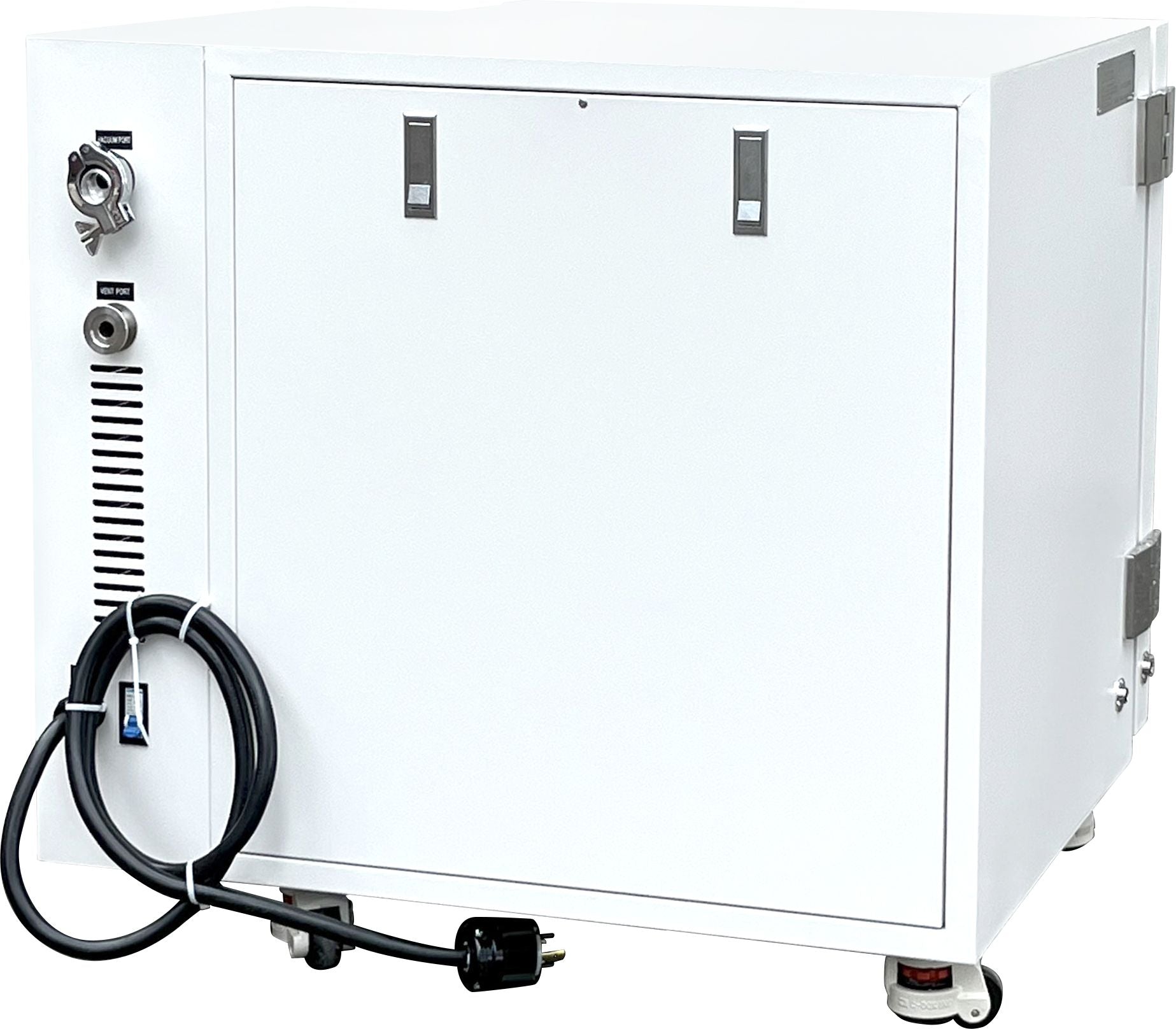

• Vacuum Port: KF25 Flange

• Vent Port: KF25 Flange

• Vacuum Pump: Sold Separately

---

Dimensions & Weight

• Unit Dimensions: 34" × 25" × 30.5"

• Shipping Dimensions: 40" × 33" × 37.5"

• Unit Weight: 260 lbs

• Shipping Weight: 400 lbs

---

Shelf System

Included Shelves

• 6 Aluminum Pan Shelves Included

Maximum Shelf Capacity

• 12 Shelves Maximum

Shelf Spacing

• 2/3 inch spacing when all 12 shelves are installed

Shelf Load Capacity

• 20 lbs per shelf

---

Materials & Construction

• Chamber Material: 316L Stainless Steel

• Door Gasket: Silicone or Viton

• Observation Window: ½" Tempered Safety Glass

• Interior Lighting: White LED

---

Safety Features

• Built-in circuit breaker

• Overheat shutoff protection

• Secondary over-temperature protection dial

• Safety alarm system

---

Compliance & Certifications

Manufactured in accordance with:

• UL 61010-1

• CSA C22.2

• ETL Listed

• ISO 9001:2000

• ISO 12100-1:2003

• ISO 12100-2:2003

• EN1050:1996

• EN294:1992

• EN60204-1:2006

• CE Certified

---

What's Included

• 1 × Across International AT32-316L-UL Vacuum Oven

• 6 × Aluminum Pan Shelves

• 2 × KF25 Quick Clamp & Centering Ring Sets

• 1 × KF25 Inlet Filter

• 1 × LED Light Cable

• 1 × User Manual

---

Warranty

• 2 Year Manufacturer Warranty

• Lifetime US-Based Parts & Service Support

---

Important Safety Notice

Never leave the oven unattended while operating.
Across International is not responsible for any loss of material inside the oven.
