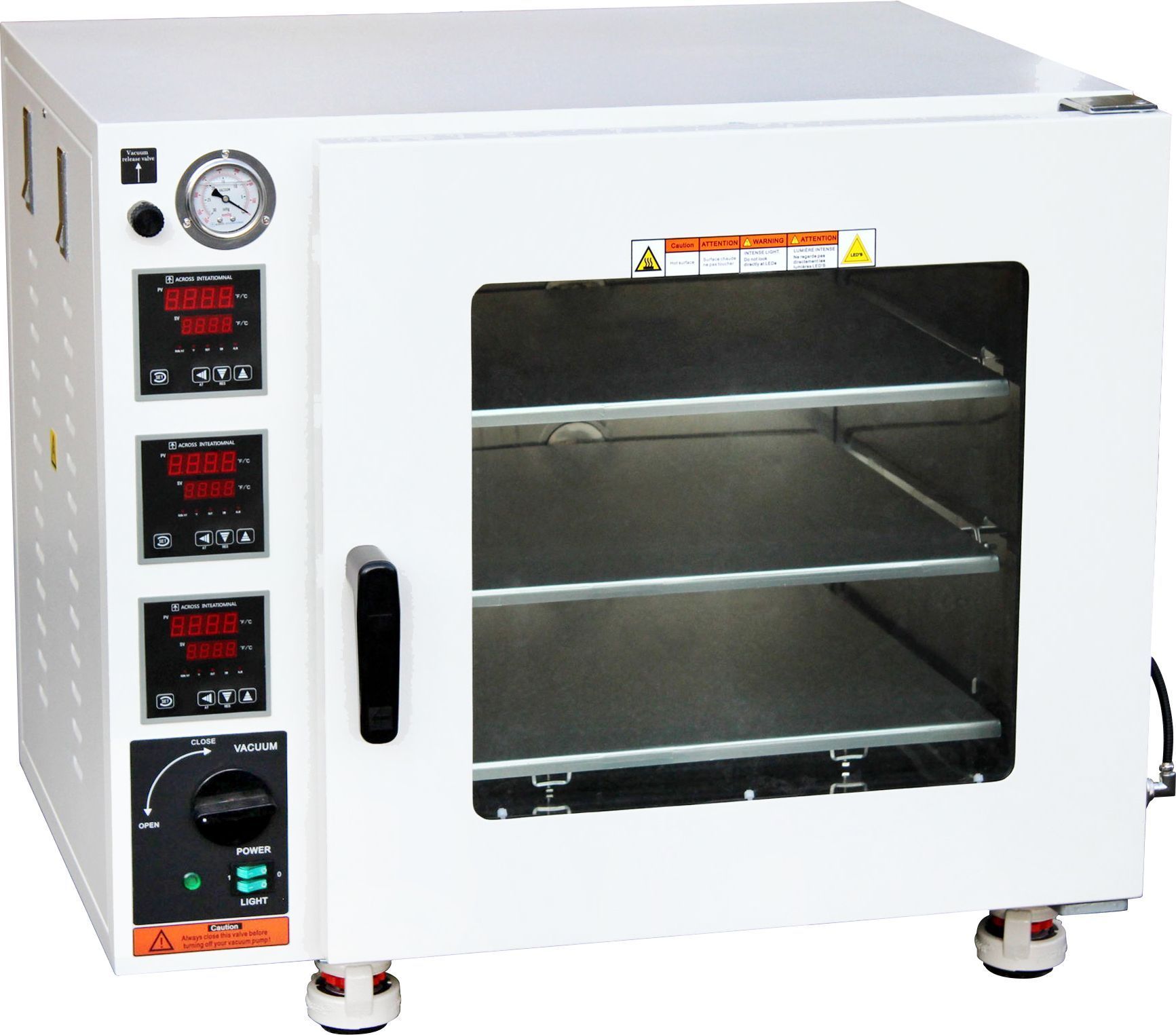

Across International AT32e ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED Lights
Across International AT32e ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED Lights
Across International AT32e ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED Lights
Across International AT32e ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED Lights
Roll over image to zoom in Click on image to zoom
Across International AT32e ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED LightsAcross International AT32e ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED LightsAcross International AT32e ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED LightsAcross International AT32e ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED Lights

Across International AT32e ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED Lights

Across International
Price:
$3,990.00

Description

The Across International AT32e Vacuum Oven is a high-performance laboratory vacuum drying oven designed for precise drying, curing, degassing, and solvent removal applications. Featuring a 3.2 cubic foot stainless steel chamber and three individually heated aluminum shelves, this vacuum oven provides excellent temperature uniformity, rapid heating rates, and reliable vacuum performance.

Using Across International’s internal shelf heating technology, each shelf contains its own heater, temperature sensor, and temperature controller, delivering extremely accurate temperature regulation across the entire chamber. Combined with low proportional gain PID control technology, the AT32e offers fast heating, minimal heat loss, and energy-efficient operation.

Every Across International vacuum oven undergoes two separate 24-hour vacuum leak tests and is quality controlled in New Jersey or Nevada before shipment to ensure dependable long-term operation.

Key Features

Advanced Heated Shelf Technology

  • Three aluminum heating shelves

  • Individual in-shelf heaters

  • Built-in temperature sensors and controllers

  • Provides highly uniform heating and precise temperature control

Precision Temperature Control

  • 3rd generation low proportional gain PID controller

  • Microcomputer temperature control for accurate regulation

  • Temperature range: Ambient to 150°C (302°F)

Fast Heating Performance

  • Warm-up to 100°F in approximately 35 minutes

Vacuum Drying Efficiency

  • Vacuum environment lowers boiling point for heat-sensitive materials

  • Reduces drying time for powders, pastes, and solvent-based materials

Industrial Stainless Steel Chamber

  • Durable stainless steel interior

  • Easy to clean and corrosion resistant

High Accuracy Vacuum Monitoring

  • Oil-filled mechanical vacuum gauge

  • Provides more accurate readings and longer gauge lifespan

Heavy-Duty Construction

  • Dual-layer observation window with 5/8" tempered safety glass

  • Built-in swivel casters with leveling feet for mobility and stability

Integrated Safety Systems

  • Built-in circuit breaker

  • Overheat shutoff protection

  • Alarm notification for out-of-range temperature shutdown

Ideal for Extraction & Laboratory Processing

  • Excellent for oil extract curing and degassing

  • Rapid solvent purging and drying applications

Fast US Shipping & Technical Support

  • Ships from New Jersey or Nevada

  • US-based engineering support within 30 minutes

Technical Specifications

Electrical Requirements

110V Model

  • 110V ±10%

  • 60Hz

  • Single Phase

  • 13.6A

  • 1,500 Watts

220V Model

  • 220V ±10%

  • 50/60Hz

  • Single Phase

  • 6.8A

  • 1,500 Watts

Heating System

  • Shelf Heating Power: 500W per shelf

  • Total Heated Shelves: 3

  • Designed for fast, energy-efficient, and uniform heating

Chamber

  • Capacity: 3.2 Cubic Feet

  • Interior Dimensions: 18" x 18" x 18"

  • Material: Stainless Steel

Temperature Control

  • Controller: 3rd Generation Low Proportional Gain PID Controller

  • Display Units: Fahrenheit or Celsius

  • Temperature Range: Ambient to 150°C (302°F)

  • Temperature Uniformity: ±5% of setpoint

  • Timer Range: 1 – 9999 minutes

Vacuum System

  • Ultimate Vacuum Level: Better than 500 microns / millitorr

  • Mechanical Gauge Range: 0 – 30 inHg

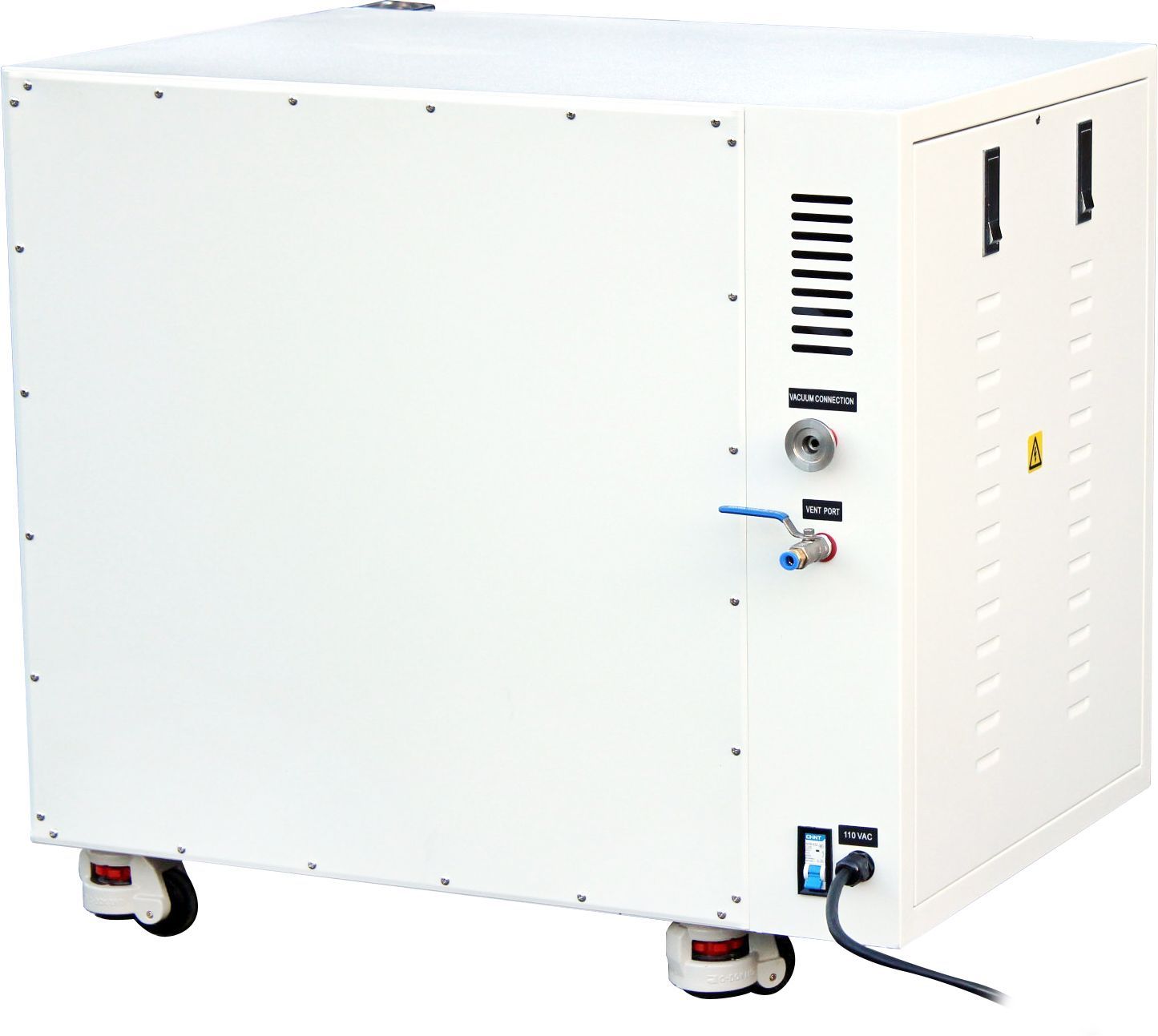

  • Vacuum Port: KF25 Flange

  • Vent Port: 1/4" Ball Valve

  • Vacuum Pump: Sold Separately

Dimensions & Weight

  • Unit Dimensions: 30.5" x 24" x 29"

  • Shipping Dimensions: 36" x 33" x 35"

  • Unit Weight: 240 lbs

  • Shipping Weight: 380 lbs

Shelf System

Built-In Heated Shelves

  • 3 non-removable aluminum shelves

  • Shelf Size: 17.5" x 17.25"

Shelf Capacity

Without stackable shelves:

  • 6 sq ft total shelf area

  • 906 sq in

With optional stackable shelves:

  • 12 sq ft total shelf area

  • 1,812 sq in

Shelf Spacing

Without stackable shelves:

  • 4.75 inches

With stackable shelves:

  • 2.25 inches

Load Capacity

  • 20 lbs per shelf

Materials & Construction

  • Chamber Interior: Stainless Steel

  • Door Gasket Material: Silicone (Standard), Viton (Optional)

  • Observation Window: ½" Tempered Safety Glass

  • Interior Lighting: White LED

Compliance & Manufacturing Standards

Manufactured in accordance with:

  • ISO 9001:2000

  • ISO 12100-1:2003

  • ISO 12100-2:2003

  • EN1050:1996

  • EN294:1992

  • EN60204-1:2006

  • CE Certified

What's Included

  • 1 × Across International AT32e Vacuum Oven

  • 2 × KF25 Quick Clamp & Centering Ring Sets

  • 1 × LED Light Cable

  • 1 × User Manual

Warranty

  • 1 Year Manufacturer Warranty

  • Lifetime US-Based Parts & Service Support

Important Safety Notice

Never leave the oven unattended while operating.
Across International is not responsible for any loss of material inside the oven.
