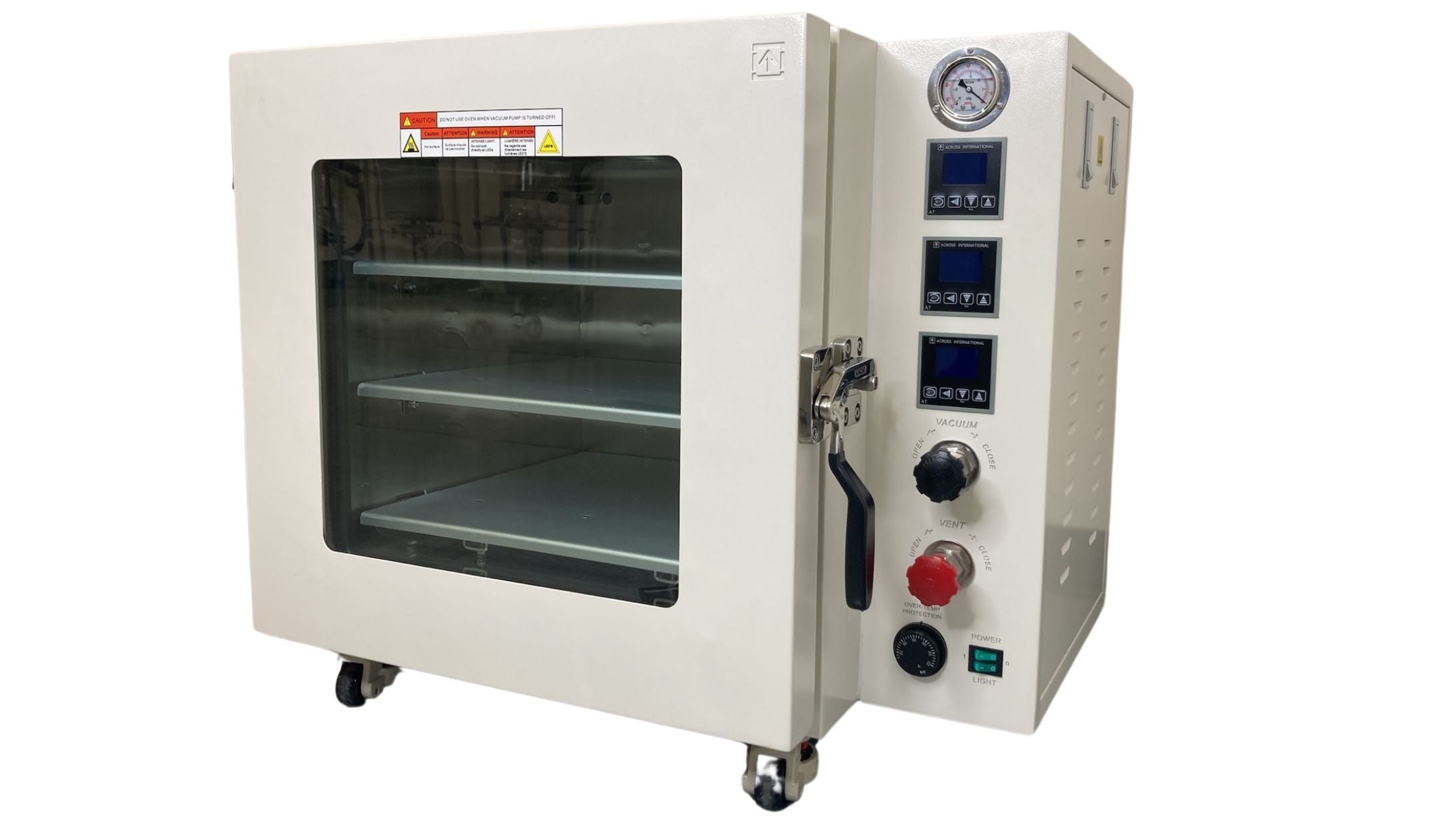

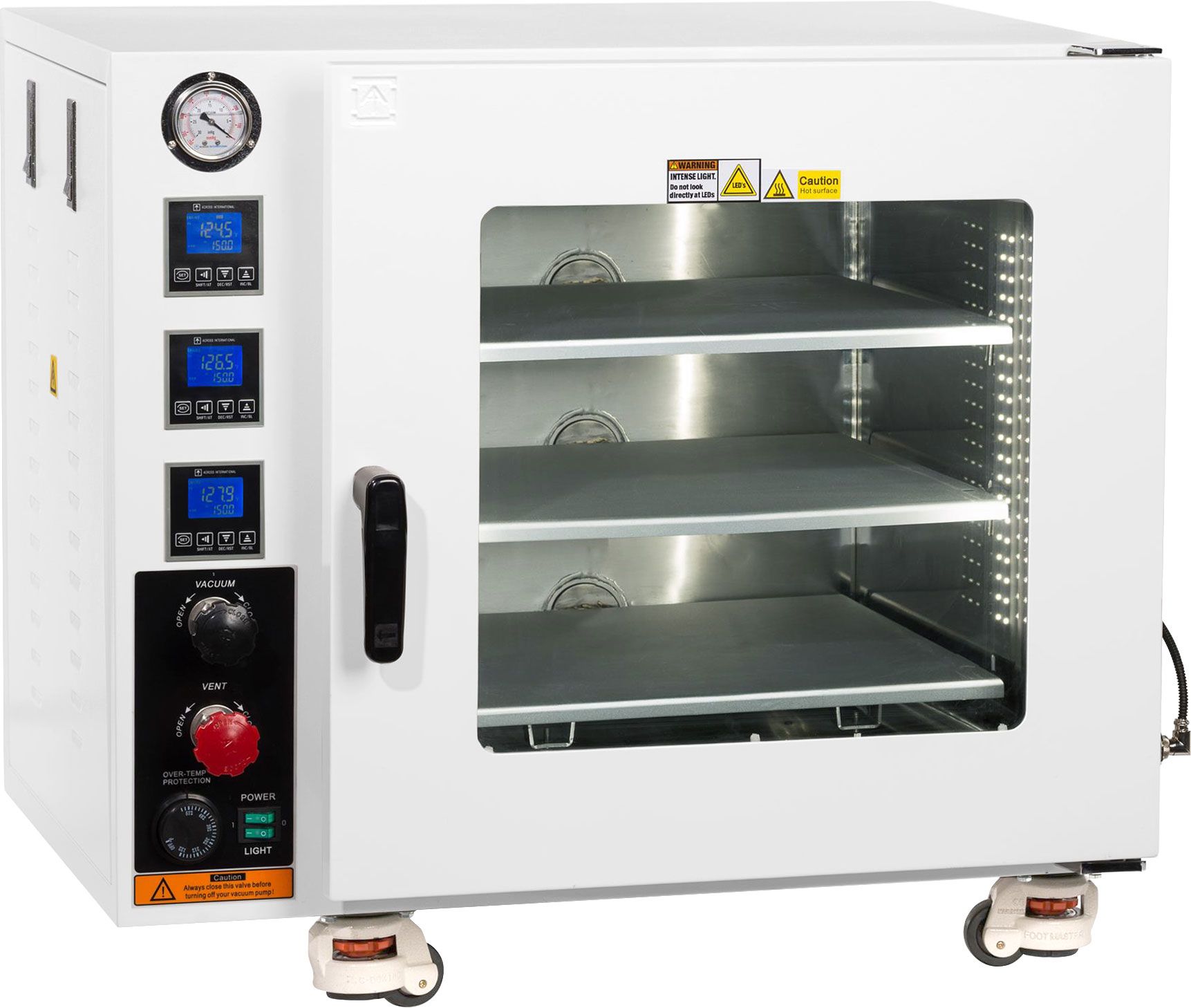

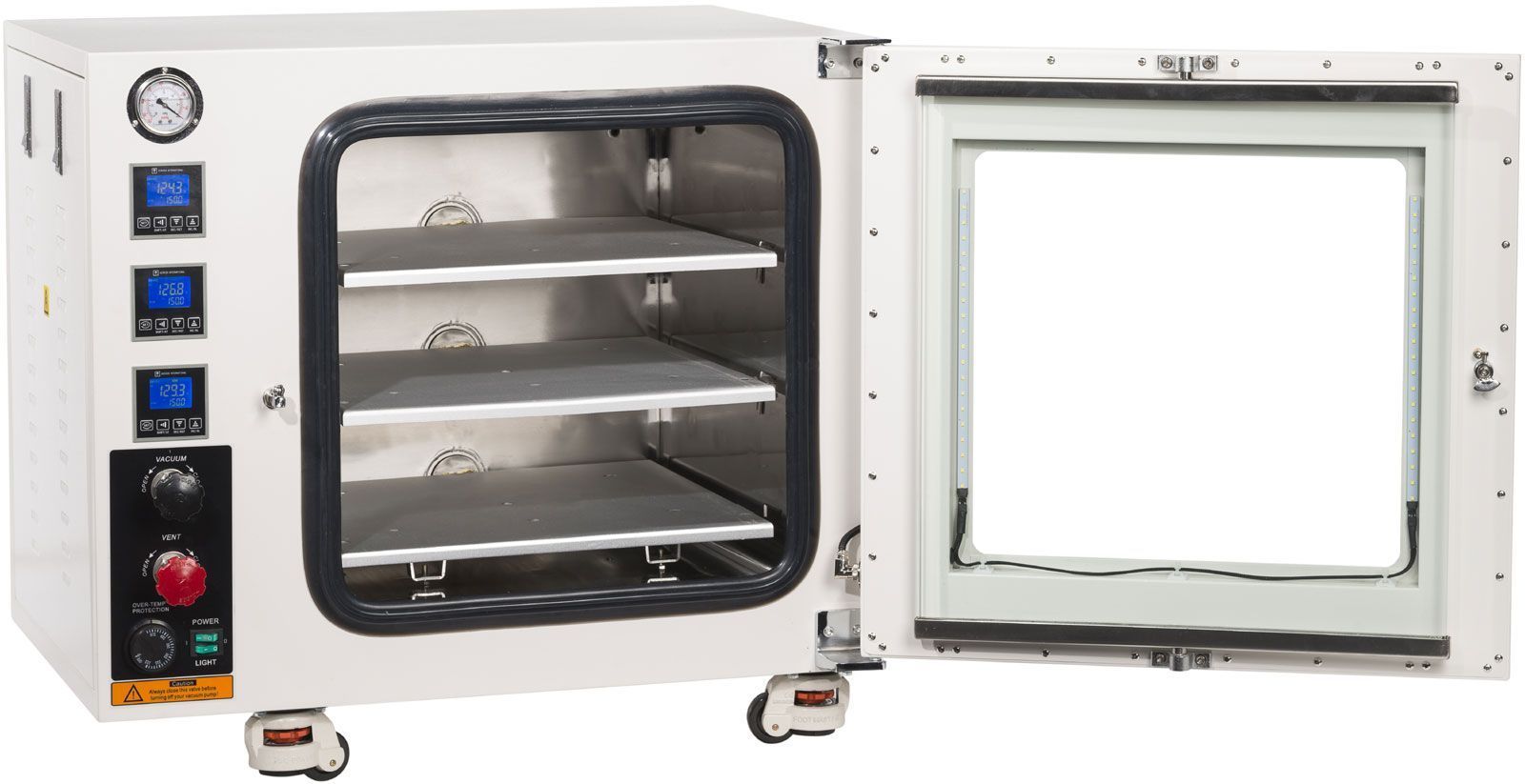

The Across International AT32-UL Vacuum Oven is a UL-certified laboratory vacuum oven designed for high-precision drying, curing, degassing, and solvent removal applications. With a 3.2 cubic foot stainless steel chamber, this advanced vacuum oven delivers exceptional temperature uniformity, rapid heating rates, and superior vacuum performance.

Unlike traditional vacuum ovens, the AT32-UL features individually heated aluminum shelves with integrated temperature sensors and controllers, providing extremely accurate and consistent heating throughout the chamber. Combined with advanced 4th generation low proportional gain temperature control technology, this system ensures fast ramp times, minimal heat loss, and improved energy efficiency.

The UL certification meets strict safety requirements required by many municipalities, laboratories, and industrial facilities, ensuring a higher standard of equipment safety, reliability, and lifespan.

Each oven undergoes two separate 24-hour vacuum leak tests and is fully quality controlled in New Jersey or Nevada before shipment.

---

Key Features

UL Certified Laboratory Safety

• UL Listed (E482564) for enhanced safety compliance

• Meets requirements for many laboratories, research facilities, and municipalities

• Built to higher safety and durability standards

Advanced Heated Shelf Technology

• 3 aluminum heating shelves with built-in heaters

• Individual in-shelf temperature sensors

• Dedicated temperature controllers for each shelf

• Provides extremely uniform heating and faster temperature ramp rates

Ultra-Fast Heating Performance

• Warm-up to 100°F in ~35 minutes

• Warm-up to 480°F in ~60 minutes

Stainless Steel Vacuum System

• All stainless steel internal tubing and compression fittings

• Maintains vacuum up to 10x longer

• Requires minimal maintenance

Precision Temperature Control

• 4th generation low proportional gain PID controllers

• Microcomputer controlled with LCD display

• Temperature range: Ambient to 250°C (480°F)

KF25 Inlet Filtration System

• Included KF25 inlet filter keeps contaminants out of the chamber

• Helps maintain vacuum integrity and equipment longevity

High-Accuracy Vacuum Monitoring

• Oil-filled mechanical vacuum gauge

• More accurate readings and extended gauge lifespan

Industrial Safety & Monitoring

• Secondary over-temperature protection dial

• Built-in circuit breaker

• Overheat shutdown protection

• Safety alarm notification system

Heavy-Duty Construction

• Stainless steel interior chamber

• Dual-layer observation window with 5/8" tempered safety glass

• Built-in swivel casters with leveling feet

Optimized for Extraction & Laboratory Processing

• Ideal for oil extract curing, solvent purging, degassing, and heat-sensitive materials

• Vacuum environment lowers boiling point and significantly reduces drying time

Fast US Shipping & Technical Support

• Ships from New Jersey or Nevada

• US-based phone and email engineering support within 30 minutes

---

Technical Specifications

Electrical Requirements

110V Model

• 110V ±10%

• 60Hz

• Single Phase

• 13.6A

• 1,500 Watts

220V Model

• 220V ±10%

• 50/60Hz

• Single Phase

• 6.8A

• 1,500 Watts

---

Heating System

• Shelf Heating Power: 500W per shelf

• Total Heated Shelves: 3

• Built-in heaters for fast and uniform heating

• Designed for energy efficiency and precise temperature control

---

Chamber

• Capacity: 3.2 Cubic Feet

• Interior Dimensions: 18" x 18" x 18"

• Material: Stainless Steel

---

Temperature Control

• Controller: Low proportional gain PID microcomputer controller

• Display: LCD

• Temperature Range: Ambient to 250°C (480°F)

• Temperature Uniformity: ±5% of setpoint

• Timer Range: 1 – 9999 minutes

---

Heating Performance

• Warm-up Time to 100°F: ~35 minutes

• Warm-up Time to 480°F: ~60 minutes

---

Vacuum System

• Ultimate Vacuum Level: Better than 500 microns / millitorr

• Mechanical Gauge Range: 0 – 30 inHg

• Vacuum Port: KF25 Flange

• Vent Port: KF25 Flange

• Vacuum Pump: Sold Separately

Note: SST tubing refers to internal stainless steel tubing and compression fittings. External tubing not included.

---

Dimensions & Weight

• Unit Dimensions: 30.5" x 24" x 29"

• Shipping Dimensions: 36" x 33" x 35"

• Unit Weight: 260 lbs

• Shipping Weight: 400 lbs

---

Shelf System

Built-In Heated Shelves

• Quantity: 3 non-removable aluminum shelves

• Shelf Size: 17.5" x 17.25"

Shelf Capacity

Without stackable shelves:

• 6 sq ft total area

• 906 sq in

With optional stackable shelves:

• 12 sq ft total area

• 1812 sq in

Shelf Spacing

Without stackable shelves:

• 4.75 inches

With stackable shelves:

• 2.25 inches

Load Capacity

• 20 lbs per shelf

---

Materials & Construction

• Chamber Interior: Stainless Steel

• Door Gasket: Silicone or Viton

• Observation Window: Tempered Safety Glass

• Interior Lighting: White LED

---

Compliance & Certifications

Manufactured in accordance with:

• UL 61010-1

• CSA C22.2

• UL Listed (E482564)

• ISO 9001:2000

• ISO 12100-1:2003

• ISO 12100-2:2003

• EN1050:1996

• EN294:1992

• EN60204-1:2006

• CE Certified

---

What's Included

• 1 × Across International AT32-UL Vacuum Oven

• 2 × KF25 Quick Clamp and Centering Ring Sets

• 1 × KF25 Inlet Filter

• 1 × LED Light Cable

• 1 × User Manual

---

Warranty

• 2 Year Manufacturer Warranty

• Lifetime US-Based Parts & Service Support

---

Important Safety Notice

⚠️ Never leave the oven unattended while operating.
Across International is not responsible for loss of material inside the oven.
