Across International
Price:
$2,690.00

Description

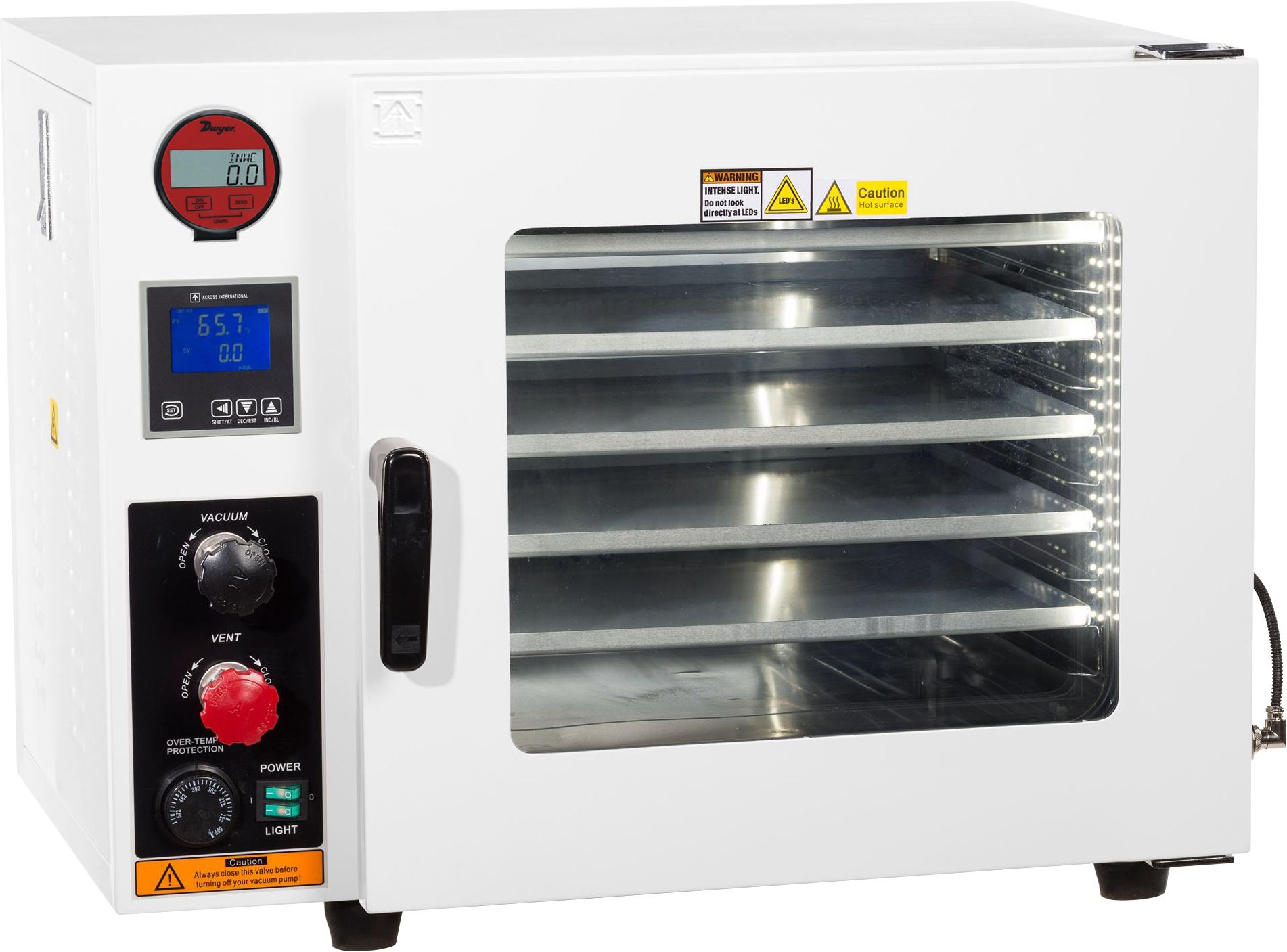

The Across International AT19-UL Vacuum Oven is a UL-certified laboratory vacuum oven designed for precise drying, curing, degassing, and solvent removal applications. Featuring a 1.9 cubic foot stainless steel chamber, this compact yet powerful vacuum oven provides excellent temperature control and reliable vacuum performance while maintaining a small laboratory footprint.

Equipped with advanced 5-sided pad heating technology, thermal-conductive aluminum shelves, and a 4th generation PID temperature controller, the AT19-UL delivers outstanding temperature uniformity, faster heating rates, and precise temperature stability. The oven also includes all stainless steel internal tubing and compression fittings, allowing the system to maintain deeper vacuum levels and longer vacuum hold times compared to rubber tubing systems.

Each oven undergoes two separate 24-hour vacuum leak tests and is 100% quality controlled in New Jersey or Nevada before shipment.

Key Features

UL Certified Laboratory Safety

  • UL Listed (E482564)

  • CSA compliant safety design

  • Meets safety requirements for laboratories and regulated facilities

Advanced 5-Sided Heating Technology

  • Heating elements on five sides of the chamber

  • Improves heat distribution and uniformity

  • Up to 25% faster heating performance

Precision Temperature Control

  • 4th generation low proportional gain PID controller

  • LCD display for accurate monitoring

  • Temperature range: Ambient to 250°C (480°F)

Stainless Steel Vacuum System

  • All stainless steel internal tubing and compression fittings

  • Maintains vacuum up to 10× longer

  • Provides cleaner and more durable vacuum connections

Note: SST tubing refers to internal stainless steel tubing and compression fittings. External tubing not included.

Adjustable Gas Backfill Capability

  • Needle valve and vent port allow controlled gas backfill when required

Efficient Vacuum Drying

  • Vacuum environment lowers boiling point for heat-sensitive materials

  • Reduces drying time for powders, pastes, and solvent-based materials

Heavy-Duty Laboratory Construction

  • Stainless steel chamber interior

  • Dual-layer observation window with ½" tempered safety glass

  • 3” thermal insulation reduces heat loss and exterior temperatures

Built-In Safety Systems

  • Secondary over-temperature protection dial

  • Built-in circuit breaker

  • Overheat shutdown protection

  • Alarm notification system

Fast US Shipping & Support

  • Ships from New Jersey or Nevada

  • US-based engineering support within 30 minutes

Technical Specifications

Electrical Requirements

110V Model

  • 110V ±10%

  • 60Hz

  • Single Phase

  • 13.6A

  • 1,500 Watts

220V Model

  • 220V ±10%

  • 50/60Hz

  • Single Phase

  • 6.8A

  • 1,500 Watts

Chamber

  • Capacity: 1.9 Cubic Feet

  • Interior Dimensions: 16.5" × 14.5" × 14"

  • Material: Stainless Steel

Heating System

5-Sided Heating

  • Left Heater: 350W

  • Right Heater: 350W

  • Top Heater: 220W

  • Bottom Heater: 480W

  • Rear Heater: 100W

Temperature Control

  • Controller: Microcomputer PID controller with LCD display

  • Temperature Range: Ambient to 250°C (480°F)

  • Display Units: Fahrenheit or Celsius

  • Temperature Uniformity: ±5% of setpoint

  • Timer Range: 1 – 9999 minutes

  • Warm-up Time to 100°F: ~45 minutes

Vacuum System

  • Ultimate Vacuum Level: Better than 500 microns / millitorr

  • Mechanical Gauge Range: 0 – 30 inHg

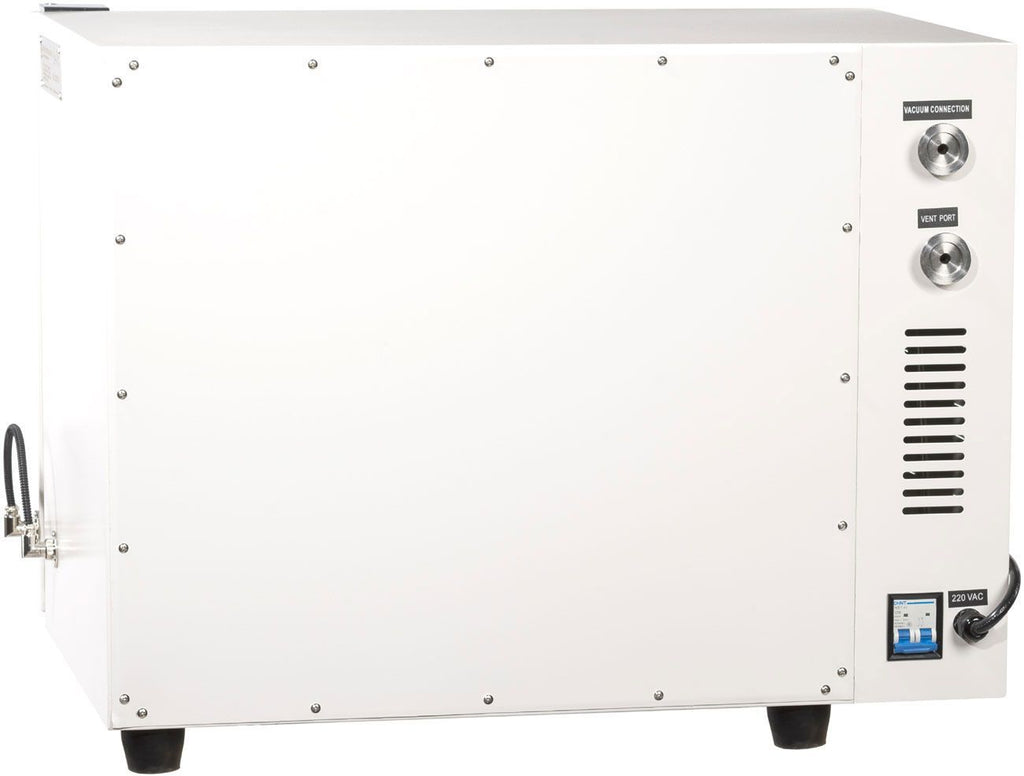

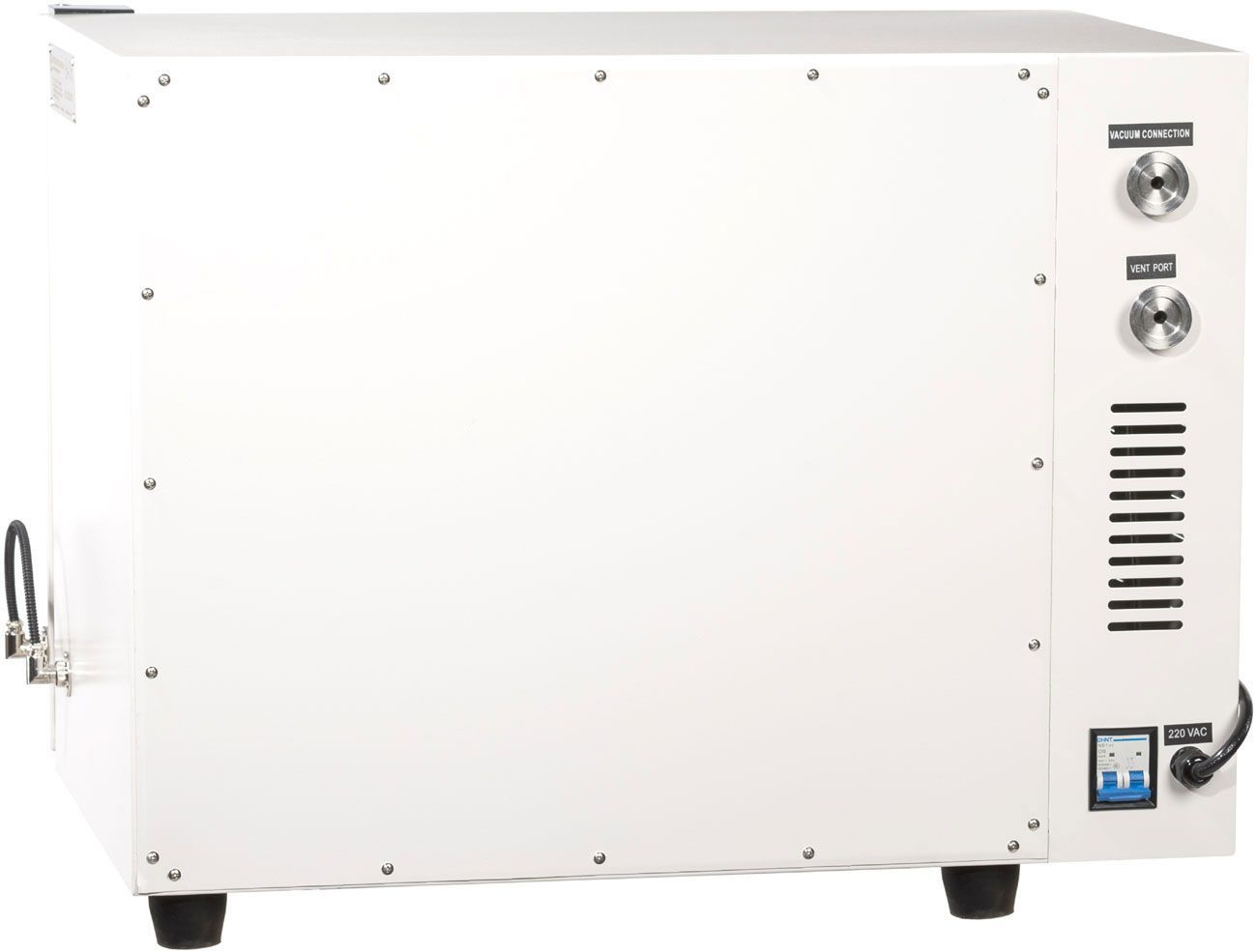

  • Vacuum Port: KF25 Flange

  • Vent Port: KF25 Flange

  • Vacuum Pump: Sold Separately

Dimensions & Weight

  • Unit Dimensions: 28" × 20" × 21.75"

  • With Handle & Vacuum Port: 28" × 23" × 21.75"

  • Shipping Dimensions: 32" × 28" × 29"

  • Unit Weight: 140 lbs

  • Shipping Weight: 240 lbs

Shelf System

Included Shelves

  • 5 Aluminum Slide-In Shelves Included

Maximum Shelf Capacity

  • 10 Shelves Maximum

Shelf Specifications

  • Shelf Size: 16" × 14.25"

  • Shelf Style: Pan-shape

  • Shelf Spacing: 1 inch

Shelf Area

With 10 shelves installed:

  • 16 sq ft total shelf area

  • 2,280 sq in

Materials & Construction

  • Chamber Interior: Stainless Steel

  • Door Gasket: Silicone or Viton

  • Observation Window: ½" Tempered Safety Glass

  • Interior Lighting: White LED

Compliance & Certifications

Manufactured in accordance with:

  • UL 61010-1

  • CSA C22.2

  • UL Listed (E482564)

  • ISO 9001:2000

  • ISO 12100-1:2003

  • ISO 12100-2:2003

  • EN1050:1996

  • EN294:1992

  • EN60204-1:2006

  • CE Certified

What's Included

  • 1 × Across International AT19-UL Vacuum Oven

  • 5 × Aluminum Shelves

  • 1 × KF25 Quick Clamp & Centering Ring Set

  • 1 × LED Light Cable

  • 1 × User Manual

Warranty

  • 2 Year Manufacturer Warranty

  • Lifetime US-Based Parts & Service Support

Initial Operating Instructions

Before first use, run the oven at 200°C (400°F) without vacuum for 15 minutes to burn off any residue introduced during manufacturing.

Important Safety Notice

⚠️ Never leave the oven unattended while operating.
Across International is not responsible for any loss of material inside the oven.
