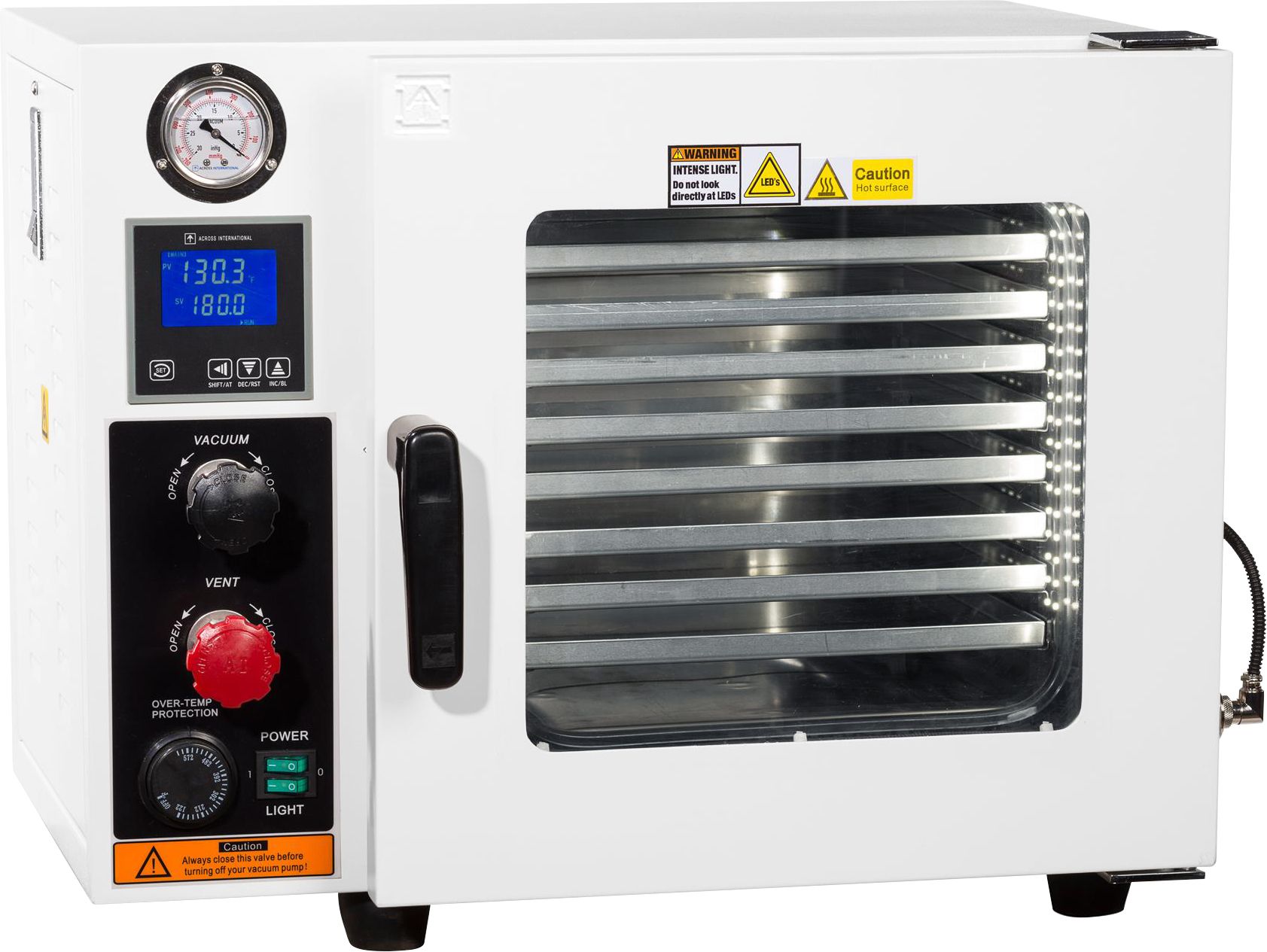

The Across International AT09-UL Vacuum Oven is a UL-certified laboratory vacuum oven designed for high-precision drying, curing, degassing, and solvent removal applications. Featuring a 0.9 cubic foot stainless steel chamber, this compact desktop vacuum oven provides reliable vacuum performance while maintaining a small footprint ideal for laboratory workspaces.

Equipped with advanced 5-sided pad heating technology, thermal-conductive aluminum shelves, and a 4th generation PID temperature controller, the AT09-UL delivers excellent temperature uniformity, faster heating rates, and precise temperature control. The system also includes all stainless steel internal tubing and compression fittings, ensuring stronger vacuum integrity and long-term reliability.

Each oven undergoes two separate 24-hour vacuum leak tests and is 100% quality controlled in New Jersey or Nevada before shipment to ensure dependable performance.

---

Key Features

UL & CSA Certified Laboratory Safety

• UL Listed (E482564)

• CSA compliant for laboratory safety standards

• Meets safety requirements for regulated laboratory environments

Advanced 5-Sided Heating Technology

• Heating elements on five sides of the chamber

• Provides faster heating rates and excellent temperature uniformity

• Up to 25% faster heating compared to traditional vacuum ovens

Precision Temperature Control

• 4th generation low proportional gain PID controller

• LCD display for accurate temperature monitoring

• Temperature range: Ambient to 250°C (480°F)

Stainless Steel Vacuum System

• All stainless steel internal tubing and compression fittings

• Maintains vacuum up to 10x longer

• Requires minimal maintenance

Note: SST tubing refers to internal stainless steel tubing and compression fittings. External tubing not included.

Adjustable Gas Backfill Capability

• Needle valve and vent port allow controlled gas backfill for specialized applications

Vacuum Processing Efficiency

• Vacuum environment lowers boiling point for heat-sensitive materials

• Significantly reduces drying time for powders, pastes, and solvents

Heavy-Duty Laboratory Construction

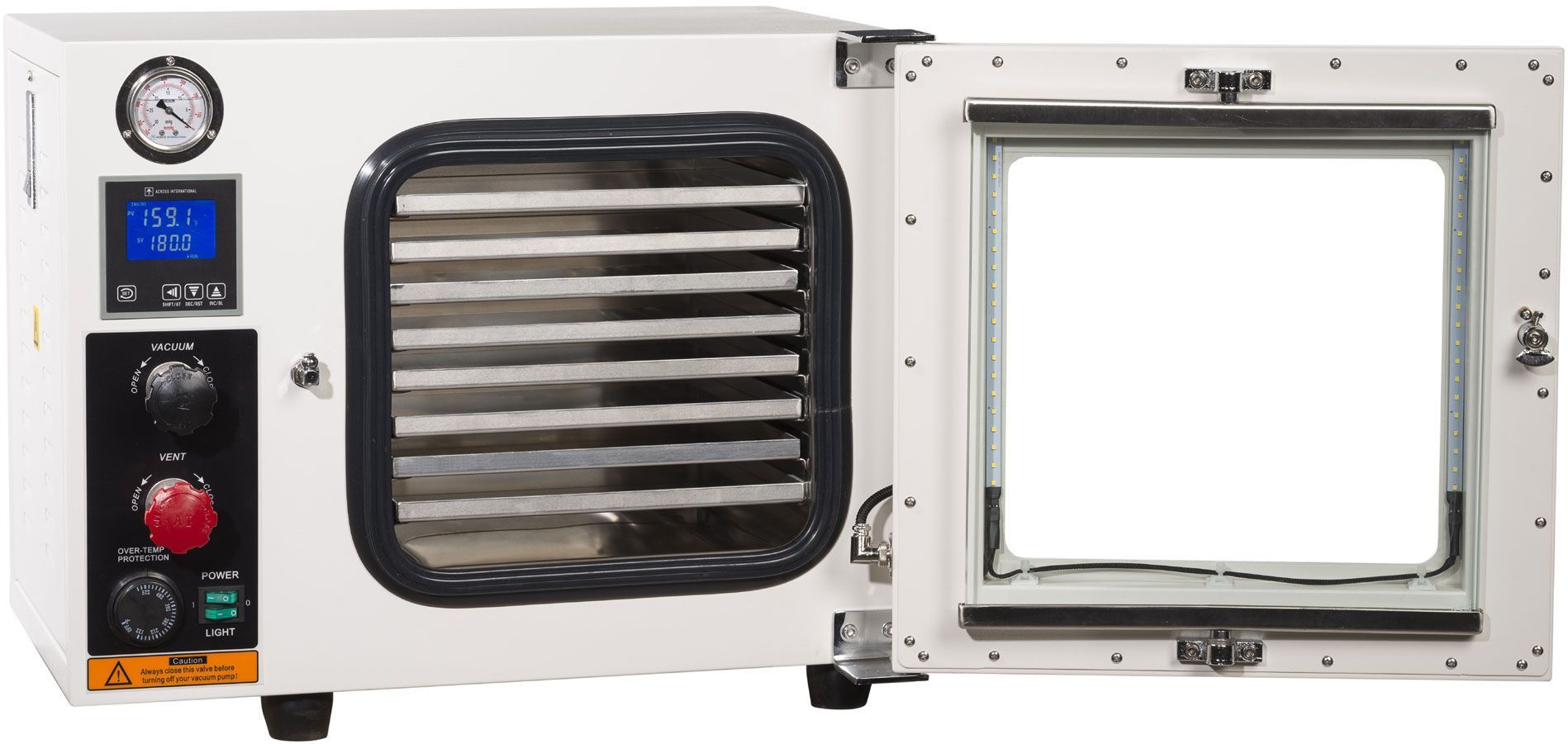

• Stainless steel interior chamber

• Dual-layer observation window with ½" tempered safety glass

• 3” thermal insulation reduces heat loss and exterior temperature

Built-In Safety Systems

• Secondary over-temperature protection dial

• Built-in circuit breaker

• Overheat shutdown protection

• Alarm notification for temperature safety shutdown

Fast US Shipping & Technical Support

• Ships from New Jersey or Nevada

• US-based engineering support within 30 minutes

---

Technical Specifications

Electrical Requirements

• Voltage: 110V ±10%

• Frequency: 60Hz

• Phase: Single Phase

• Current: 13.6A

• Power Consumption: 1,500 Watts

---

Chamber

• Capacity: 0.9 Cubic Feet

• Interior Dimensions: 12" x 12" x 11"

• Material: Stainless Steel

---

Heating System

5-Sided Heating

• Left Heater: 350W

• Right Heater: 350W

• Top Heater: 220W

• Bottom Heater: 480W

• Rear Heater: 100W

---

Temperature Control

• Controller: Microcomputer PID Controller with LCD Display

• Temperature Range: Ambient to 250°C (480°F)

• Display Units: Fahrenheit or Celsius

• Temperature Uniformity: ±5% of setpoint

• Timer Range: 1 – 9999 minutes

• Warm-up Time to 100°F: ~40 minutes

---

Vacuum System

• Ultimate Vacuum Level: Better than 500 microns / millitorr

• Mechanical Gauge Range: 0 – 30 inHg

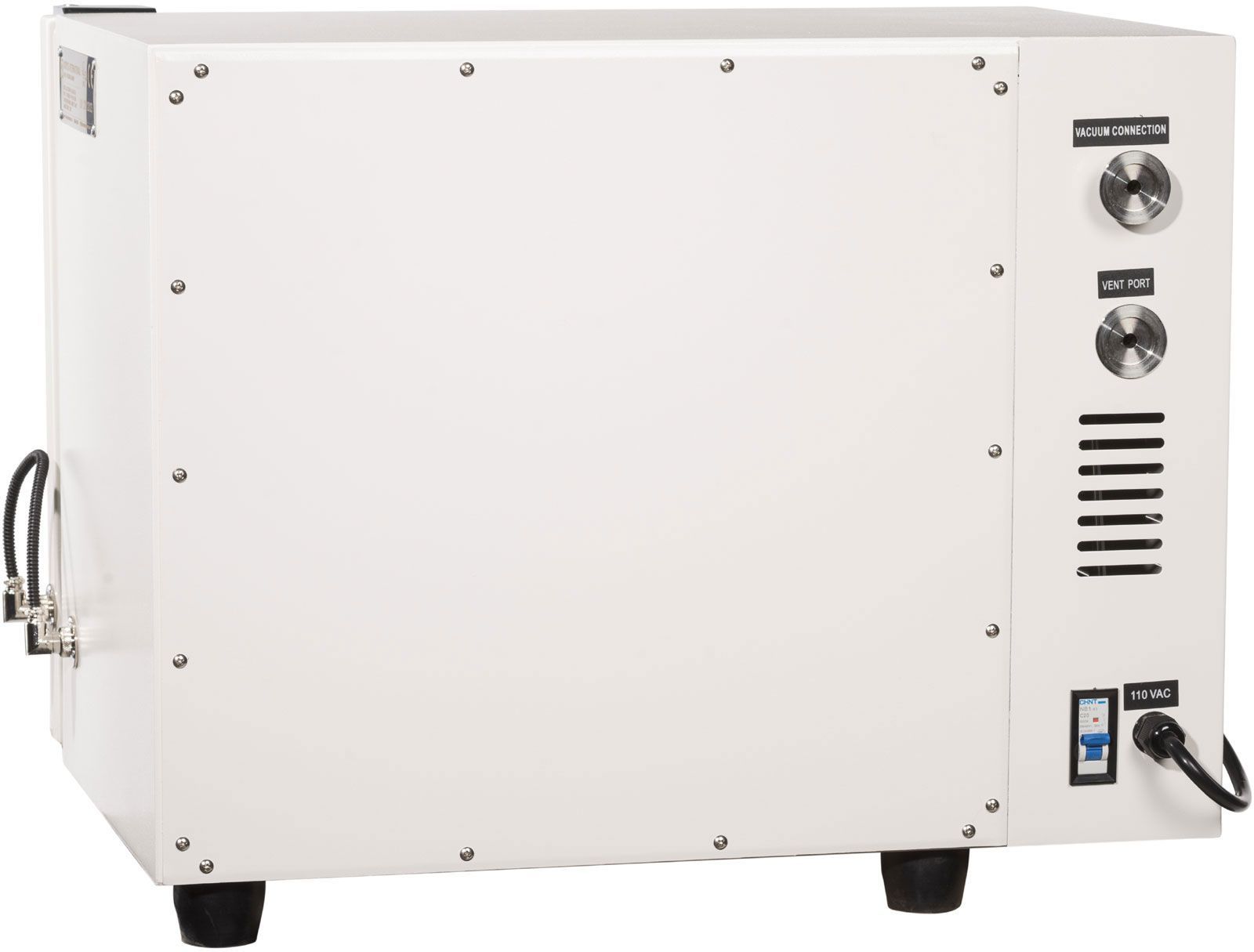

• Vacuum Port: KF25 Flange

• Vent Port: KF25 Flange

• Vacuum Pump: Sold Separately

---

Dimensions & Weight

• Unit Dimensions: 23.4" x 17.25" x 19"

• With Handle & Vacuum Port: 23.4" x 20" x 19"

• Shipping Dimensions: 29" x 29" x 29"

• Unit Weight: 90 lbs

• Shipping Weight: 165 lbs

---

Shelf System

Included Shelves

• 4 Aluminum Pan Shelves Included

Maximum Capacity

• 8 Shelf Capacity

Shelf Specifications

• Shelf Size: 11.5" x 11.25"

• Shelf Style: Pan-shape

• Shelf Spacing: 1 inch

Shelf Area

With 8 shelves installed:

• 7 sq ft total shelf area

• 1,035 sq in

Load Capacity

• Inner Chamber Load Capacity: <30 kg recommended

• Shelf Load Capacity: <10 kg recommended

---

Materials & Construction

• Chamber Interior: Stainless Steel

• Door Gasket: Silicone or Viton

• Observation Window: ½" Tempered Safety Glass

• Interior Lighting: White LED

---

Compliance & Certifications

Manufactured in accordance with:

• UL 61010-1

• CSA C22.2

• UL Listed (E482564)

• ISO 9001:2000

• ISO 12100-1:2003

• ISO 12100-2:2003

• EN1050:1996

• EN294:1992

• EN60204-1:2006

• CE Certified

---

What's Included

• 1 × Across International AT09-UL Vacuum Oven

• 4 × Aluminum Pan Shelves

• 1 × KF25 Quick Clamp & Centering Ring Set

• 1 × LED Light Cable

• 1 × User Manual

---

Warranty

• 2 Year Manufacturer Warranty

• Lifetime US-Based Parts & Service Support

---

Initial Operating Instructions

Before first use, run the oven at 200°C (400°F) without vacuum for 15 minutes to burn off any residue from the manufacturing process.

---

Important Safety Notice

Never leave the oven unattended while operating.
Across International is not responsible for loss of material inside the oven.
