Ultra-High Precision Analytical Balance with Internal Calibration and Advanced Data Management

The Radwag AS 120.R2 PLUS Analytical Balance is a high-performance analytical weighing instrument designed for ultra-precise laboratory measurements with 0.01 mg readability and 120 g capacity. Part of the SYNERGY LAB product line, the AS R2 PLUS series combines advanced mechanical design with intelligent data management and automation features to ensure maximum measurement accuracy, reliability, and ease of operation.

The spacious weighing chamber and ergonomic open-door design provide convenient access to the weighing pan, allowing the use of laboratory glassware of various sizes. A new aluminum base construction enhances weighing stability, while the Dual-CLICK system enables tool-free assembly and disassembly of the weighing chamber for easy cleaning and maintenance.

The balance includes automatic internal adjustment, which compensates for environmental changes such as temperature fluctuations to maintain precise measurement results. Additionally, the antistatic coating on the weighing chamber glass reduces electrostatic interference, improving weighing accuracy for ultra-light samples.

Equipped with multiple communication interfaces including RS232, USB, Ethernet, and optional Wi-Fi, the AS 120.R2 PLUS easily integrates with laboratory information systems, printers, and computers.

---

Key Features of the Radwag AS 120.R2 PLUS Analytical Balance

Ultra-High Precision Measurement

Provides 0.01 mg readability with 120 g maximum capacity, ideal for analytical laboratory applications requiring extreme precision.

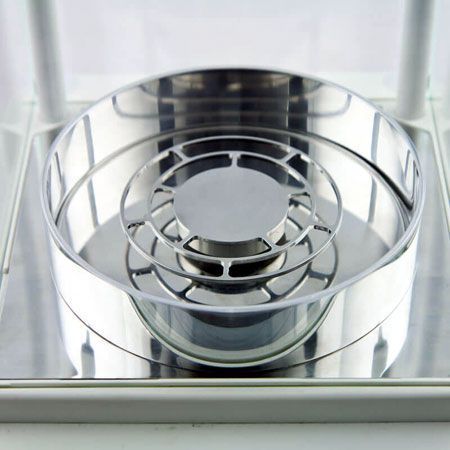

Spacious Weighing Chamber

Large weighing chamber and wide door clearance allow convenient handling of laboratory vessels and samples.

Internal Automatic Calibration

Modern internal adjustment system automatically compensates for environmental changes to maintain measurement accuracy.

Anti-Static Glass Coating

Special antistatic pane coating reduces electrostatic interference that could affect weighing results.

Ergonomic Mechanical Construction

New aluminum base design improves balance stability and durability.

Dual-CLICK Chamber System

Allows tool-free removal and installation of weighing chamber components for fast cleaning.

Front Levelling System

Two-point levelling system located at the front of the balance simplifies setup and level adjustment.

Backlit LCD Display

Clear backlit LCD display provides easy viewing of measurement results and additional information.

Advanced Connectivity

Communication interfaces include:

• 2 × RS232

• USB Type A

• USB Type B

• Ethernet

• Optional Wi-Fi

A front USB port allows easy connection of flash drives and external devices.

Device Security

Integrated Kensington Lock slot protects the instrument against theft.

---

Integrated Data Management System

The AS R2 PLUS series includes an advanced internal data system supporting multiple users and product databases.

Database Capacity

• Operators: up to 10 users

• Products: up to 1000 products

• Weighings: up to 5000 records

• Tares: up to 100 tare values

• ALIBI memory: up to 100,000 weighments

ALIBI Memory

The built-in ALIBI memory securely records weighing results, ensuring long-term traceability and regulatory compliance.

Data Protection

Access to stored data requires user authentication, allowing administrators to manage user permissions and data access.

---

Advanced Weighing Functions

The AS 120.R2 PLUS analytical balance supports multiple professional weighing modes.

Autotest

Automatic diagnostic system verifying repeatability and metrological parameters based on real operating conditions.

Dosing

Allows precise dosing based on reference mass with tolerance limits, ideal for powders and liquid materials.

Percent Weighing

Compares sample mass to a reference mass and displays results as a percentage.

Totalizing

Adds multiple measurements together to determine the total mass of mixtures.

Parts Counting

Calculates item quantity based on known unit weight with automatic accuracy correction.

Peak Hold

Captures the highest temporary measurement value during dynamic weighing.

Statistics

Provides statistical analysis including:

• Maximum and minimum values

• Average value

• Standard deviation

• Variance

• Measurement range

Checkweighing

Determines whether a sample weight falls within predefined tolerance limits.

Under-Pan Weighing

Allows suspended weighing of irregular objects or materials with magnetic properties.

Animal Weighing

Measures weight of moving samples by averaging measurements over time.

Density Determination

Determines density of solids and liquids using Archimedes’ principle with an optional density kit.

GLP Reporting

Supports Good Laboratory Practice (GLP) compliant documentation.

---

Ideal Applications

The Radwag AS 120.R2 PLUS analytical balance is commonly used in:

• Pharmaceutical laboratories

• Chemical analysis laboratories

• Academic research facilities

• Quality control laboratories

• Material science research

• Industrial analytical environments

---

Technical Specifications

Model

AS 120.R2 PLUS

Part Number: WL-104-0191

---

Weighing Performance

Maximum capacity
120 g

Minimum load
1 mg

Readability
0.01 mg

Tare range
−120 g

---

Accuracy

Repeatability (5% Max)
0.015 mg

Repeatability (Max)
0.04 mg

Permissible repeatability (5% Max)
0.02 mg

Permissible repeatability (Max)
0.05 mg

Linearity
±0.07 mg

Stabilization time
2 seconds

---

Minimum Sample Weight

Standard minimum weight (USP)
30 mg

Standard minimum weight (U = 1%, k = 2)
3 mg

---

Adjustment

Internal automatic calibration

---

OIML Classification

Class I

---

Display

Backlit LCD display

---

Weighing Pan

Diameter
3.5 inches

Material
Stainless steel

---

Connectivity

Communication interfaces:

• 2 × RS232

• USB-A

• USB-B

• Optional Wi-Fi

---

Power Requirements

100 – 240 VAC, 50/60 Hz

---

Operating Conditions

Operating temperature
10°C – 40°C

---

Dimensions & Weight

Package dimensions
19.5 × 15.5 × 20 inches

Unit weight
12 lbs

Shipping weight
16 lbs

---

Certification

NTEP Certified

---

Included Components

• Radwag AS 120.R2 PLUS Analytical Balance – 1

• Balance Fabric Cover – 1

• Universal Power Adapter – 1

• Pan Assembly – 1

• Pan Draft Shields – 3 pieces

• Balance Pad – 1

• Start-Up Guide – 1

---

Warranty

2-Year Manufacturer Warranty
