Acid-Resistant Smart Evaporator for Safe Hydrolysis & Solvent Removal

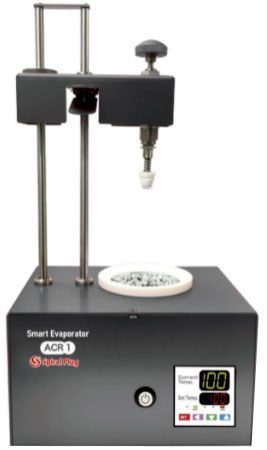

The BioChromato ACR1 Acid-Resistant Smart Evaporator is a specialized bump-free evaporation system designed for laboratories working with acidic solvents, hydrochloric acid hydrolysis, and high-boiling solvents such as DMSO and DMF.

Using BioChromato’s proprietary Vacuum-Assisted Vortex Concentration (VVC) technology, the ACR1 creates a controlled vortex inside the sample container, allowing solvents and acids to evaporate efficiently without bumping or sample loss.

The device features acid-resistant construction with fluorine-based resin components, making it ideal for applications involving protein hydrolysis, peptide hydrolysis, acidic solvent evaporation, and laboratory sample concentration.

Designed for flexibility, the ACR1 supports a wide variety of laboratory containers including HPLC vials, Eppendorf tubes, conical tubes, and test tubes, allowing researchers to concentrate samples directly in their storage containers to minimize sample transfer losses.

Manufactured in Japan by BioChromato, the ACR1 Smart Evaporator is widely used in pharmaceutical, food science, forensic, and biochemical laboratories.

---

Key Features of the BioChromato ACR1 Smart Evaporator

Acid-Resistant Design

The gas-contacting components are constructed from fluorine-based resin with fluorine surface treatment, providing excellent resistance to corrosive acids and solvents.

Bump-Free Evaporation Technology

BioChromato’s VVC (Vacuum-Assisted Vortex Concentration) technology prevents solvent bumping and enables smooth evaporation under normal pressure.

Ideal for Acid Hydrolysis Applications

Commonly used for hydrochloric acid hydrolysis of proteins, peptides, and other compounds requiring controlled solvent evaporation.

Efficient Removal of High-Boiling Solvents

Capable of evaporating difficult solvents including:

• DMSO

• DMF

• Water

• Acidic solvent mixtures

Compatible with Multiple Container Types

Supports a wide range of laboratory containers including:

• 1.5 mL / 2 mL HPLC sample vials

• 5 mL and 20 mL vials

• Eppendorf tubes

• Conical tubes

• Test tubes

This flexibility allows direct in-container sample concentration, minimizing sample transfer loss.

Simplified Maintenance

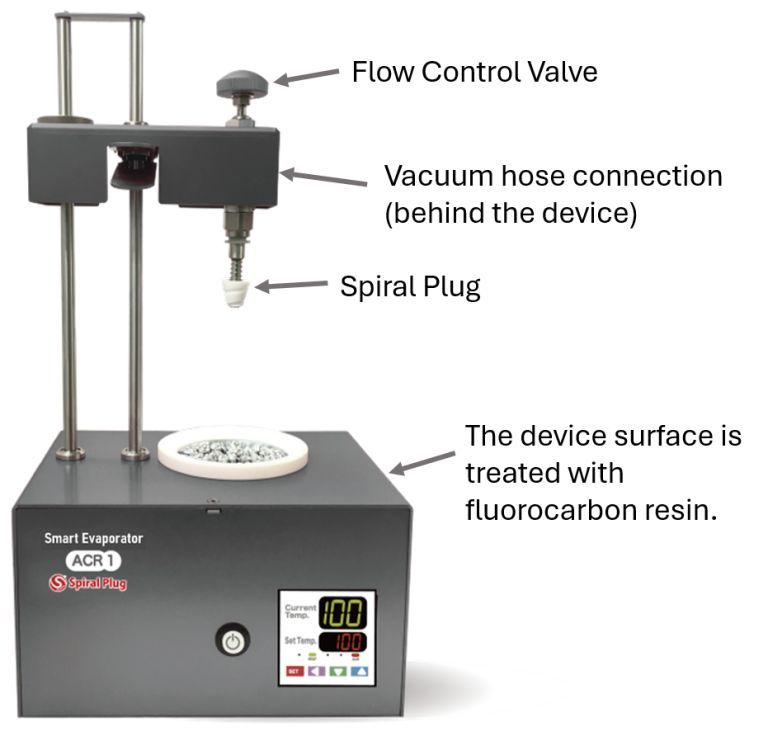

The gas contact system uses only two replaceable parts (Flow Control Valve and Spiral Plug), making maintenance quick and simple.

Improved Sample Recovery

By concentrating samples directly inside storage containers, the system significantly reduces sample loss during transfer steps.

---

Typical Applications

The BioChromato ACR1 Smart Evaporator is commonly used for:

• Hydrochloric acid hydrolysis of proteins

• Peptide bond hydrolysis

• Acidic solvent concentration

• Removal of reaction impurities

• Reaction acceleration during chemical synthesis

• Sample concentration for analytical chemistry

• pH adjustment procedures

• Preparation of biological samples for analysis

---

Ideal Research Fields

Widely used in laboratories specializing in:

• Pharmaceutical research

• Food science

• Forensic analysis

• Biochemistry

• Organic chemistry

• Protein and peptide analysis

---

Technical Specifications

Model

BioChromato ACR1 Smart Evaporator

---

Heating System

Heating temperature range:

Room temperature to 100 °C

Heater shape:

Circular heating block

Heater diameter:

φ69 mm

Heating medium:

Aluminum beads

---

Compatible Container Size

Inner diameter of compatible containers:

φ4 mm – φ32 mm

Examples include:

• HPLC sample vials

• Eppendorf tubes

• Conical tubes

• Test tubes

• Analytical sample vials

---

Operating Environment

Operating temperature:

10 °C – 40 °C

---

Dimensions

8 × 6 × 15 in (W × D × H)
(excluding protruding parts)

Equivalent metric dimensions:

W205 × D150 × H379 mm

---

Weight

4.6 lbs (2.1 kg)

---

Color

Stone finish

---

Included Components

• BioChromato ACR1 Acid-Resistant Smart Evaporator – 1

• Spiral Plug Set (SP-P1 to SP-P5) – 5

• Aluminum Heating Beads – 1 pack

• Power Cord – 1

• Hose Barb – 1

• Instruction Manual – 1

---

Advantages of Smart Evaporator Technology

Compared with traditional evaporation methods, the Smart Evaporator provides:

• Bump-free solvent evaporation

• Faster sample concentration

• Reduced sample loss

• Direct in-container concentration

• Simplified maintenance and cleaning

• Safe evaporation of high-boiling and acidic solvents
