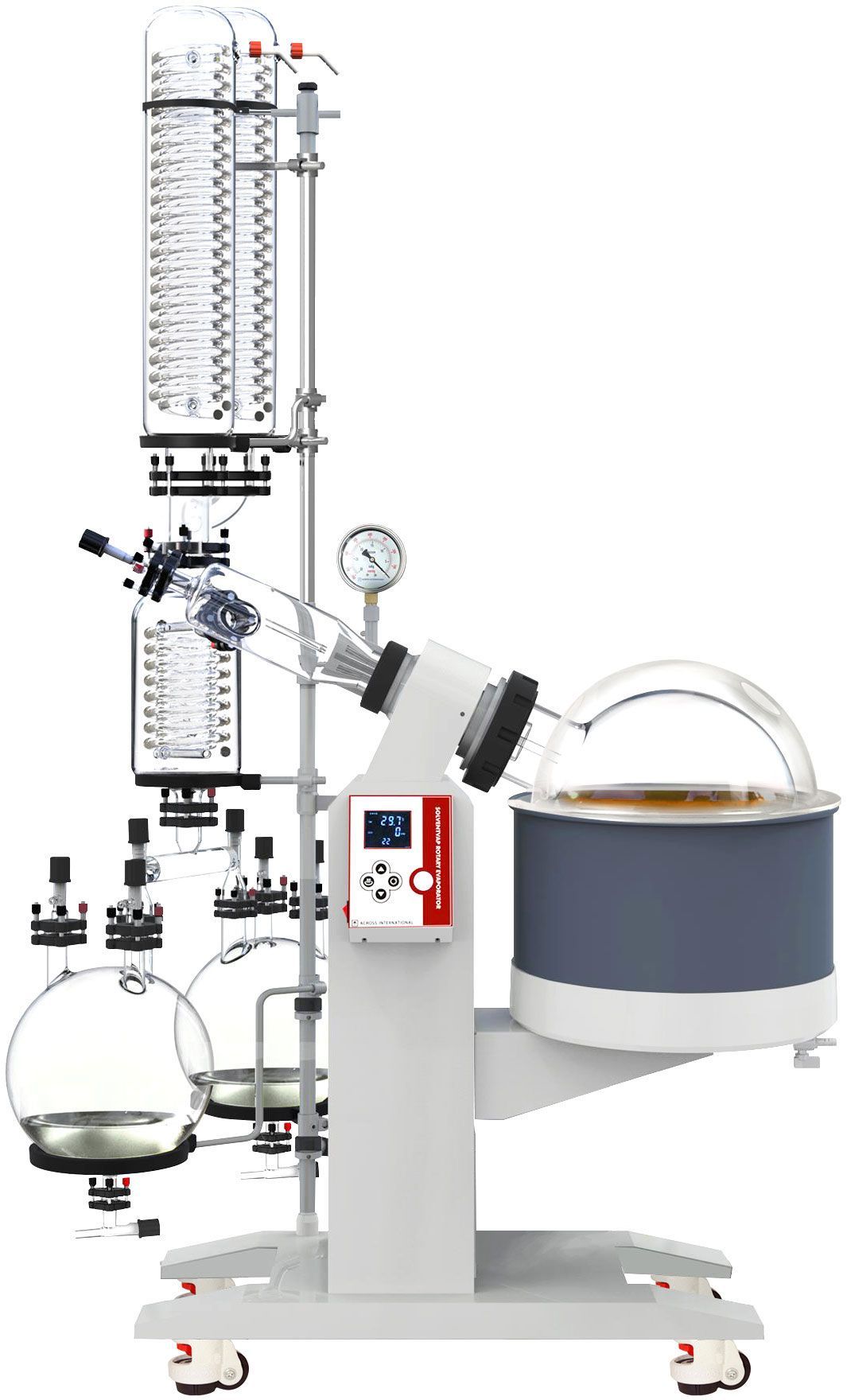

The Across International SolventVap 20L Rotary Evaporator is a large-capacity industrial rotovap system designed for high-volume solvent evaporation, distillation, and solvent recovery. ETL tested to UL and CSA laboratory equipment standards, this system delivers the safety, durability, and performance required by professional laboratories and production facilities.

Engineered for efficiency, the SolventVap 20L features vertical dual condensers, digital temperature and rotation controls, and a motorized lifting water bath. The rotating flask creates a thin film of solvent across the interior glass surface, dramatically increasing evaporation efficiency while reducing solvent boiling points under vacuum.

Constructed from high borosilicate glass 3.3, with solvent-resistant PTFE valves and Viton sealing gaskets, this industrial rotary evaporator is designed for continuous operation in demanding chemical processing environments.

---

Key Features

Industrial 20L Rotary Evaporator

• Large capacity 20 liter evaporation flask

• Ideal for pilot-scale and production solvent recovery

• Designed for chemical processing and extraction labs

---

ETL Tested to UL & CSA Standards

• Certified to UL 61010 laboratory safety standards

• Required by many municipalities and research facilities

• Provides improved operational safety and equipment lifespan

---

Dual Condenser System

The SolventVap 20L uses main and auxiliary triple-circulating condensers to maximize solvent condensation efficiency.

Condensing Surface Area

• Main condenser: 9,480 cm² (10.2 sq ft)

• Auxiliary condenser: 3,580 cm² (3.9 sq ft)

This large condensation area ensures efficient solvent recovery even when processing large solvent volumes.

---

Digital Temperature & Rotation Control

• Digital PID temperature controller

• Adjustable rotation speed

• Clear digital display for precise control

---

Motorized Water Bath Lift

• Smooth motorized lifting system

• Maximum lift distance: 7.5 inches

• Allows safe flask loading and removal

---

New Safety Enhancements

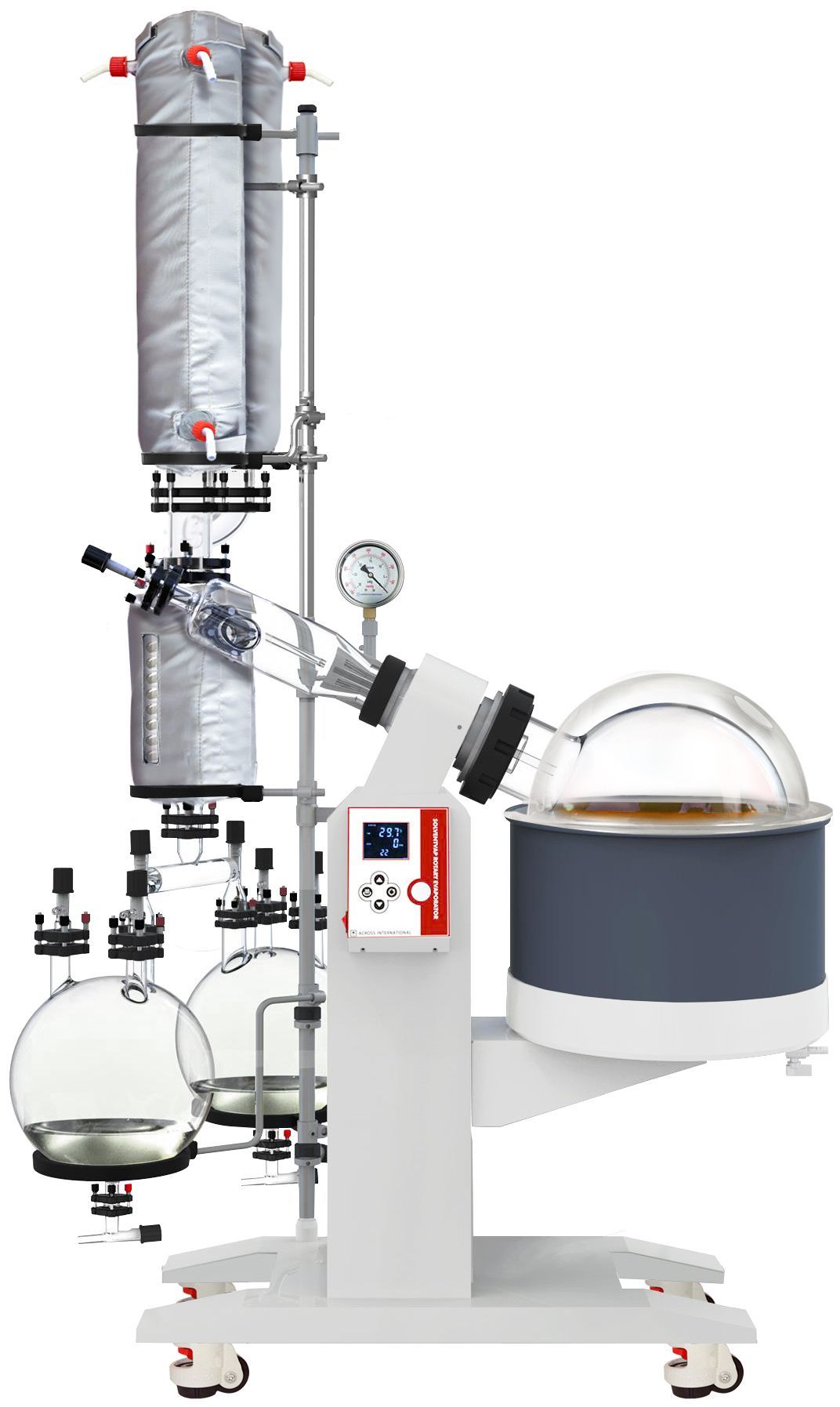

• Condenser insulation sleeves protect operators from thermal shock breakage

• Plexiglass bath cover improves temperature uniformity and reduces heat loss

• Adjustable swivel casters stabilize the unit on uneven floors

---

Stainless Steel Flask Carrier

A custom 20L flask carrier with silicone cushions allows safe handling and loading of the large evaporation flask.

---

Safety Features

• Dry-run protection

• Water bath over-temperature shutdown

• Built-in circuit breakers

• PTFE/Viton solvent-resistant sealing system

• Stable base with locking swivel casters

Important Safety Notice

Operators must avoid contact with rotating parts. Loose clothing, jewelry, or hair can become entangled in rotating components. Always follow proper laboratory safety procedures when operating glass reaction equipment.

---

Ideal Applications

• Cannabis extraction laboratories

• Chemical solvent recovery

• Pharmaceutical manufacturing

• Pilot-scale chemical processing

• Research and development laboratories

• Industrial solvent distillation

---

Electrical Requirements

Voltage

• 220V

Frequency

• 50 / 60 Hz

Power

• 4300 Watts

Current

• 20 Amps

Rotation Motor

• 300 Watts

Power Plug

• NEMA L6-30 30A 250V

---

Glassware Specifications

Glass Material

• High borosilicate glass 3.3

Evaporating Flask

• Capacity: 20 liters (5.28 gallons)

• Maximum load: 60% of flask capacity

• Sealing flange diameter: 4.9 inches

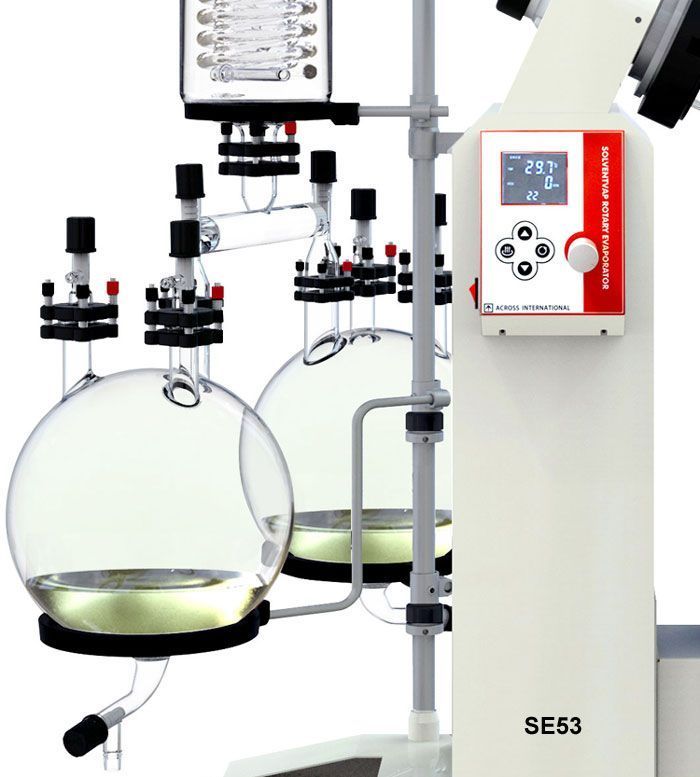

Receiving Flask

• 10 liters (2.64 gallons)

---

Rotation & Evaporation Performance

Rotation Speed

• 10 – 130 RPM

Evaporation Rate

• 1 gallon/hour (water)

• 2 gallons/hour (alcohol)

---

Condenser System

Type

• Main + auxiliary vertical condensers

Cooling Connections

• 3/8" hose barb × 4

  • 2 on main condenser

  • 2 on auxiliary condenser

---

Heating Bath

Temperature Range

• Ambient to 99°C (210°F)

Controller

• Digital PID controller

Material

• Stainless steel

Bath Dimensions

• 17.5" diameter × 9.8" depth × 12" height

Heating Media

• Distilled water only

Maximum Water Level

• 1 inch below rim

Heaters

• 2

Drain Port

• 1

---

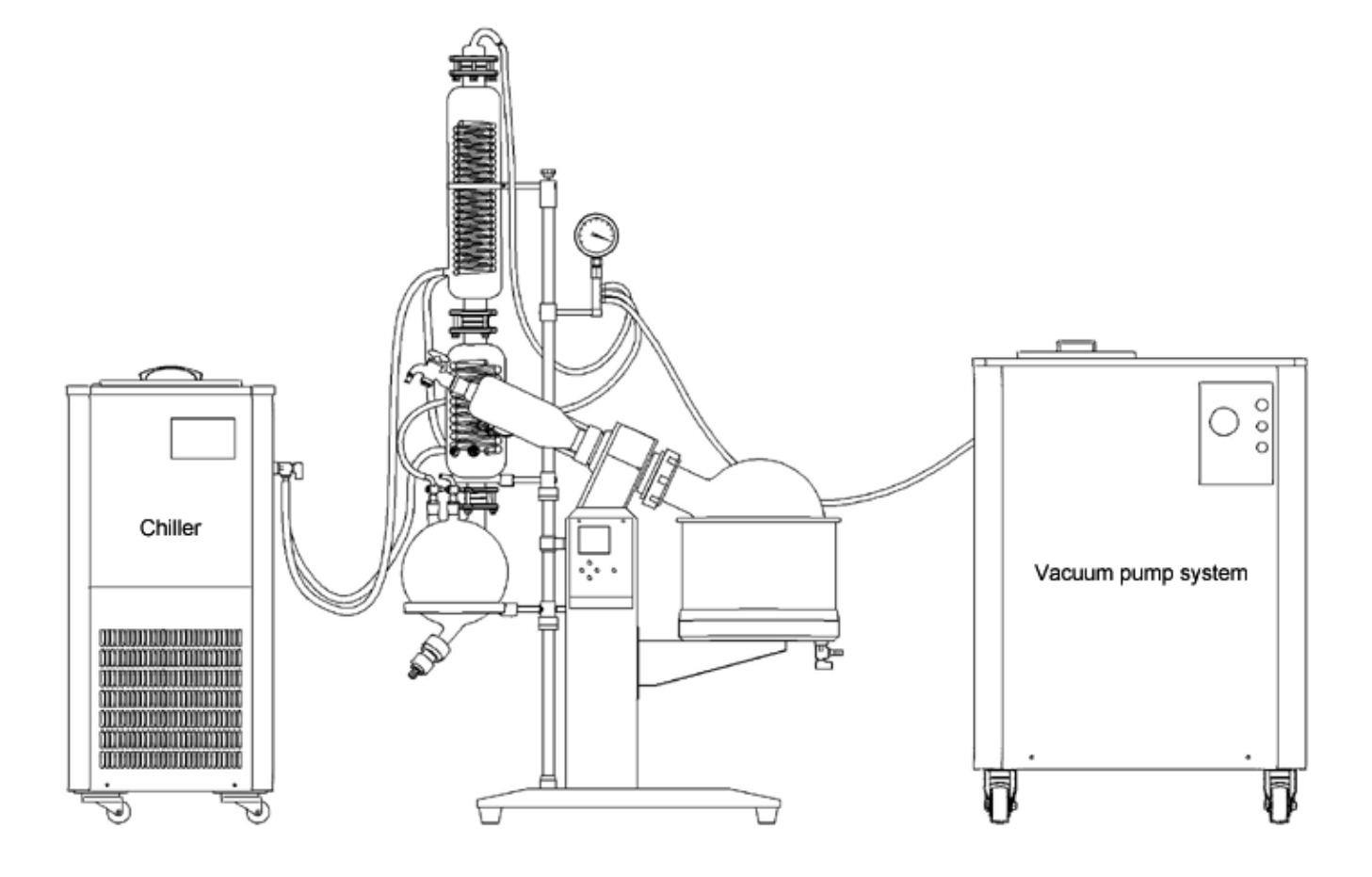

Vacuum System

Vacuum Level

• < 3 torr

Connection

• 3/8" hose barb

Sealing System

• PTFE + Viton gaskets

---

Operating Environment

Recommended Temperature Range

• 5°F – 95°F

---

Dimensions & Weight

Unit Dimensions

• 49 × 23.5 × 82.5 inches

Shipping Dimensions

Evaporator

• 41 × 24 × 48 inches

Glassware

• 34 × 29 × 33 inches

Shipping Weight

Evaporator

• 238 lbs

Glassware

• 130 lbs

---

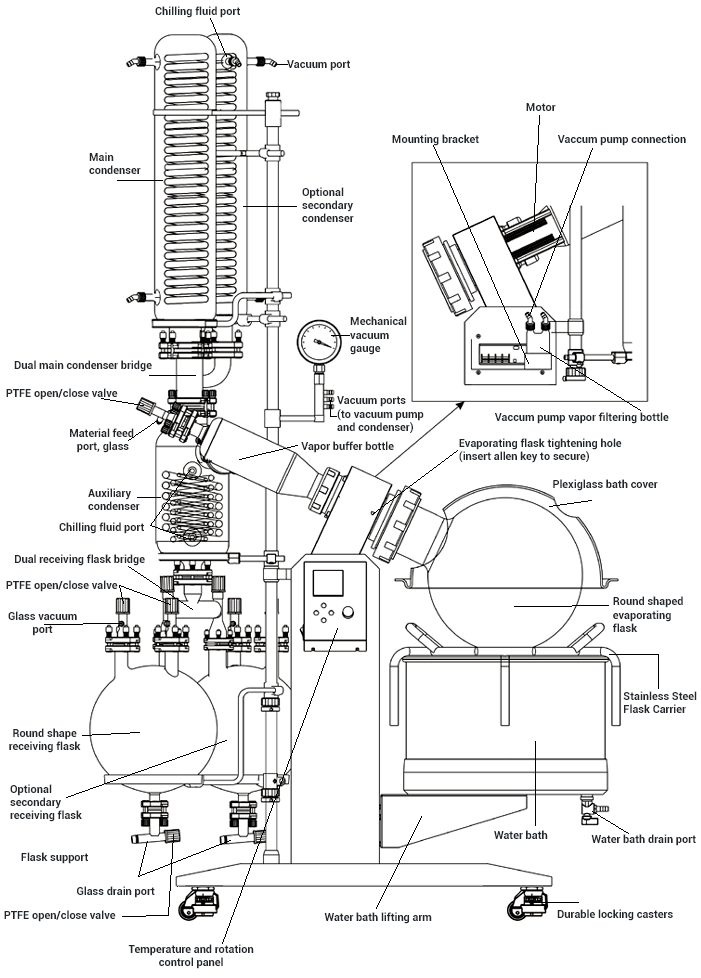

What's Included

• 1 × SolventVap 20L Rotary Evaporator with Water Bath

• 1 × Vapor Filtering Bottle

• 2 × Evaporation Flask Seal & Positioners

• 1 × Evaporation Flask Cap

• 2 × Vertical Condensers (Main + Auxiliary)

• 2 × Condenser Insulation Sleeves

• 1 × 20L Evaporating Flask

• 1 × 10L Receiving Flask with Drain Port

• 1 × Three-Way Vapor Buffer Flask

• 1 × Three-Way Vapor Cap

• 1 × Glass Vapor Duct with Seal

• 2 × PTFE Vacuum Sealing Kits

• 2 × Receiving Flask Vacuum Ports with PTFE Valves

• 1 × Material Feeding Port with PTFE Valve

• 1 × PTFE Extension Feeding Hose

• 1 × Receiving Flask Drain Port with PTFE Valve

• 2 × Stainless Steel Support Poles

• 1 × Mechanical Vacuum Gauge

• 2 × Condenser Supports

• 1 × Receiving Flask Support

• 7 × Flask Quick Clamps with Centering Rings

• 8 × Centering Rings

• 5 × GL18 Connectors with Gaskets

• 1 × Evaporating Flask Cap Spanner

• 5 × Allen Keys and Screws

• 1 × Stainless Steel Flask Carrier

• 1 × Plexiglass Water Bath Cover

• 1 × User Manual

---

Warranty

• 1 Year Manufacturer Warranty

⚠️ Warranty excludes glassware and sealing gaskets.

Glassware may contain minor cosmetic blemishes that do not affect functionality.
