Description

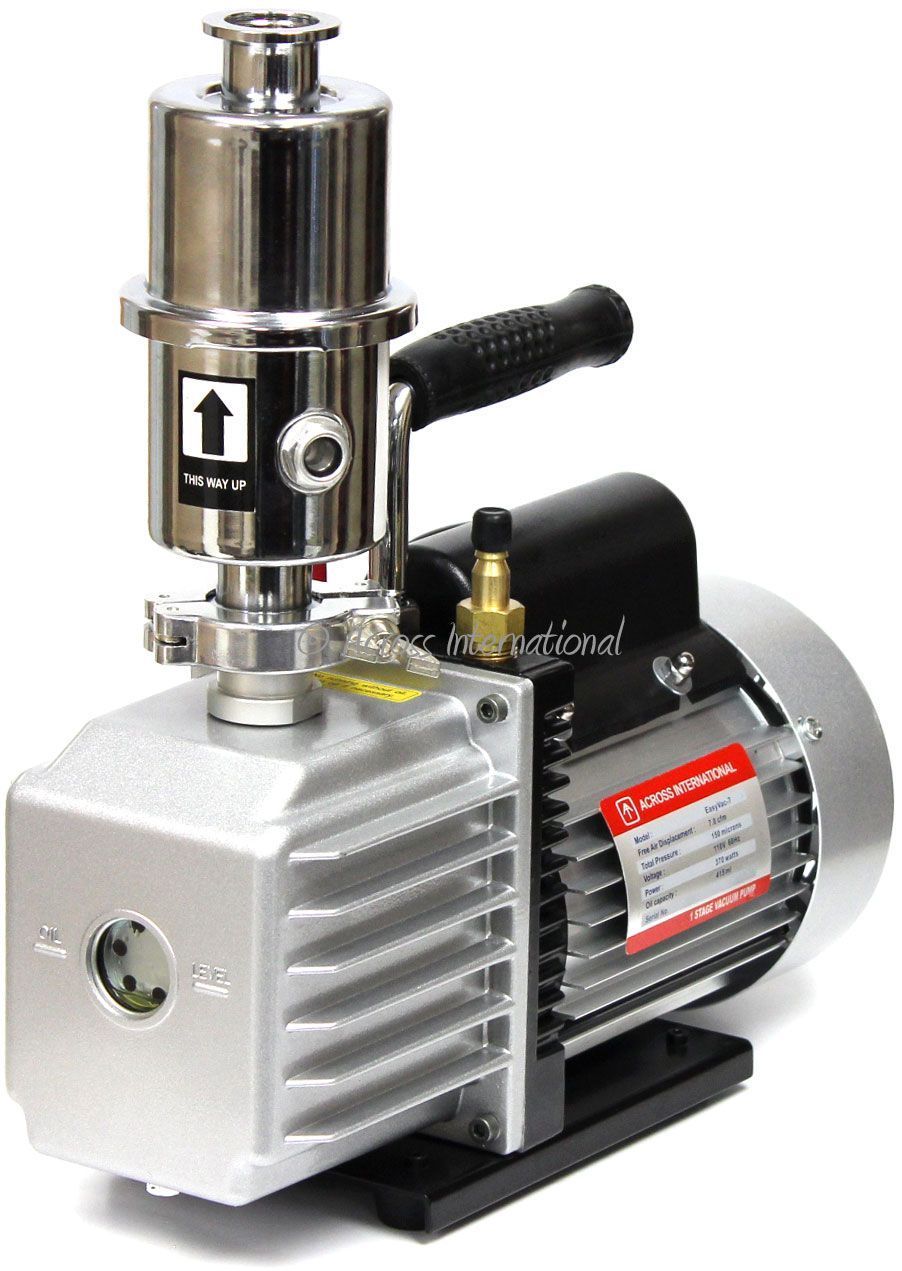

The Across International EasyVac-7 Rotary Vane Vacuum Pump is a compact, high-performance single-stage sliding-vane vacuum pump designed for laboratory distillation systems, vacuum ovens, rotary evaporators, and other vacuum applications.
Delivering a pumping speed of up to 7 CFM, the EasyVac-7 provides reliable vacuum performance with an ultimate vacuum level of 150 microns, making it ideal for laboratory processes requiring stable vacuum conditions.
The pump includes a 3/8" hose barb vacuum connector, a food-grade silicone vacuum hose, and an exhaust oil mist filter that reduces noise while returning trapped pump oil back to the system for improved efficiency.
Designed for versatility, the EasyVac-7 features switchable 110V / 220V power, allowing it to operate in laboratories around the world.
Key Features
Powerful Vacuum Performance
-
Pumping speed up to 7 CFM
-
Ultimate vacuum level of 150 microns
-
Ideal for laboratory vacuum applications
Single-Stage Rotary Vane Design
-
Reliable sliding-vane rotary pump technology
-
Stable vacuum performance
-
Long operational life
Exhaust Oil Mist Filter
-
Reduces exhaust noise
-
Captures oil mist and returns oil to pump
-
Helps maintain cleaner laboratory environments
Compact Laboratory Design
-
Space-saving footprint
-
Durable construction for laboratory use
-
Easy installation and operation
Switchable Voltage
-
Compatible with 110V or 220V
-
Allows global operation
Free Premium Vacuum Tubing
-
Includes 3 ft food-grade silicone vacuum tubing
-
Ready for immediate use
Ideal Applications
-
Short path distillation systems
-
Vacuum ovens
-
Rotary evaporators
-
Freeze drying systems
-
Laboratory filtration systems
-
General laboratory vacuum applications
Electrical Specifications
-
Voltage: 110V / 220V switchable
-
Frequency: 50 / 60 Hz
-
Phase: Single Phase
-
Motor Power: 1/2 HP (370 Watts)
-
Motor Speed: 1720 RPM
Vacuum Performance
-
Pumping Rate:
-
7 CFM (110V 60Hz)
-
6 CFM (220V 50/60Hz)
-
-
Ultimate Vacuum Level:
-
150 microns / millitorr
-
Connections
-
Vacuum Connection: 3/8" hose barb
-
Exhaust Filter Connection: KF25 / NW25 flange
Oil Specifications
-
Oil Capacity: 415 mL (0.44 quart)
-
Recommended Oil: Ultragrade 19 vacuum pump oil
Operating Conditions
-
Working Temperature Range: -5°C to 60°C
Dimensions & Weight
Pump Dimensions
-
13 × 5 × 10 inches
Shipping Dimensions
-
22 × 15 × 10 inches
Weight
-
Pump Weight: 22 lbs
-
Shipping Weight: 30 lbs
Safety & Compliance
-
ETL Tested to UL and CSA Standards
-
CE Certified
What's Included
-
1 × EasyVac-7 Rotary Vane Vacuum Pump
-
1 × Exhaust Oil Mist Filter
-
1 × 3 ft Premium Food-Grade Silicone Vacuum Hose (3/8")
-
2 × Bottles Premium Vacuum Pump Oil (300 mL each)
-
1 × KF25 Wing Nut Quick Clamp
-
1 × KF25 Centering Ring
-
1 × 110V Standard 3-Prong US Power Cord
-
1 × User Manual
Warranty
-
1 Year Manufacturer Warranty
⚠️ Important Operating Note
Vacuum pumps should always be operated in a well-ventilated area.
